DESCRIPTION
FEATURES & BENEFITS
- Universal Fit: Compatible with all 2017-2020 Ford Raptors, including OE halogen and OE LED with BLIS.
- Quick Install: Plug and play with factory wiring; installs in about 30 minutes.
- Better Visibility: Powerful LED reverse lights, compatible with optional LED Backup Boost Bar.

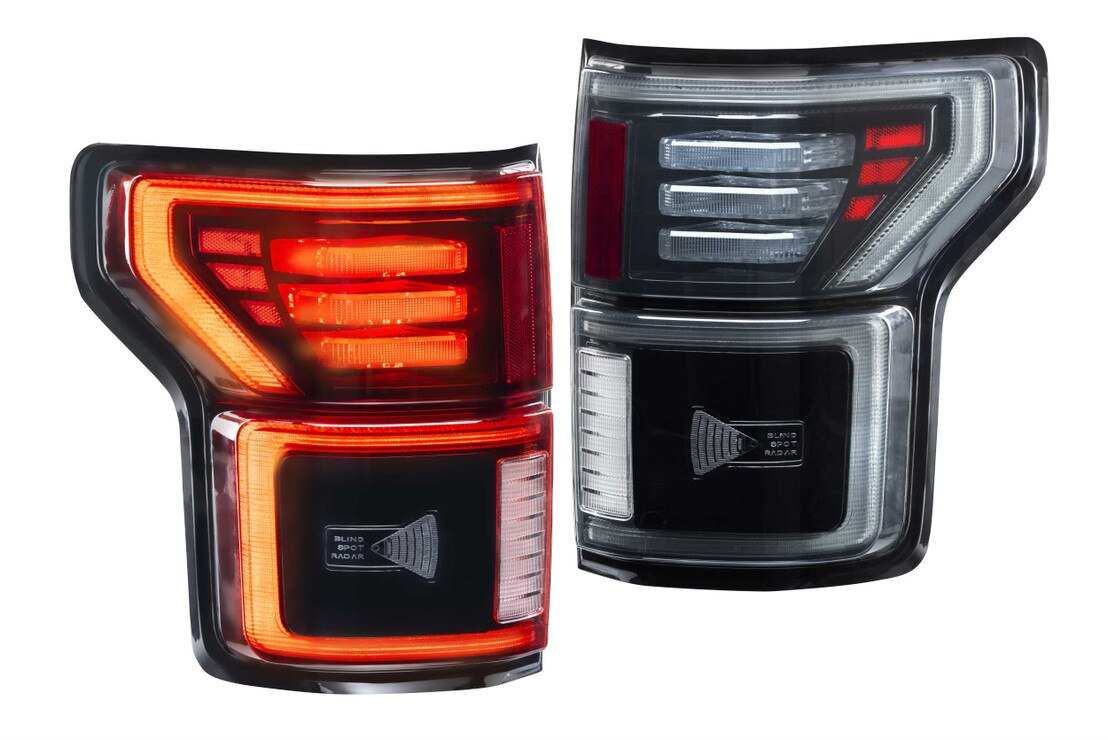

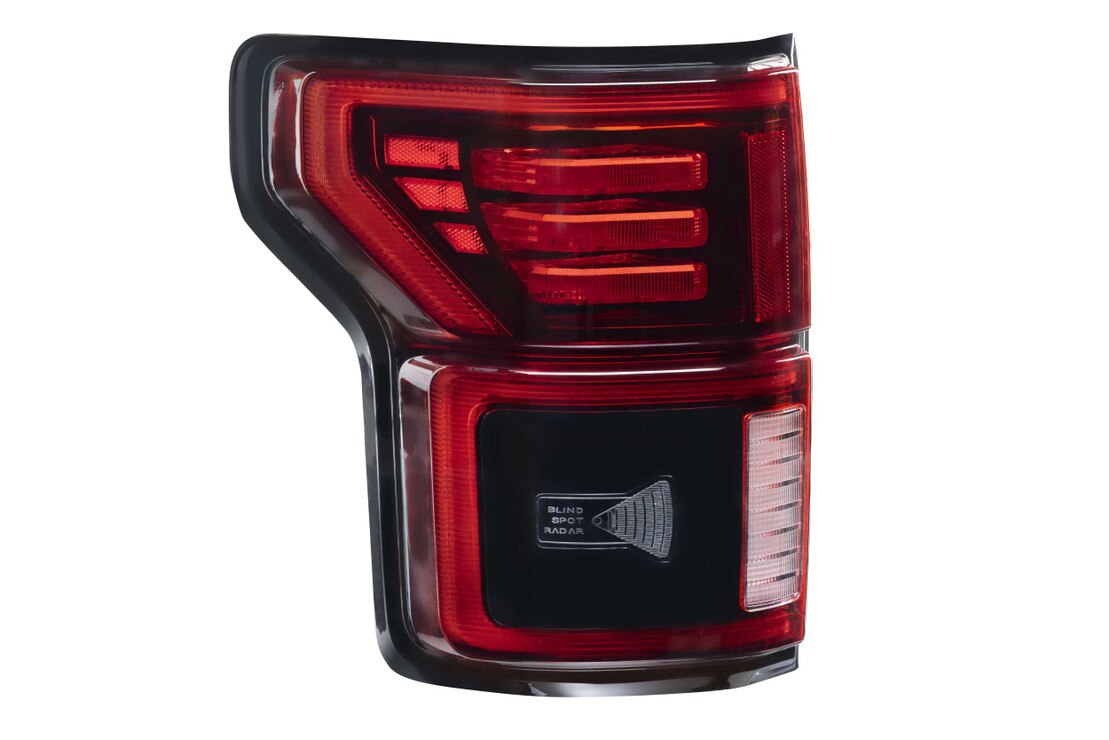

- Sleek Design: Modern 3D optics with smoked or red outer lenses.
- Safe & Compliant: DOT/SAE approved with a five-year warranty.
WHAT’S INCLUDED

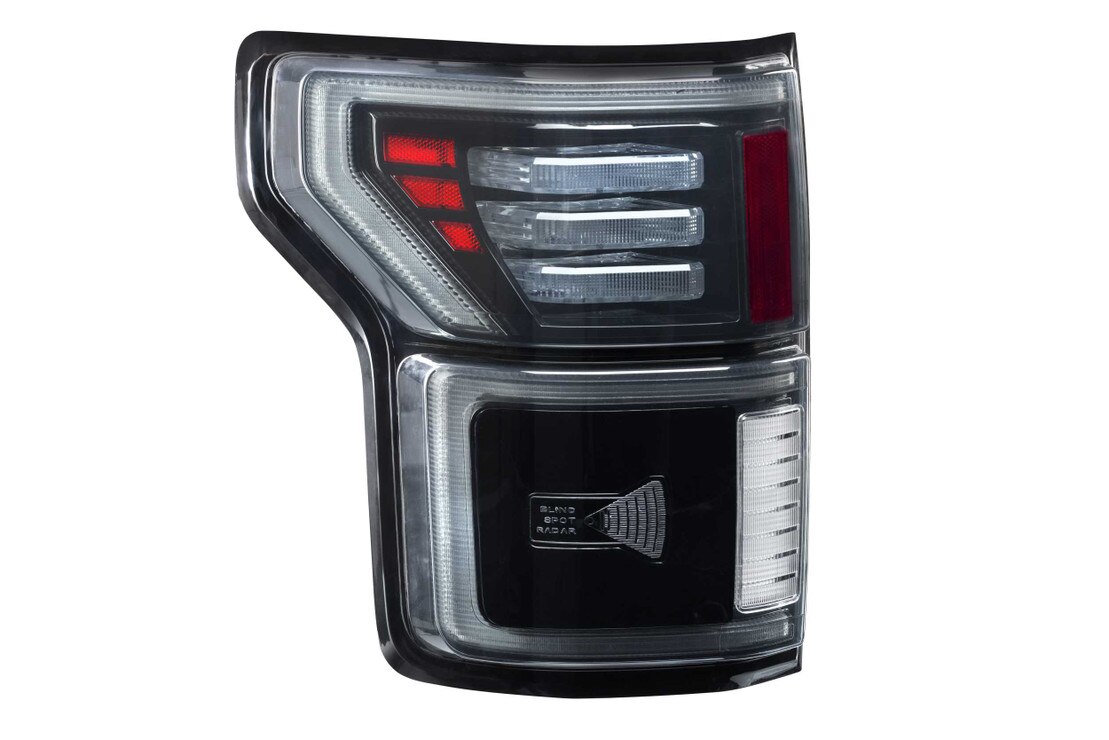

Tail Lights: 2x (One Pair) 17-20 Ford Raptor XB LED Tail Lights
Wiring: Plug and Play Harness

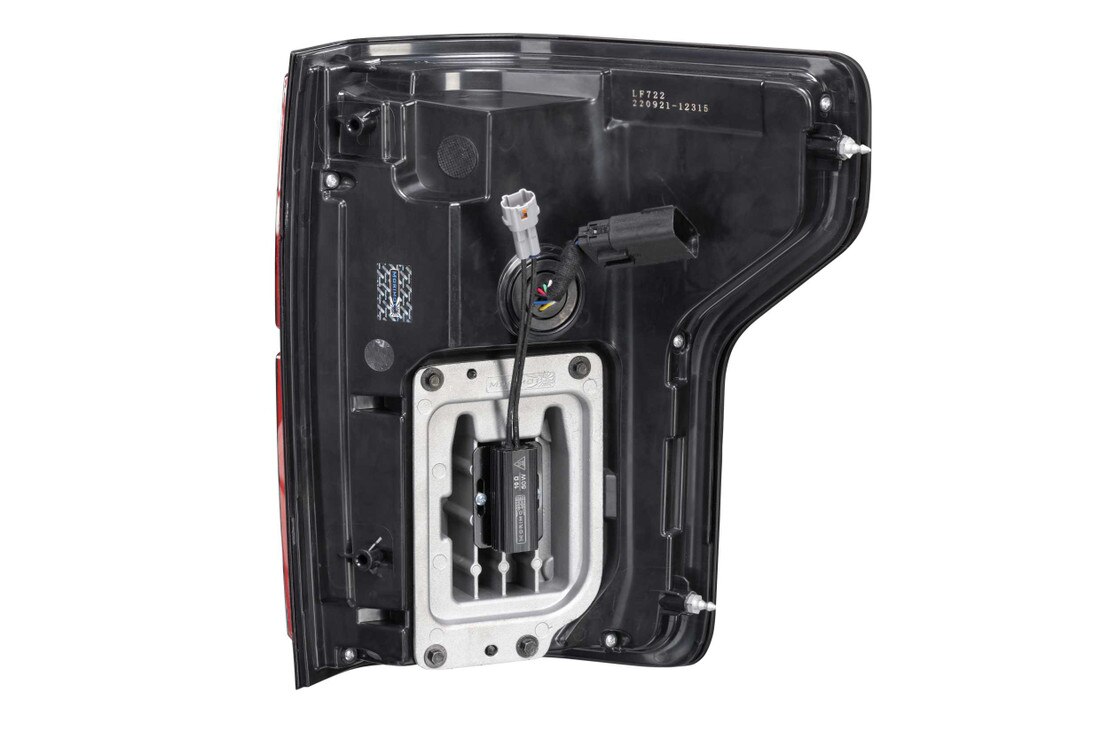

BLIS Brackets: Die-cast mounts / heatsinks (BLIS modules must be swapped)
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Input: Ford Multi-Pin OEM
Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source: SSC LED
Brake Light: Red
Parking Light: Red
Turn Signal: Red
LINE DRAWINGS

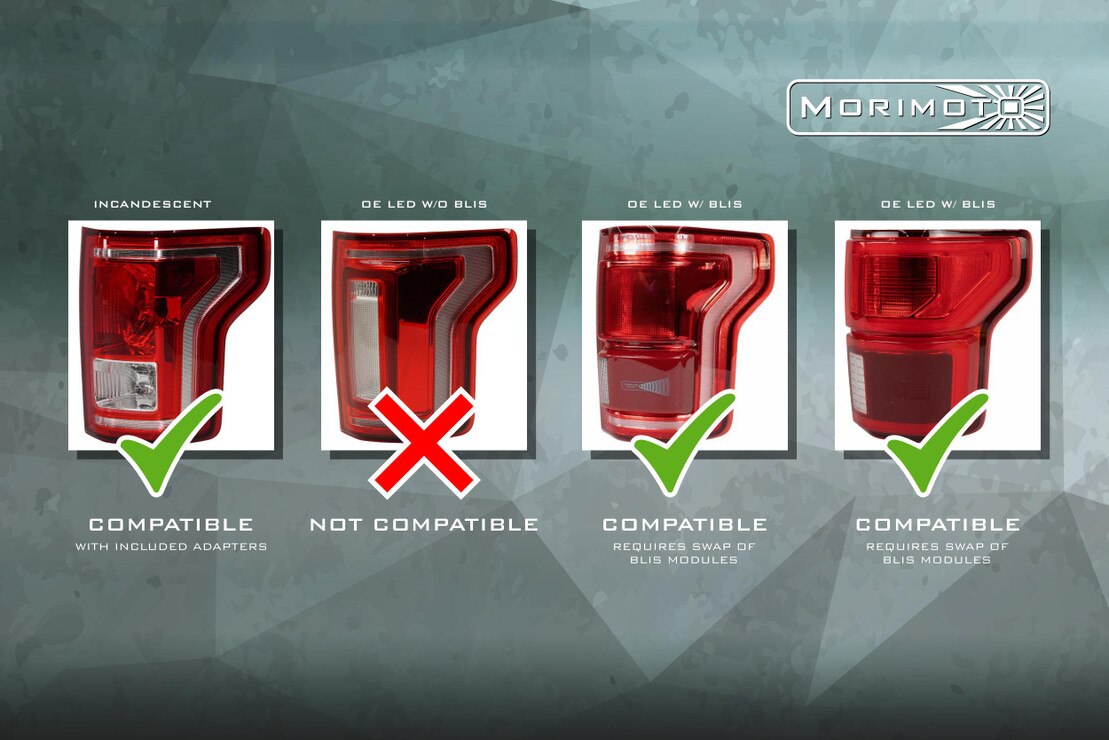

COMPATIBILITY
Ford Raptor Trucks: 2017-2020 (all)
OE LED w/o BLIS System: Not Compatible
OE LED + BLIS System: 100% Plug n Play (Requires swap of OE Modules)
Incandescent Tail Lights: 100% Plug n Play (with included adapter harness)
Replaces Ford Part #: FL34-13B505-AG, KL3Z-13405-A, KL3Z-13405-B, HL3V-13B505-F, FL34-13B505-C, KL3Z-13405-B, JL3V-13B505-EE, HL3Z-13405-A, KL34-13B504-GB, HL3V-13B504-FF, FL3Z-13405-H, FL3Z-13404-A
COMPLIANCE
INSTALLATION DOCUMENTS

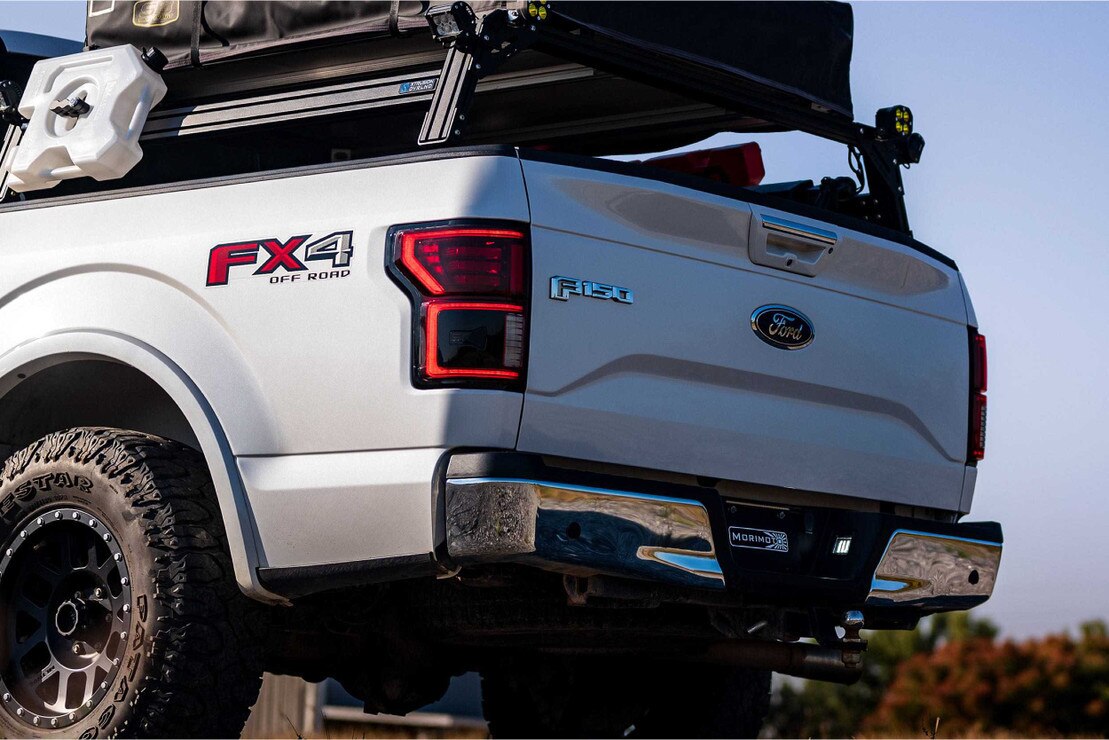

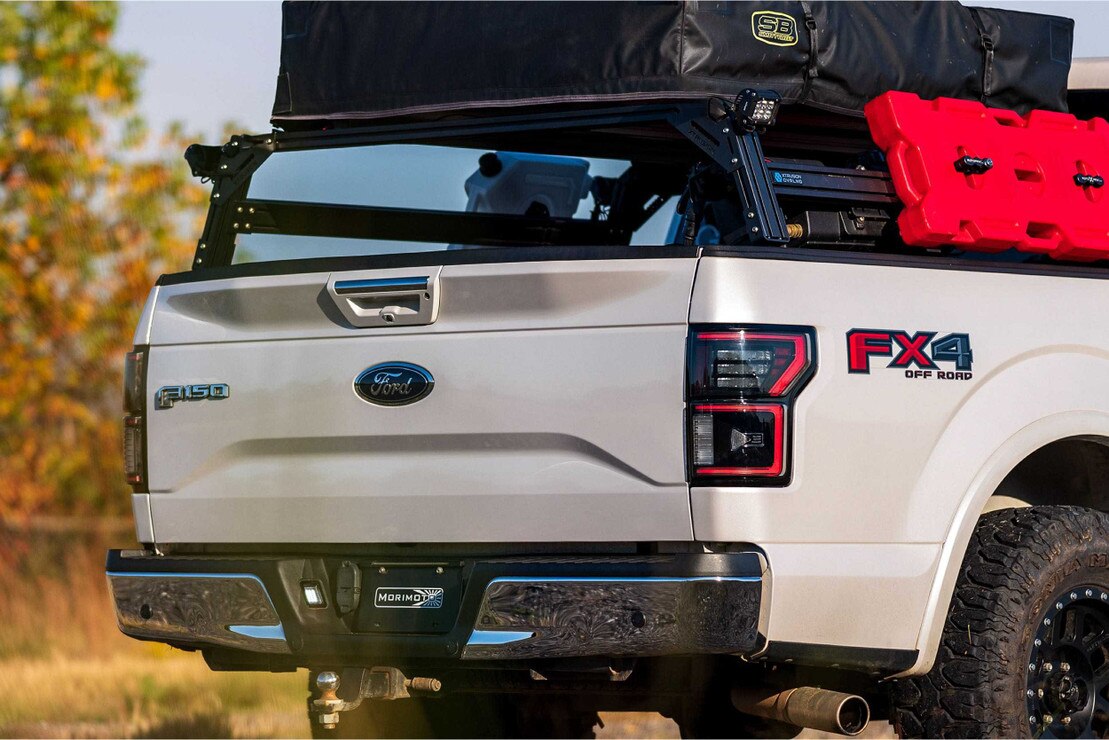

New Ford F-150: While every biz in the aftermarket has a catalog full of products for the 17-20 Ford Raptor, somehow no brand has yet to deliver a worthy set of tail lights for this truck... until now. The Morimoto XB LED tail lights are the category killer that every F-150 owner has been waiting for, and they work with every version of the truck from the base model, up to the Raptor!
Ultimate Flex: Compatible with all versions of the 17-20 Ford Raptor, they will fit all trucks with OE halogen, OE halogen with BLIS, or the OE LED with BLIS, or the Raptor style tail lights... Yes you read that correctly. Even if your truck does not have the BLIS system, the XB tails will still fit, work properly, and add that high-end vibe to your truck. They will not however magically enable the BLIS function. Everything has been thoughtfully designed to be completely plug n play with the factory wiring harness and radar system, use all of the stock mounting points, and should not take more than 30 minutes to install both taillights.

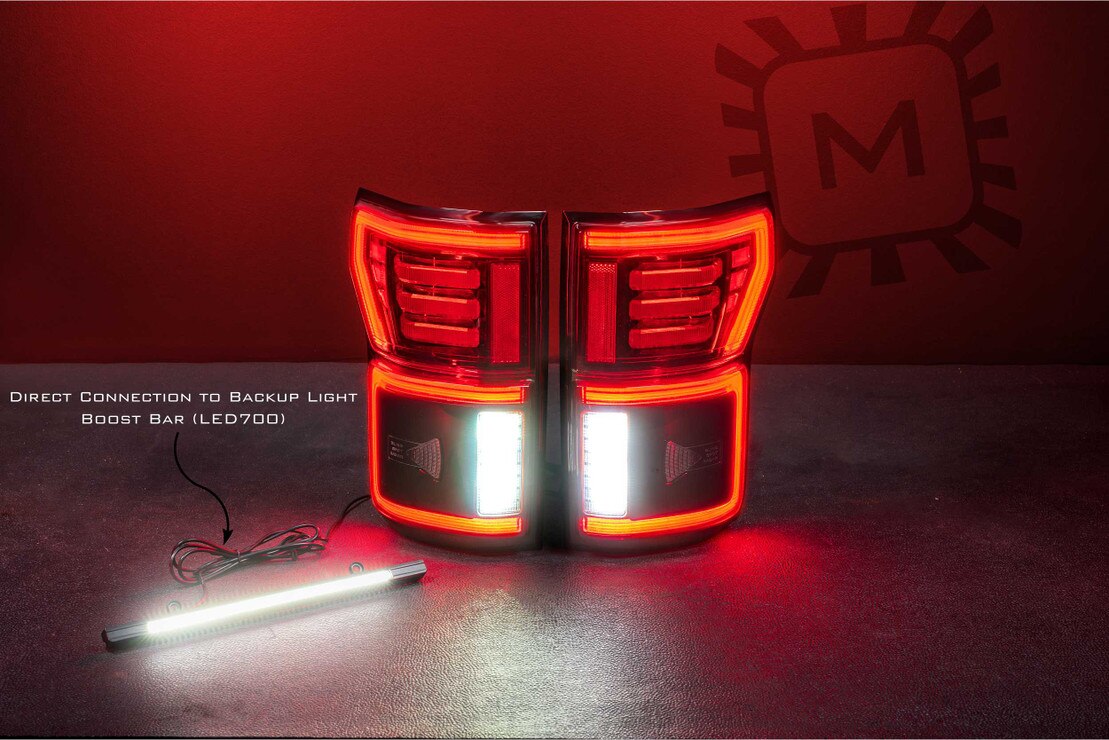

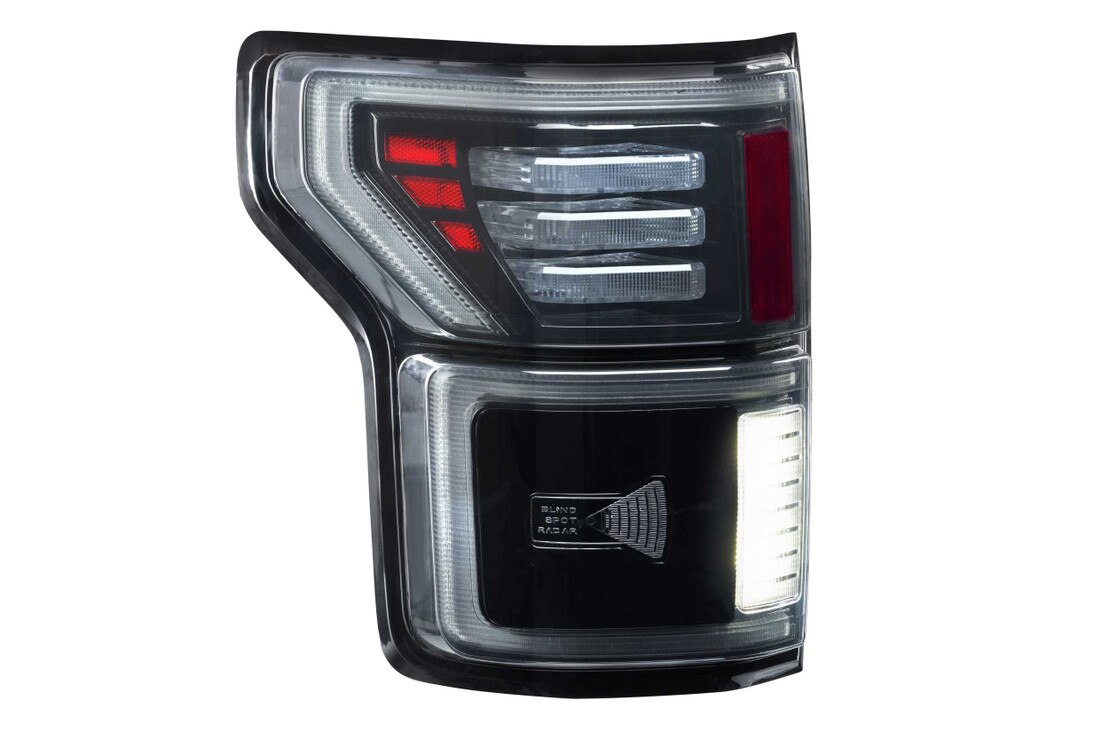

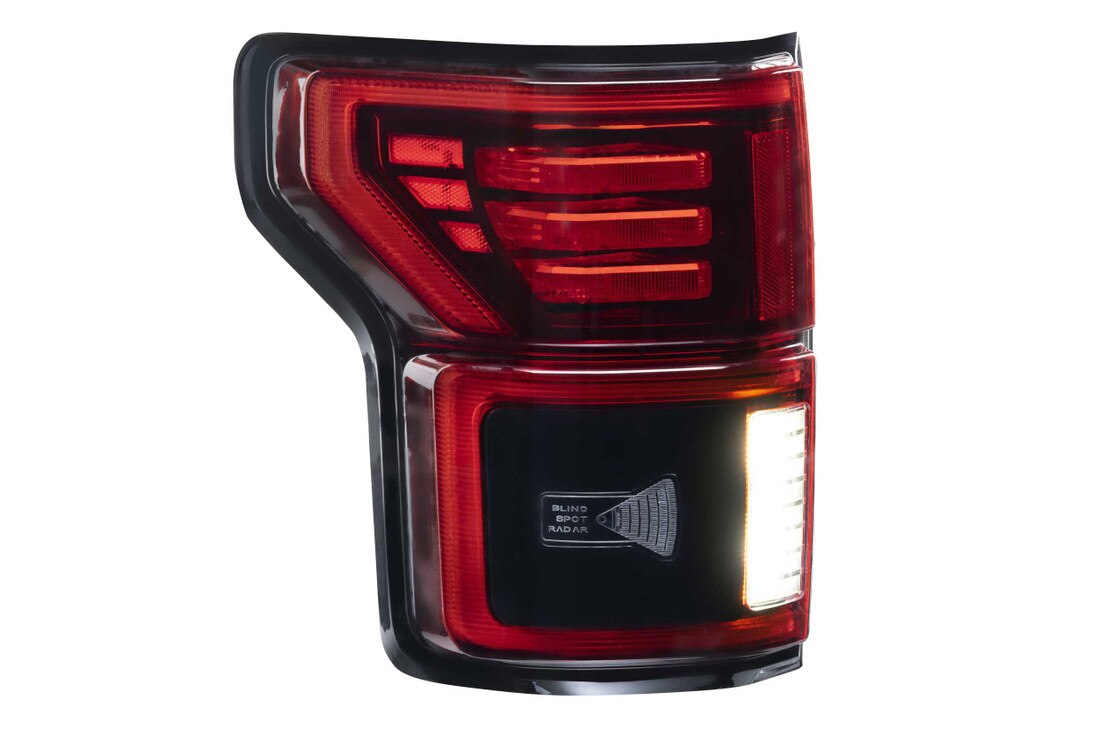

Reverse Lights: Are often over-looked, but not with the Morimoto XB tail lights for the Raptor. While they come standard with powerful LED reverse lights, just wait, there's more! Morimoto's BLBB system allows you to plug n play with the optional LED Backup Boost Bar which mounts to the top of your license plate frame and provides an extra 2,700 lumens of controlled light output in reverse. Yeah, Morimoto customers like to see where they're going in reverse too!

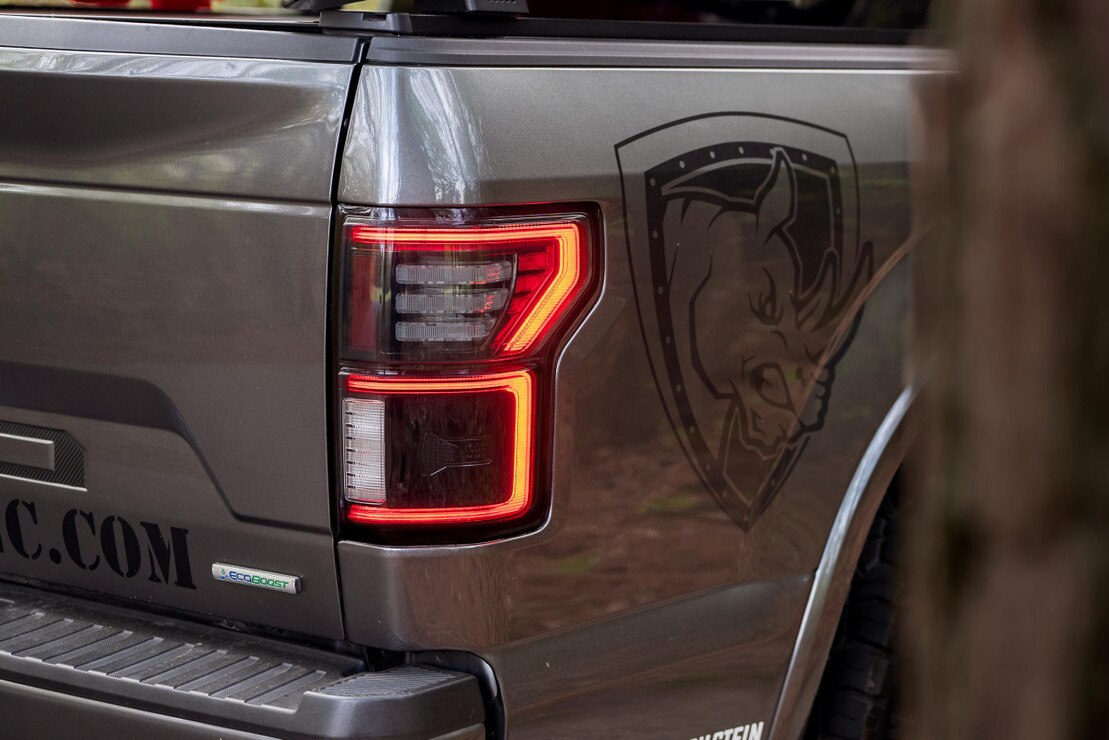

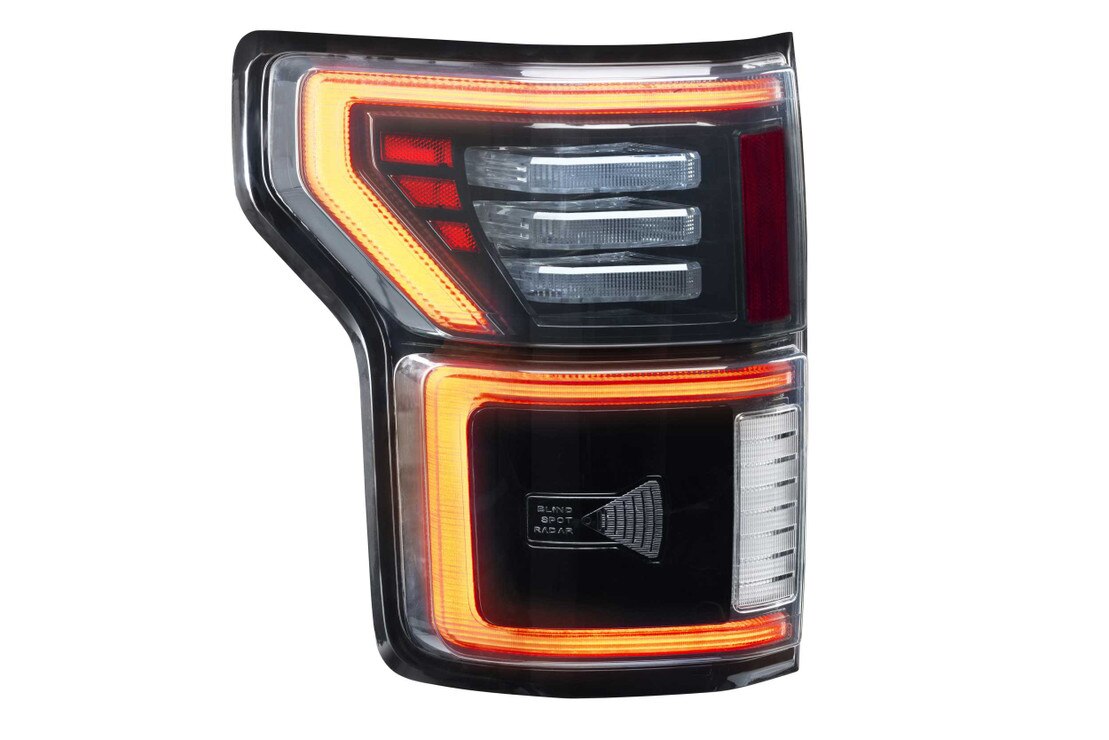

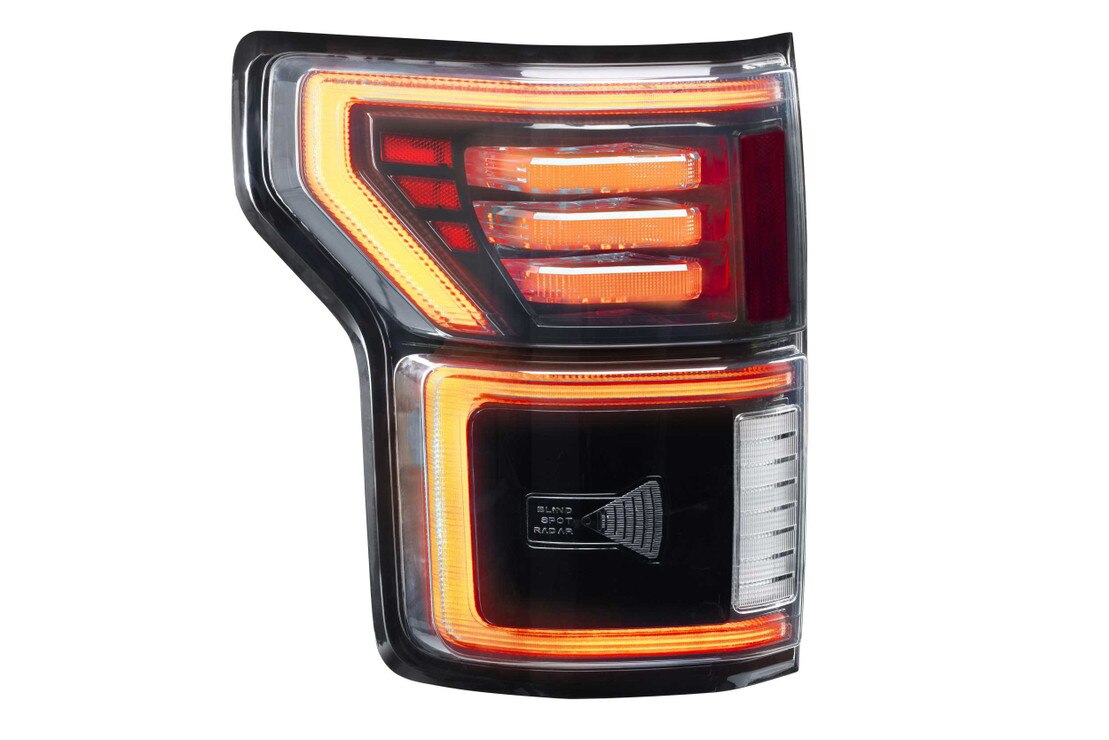

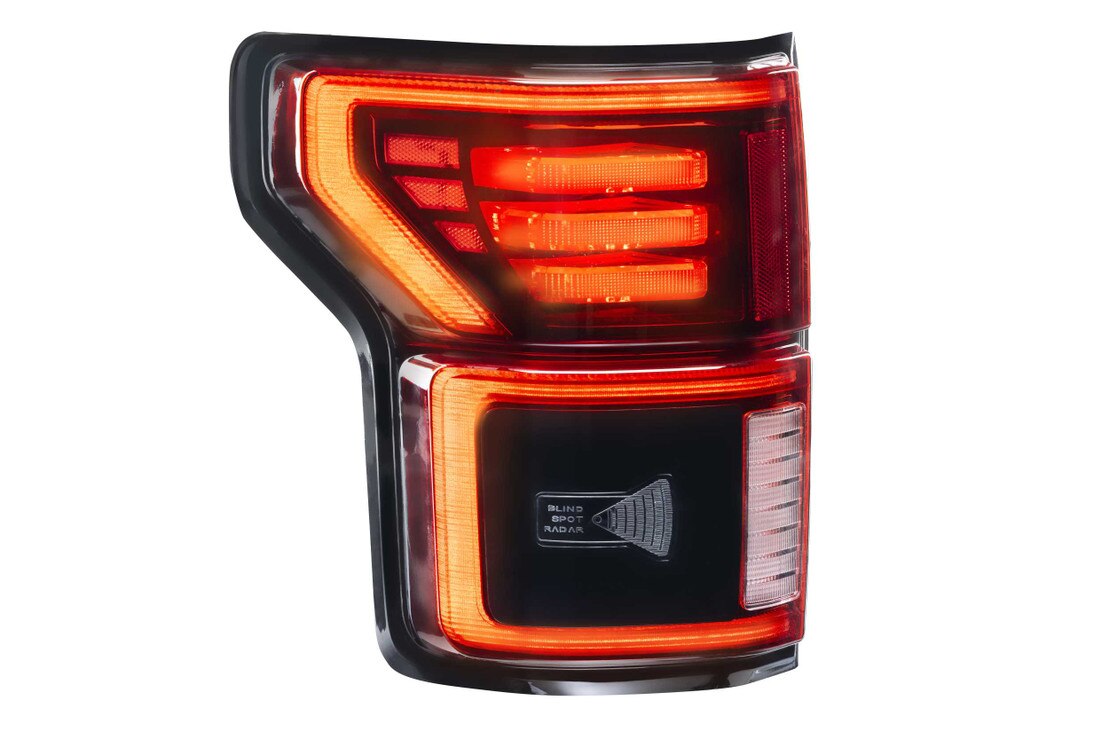

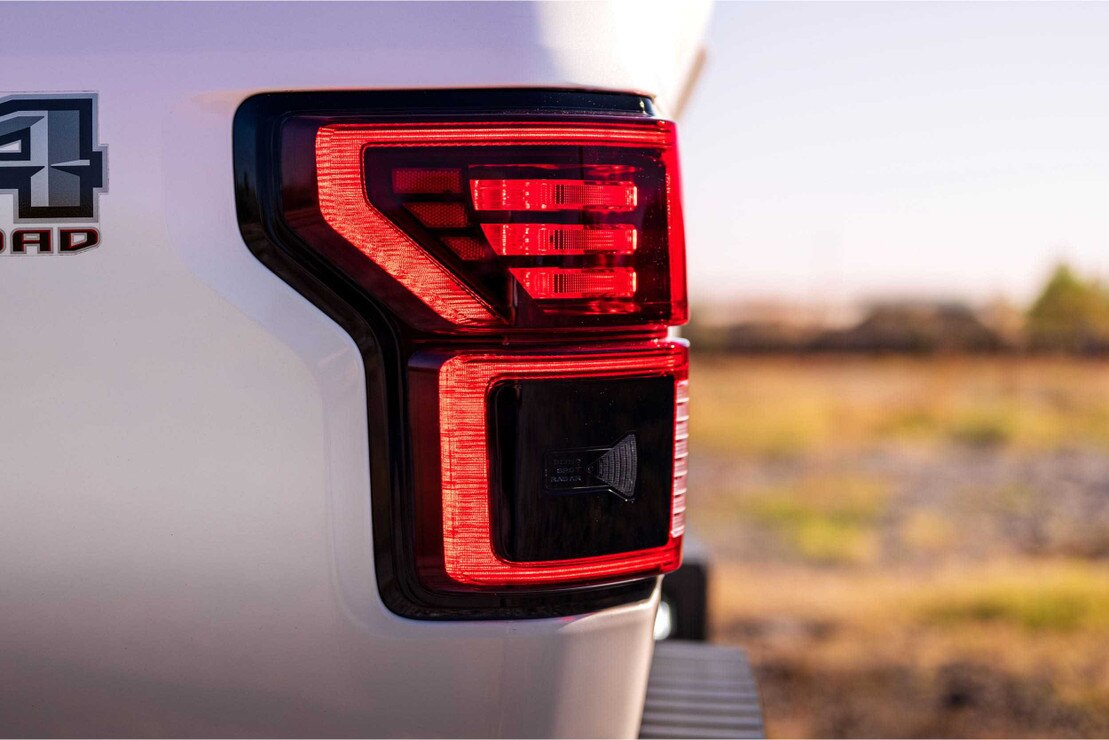

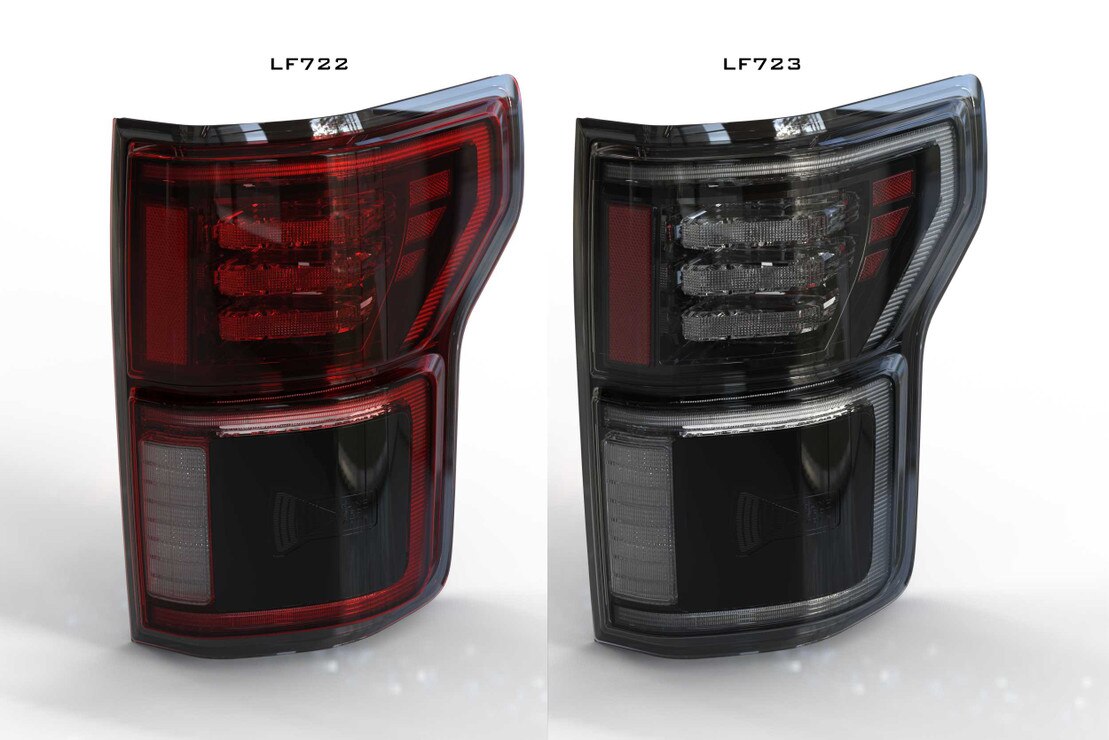

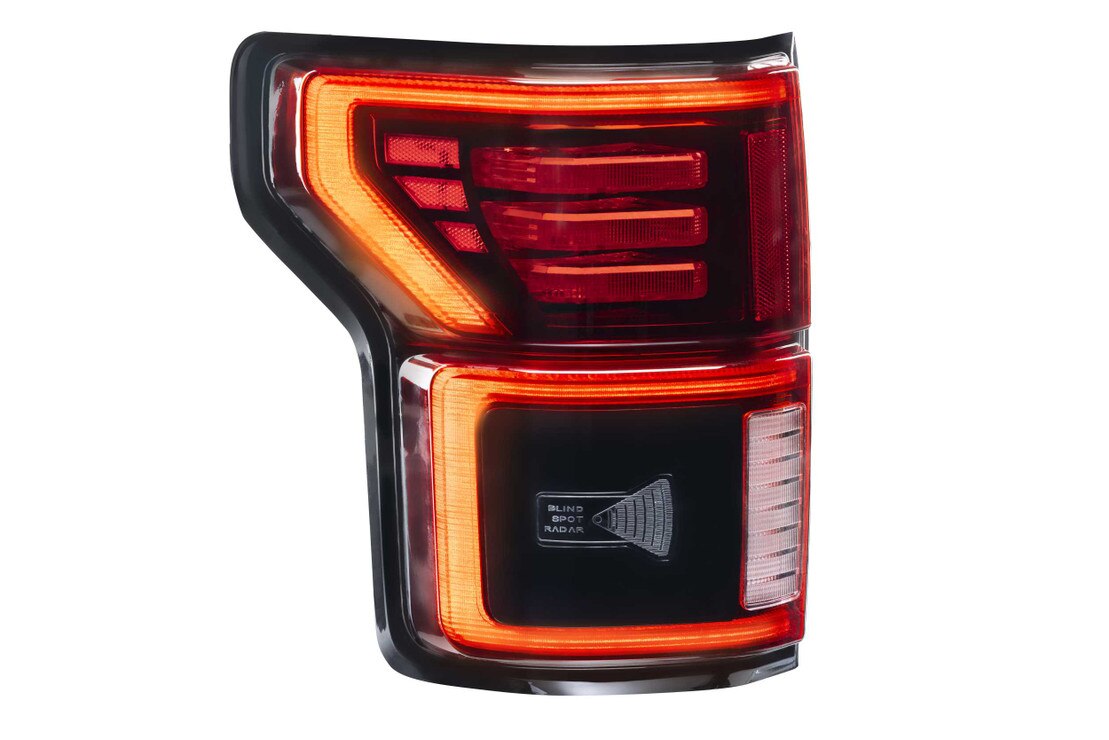

Style: Inspired by the design of the more modern OEM LED tail lights from the 18-20 F-150, these look right at-home on the rear end of the new F-150. An upper row of horizontal 3D Optics are illuminated from the rear with integrated TIR optics, and serve as the brake light and turn signal. The parking light optic around the outer edge of the lights mirrors the OEM LED setup, and is equally impressive in the intensity department day or night. Pair that with the surrounding muscular trim, optional smoked or red outer lens, and we've easily got what is the best-looking set tail lights on the road for this generation of the F-150!
Style and Safety: All Morimoto tail lights are designed to comply with all DOT, SAE regulations for rear-facing lamps. We pride ourselves on offering stylish, high-performance and safe products for serious enthusiasts, which is why all new Morimoto products are verified by trusted third party labs for compliance and are backed with an industry-leading five year warranty.
