Chevrolet Corvette C7 (14-19) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-CVC7-MM

$2,493.00

PRODUCT OPTIONS

PART #: 1 x LF779, 1 x LF755



*Guaranteed Fitment
Easy Return

DESCRIPTION

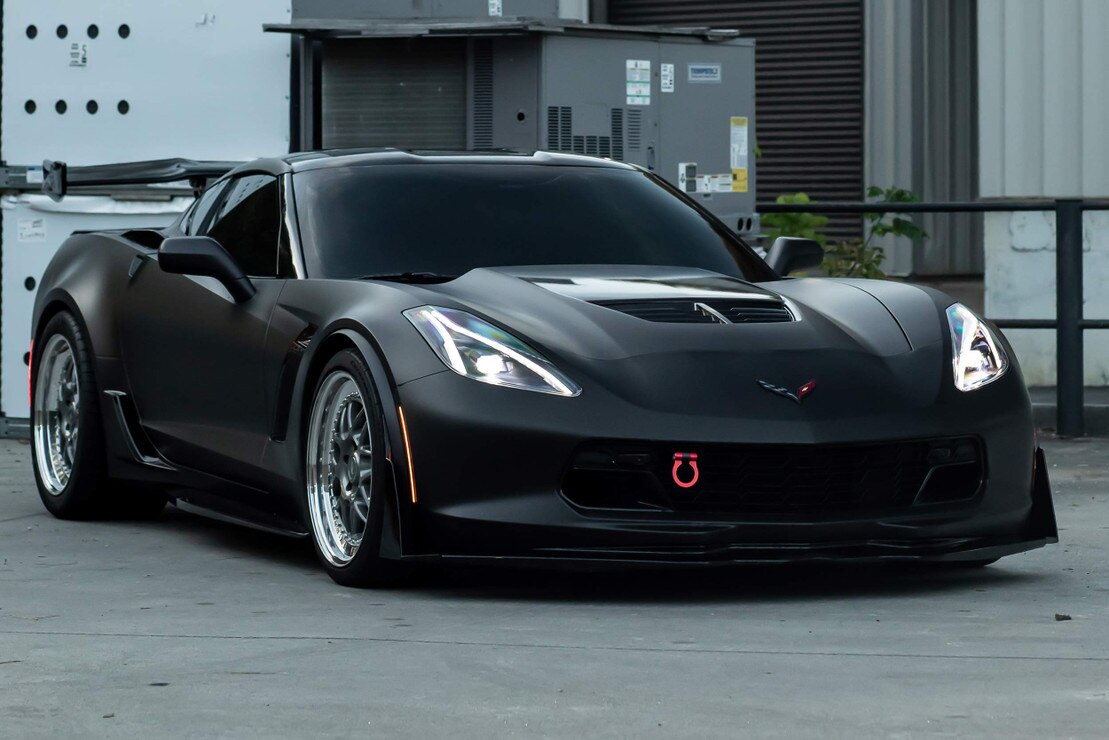

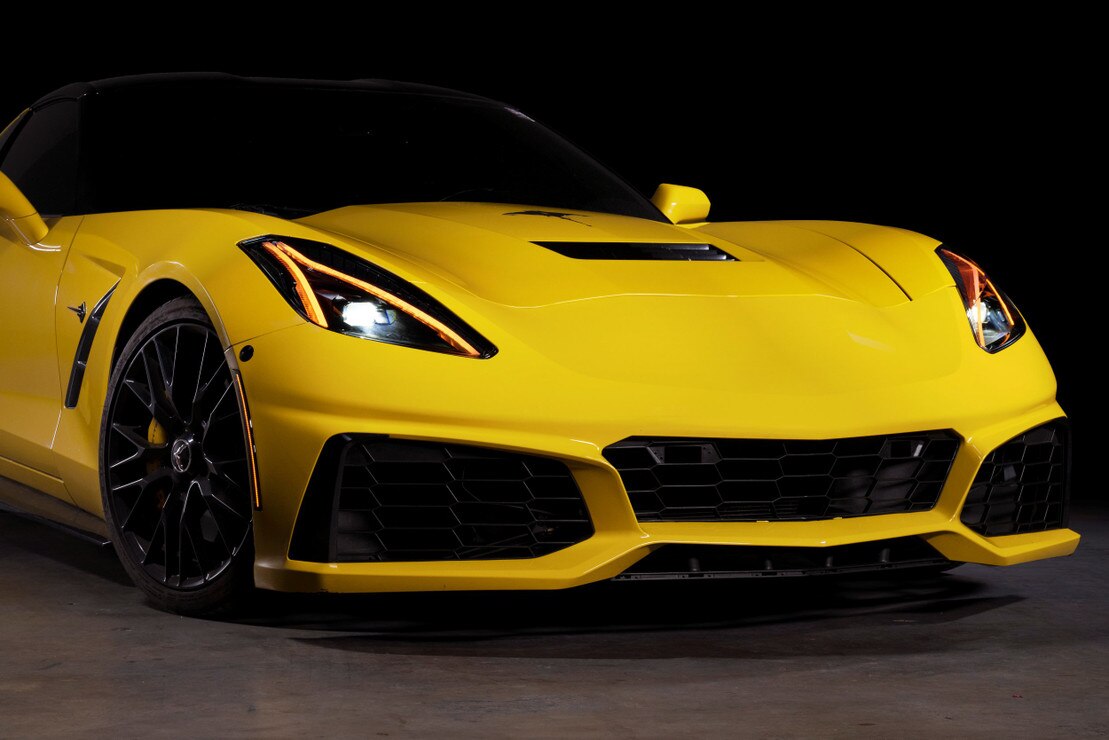

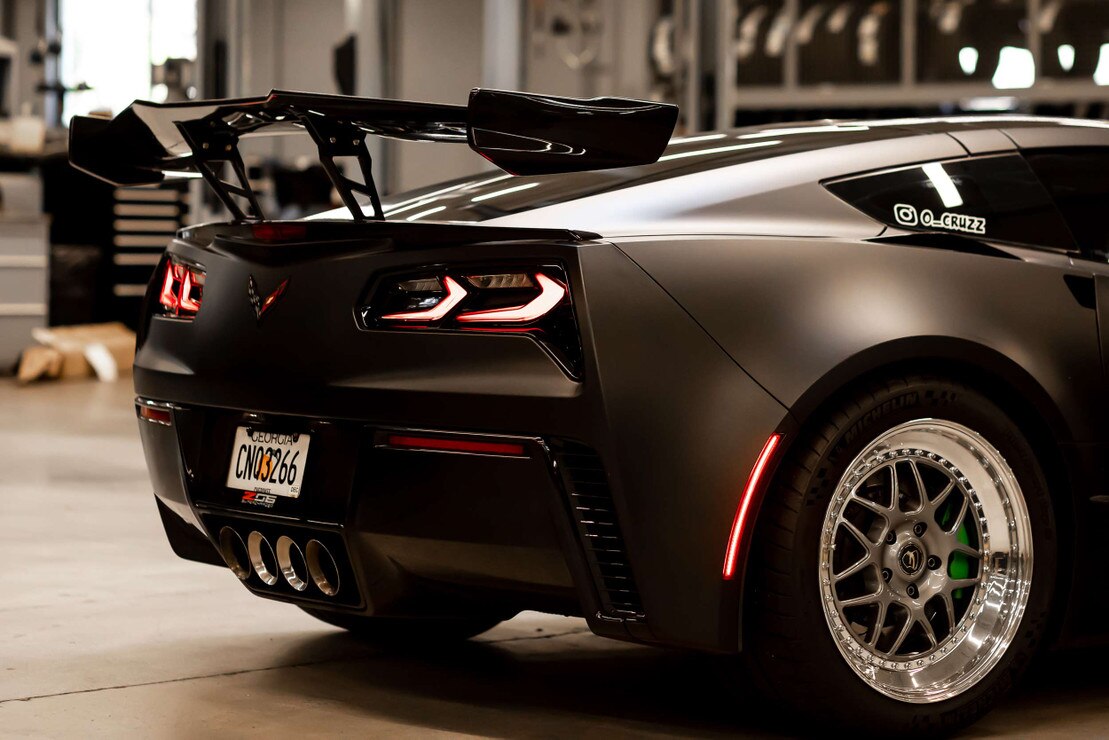

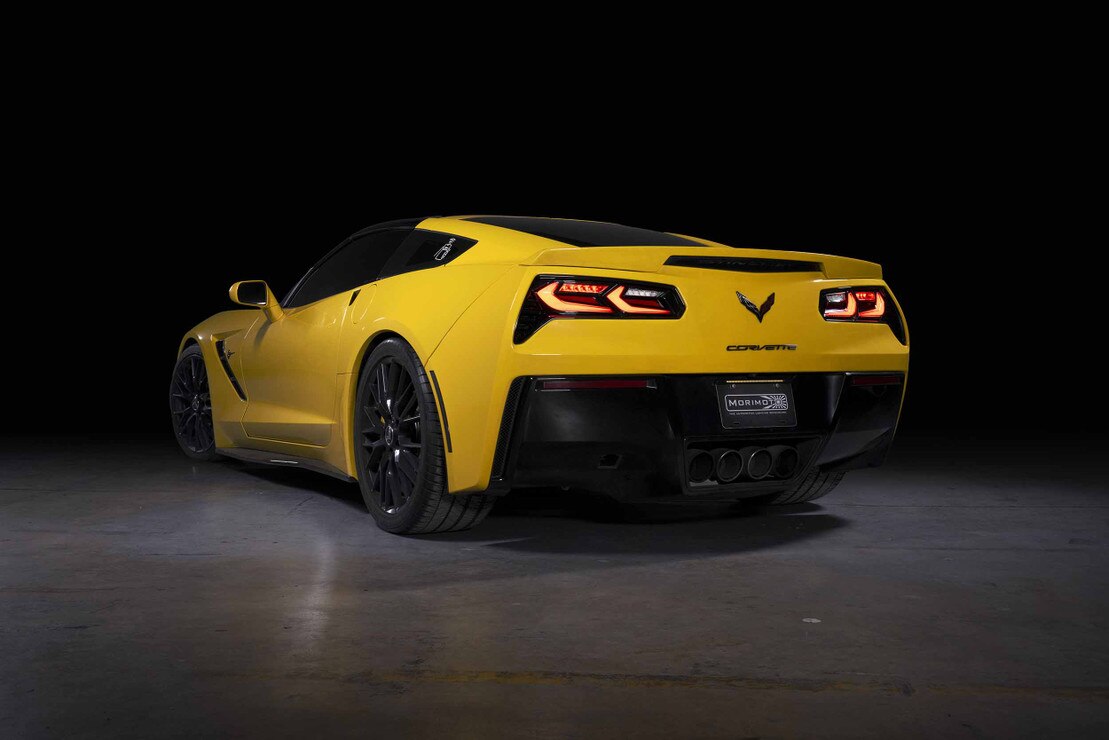

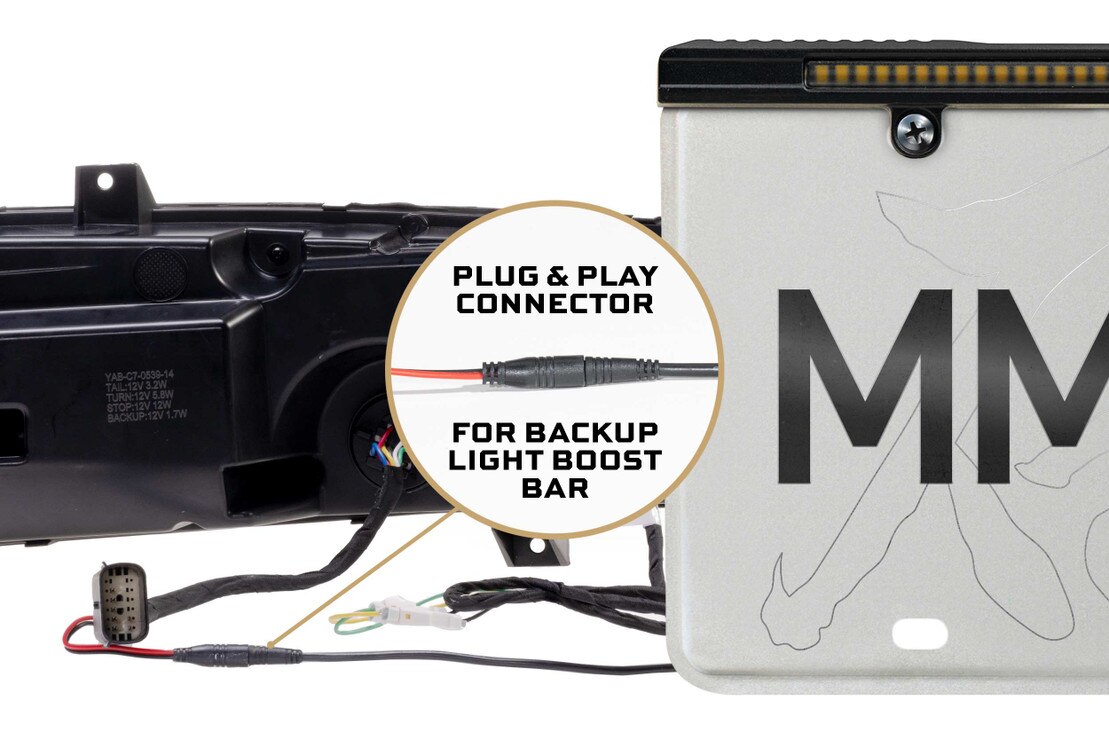

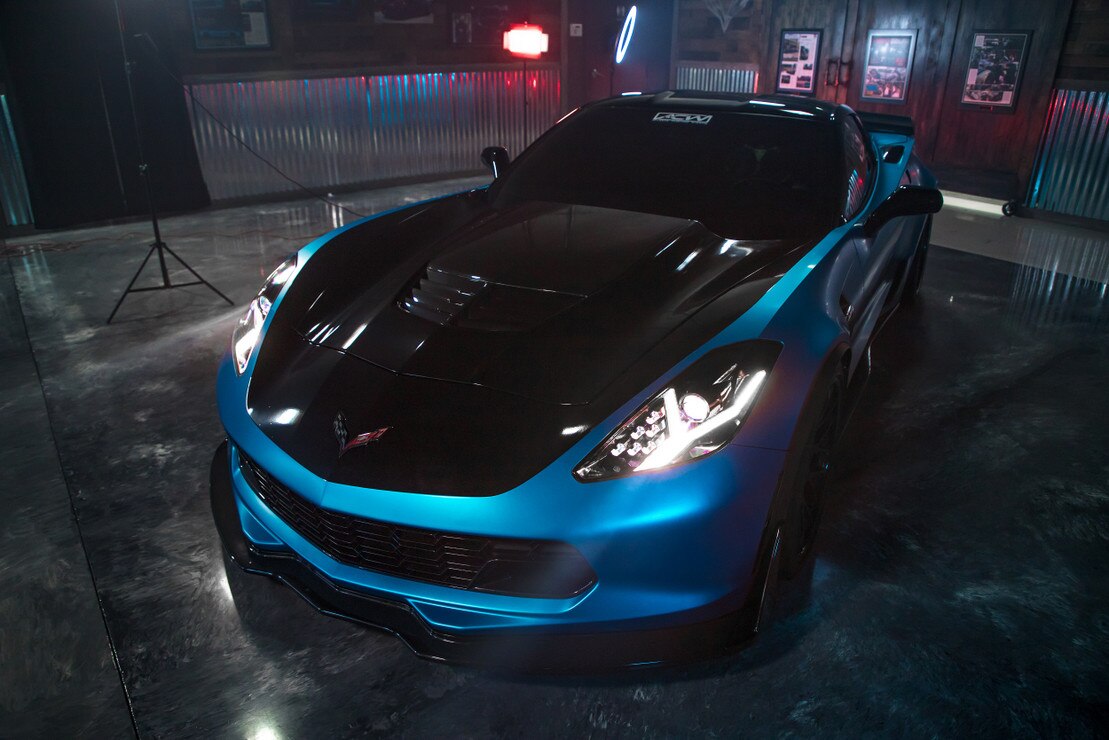

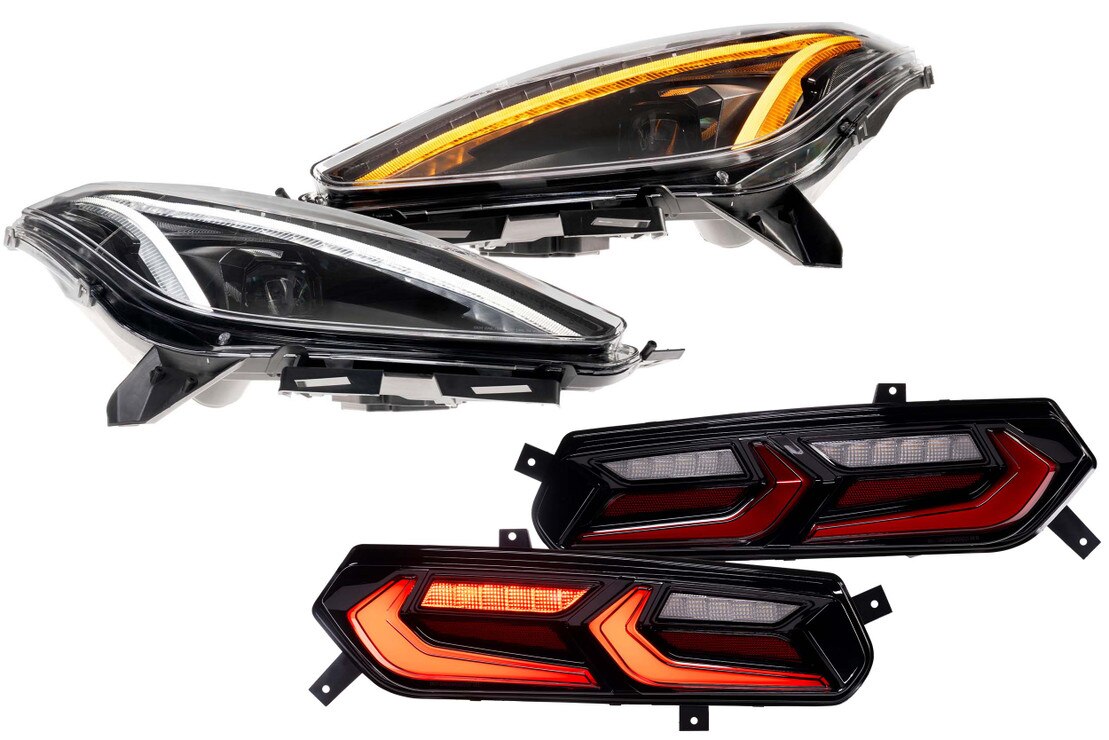

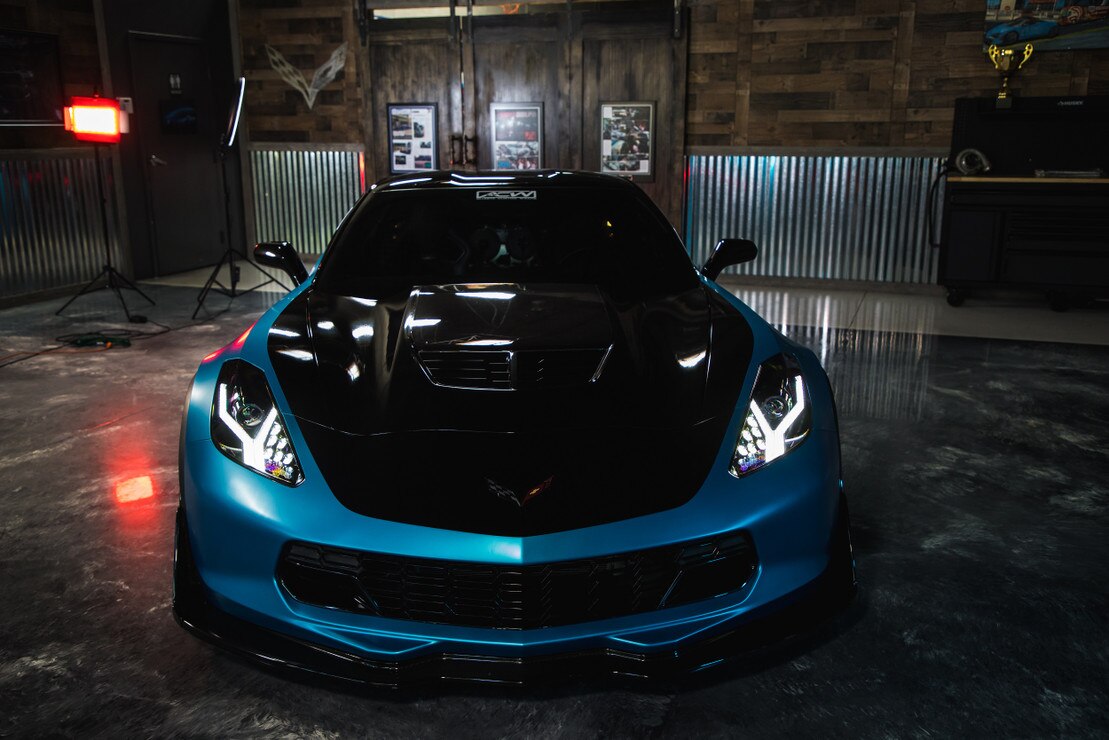

The Morimoto XB LED headlights and tail lights for the Chevrolet Corvette C7 (2014-2019) are designed to improve both style and performance. The Gen II XB headlights use high-powered Bi-LED projectors to deliver brighter and wider light beams than the stock lights, helping you see better at night. The headlights feature special 3D optics for sharp-looking daytime running lights and turn signals that you can customize to flash sequentially or in a traditional way. They fit perfectly on your Corvette and install easily without any modifications or errors. The matching XB LED tail lights offer a modern look with strong brightness and durability. They fit directly on your car using original mounting points and plug into the factory wiring, so no extra parts are needed. These tail lights include parking lights, brake lights, turn signals (with sequential option), and reverse lights. There is also an optional backup light bar for extra brightness when backing up. All parts meet safety regulations and come with a five-year warranty. These lights are built to last and make your Corvette stand out safely on the road.

FEATURES & BENEFITS

  • Bright Lighting: Bi-LED projectors provide brighter, wider beams for better night driving.
  • Custom Signals: 3D optics with selectable sequential or traditional turn signals.
  • Plug & Play: Fits 2014-2019 C7 Corvettes using factory mounts and wiring, no mods needed.
  • Durable Tail Lights: Includes parking, brake, turn, and reverse lights with strong materials.
  • Safe & Reliable: DOT/SAE compliant and backed by a 5-year warranty.

WHAT’S INCLUDED

  • Headlight Choices :

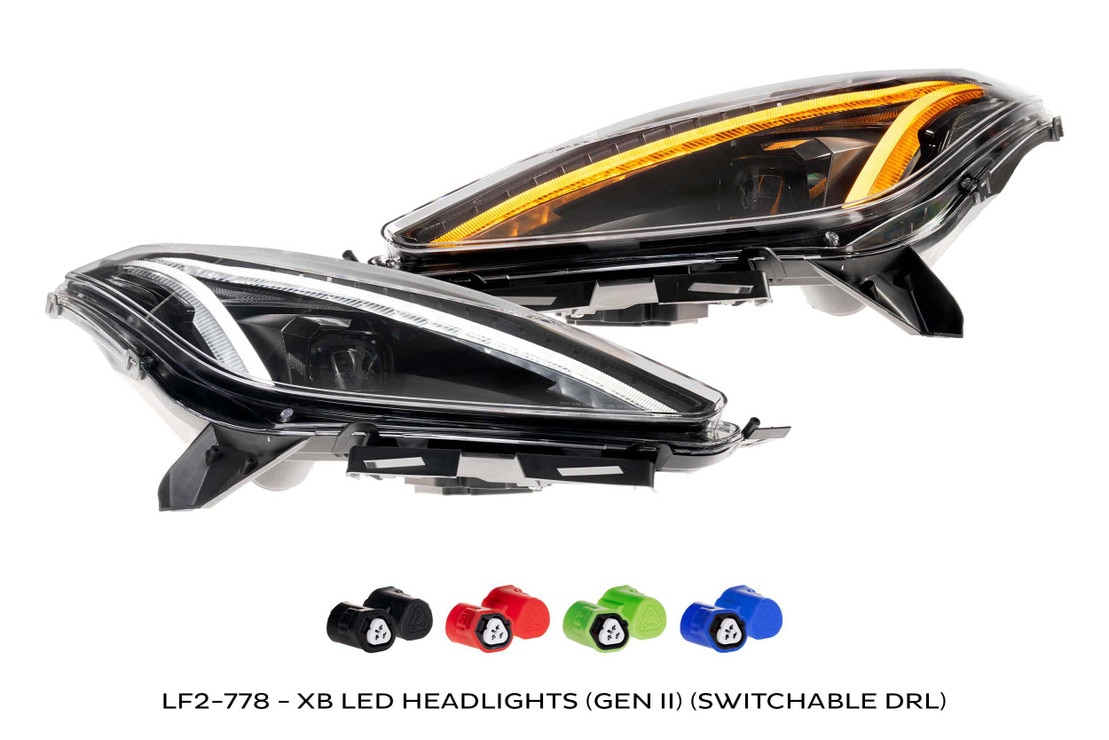

    Morimoto XB LED Headlights: 14-19 Corvette C7 (Gen 2) Click for Details
    Morimoto XB LED Headlights: 14-19 Corvette C7 (Gen I) Click for Details

  • Tail Light Choices :

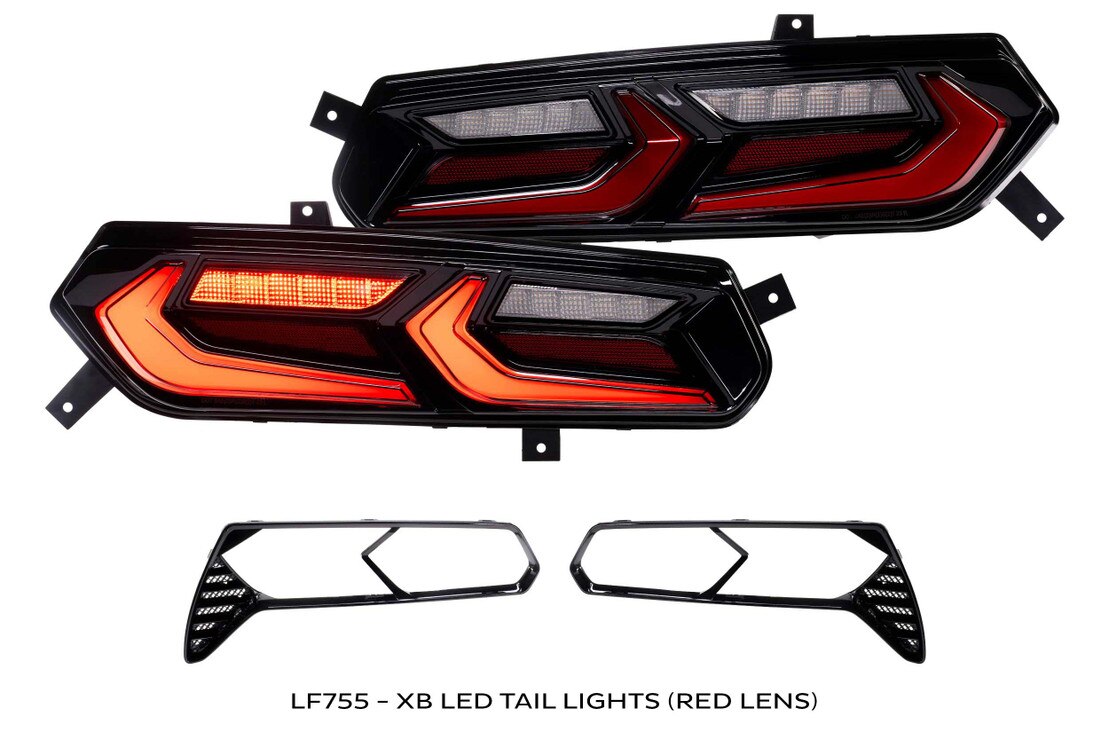

    Morimoto XB LED Tail Lights: 14-19 Corvette C7 Facelift Style (Red Lens) Click for Details

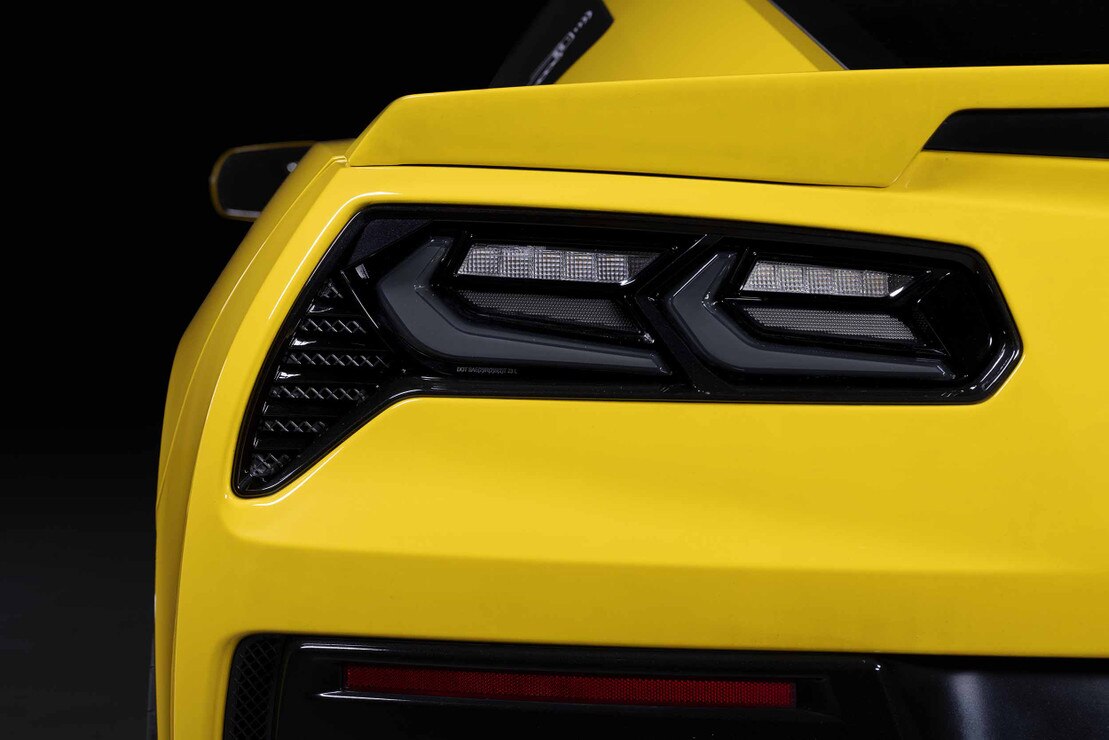

    Morimoto XB LED Tail Lights: 14-19 Corvette C7 Facelift Style (Smoked Lens) Click for Details

WARRANTY INFORMATION

These Morimoto products include a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

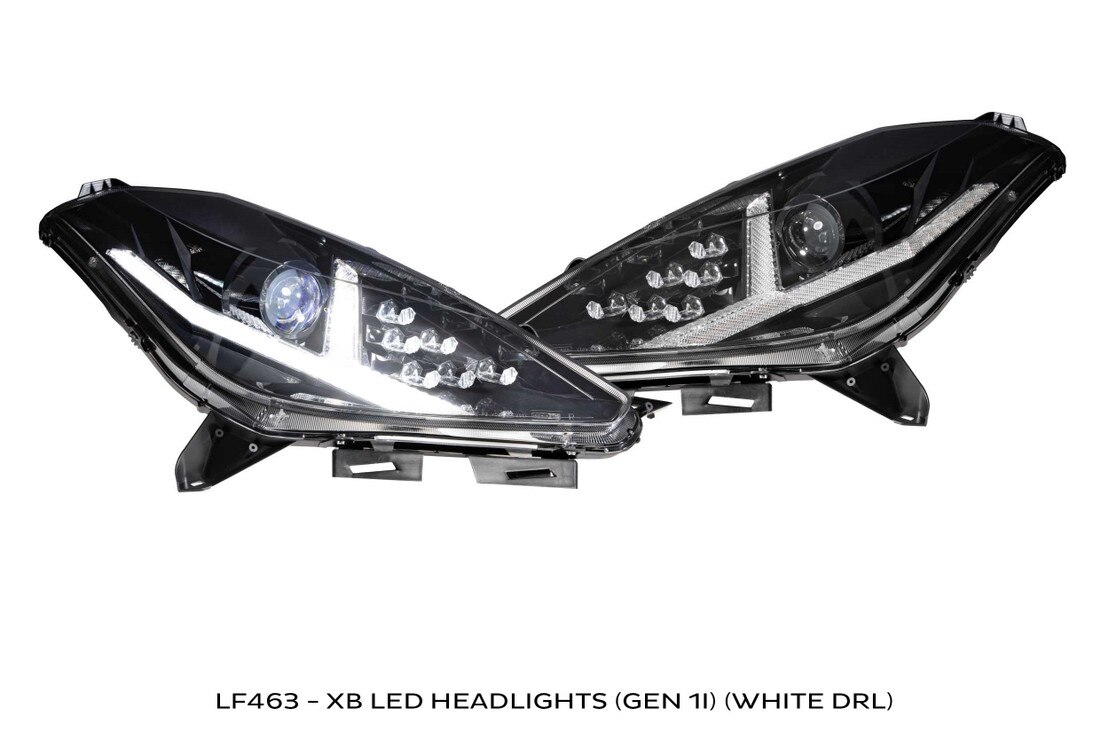

  • Headlights (Gen II) :

  • Traffic Pattern : LHD / Right Hand Traffic Only

  • Input : GM Multi-pin

  • DRL : White or Amber (Configurable)

  • Turn Signal : Sequential or Standard (Configurable)

  • Functions : Low, High, Park, DRL, Turn

  • Interior Color : Gloss Black w/ Contrasting Matte and Gloss Finish

  • Side marker : Smoked

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Optic : Single Morimoto Bi-LED

  • Lens Coating : Hardened Anti-UV Protection

  • Headlights (Gen I) :

  • Intensity : 2,600lm (Raw; each)

  • Traffic Pattern : LHD Only

  • Input : GM Multi-Pin OEM

  • Functions : DRL (White), Turn, Parking, Low, High

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Optic : Kuria Optic BI-LED

  • UV Coating : Momentive UVHC3000

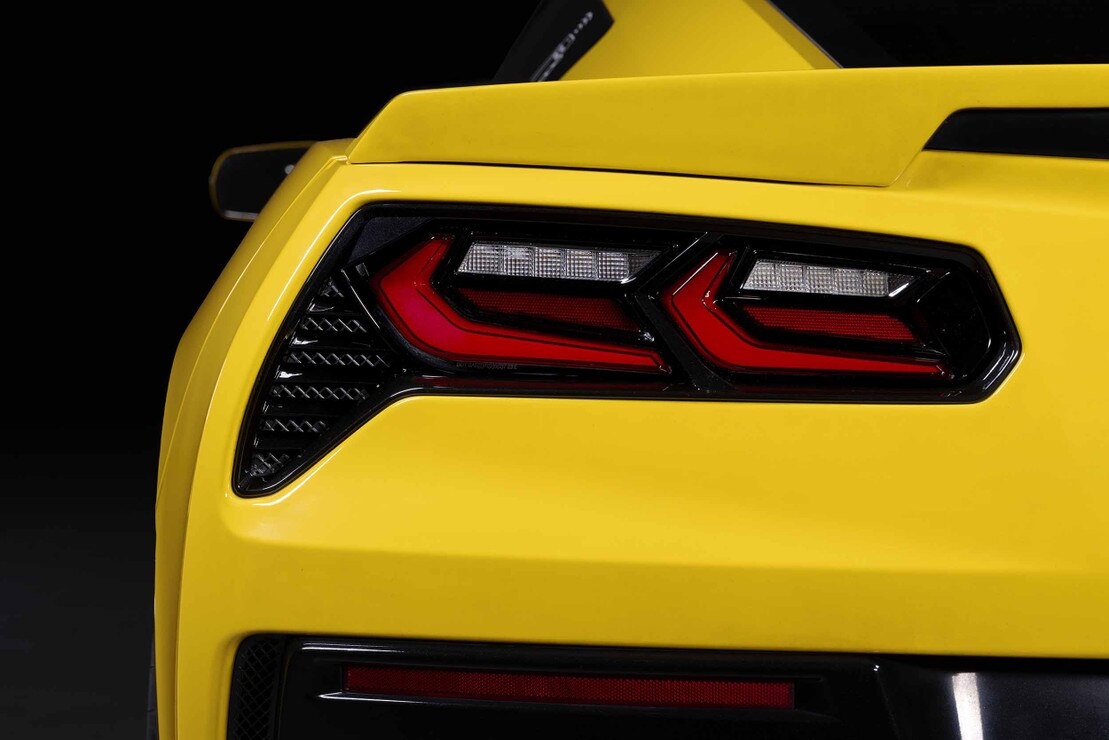

  • Tail Lights :

  • Input : GM Multi-Pin OEM

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Light Source : SSC LED

  • Reverse Light : White

  • Brake Light : Red

  • Parking Light : Red

  • Turn Signal : Amber

  • Turn Signal Modes : Standard or Sequential (Configurable)

  • Rear Reflex Reflectors : Red (DOT) or Smoked (Non DOT)

COMPATIBILITY

  • Chevrolet Corvette C7 : 2014-2019 (Stingray, Z51, Grand Sport, Z06, and ZR1)

  • Replaces GM Part # : 84122615, 84122616, 23148368, 84501052, 23216692, 23219535, 23170469, 23170470, 23219536

  • Note : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on cars outside of North America.

COMPLIANCE

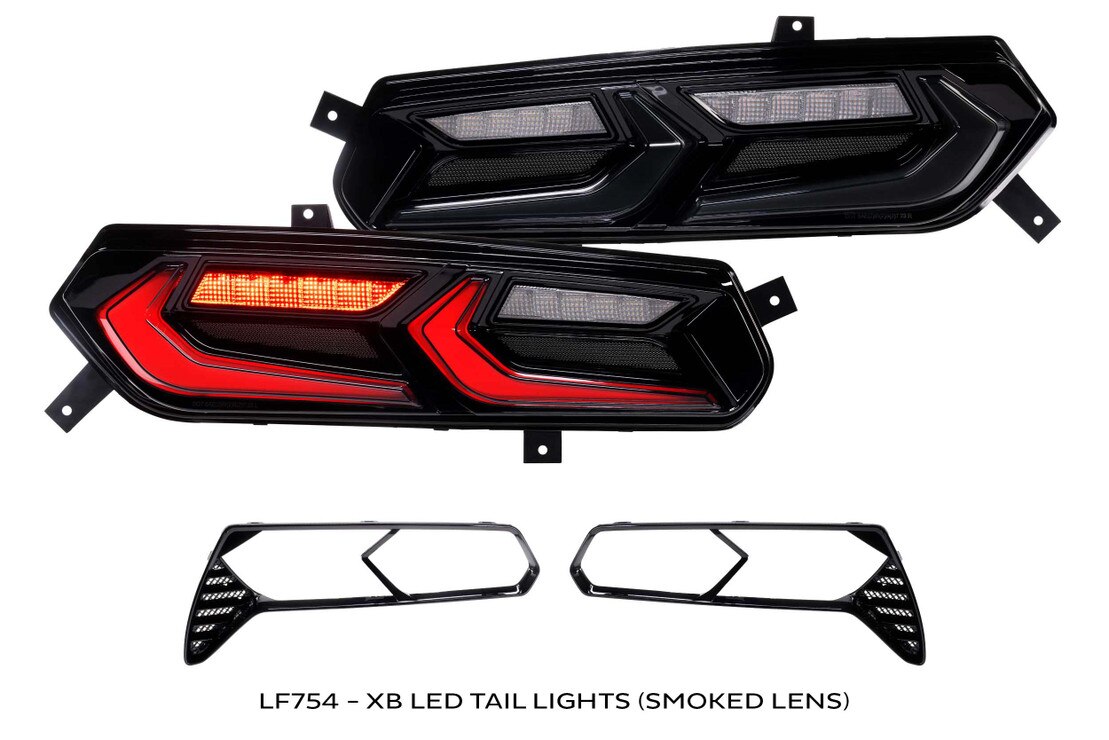

Headlights Meet DOT, SAE, FMVSS108 Standards. Red Lens Tail Lights (LF755) meet DOT, SAE, FMVSS108 Standards. Smoked Lens Tail Lights (LF754) are not compliant for on-road use in the US.
