DESCRIPTION
FEATURES & BENEFITS

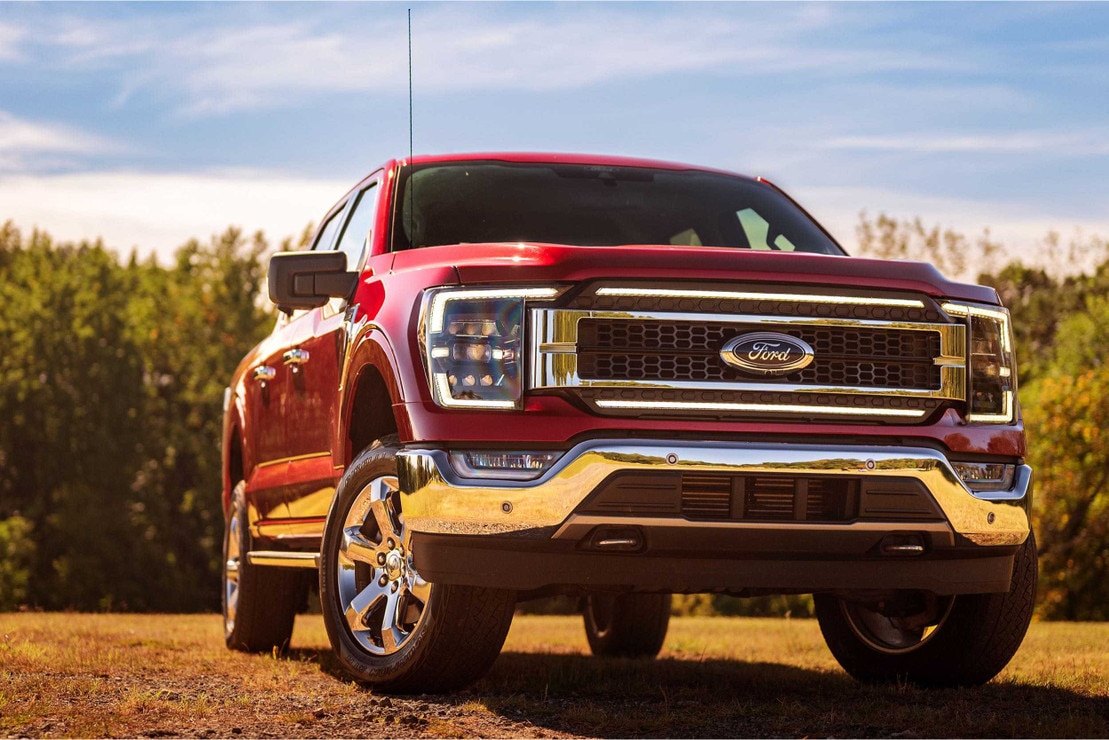

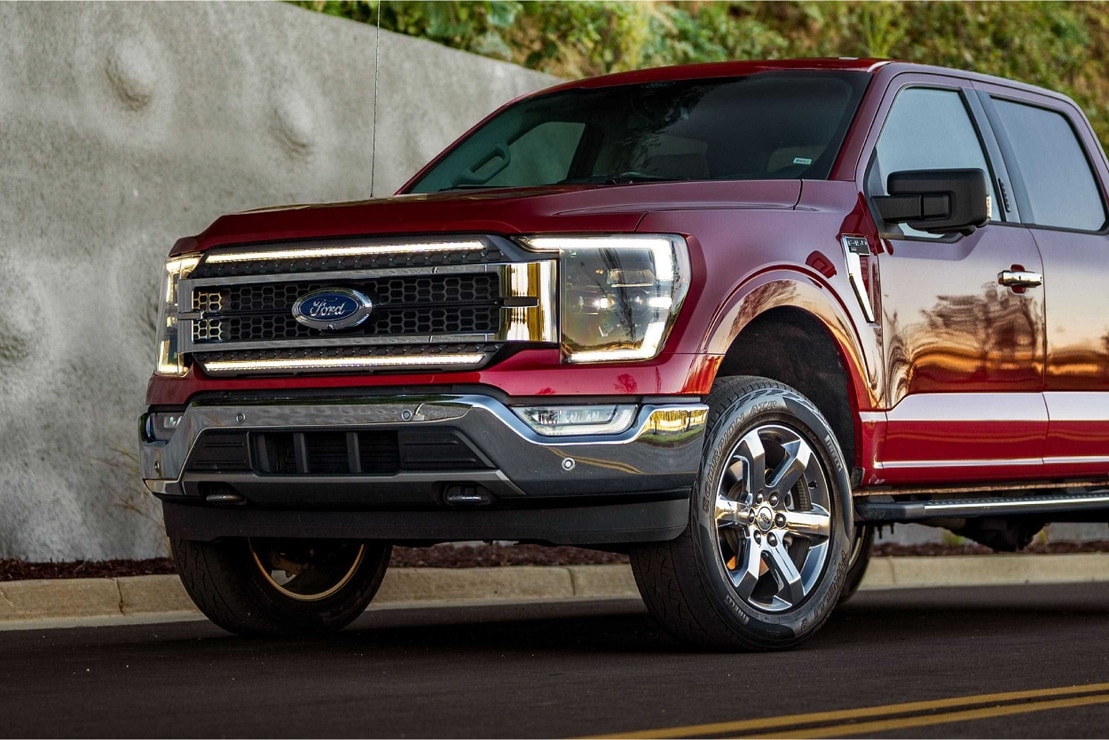

- Enhanced Visibility: Morimoto XB LED Headlights offer 200% more light output than standard halogen lights, improving road visibility.
- Easy Installation: Both headlights and tail lights are plug-and-play, ensuring hassle-free installation without voiding your factory warranty.
- Durability: Built with UV-coated polycarbonate lenses and durable PPS plastic housing with die-cast aluminum heat sinks for lasting performance.

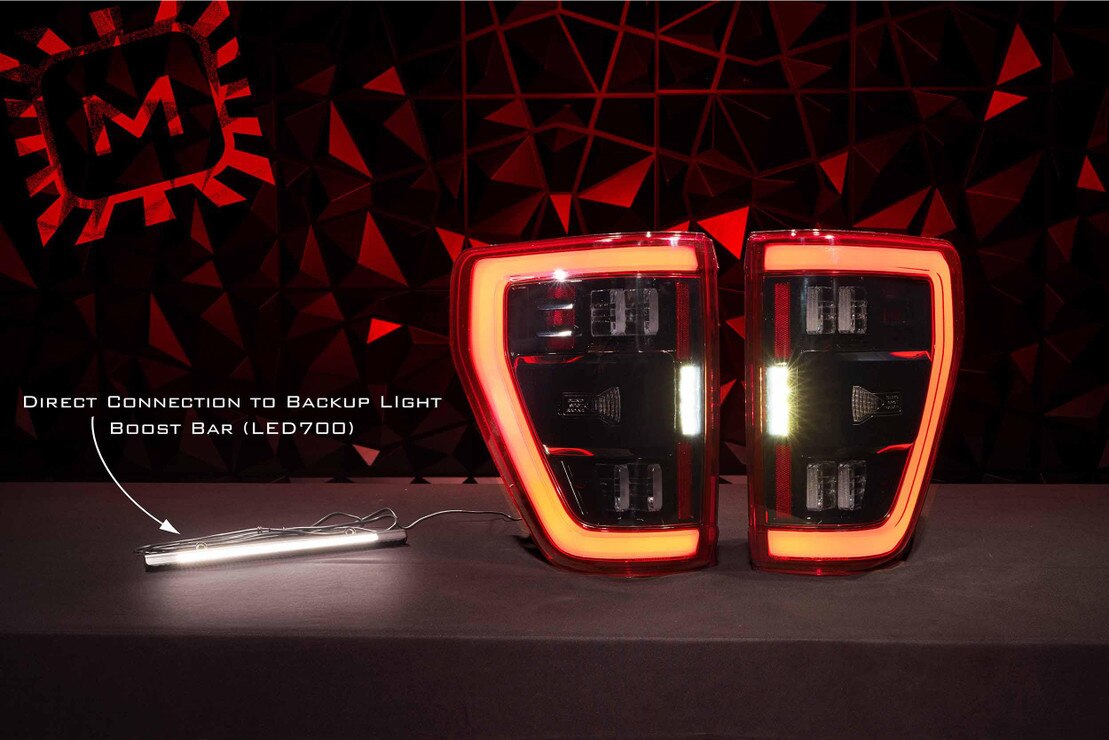

- Modern Design: Features sequential LED DRLs and optional LED Backup Boost Bar for a sleek look and enhanced reverse lighting.
- Regulation Compliance: Exceeds SAE, DOT, and FMVSS108 standards for safety and legal compliance.
WHAT’S INCLUDED
Headlight Choices :

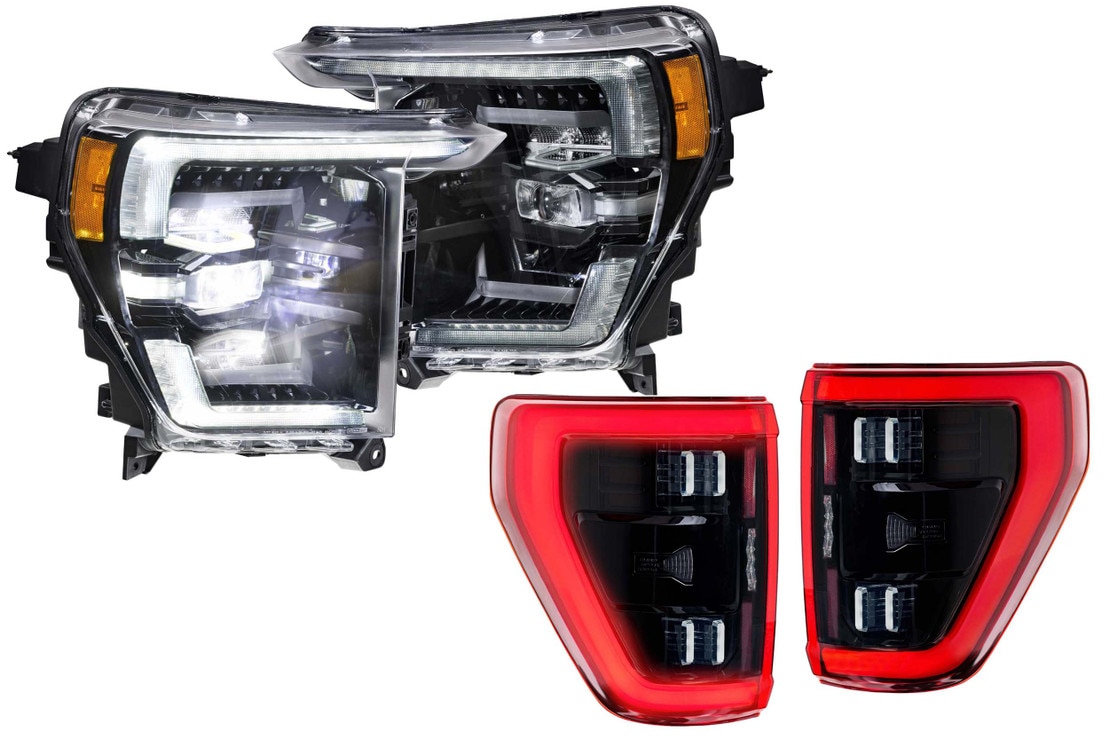

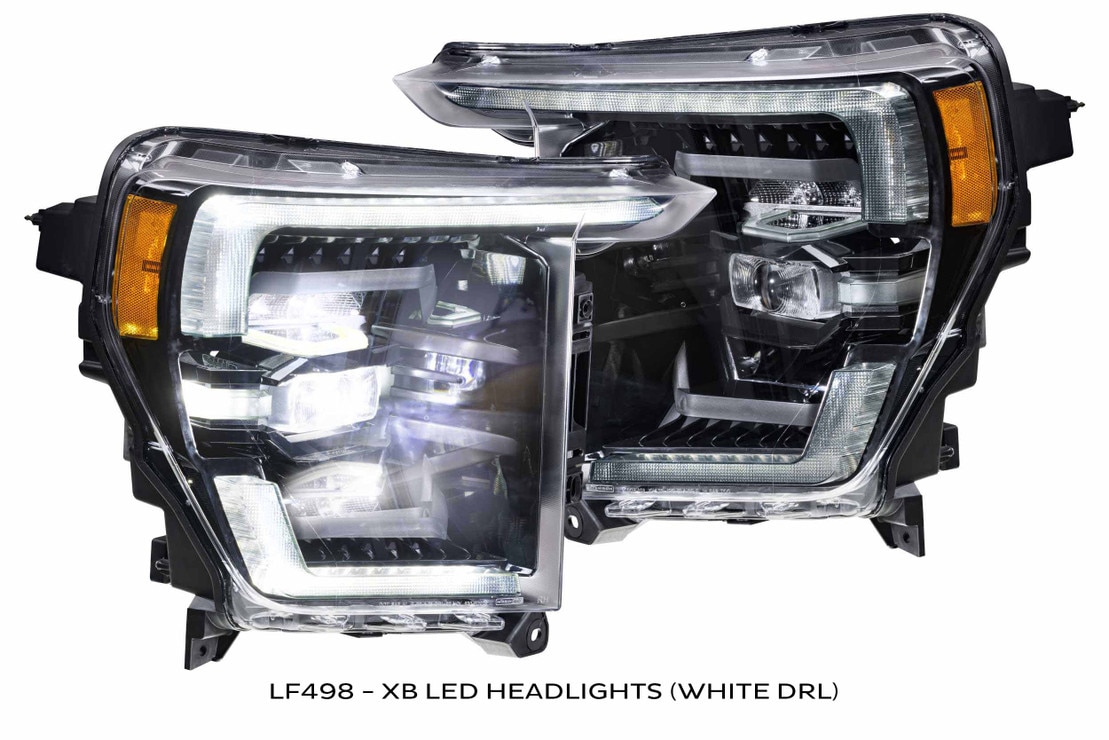

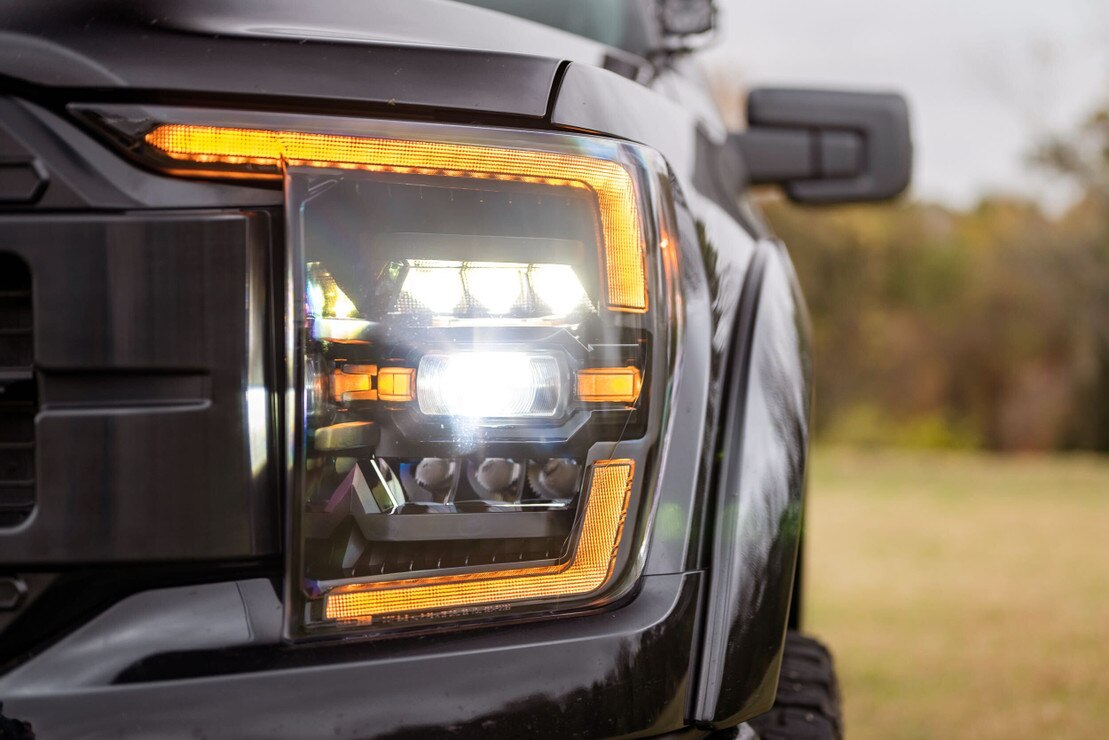

Morimoto XB LED Headlights: 21-23 Ford F-150 (White DRL) Click for Details

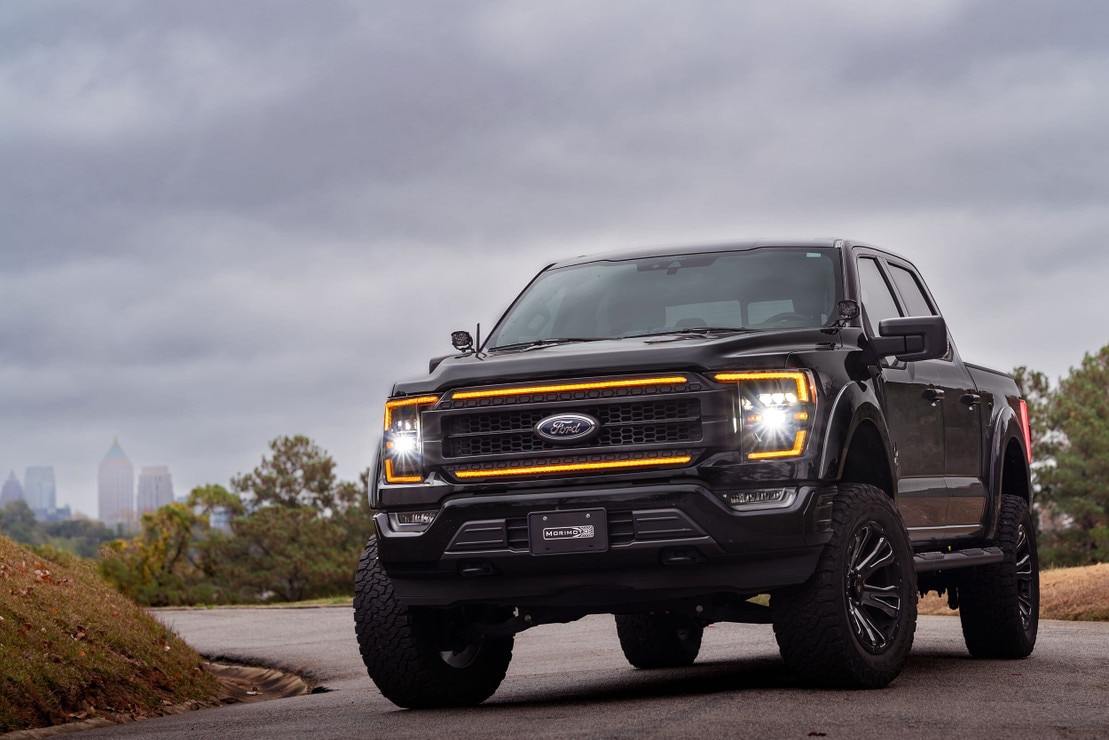

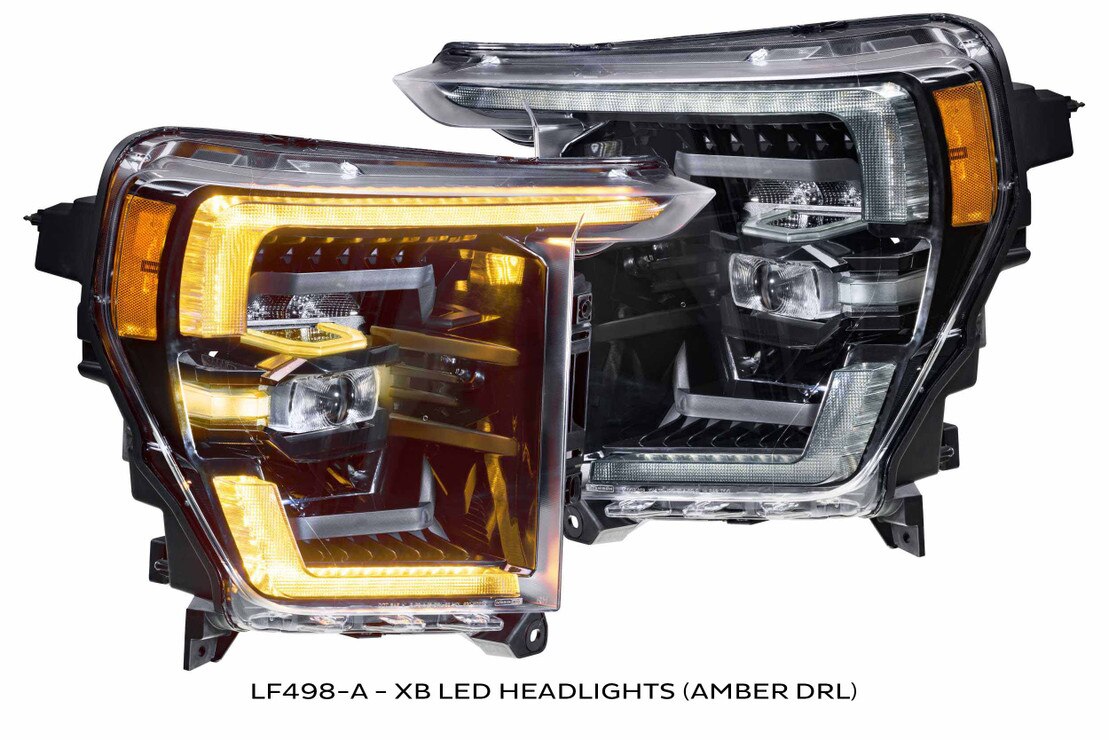

Morimoto XB LED Headlights: 21-23 Ford F-150 (Amber DRL) Click for DetailsTail Light Choices :

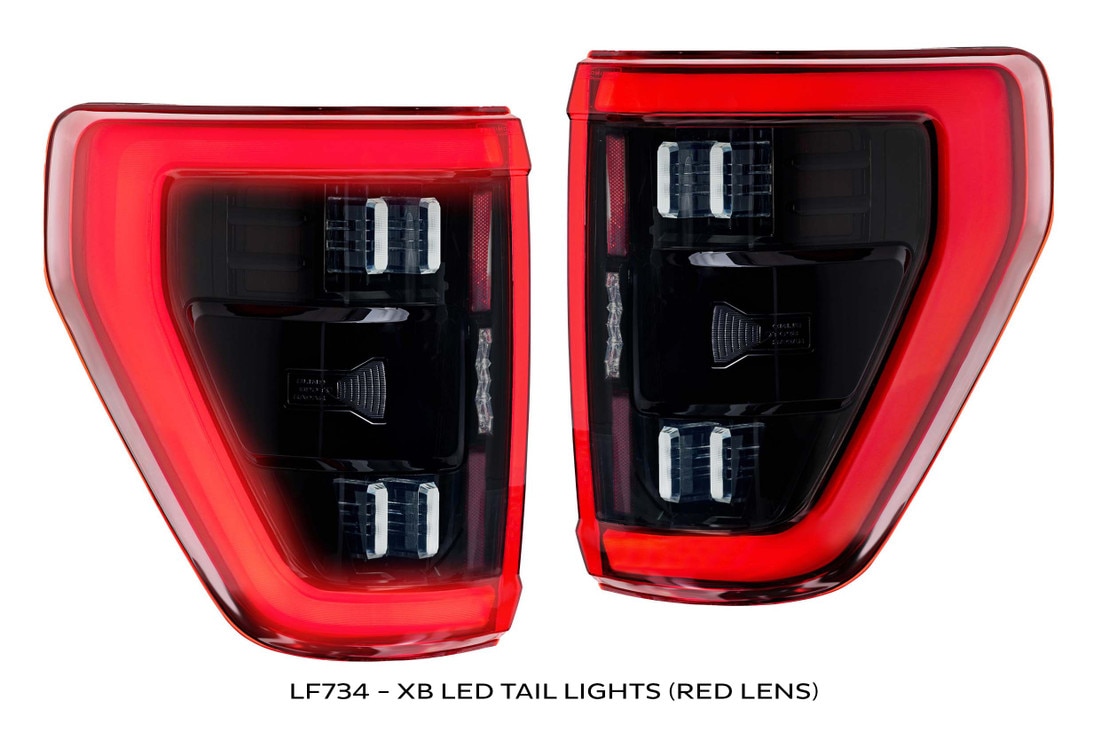

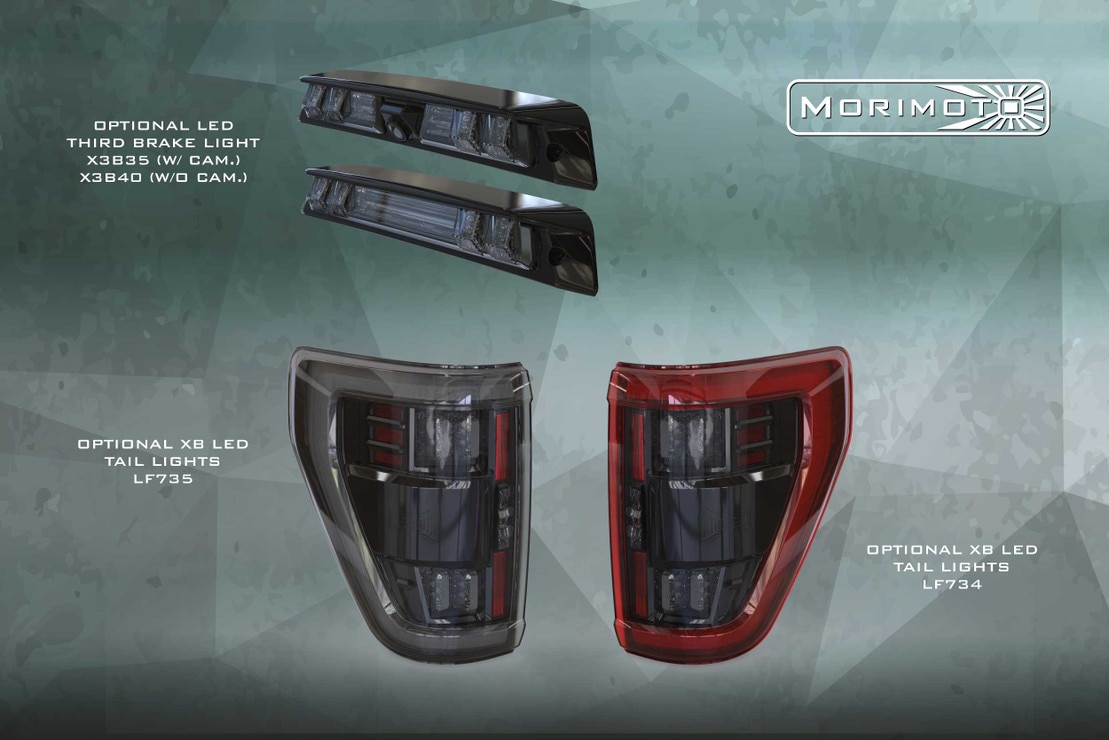

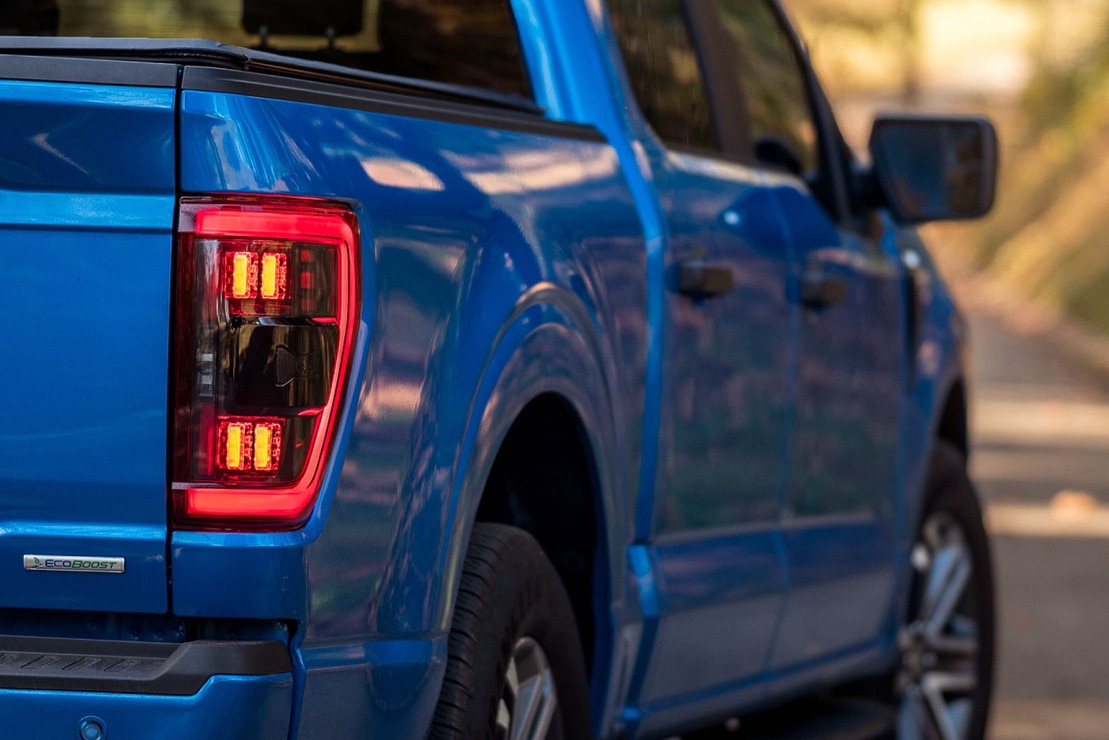

Morimoto XB LED Tail Lights: 21-23 Ford F-150 (Red Lens) Click for Details

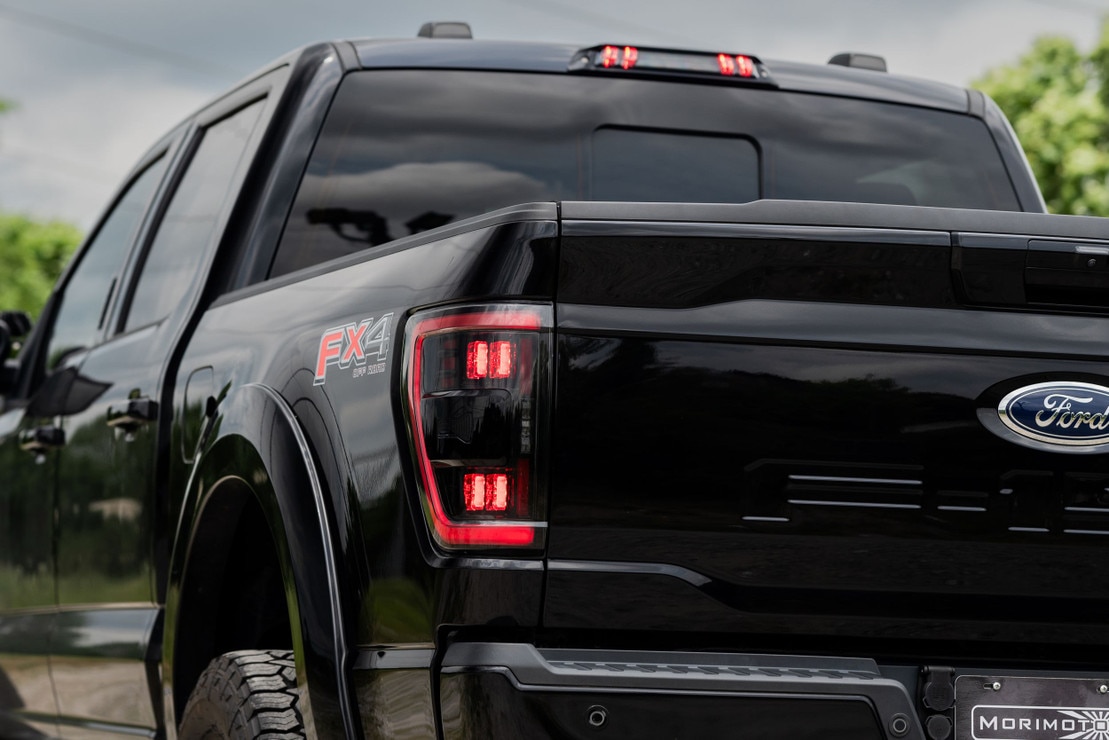

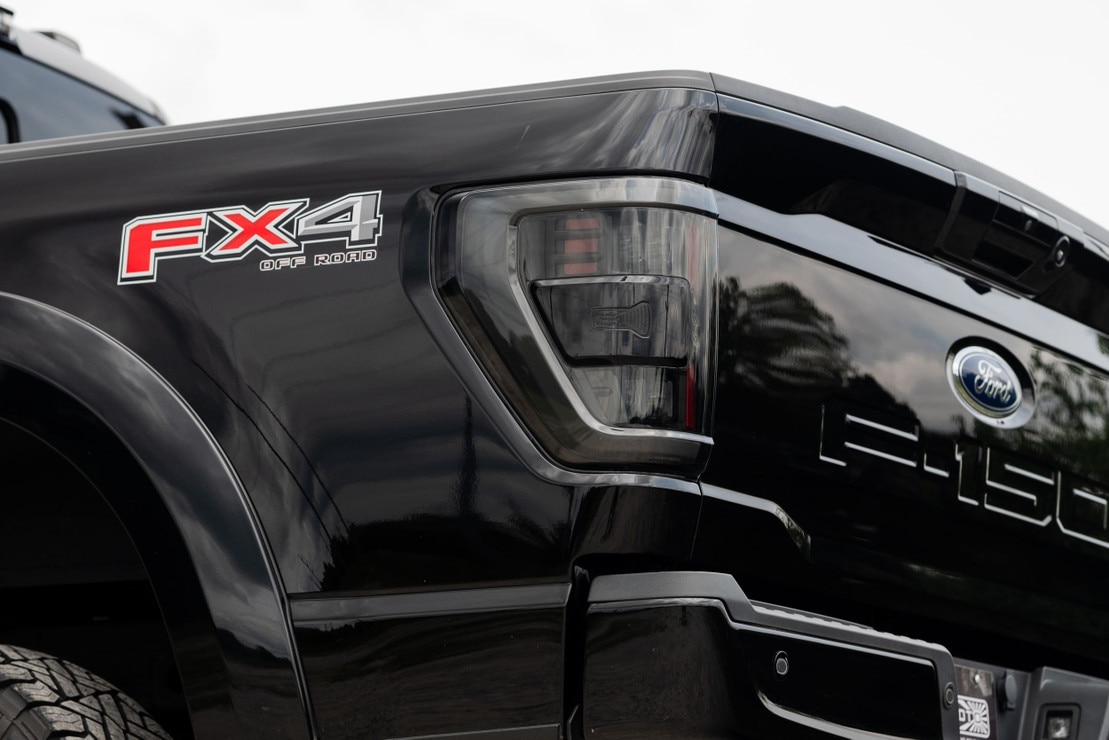

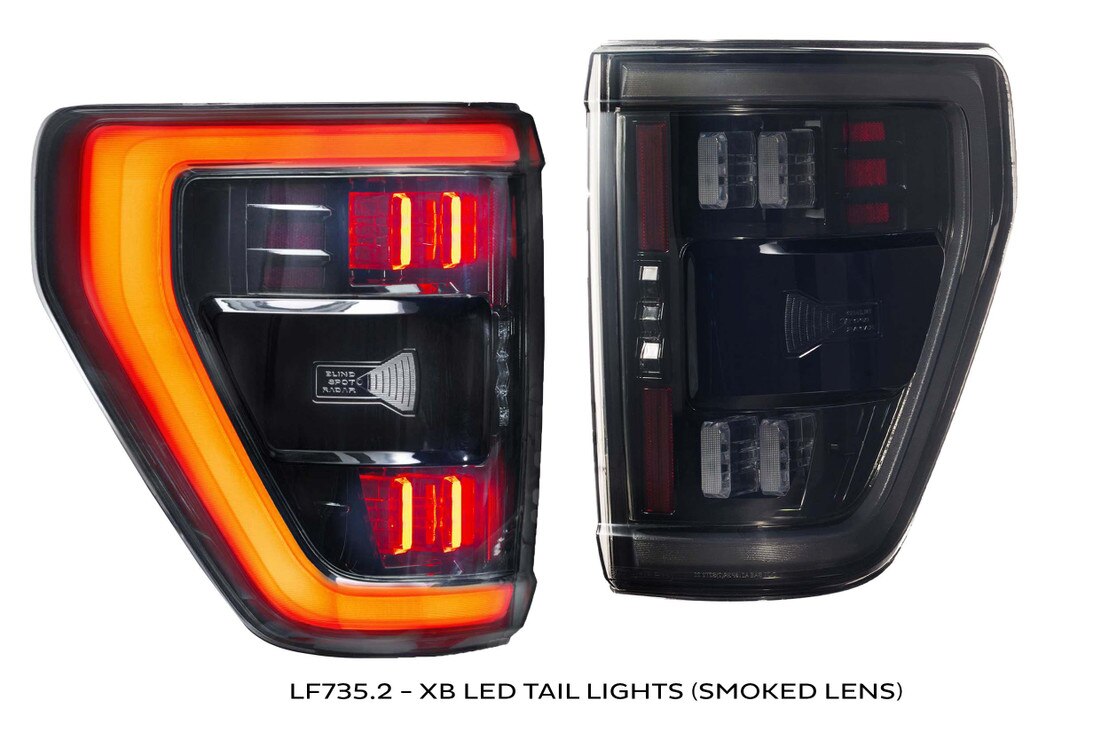

Morimoto XB LED Tail Lights: 21-23 Ford F-150 (Smoked Lens) Click for Details
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Headlights :
Traffic Pattern : LHD Only
Input : Ford Multi-Pin OEM
Functions : DRL, Turn, Parking, Low, High
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic : Kuria Optic Bi-LED

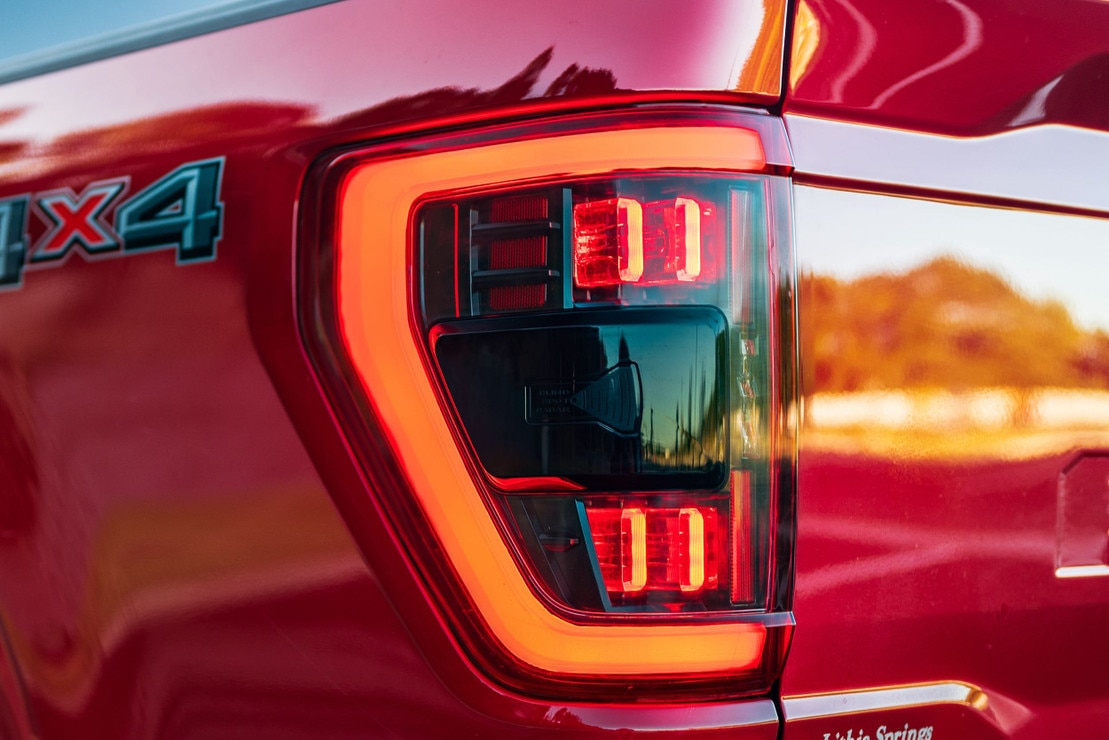

Tail Lights :
Input : Ford Multi-Pin OEM
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source : SSC LED
Brake Light : Red
Parking Light : Red
Turn Signal : Red
COMPATIBILITY
Ford F-150 : 2021-2023 (All Models / Trim Levels without onboard scales)**

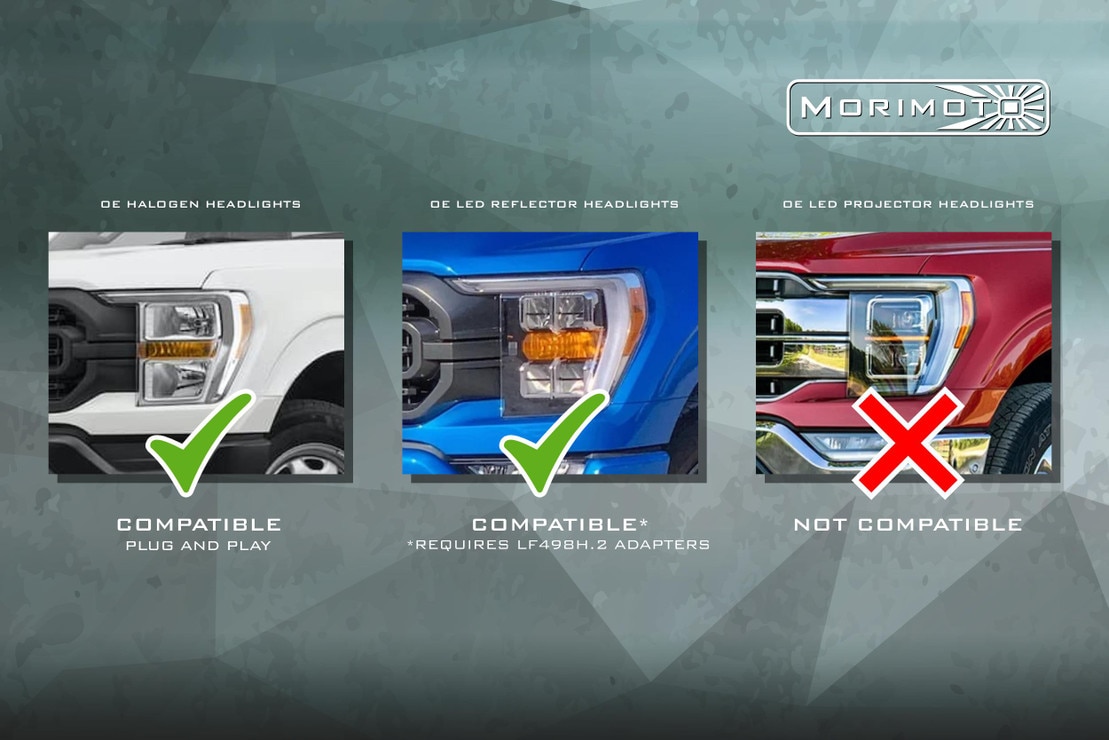

Plug n Play on : Trucks w/ Halogen Heads, OE LED/Incandescent Tail Lights + BLIS System (Requires swap of OE Modules)

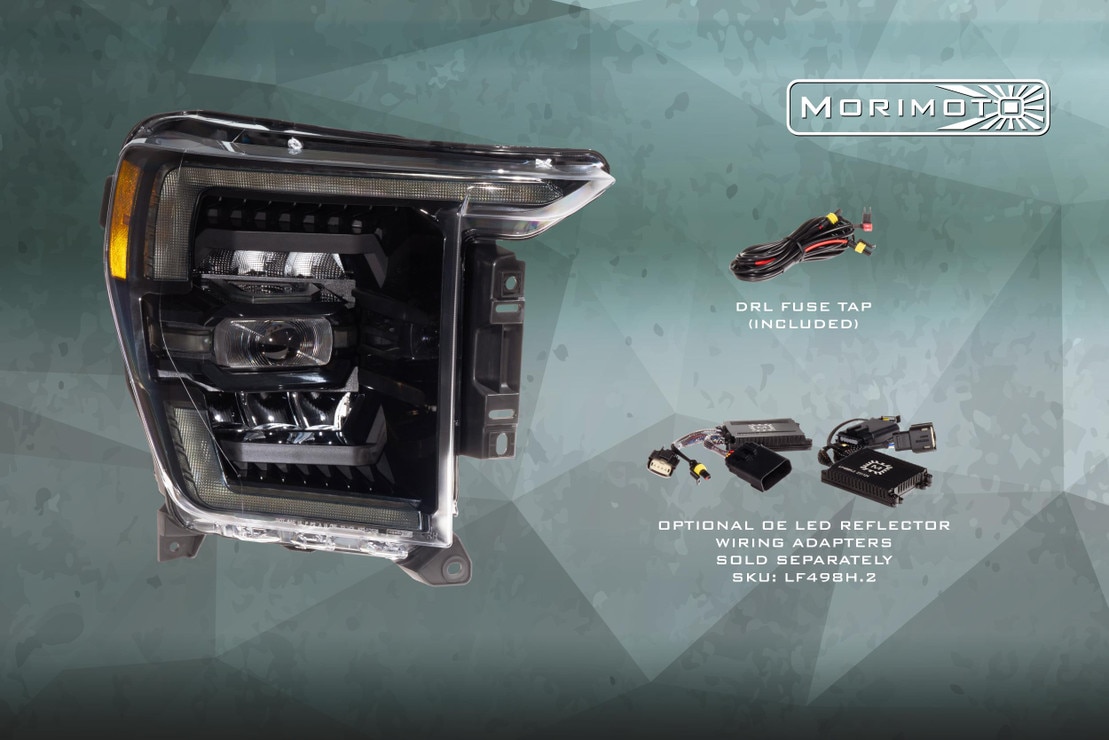

Requires Optional LF498H Adapter Harness : Trucks w/ LED Reflector Heads
Not Compatible : Trucks w/ Dual-LED Projector Heads
**NOTE : Trucks with onboard scales / load leveling indicators are not compatible.
NOTE : These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
