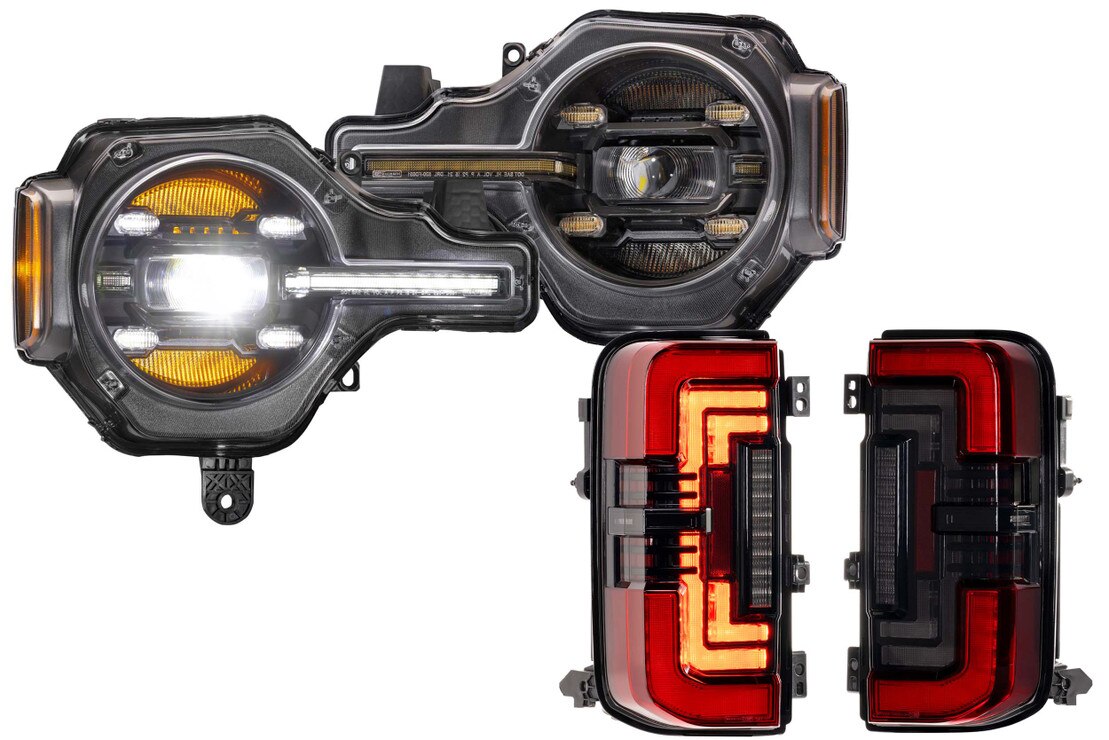

Ford Bronco (2021+) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-BRONCO-MM

$1,477.00

PRODUCT OPTIONS

PART #: 1 x LF497, 1 x LF751



*Guaranteed Fitment
Easy Return

DESCRIPTION

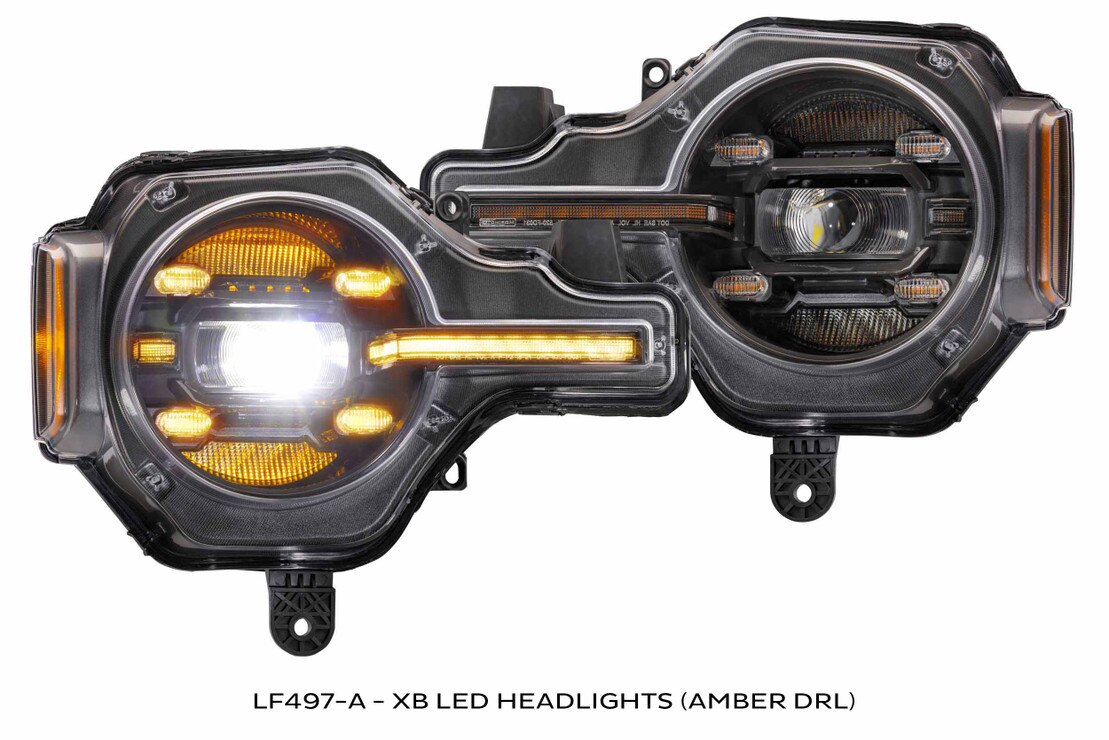

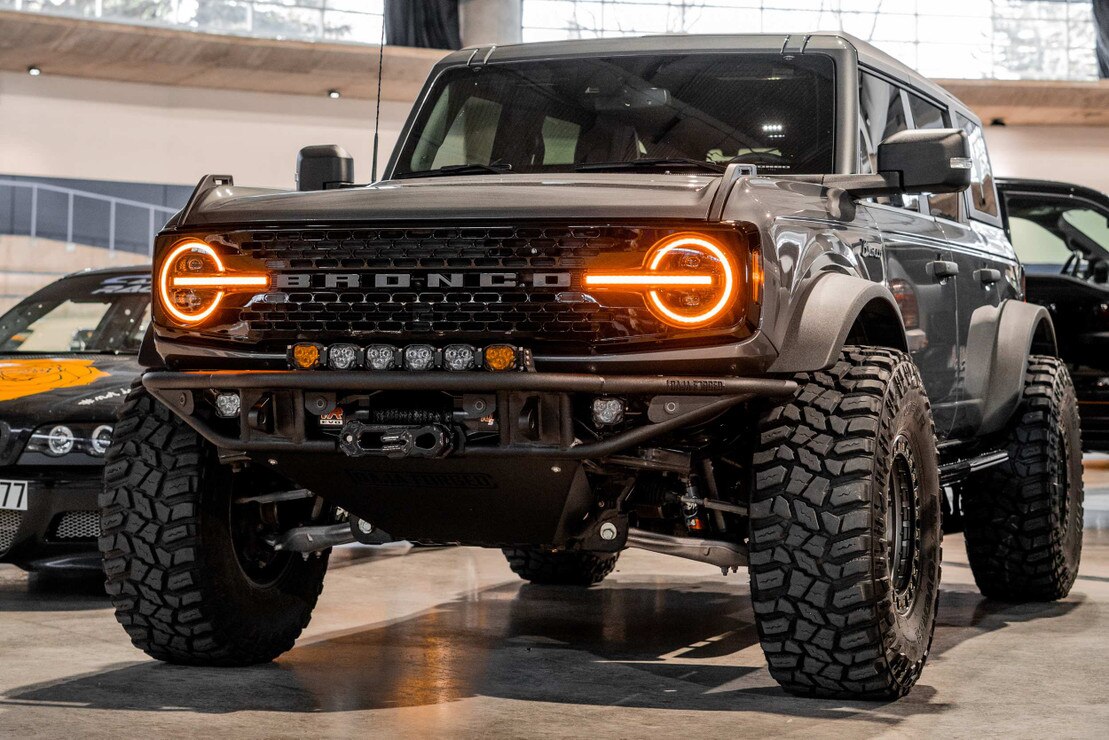

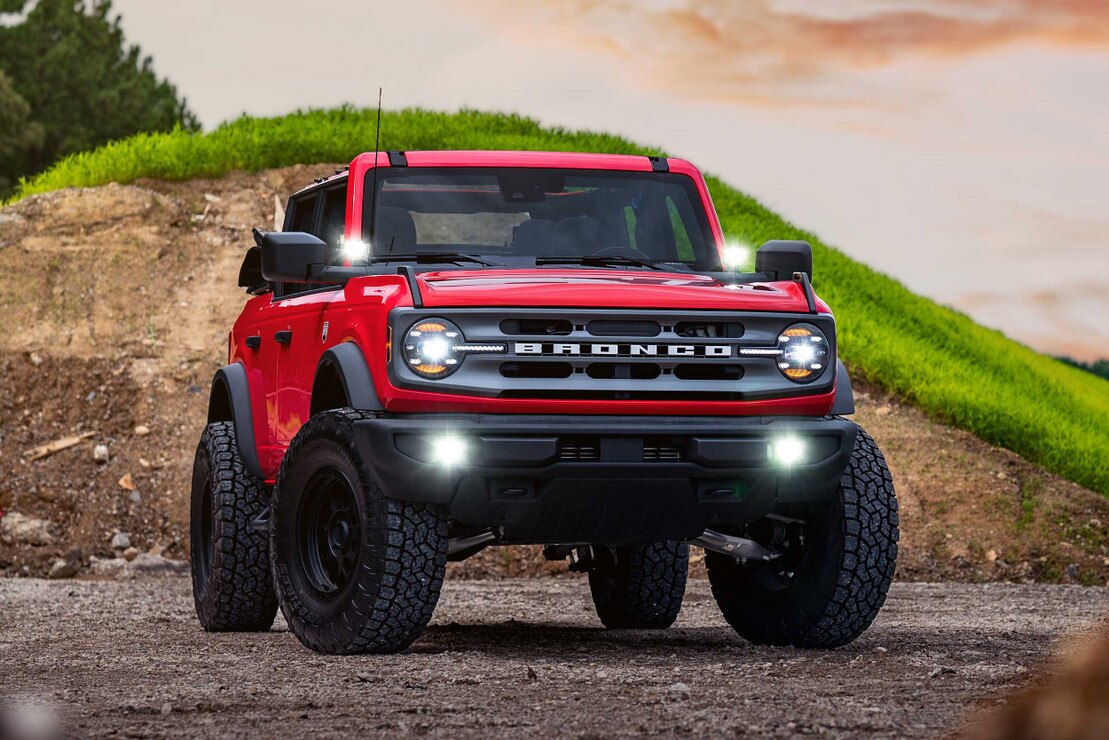

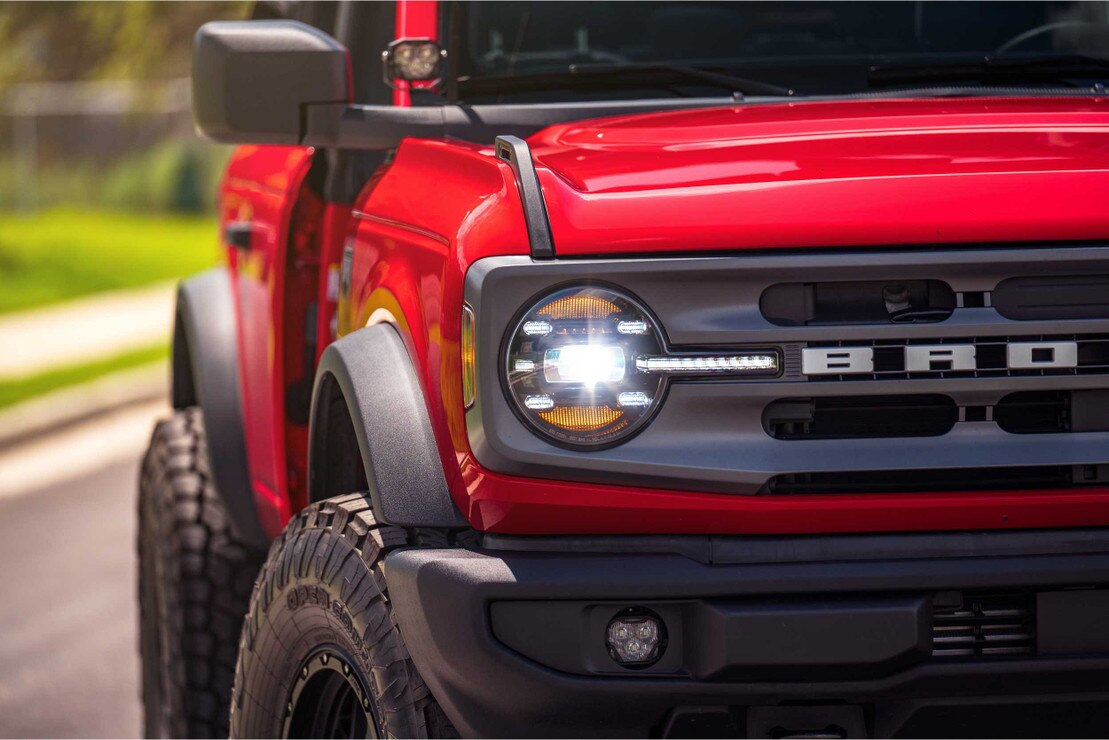

The Morimoto XB LED Headlights for the 2021+ Ford Bronco are a major upgrade over stock. They feature a large rectangular projector with a Ford GT-inspired design and bright four-point daytime running lights (DRL) available in white or amber. Using wide-lens Bi-LED projectors, they provide better light spread and brighter beams than the original lights. They meet all safety standards (SAE, DOT, FMVSS108) and include amber side markers for the US market. Installation is easy with plug-and-play connectors and no error codes or flickering. The Morimoto XRGB LED Headlights offer color-changing DRLs controlled by a smartphone app, allowing white or amber colors that match the Bronco Raptor. They deliver 150% brighter low beams and 86% brighter high beams than stock. These also plug in easily but aren’t DOT approved if DRLs are set to other colors. The Morimoto XB LED Tail Lights have a low-profile design with bright brake, turn, and reverse lights. They support an optional backup light boost and come with a five-year warranty, fitting all Bronco versions.

FEATURES & BENEFITS

  • Bright headlights: Bi-LED projectors with Ford GT-inspired design and four-point DRLs in white or amber.
  • Better visibility: 150% brighter low beams, 86% brighter highs, wider patterns.
  • Easy install: Plug-and-play for 2021+ Bronco, no errors or mods.
  • Custom DRLs: XRGB color-changing DRLs via app (non-white/amber not DOT approved).

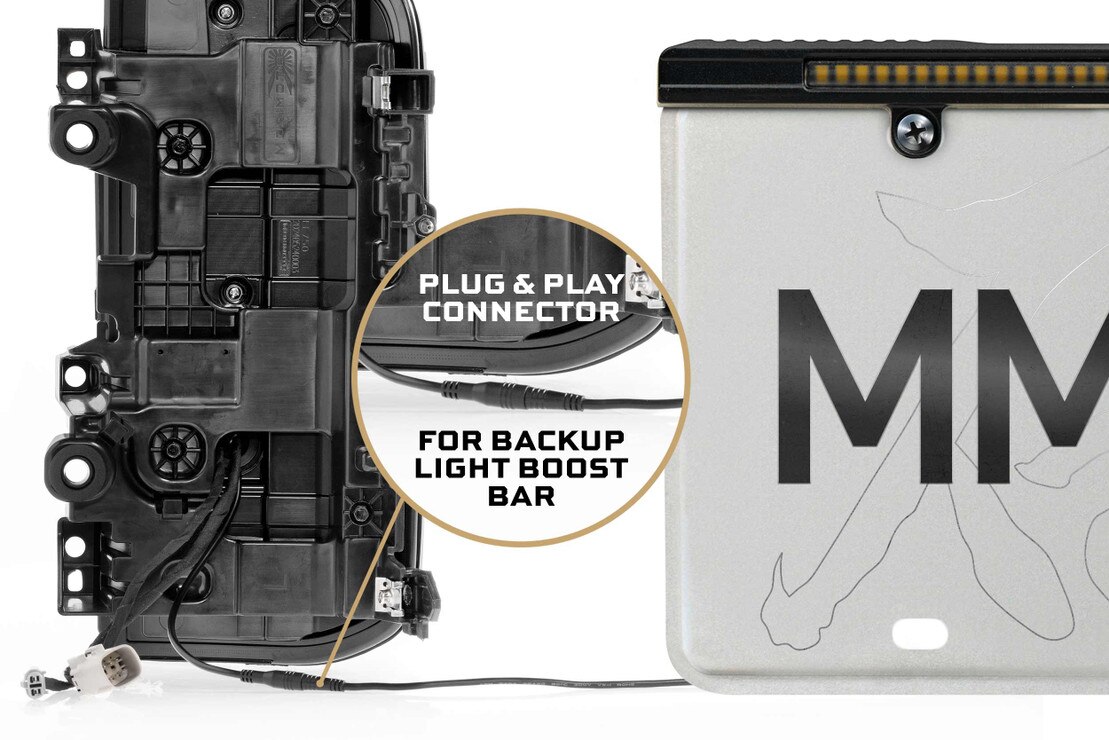

  • Quality tail lights: Low-profile LEDs, bright signals, optional backup boost, DOT compliant, 5-year warranty.

WHAT’S INCLUDED

WARRANTY INFORMATION

These Morimoto products include a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

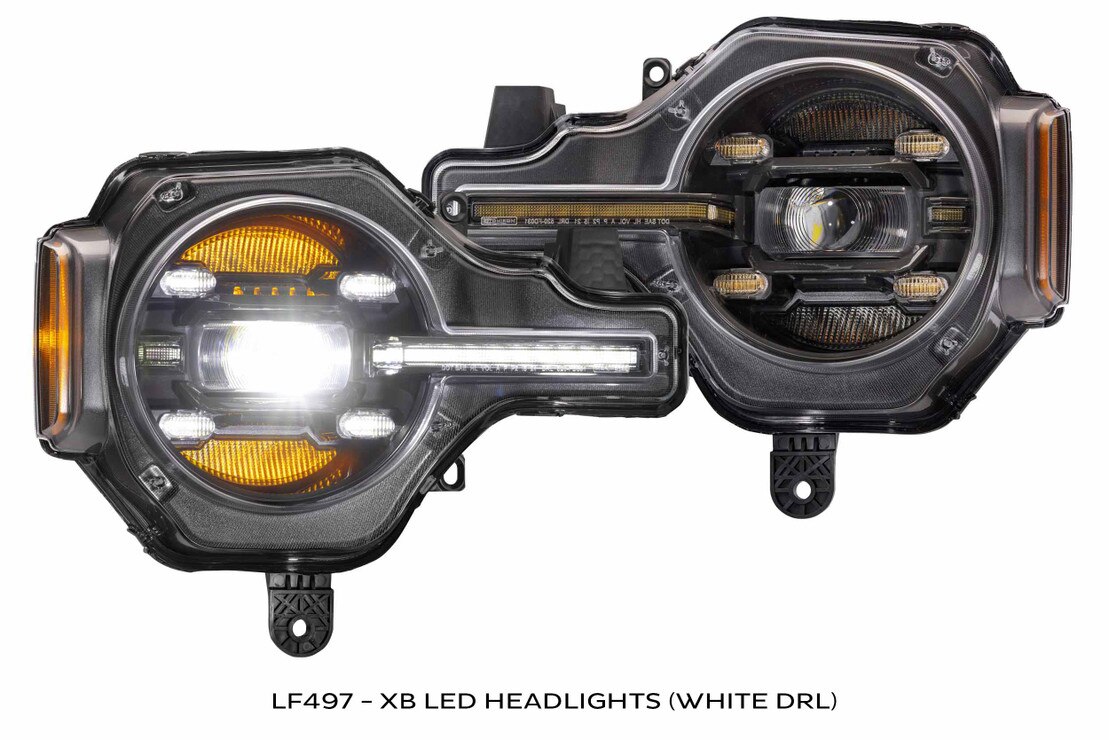

  • XB Headlights :

  • Traffic Pattern : LHD Only

  • Input : Ford Multi-Pin OEM

  • Functions : DRL, Turn, Parking, Low, High

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Optic : Kuria Optic Bi-LED

  • UV Coating : Momentive UVHC3000

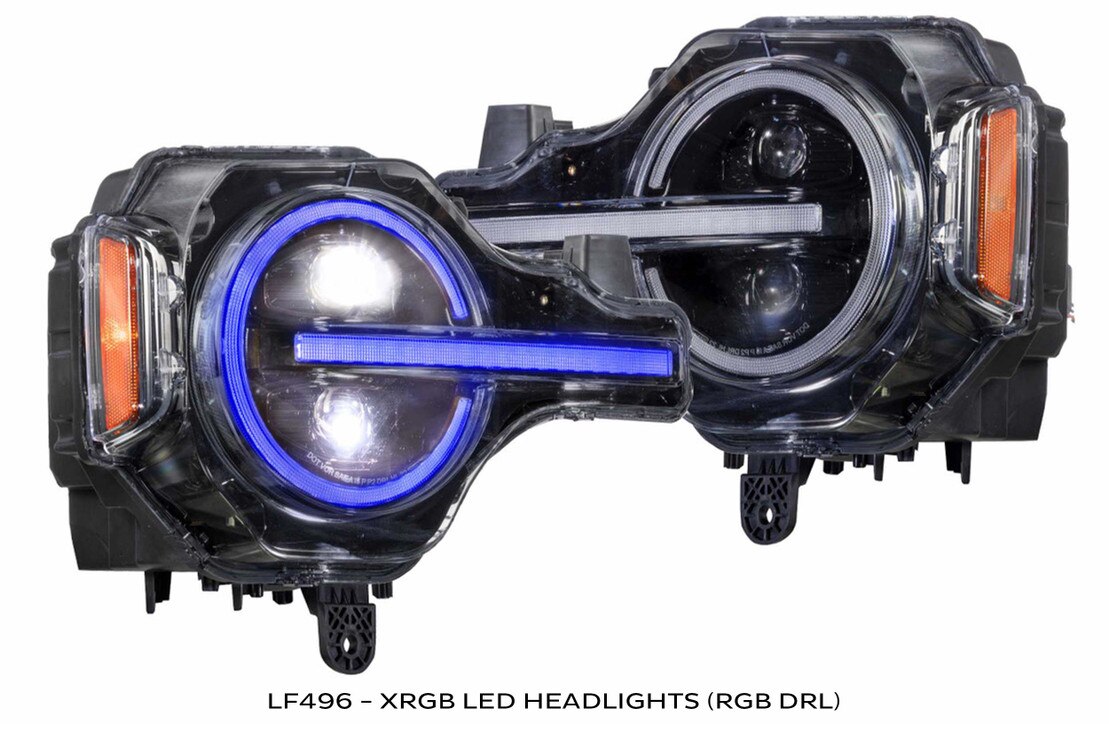

  • XRGB Headlights :

  • Low Beam Performance : +151% (680lux [Halogen] to 1710lux)

  • High Beam Performance : +86% (1940lux [Halogen] to 3610lux)

  • Traffic Pattern : LHD Only

  • Functions : DRL (RGB), Turn, Parking, Low, High

  • Turn Signal Color : Amber

  • Bezel Color : Gloss Black

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Optic : Kuria Optic Bi-LED

  • UV Coating : Momentive UVHC3000

  • Bluetooth App : Happy Lighting

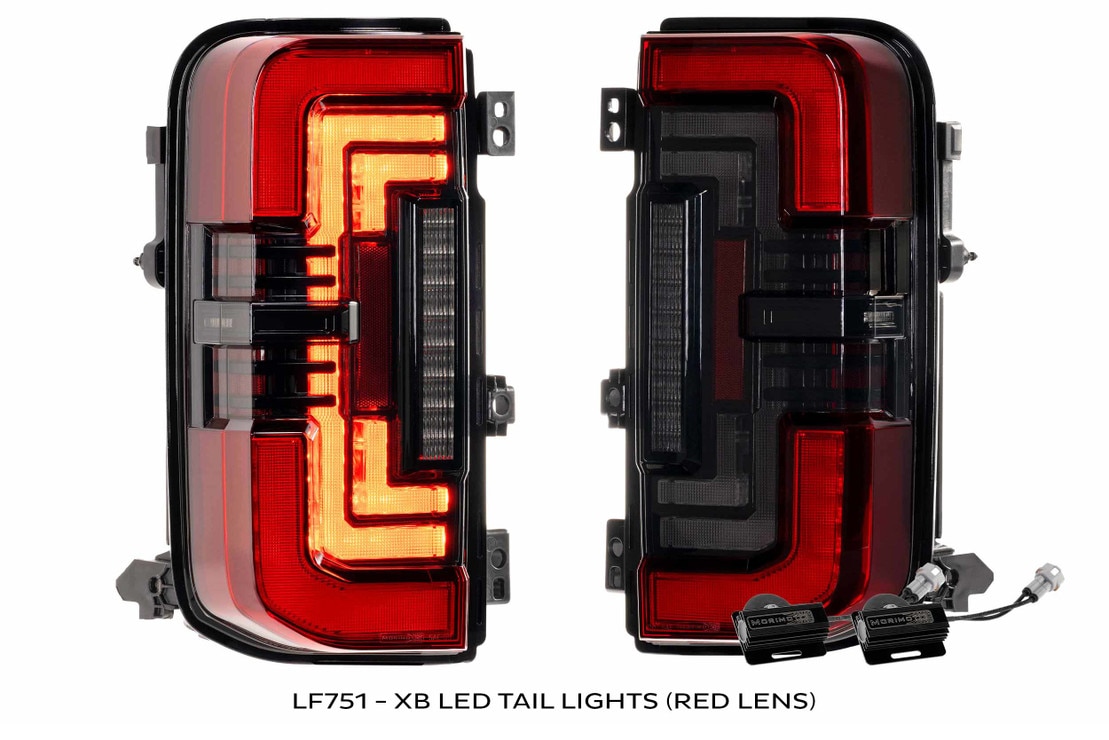

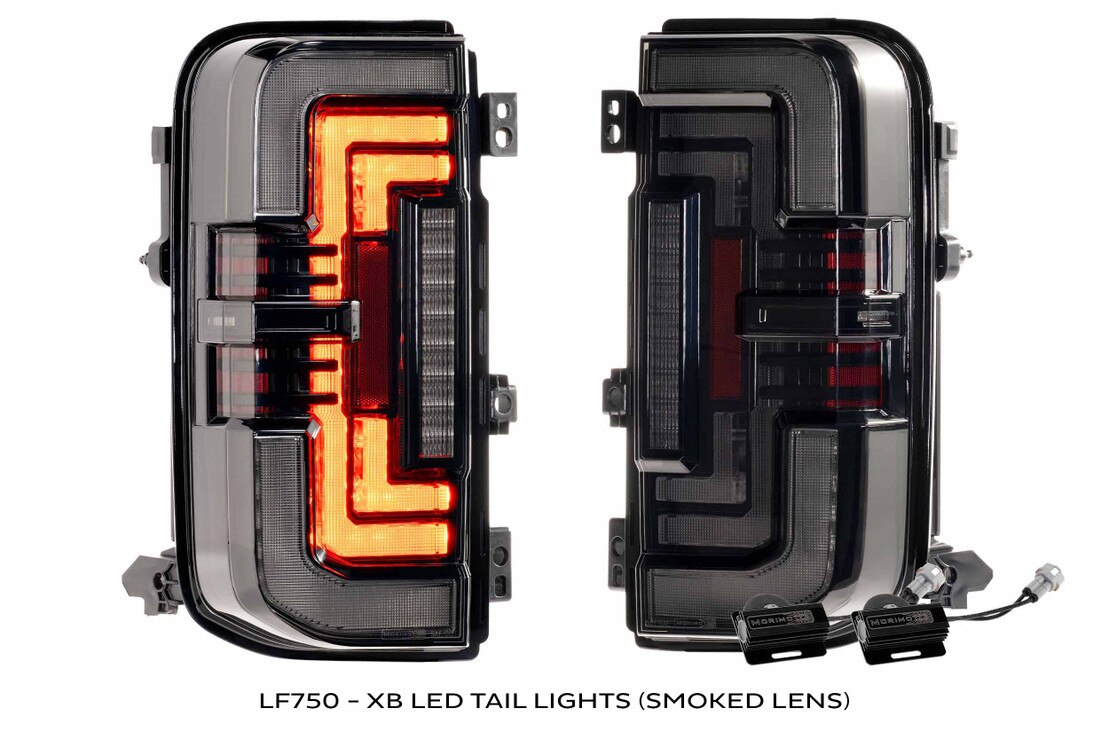

  • Tail Lights :

  • Input : Ford Multi-Pin OEM

  • Material : PP Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Light Source : SSC LED

  • Reverse Light : White

  • Brake Light : Red

  • Parking Light : Red

  • Turn Signal (Bronco w/ OE Incandescent Tails) : Red

  • Turn Signal (Bronco w/ OE LED Tails) : Amber

COMPATIBILITY

  • Ford Bronco : 2021+ (Bronco base, Big Bend, Black Diamond, Outer Banks, Badlands, Wildtrak, or Everglades)

  • Bronco Raptor : Not Compatible

  • DOT Compliance : RGB Multicolor DRL Not street legal

  • Replaces Ford Part # : JW7Z-13A588-CA, JW7Z-13A589-CA, M2DB-13B505-B, M2DB-13B552-B

  • NOTE : These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.

COMPLIANCE

Due to the color-changing RGB DRL, the XRGB Headlights are not complaint for on-road use in the USA or Canada.

INSTALLATION DOCUMENTS
