Jeep Wrangler JL (2018+) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-JEEPJL-MM

$886.55 Original Price:$1,043.0015% OFF

PRODUCT OPTIONS

PART #: 1 x HEADTAILKIT167



*Guaranteed Fitment
Easy Return

DESCRIPTION

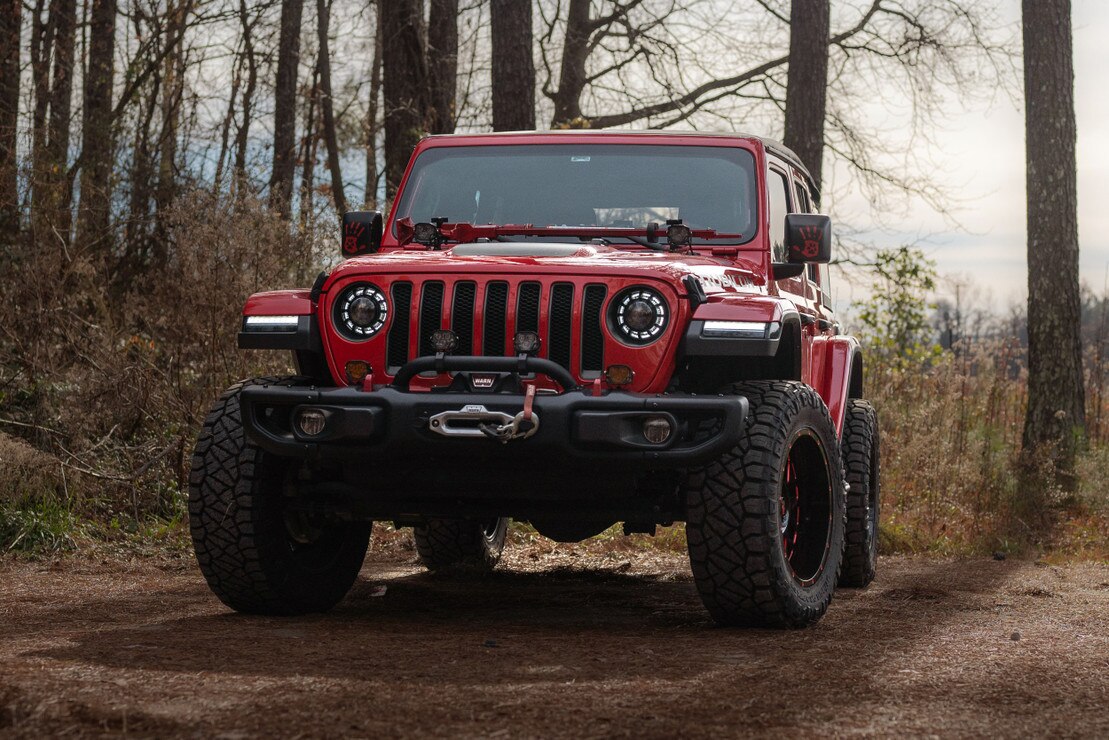

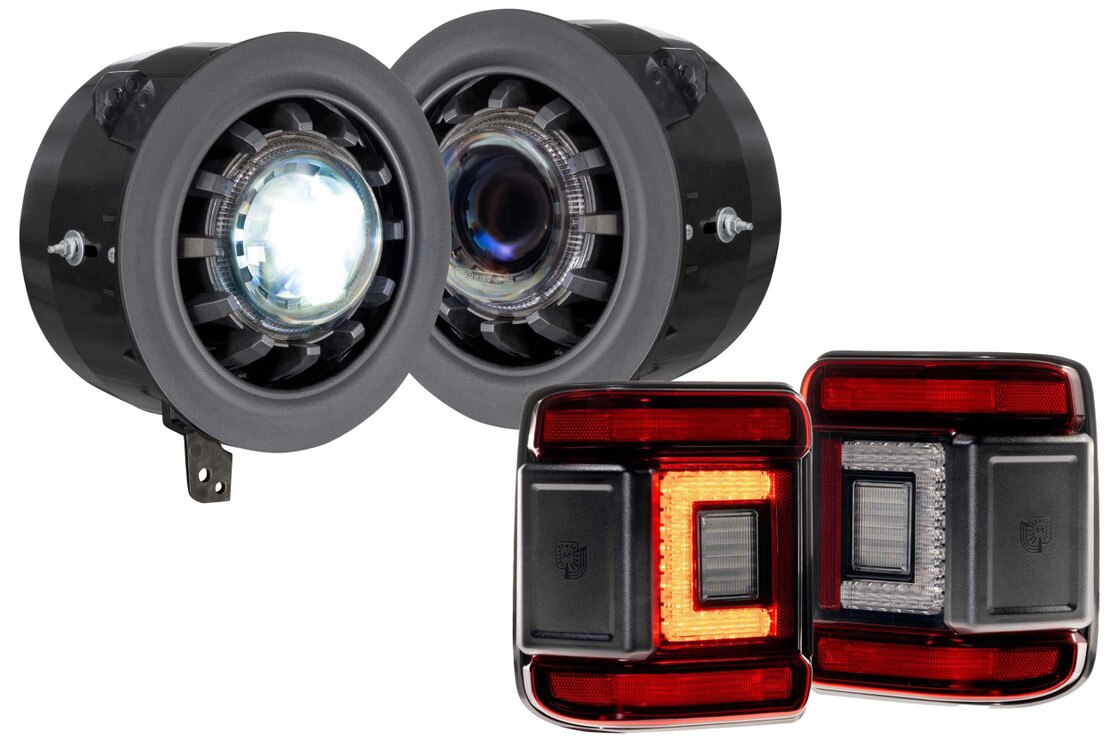

The Morimoto Super7 LED Headlights for Jeep Wrangler JL models are a high-performance upgrade that offers excellent style, quality, and compatibility. These headlights feature fully modular Bi-LED projectors with wide, balanced beams and strong low and high beams, reaching up to 83,000Cd intensity. They can be easily customized by painting and disassembling without affecting their weather resistance or warranty. The aerodynamic design helps keep the headlights cool. Installation is simple with a plug-and-play setup and no flickering. The Morimoto Sealed7 LED Headlights use powerful LEDs and advanced projector lenses to deliver about 3000 lumens on low beam and nearly 4000 lumens on high beam. They include bright white daytime running lights that switch to turn signals and are built with durable, shatterproof lenses and die-cast housings with heat sinks. An anti-flicker driver ensures stable lighting. The Morimoto XB Low Profile Tail Lights fit all Jeep Wrangler JL models, including those with blind spot sensors. They offer a sleek look with horizontal 3D optics, bright brake and turn signals, and powerful LED reverse lights. These tail lights meet all safety standards and come with a five-year warranty.

FEATURES & BENEFITS

  • Bright Lighting: Super7 headlights use powerful M-LED 2.0 projectors for a wide, clear beam to improve night driving.
  • Customizable: Fully modular design allows paint-matching and easy reassembly without losing weather resistance.
  • Easy Install: Plug-and-play with no flicker and direct fit to Jeep Wrangler hardware.
  • Durable Build: Sealed7 headlights have shatterproof lenses and strong housings for long life.

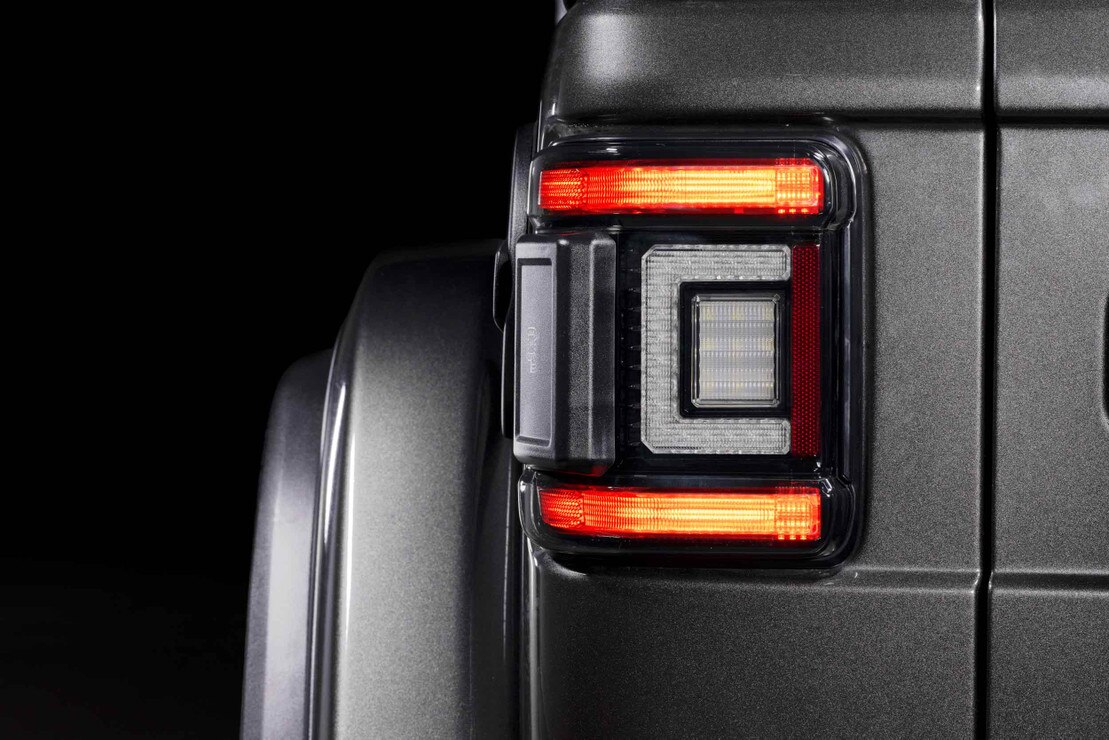

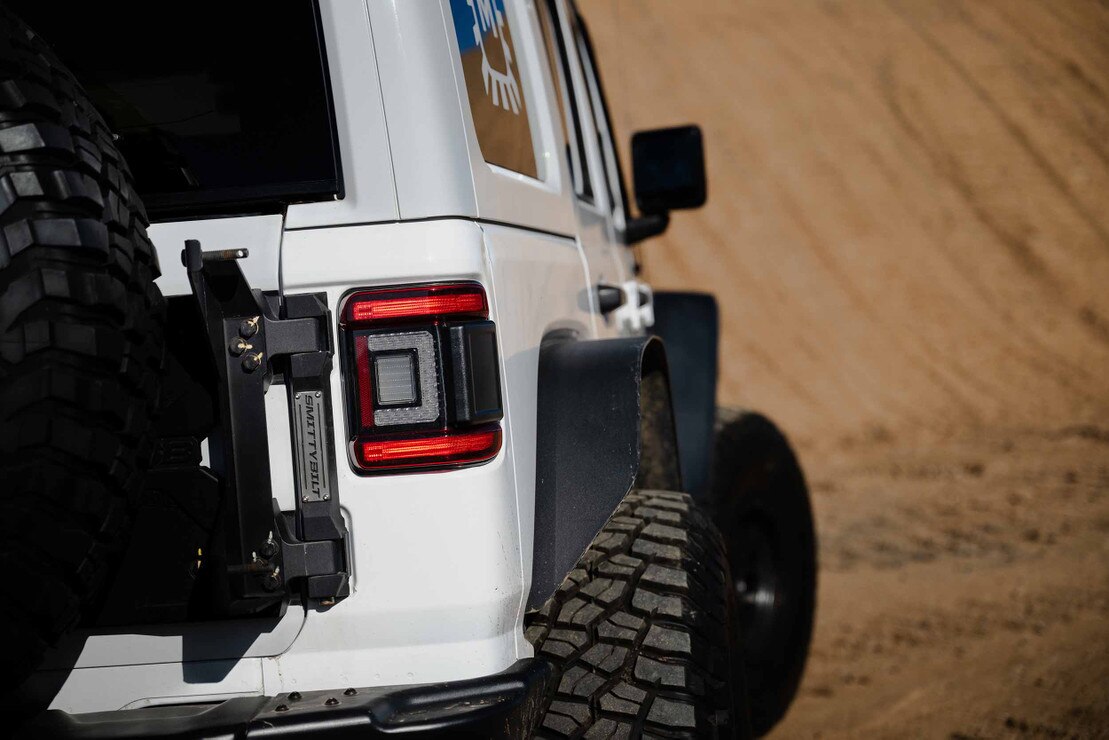

  • Advanced Tail Lights: XB Low Profile lights work with blind spot systems and have bright brake, turn, and reverse LEDs.

WHAT’S INCLUDED

WARRANTY INFORMATION

These Morimoto products include a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

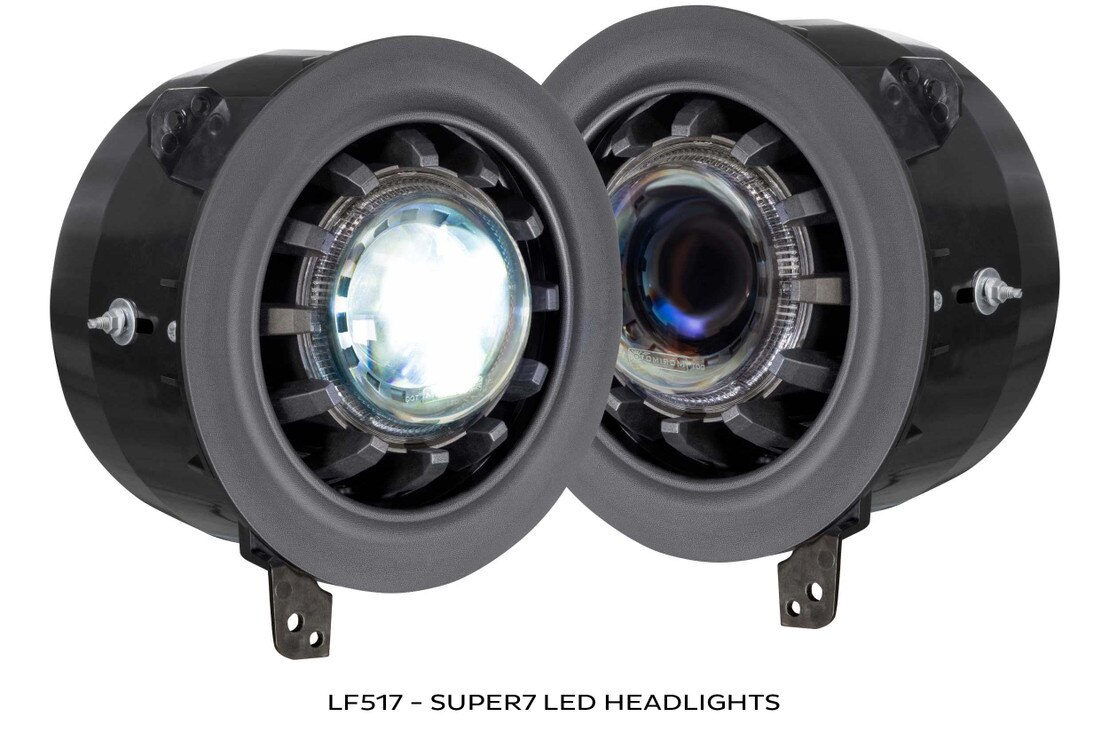

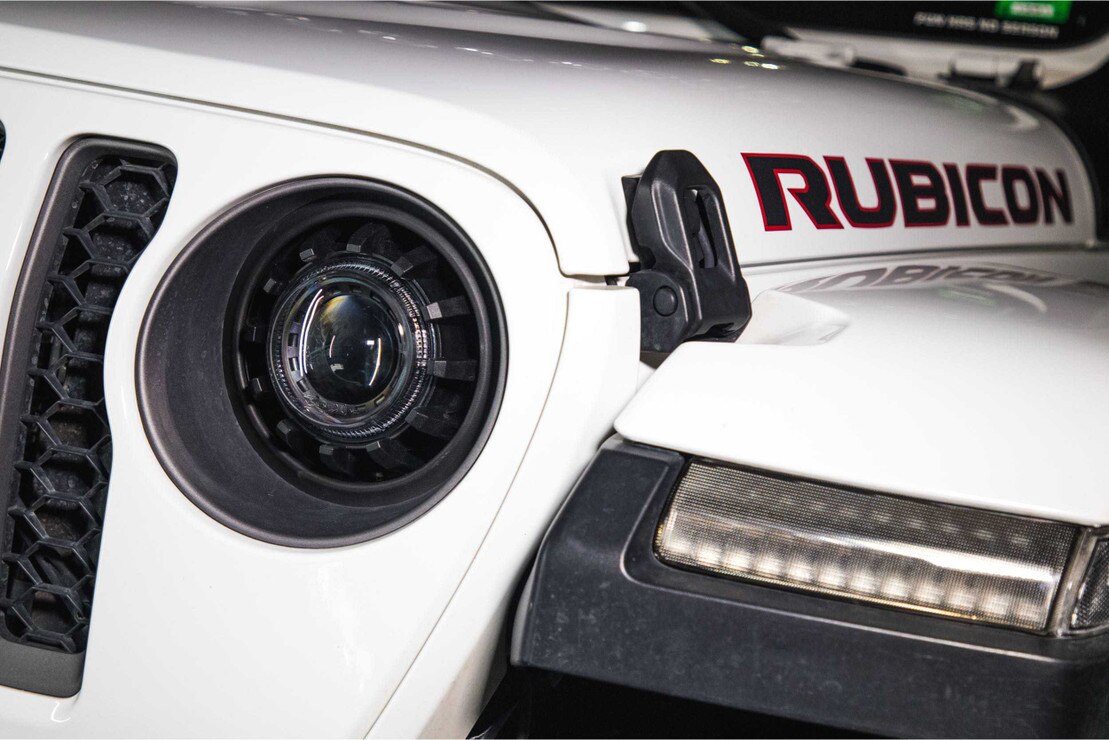

  • Super7 Headlights:

  • Traffic Pattern: LHD Only

  • Input: Delphi Multi-Pin OE Connection

  • Functions: Low and High Beam

  • Material: Power-coated Die-Cast Housing, UV-Treated Polycarbonate Lens

  • Optic: M-LED Bi-LED (29.5W)

  • LED: HML-3 7545 w/ Ceramic Substrate and ESD Protection

  • Kelvin Rating: 6300K

  • UV Coating: Momentive UVHC3000

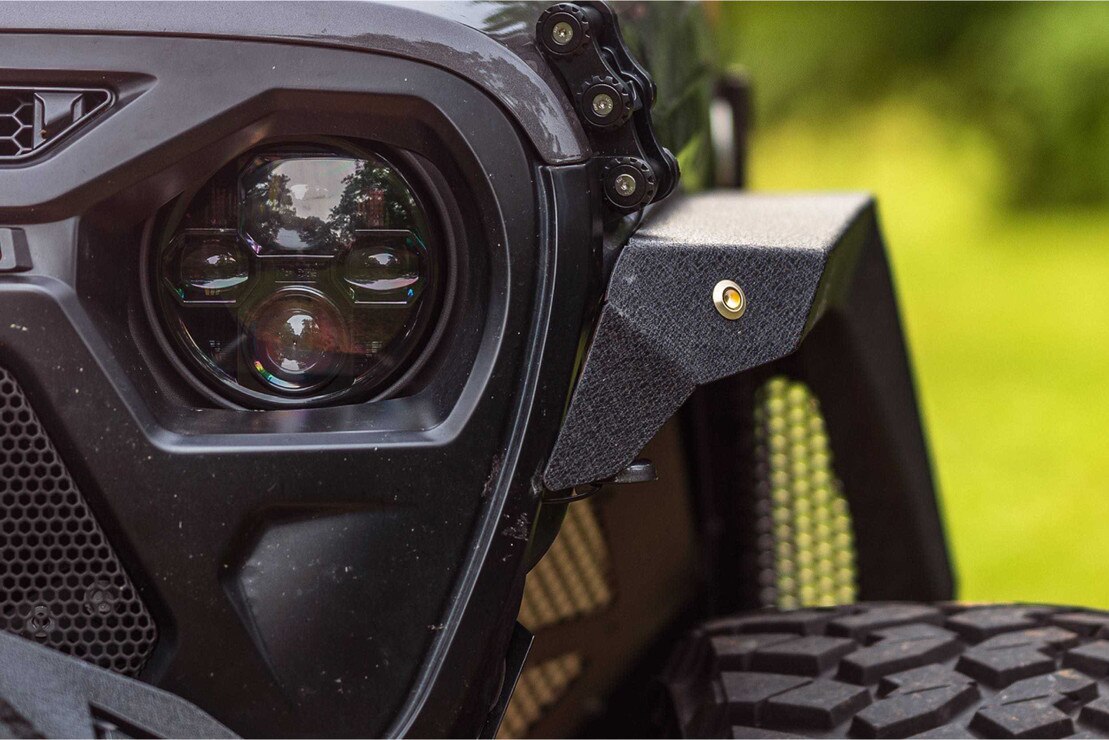

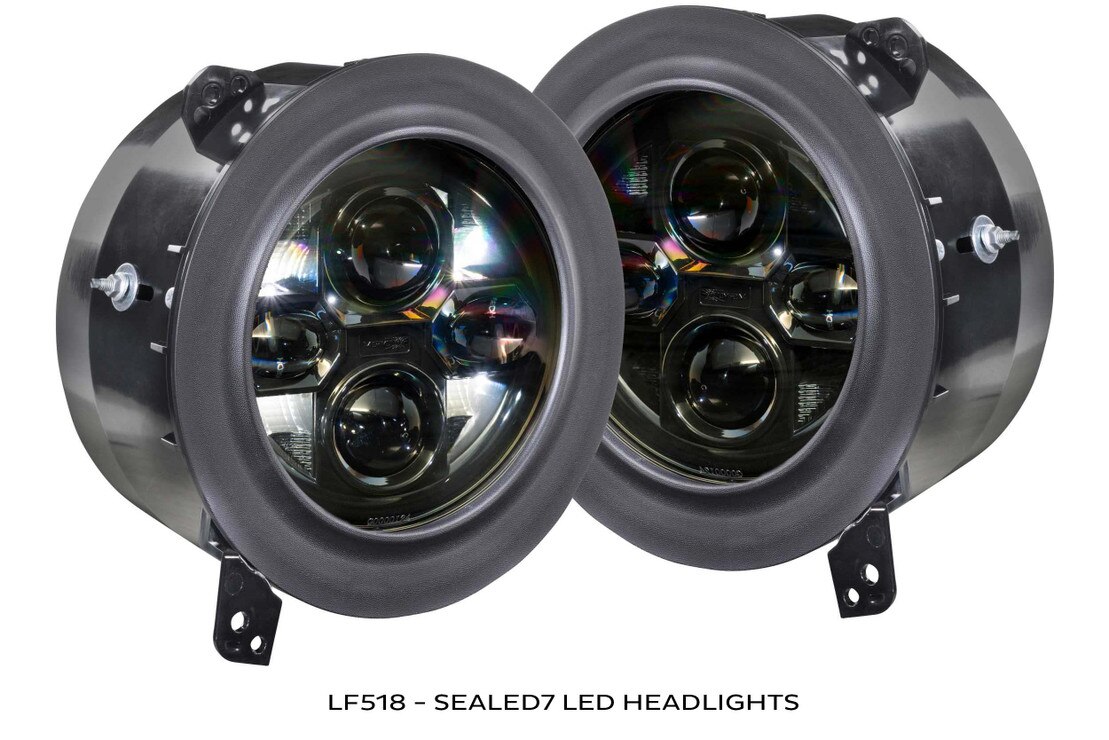

  • Sealed7 Headlights:

  • Traffic Pattern: LHD Only

  • Input: Delphi Multi-Pin OE Connection

  • Functions: Low and High Beam

  • Material: Power-coated Die-Cast Housing, UV-Treated Polycarbonate Lens

  • Optic: Kuria Optic Hi/Lo

  • Intensity: 2,860 Lumens (Low), 1020 Lumens (High)

  • LED: Nichia NCSW170C, Philips Luxeon 3535L

  • Kelvin Rating: 6300K

  • UV Coating: Momentive UVHC3000

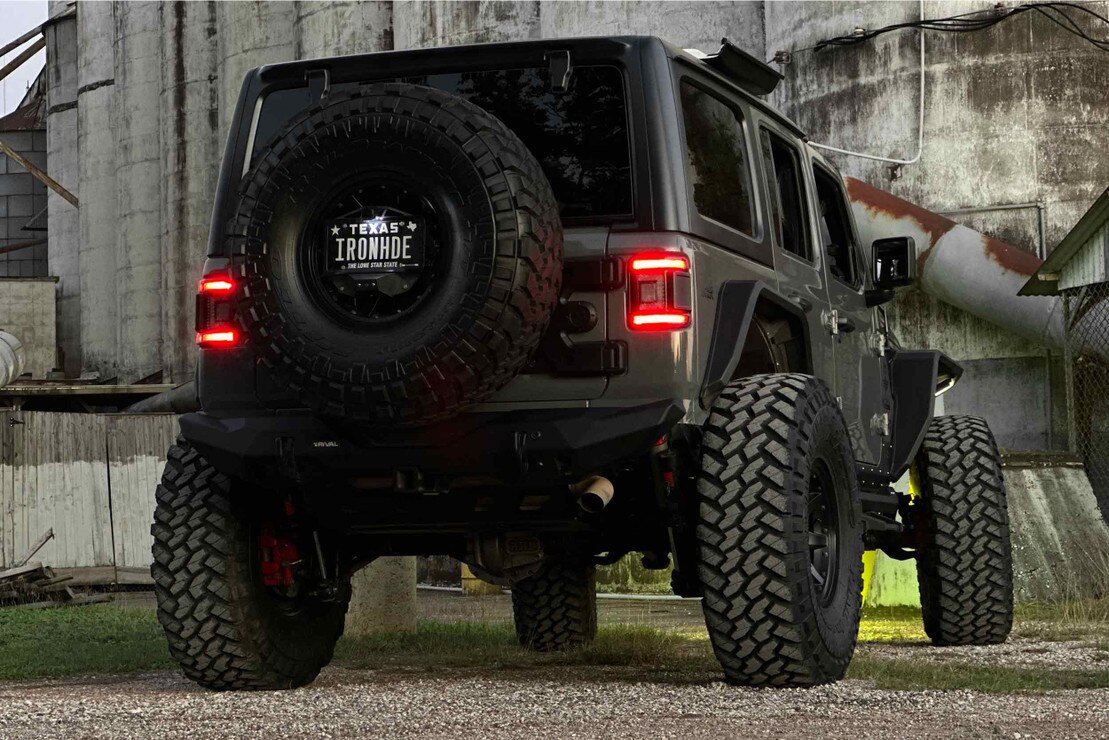

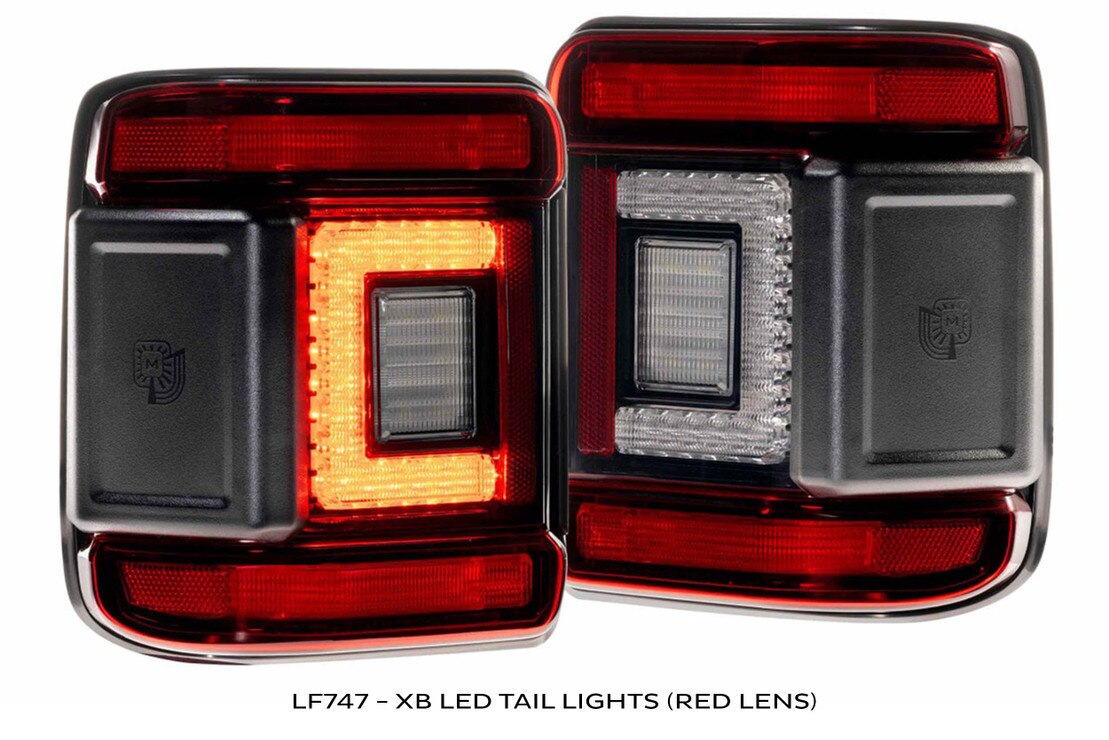

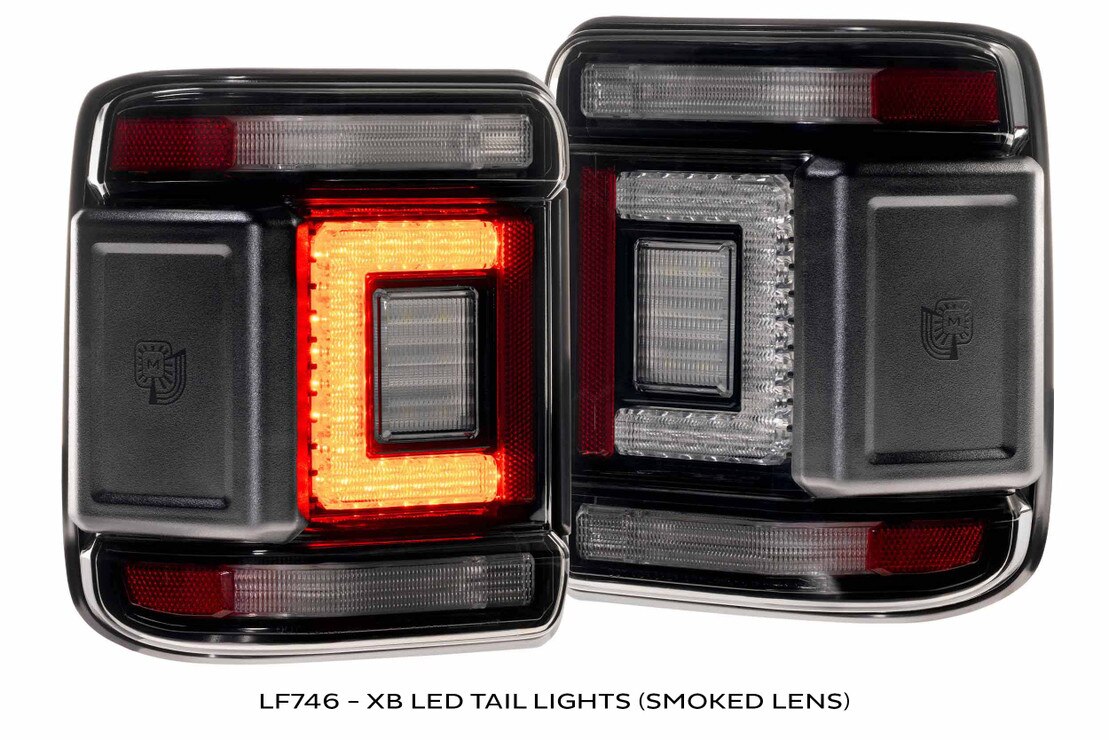

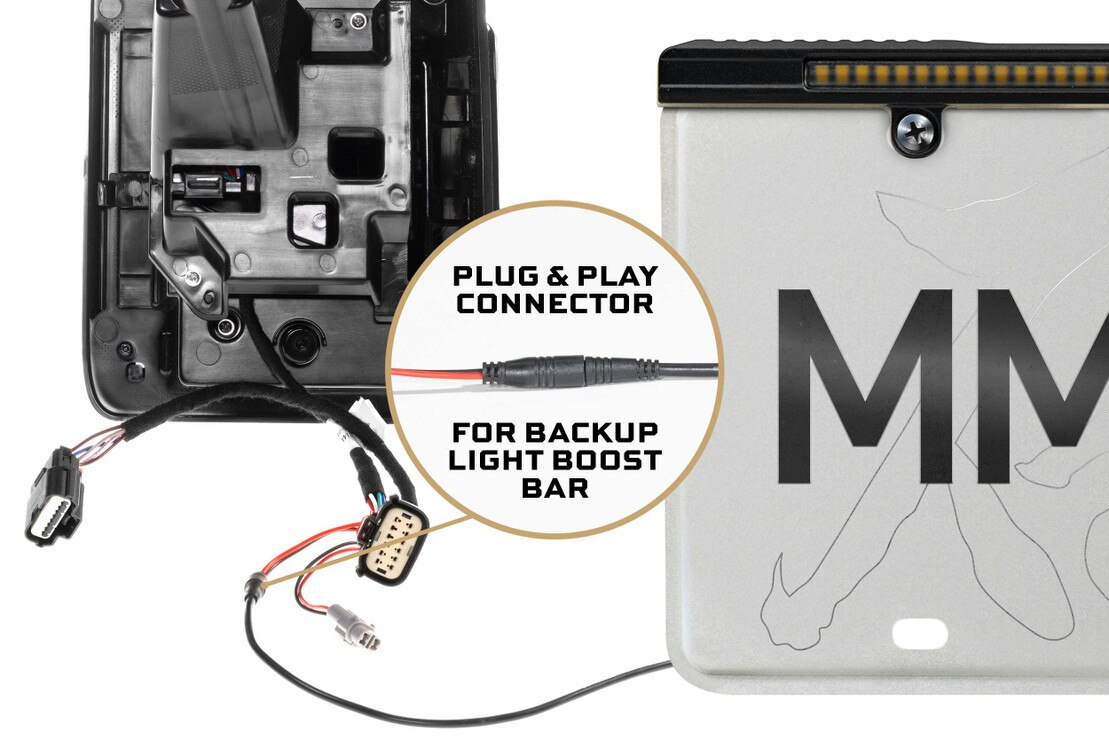

  • Tail Lights:

  • Input: Jeep Multi-Pin OEM

  • Material: PP Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Light Source: SSC LED

  • Reverse Light: White

  • Brake Light: Red

  • Parking Light: Red

  • Turn Signal: Red

COMPATIBILITY

  • Jeep Wrangler JL: 2018+ (Sport, Sport S, Willys, Sahara, High Altitude, Rubicon, Rubicon X, and Rubicon 392)

  • OE LED w/ BSM: Requires swap of radar modules

  • Replaces Jeep Part #: 55112894AD, 55112894AE, 55112894AF, 55112895AD, 55112895AE, 55112895AF, 55112895AG, 55112894AG, 55112895AH, 55112894AH, 55112894AI, 55112895A, 68434889AA, 68434890AA, 68434889AB, 68434890AB

  • NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.

COMPLIANCE

DOT, SAE, FMVSS108 Standards

INSTALLATION DOCUMENTS
