Toyota Tacoma (16-23) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-2016TACO-MM

$2,100.00

PRODUCT OPTIONS

PART #: 1 x LF2-530, 1 x LF703.2



*Guaranteed Fitment
Easy Return

DESCRIPTION

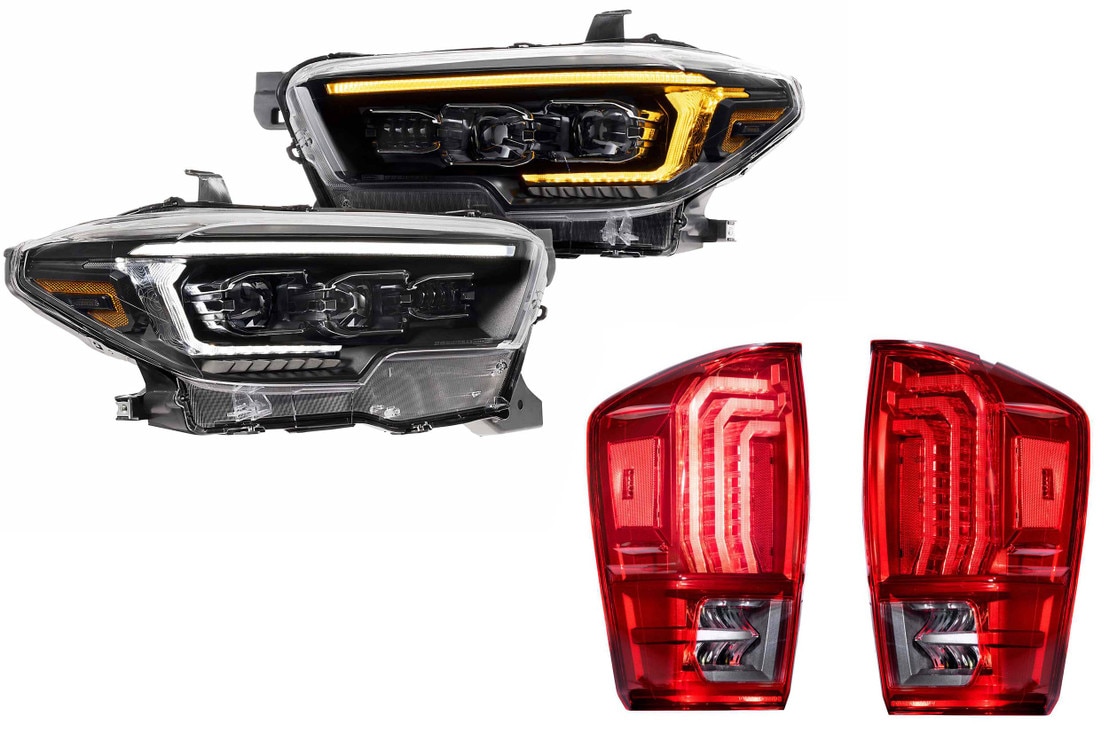

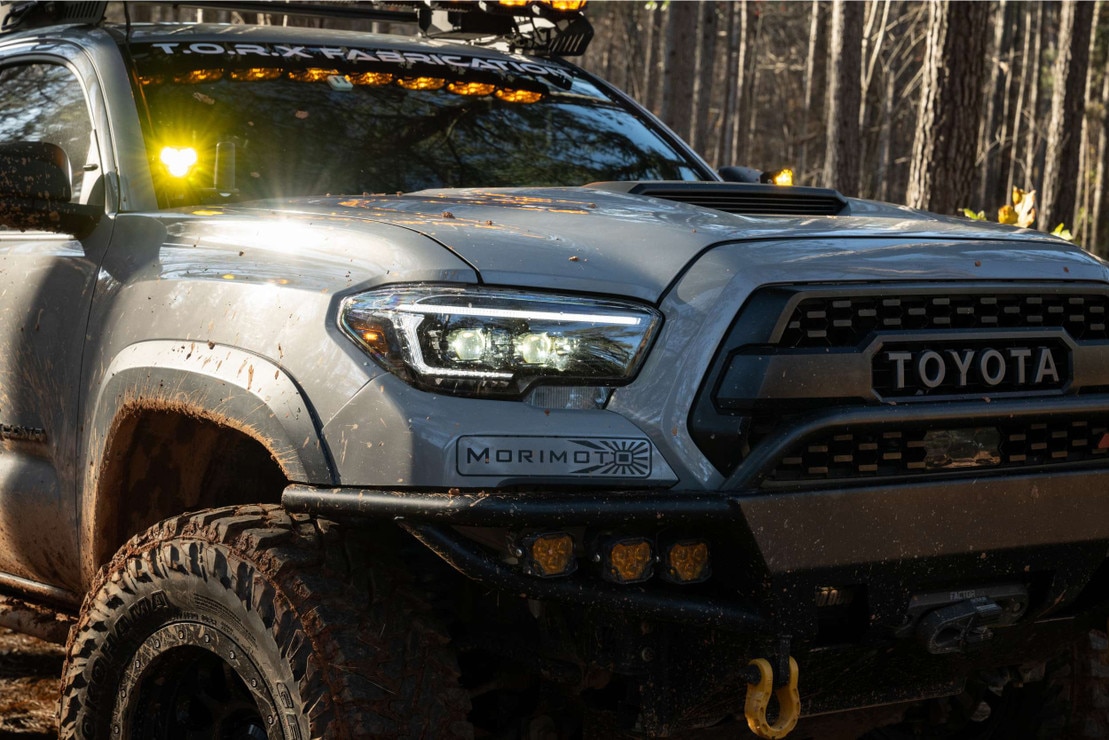

Upgrade your Toyota Tacoma with the complete Morimoto lighting bundle, designed for enthusiasts who demand top-tier performance, quality, and style. This all-in-one package includes the XB Evo headlights, XB Evo Hybrid headlights, and Morimoto XB LED Tail Lights, all built to exceed expectations. The XB Evo headlights are packed with features like a patent-pending heating system to minimize frost buildup in snowy conditions, customizable DRLs and turn signals, and a multi-stage illumination sequence for added flair. Built with the latest technology and backed by a five-year warranty, these headlights are built to last the life of your Tacoma. The XB Evo Hybrid headlights offer similar performance at a more affordable price. Featuring Bi-LED projectors for an incredibly bright low and high beam, powered by OE-grade LEDs from Nichia, these headlights deliver exceptional light output and durability, all backed by a five-year warranty. The Morimoto XB LED Tail Lights enhance both the style and functionality of your Tacoma. Featuring plug-and-play installation, amber turn signal illumination, and high-output LED reverse lights, these tail lights offer improved visibility and durability. Constructed with UV-treated polycarbonate and injection-molded ABS, they provide long-lasting performance and a sleek look. This bundle offers a complete, high-quality lighting solution that boosts both safety and style for your Tacoma.

FEATURES & BENEFITS

  • XB Evo Headlights: Feature frost-reducing heating, customizable DRLs/turn signals, and a dynamic startup sequence for style and performance.
  • XB Evo Hybrid Headlights: Offer bright Bi-LED projectors and Nichia LEDs for high output at a more affordable price.

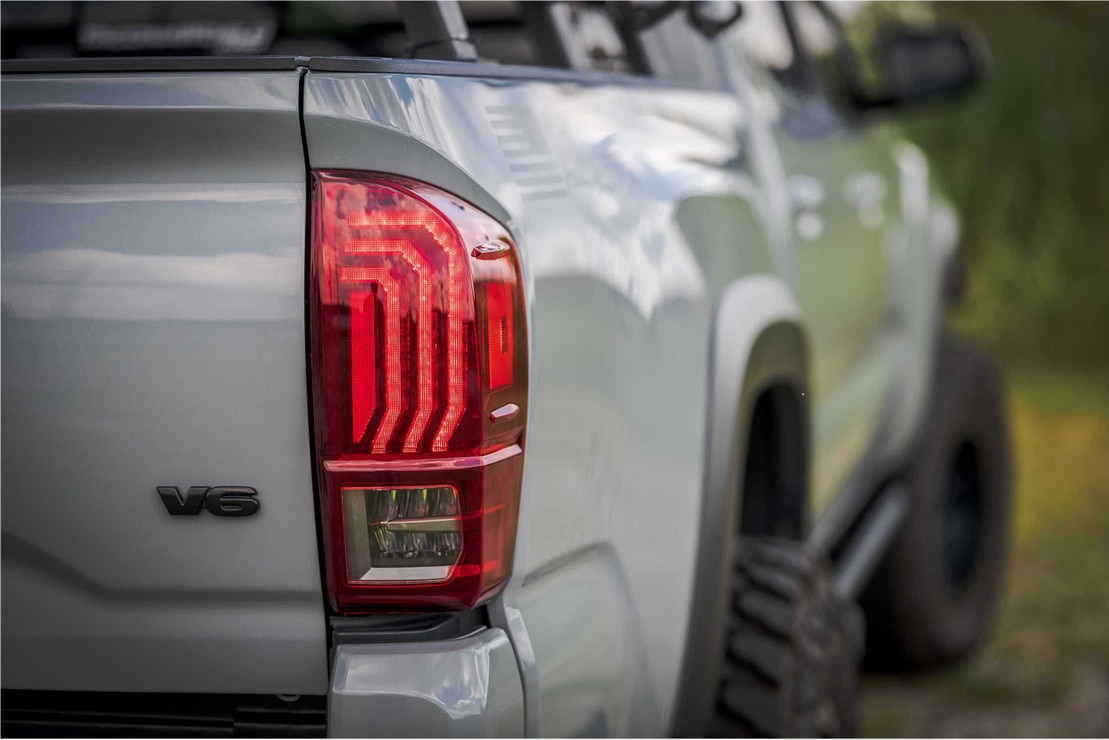

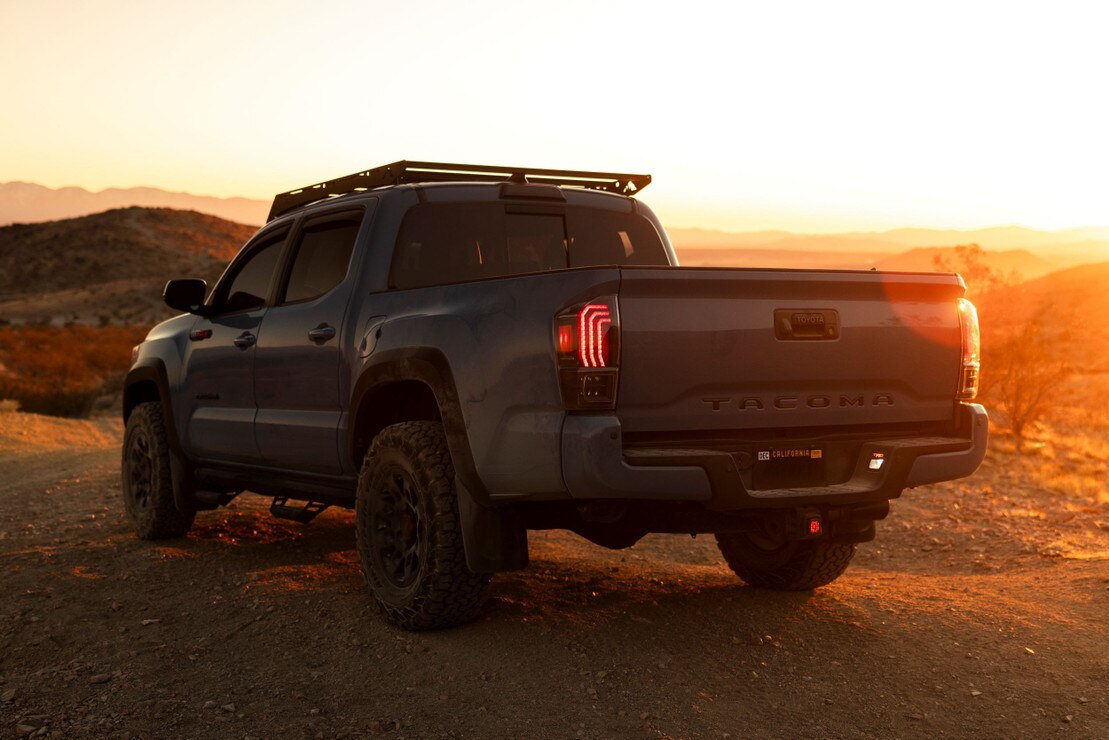

  • XB LED Tail Lights: Include amber turn signals, LED reverse lights, and enhanced visibility with TIR optics.
  • Easy Installation: Plug-and-play design with durable construction for long-lasting reliability.
  • 5-Year Warranty: All components are backed by a 5-year warranty for peace of mind.

WHAT’S INCLUDED

  • Headlight Choices:

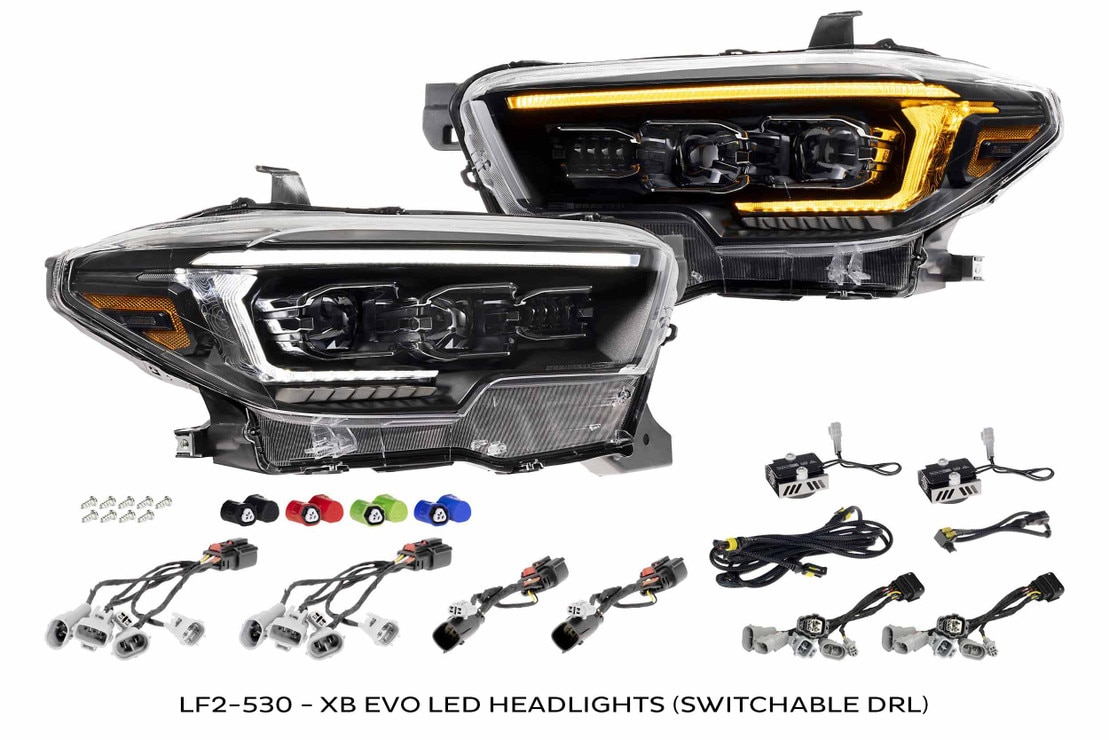

    Morimoto XB Evo LED Headlights: 16-23 Toyota Tacoma (White/Amber DRL) Click for Details

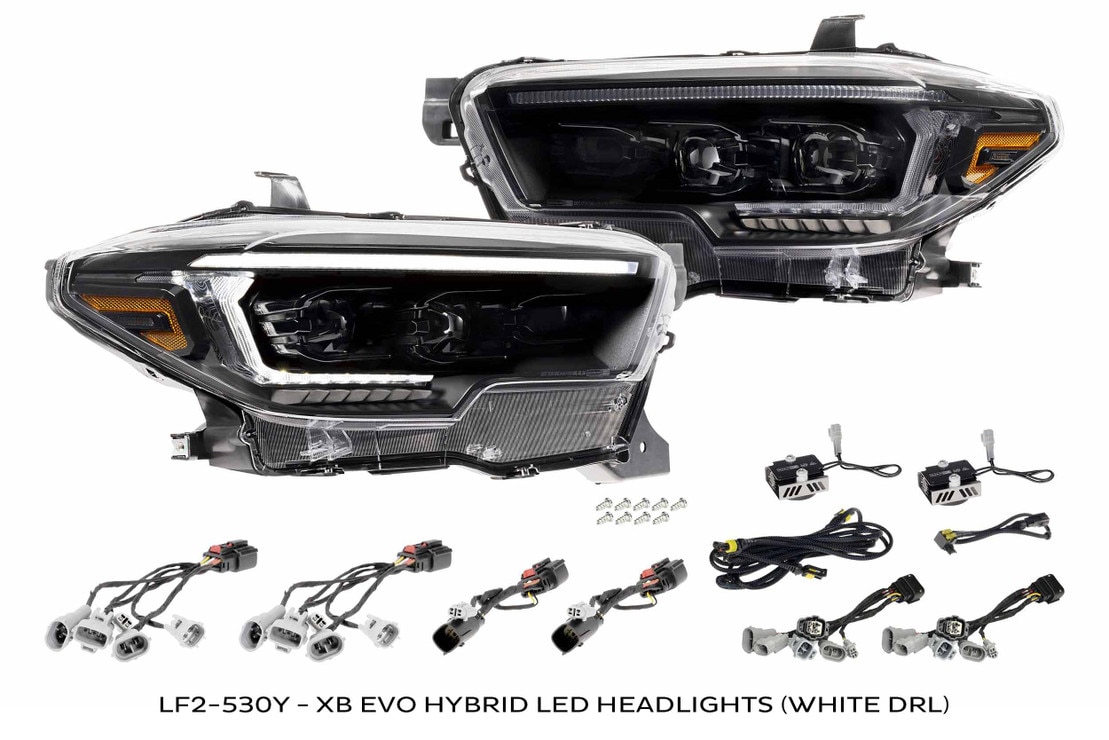

    Morimoto XB Evo Hybrid LED Headlights: 16-23 Toyota Tacoma (White DRL) Click for Details

  • Tail Light Choices:

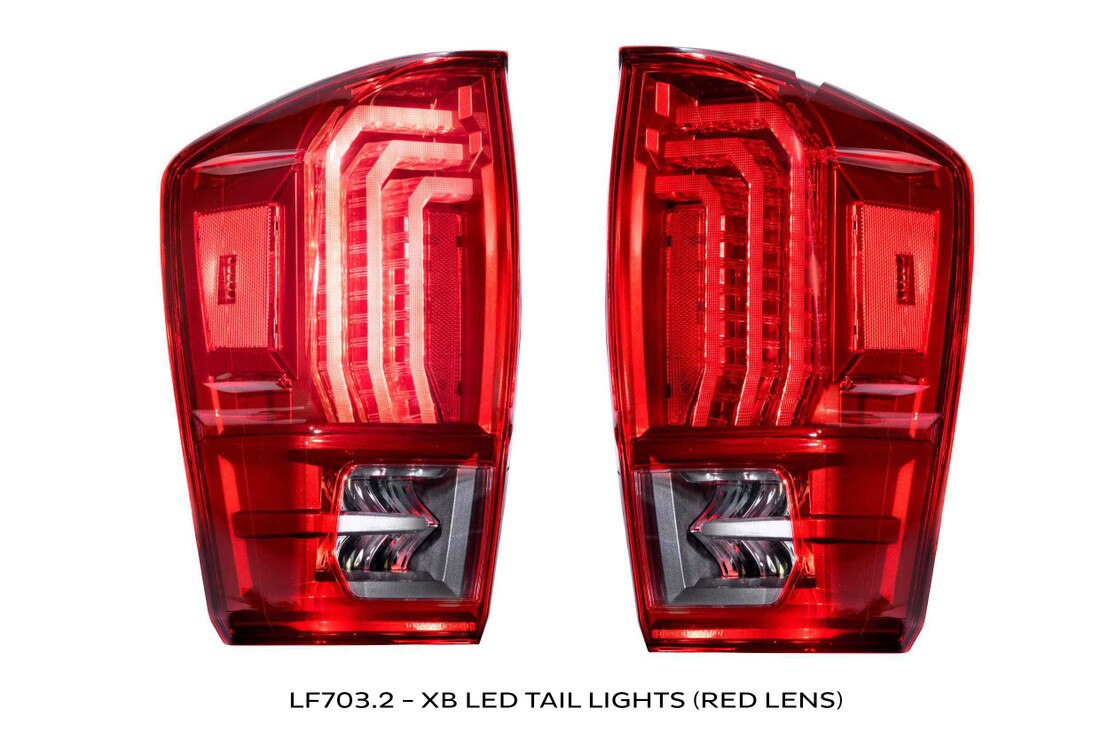

    Morimoto XB LED Tail Lights: 16-23 Toyota Tacoma (Red Lens) Click for Details

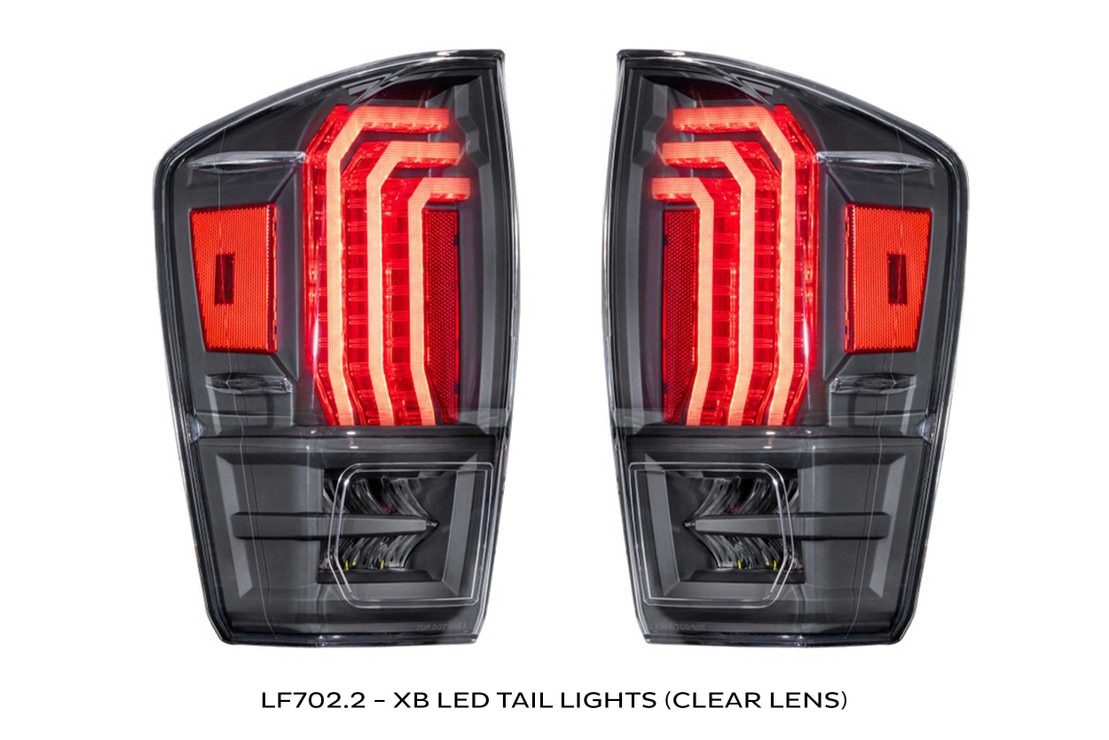

    Morimoto XB LED Tail Lights: 16-23 Toyota Tacoma (Clear Lens) Click for Details

WARRANTY INFORMATION

This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Headlights:

  • Traffic Pattern: LHD / Right Hand Traffic Only

  • Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)

  • Output (Supercharged Drivers): Non-Compliant

  • Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

  • High Beam Assist: 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)

  • Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating

  • Turn Signal Modes: Sequential or Fade Off (Integrated)

  • DRL Colors: White or Amber (Integrated)

  • DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern

  • Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans

  • Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures

  • Side marker: Amber side reflex reflector (DOT compliant)

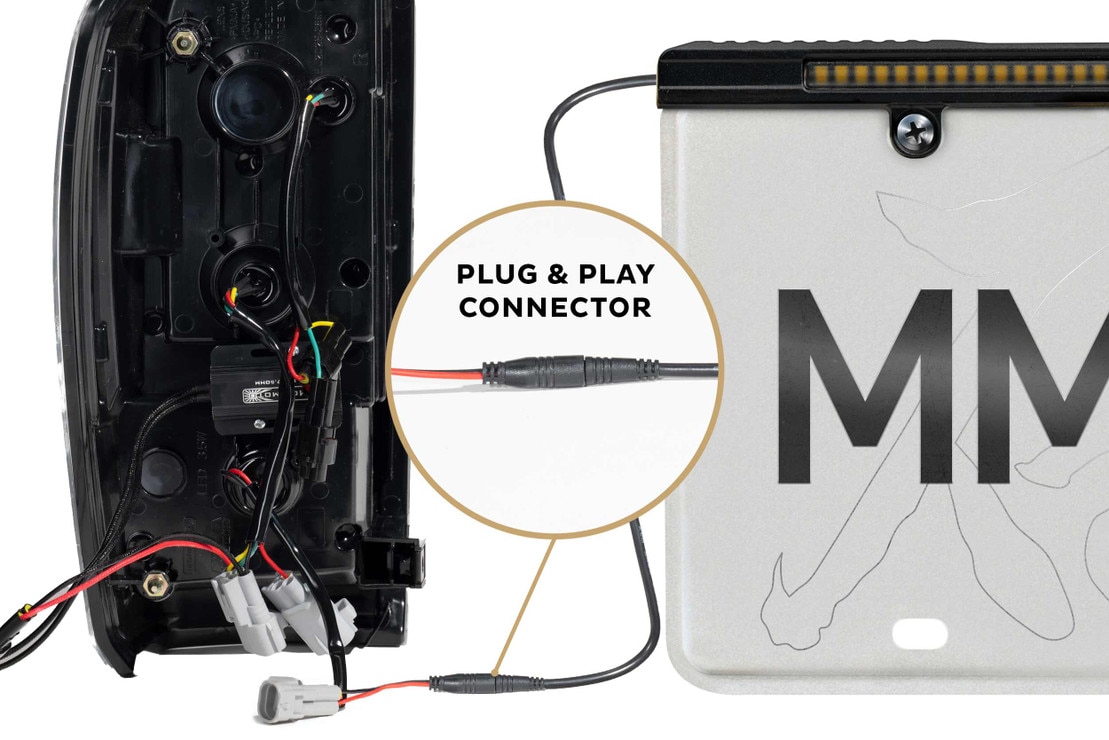

  • Wiring: Plug n Play for all sub-models within model year range

  • Lens Details: Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)

  • Tail Lights:

  • Input: Toyota Multi-Pin OEM

  • Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Light Source: SSC LED

  • Brake Light: Red (Bright)

  • Parking Light: Red (Dim)

  • Turn Signal: Amber

COMPATIBILITY

  • Toyota Tacoma: 2016-2023 (SR, SR5, TRD Sport, TRD Off-Road, Limited, Trail Special Edition, and TRD Pro)

  • Compliance: Meets all DOT, SAE and FMVSS108 Standards*

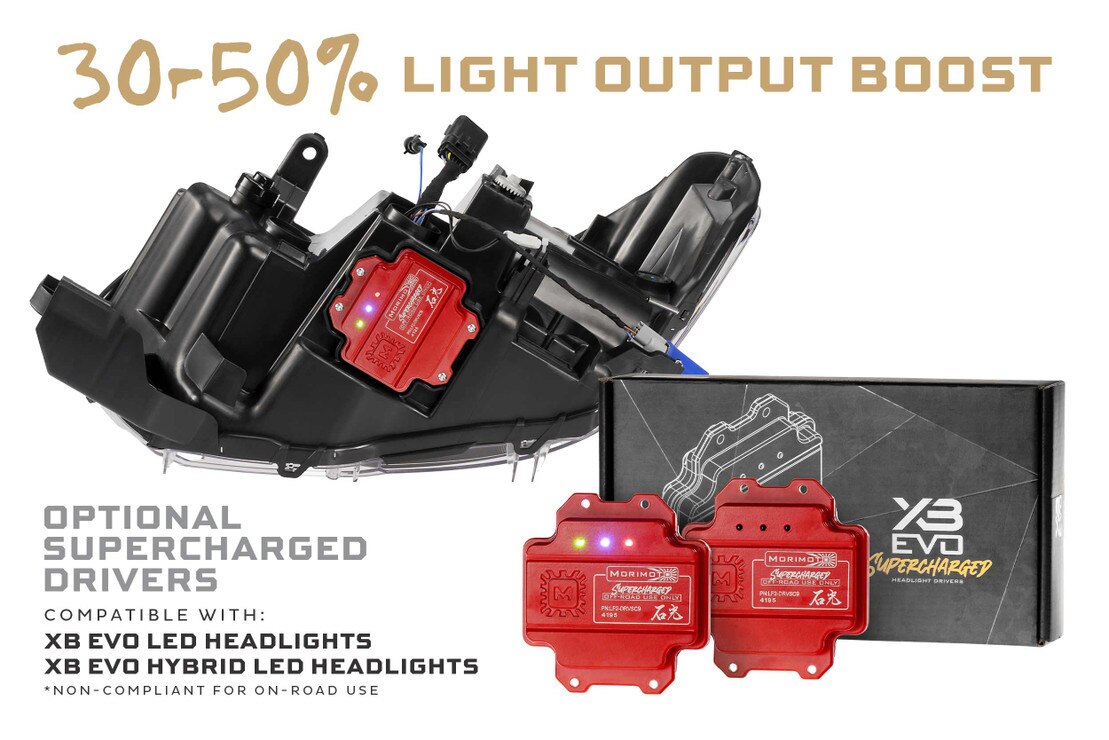

  • Supercharged Drivers: LF2-DRVSC9*

  • *NOTE: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.

  • Replaces Toyota Part #: 8115004270, 8111004270, 8115004280, 8111004280, 8115004250, 8111004250, 8115004260, 8111004260, 8156004170, 8155004170, 8156004180, 8155004180, 8156004190, 8155004190, 8156004200, 8155004200, 8156004181, 8155004181, 8156004230, 8155004230, 8156004210, 8155004210, 8156004220, 8155004220, TO2800197, TO2801197, TO2800198, TO2801198, TO2800199, TO2801199, TO2800201, TO2801201, TO2800203, TO2801203, TO2800207, TO2801207, TO2800206, TO2801206, TO2800205, TO2801205

  • NOTE: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

COMPLIANCE

Meets all DOT, SAE, and FMVSS108 Standards. *NOTE: Installation of Optional Supercharged Drivers in headlights results in non-compliant intensity. Not for on-road use in USA or Canada.

INSTALLATION DOCUMENTS
