GMC Sierra HD (15-19) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-SIERRAHD-MM

$1,909.10 Original Price:$2,246.0015% OFF

PRODUCT OPTIONS

PART #: 1 x HEADTAILKIT188



*Guaranteed Fitment
Easy Return

DESCRIPTION

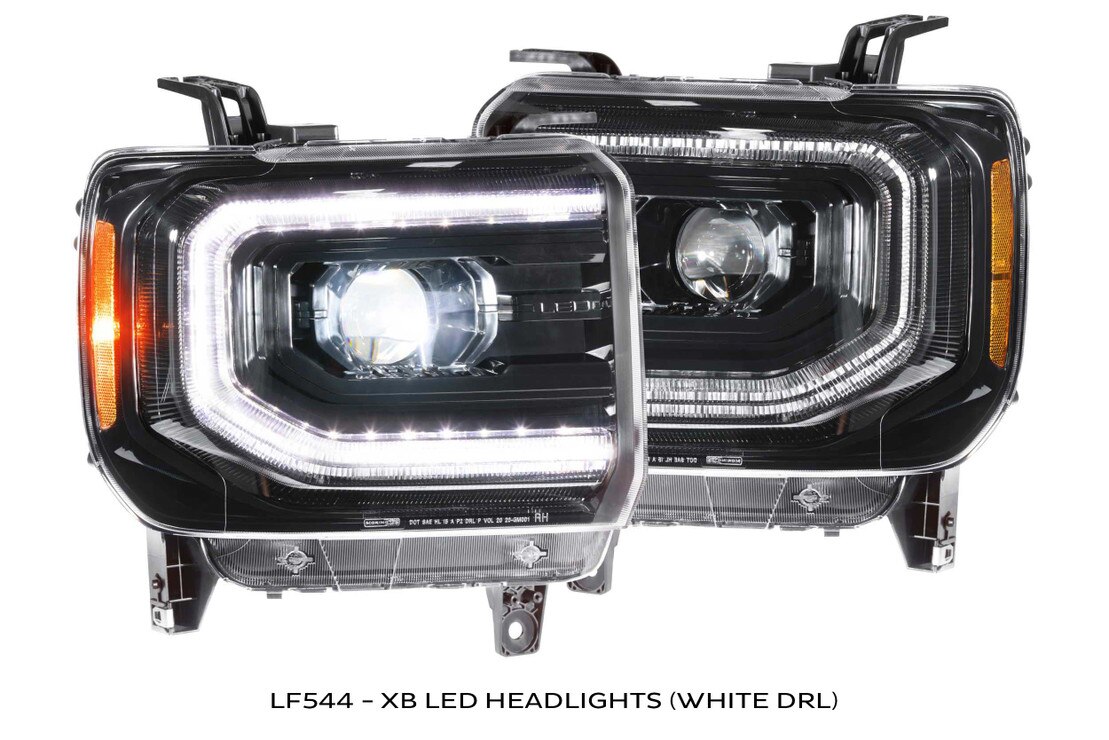

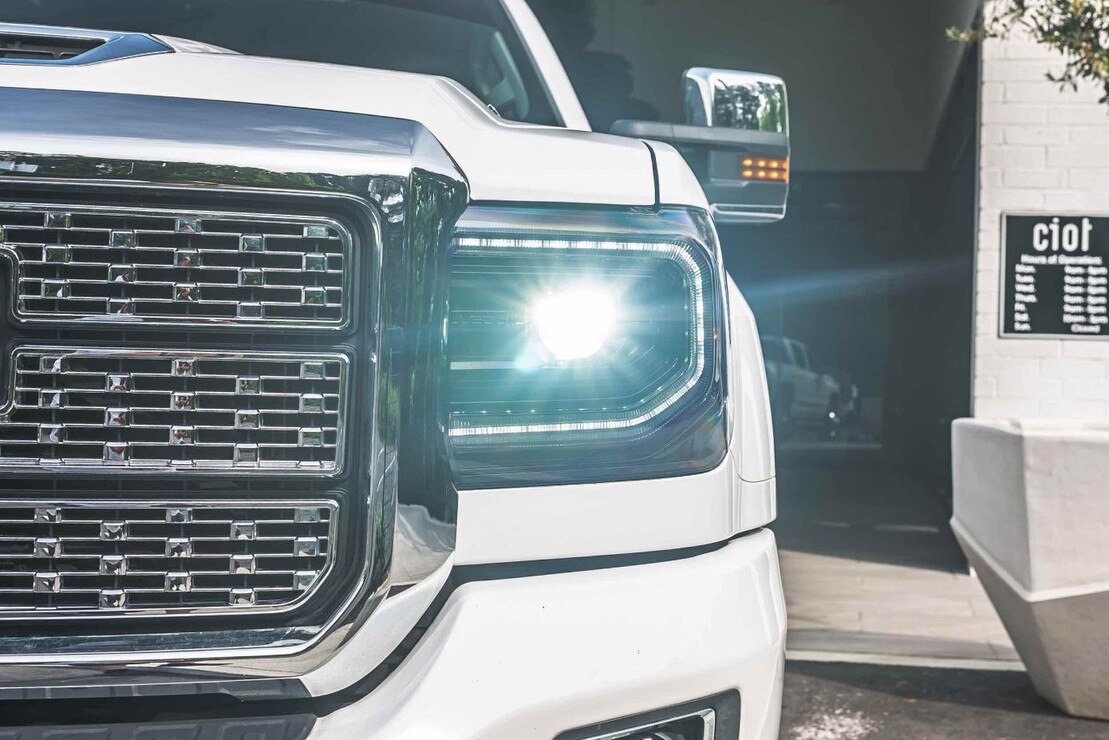

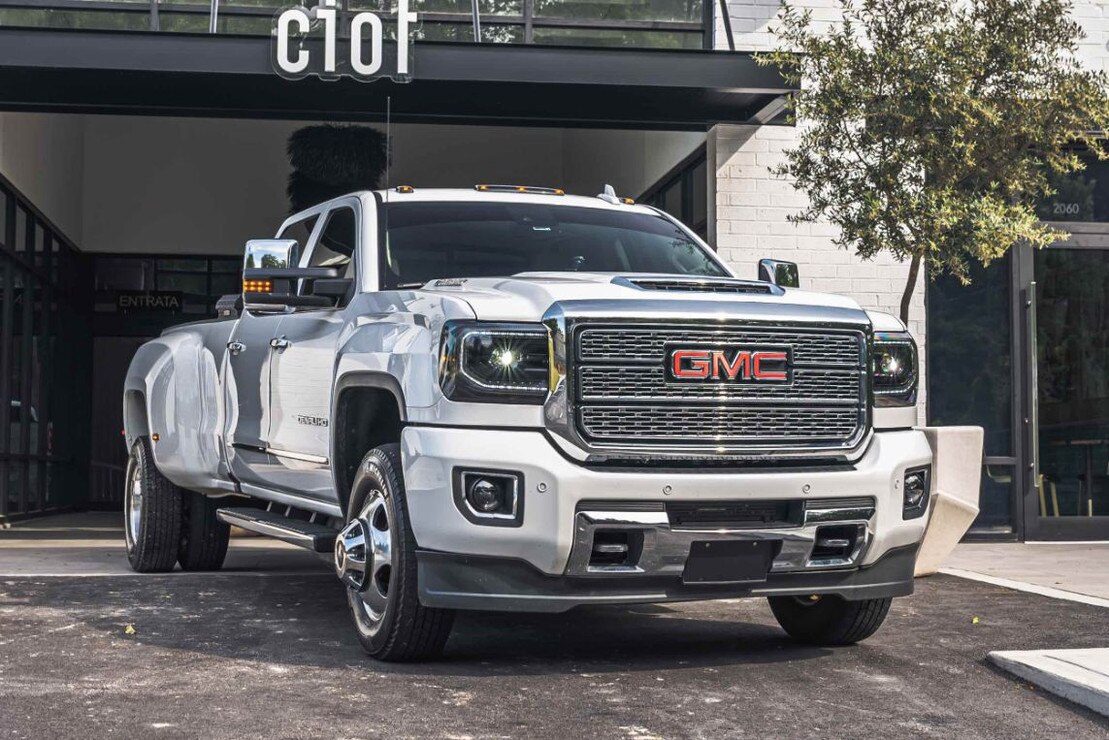

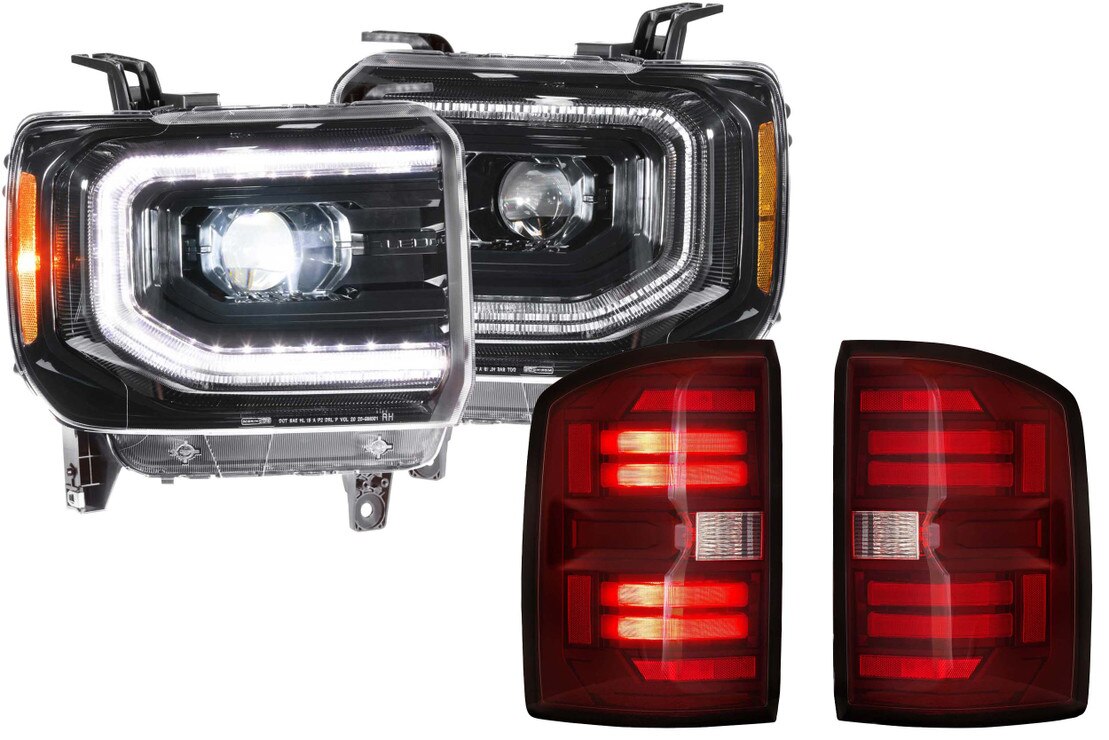

The Morimoto XB LED Headlights for the GMC Sierra HD (2015-2019) offer a modern and bright lighting solution. These headlights feature a bright C-shaped LED daytime running light powered by Osram 5000K LEDs that are easy to see during the day. They also include a sequential turn signal that can be switched to a standard blink if you prefer. The headlights use high-output Bi-LED projectors with clear lenses for better light output and beam quality than stock headlights. They meet all safety standards and are easy to install with plug-and-play wiring. The lenses are made from UV-coated polycarbonate for long-lasting clarity, and the housings have strong materials and good cooling systems to protect the LEDs. Morimoto’s XB LED Tail Lights offer a modern style with two rows of bright LED blades for brake and turn signals. They come with strong LED reverse lights and can connect to an optional reverse light bar for extra brightness when backing up. These tail lights meet all safety rules and have a 5-year warranty, making them a reliable choice for improving both the look and function of your truck.

FEATURES & BENEFITS

  • Bright Lighting: Osram LEDs deliver clear daytime running lights and strong low/high beams for safer driving.
  • Sequential Turn Signals: Stylish effect with option to switch to standard mode.
  • Durable Build: UV-coated lenses and aluminum heat sinks ensure long life and cooling.
  • Plug-and-Play: Easy install on 2014-2019 GMC Sierra with no errors or flicker.

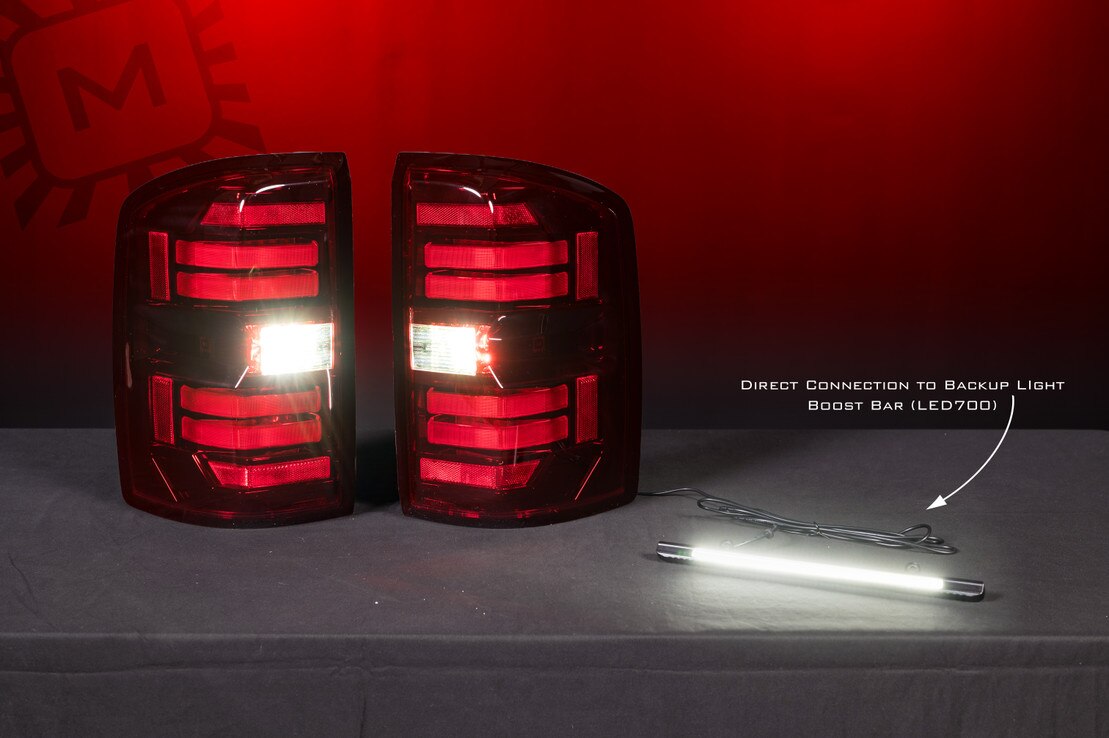

  • Modern Tail Lights: 3D light blades, bright reverse lights, and optional backup bar improve visibility.

WHAT’S INCLUDED

WARRANTY INFORMATION

These Morimoto products include a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Headlights :

  • Traffic Pattern : LHD Only

  • Input : GM Multi-Pin OEM

  • Functions : DRL (White), Turn, Parking, Low, High

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Optic : Kuria Optic Bi-LED

  • UV Coating : Momentive UVHC3000

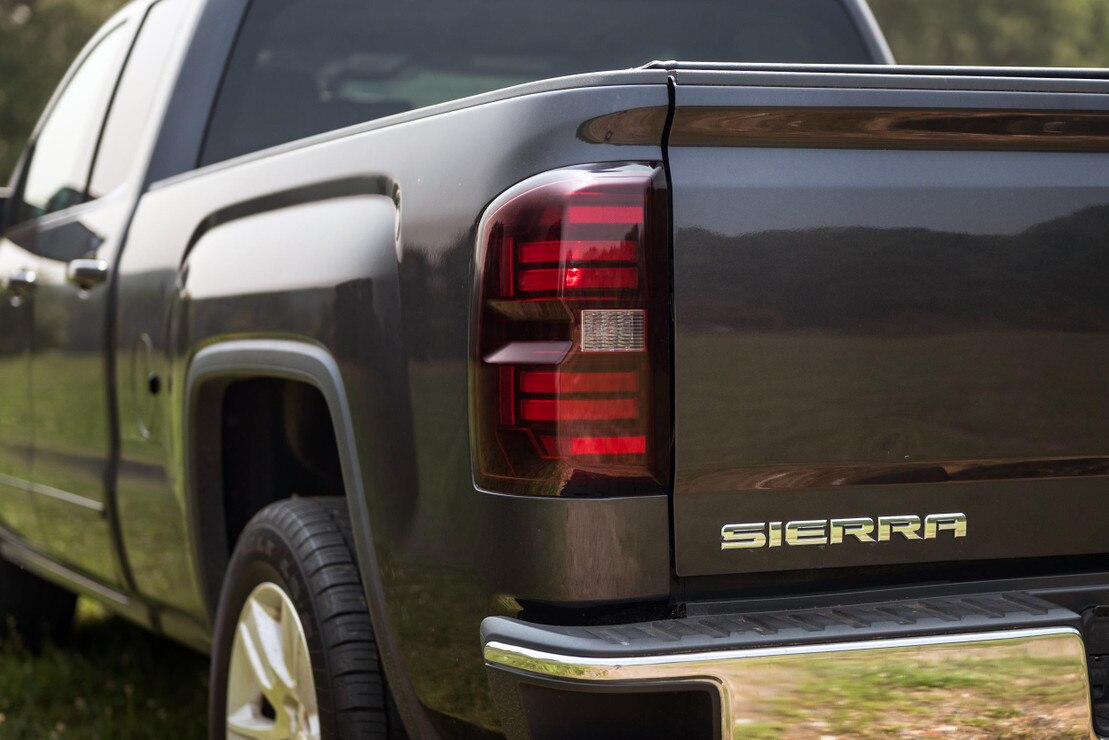

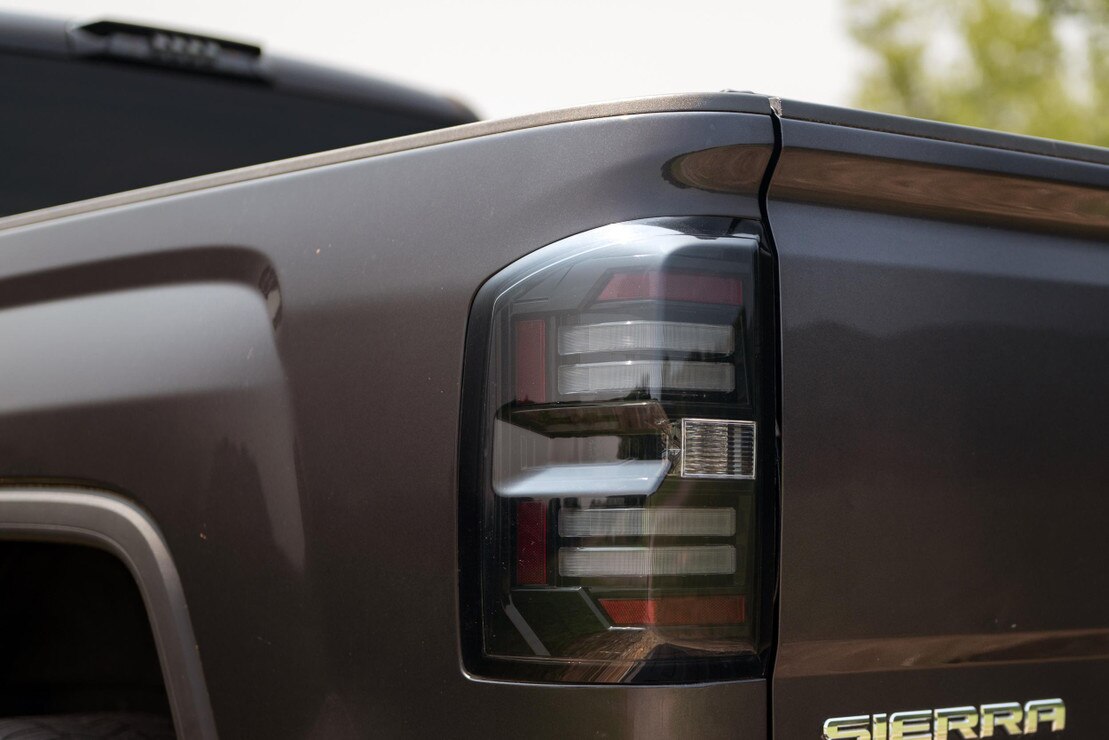

  • Tail Lights :

  • Input : GM Multi-Pin OEM

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Light Source : SSC LED

  • Reverse Light : White

  • Brake Light : Red

  • Parking Light : Red

  • Turn Signal : Red

COMPATIBILITY

  • GMC Sierra 2500HD : 2015-2019

  • GMC Sierra 3500HD : 2015-2019

  • Dually Trucks : Not Compatible

  • OEM LED Tail Light Trucks : Requires optional LF728HT adapters

  • Note : Not Compatible with Trucks w/ OEM LED Turn Signals

  • Replaces GM Part # : 23268190, 2502394, 23130717, 23130718, GM2800262, GM2801262

  • NOTE : These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
