DESCRIPTION
FEATURES & BENEFITS
- Bright Lighting: Triple Bi-LED projectors provide wide low beams and strong high beams for better night driving.
- Customizable: Choose white or amber daytime running lights and sequential or traditional turn signals with Signal Swap.
- Easy Fit: Fits perfectly using factory mounts and plugs into the stock wiring harness with no changes needed.
- Durable Build: OE-grade LEDs and wiring with UV-resistant coating to prevent damage and fading.

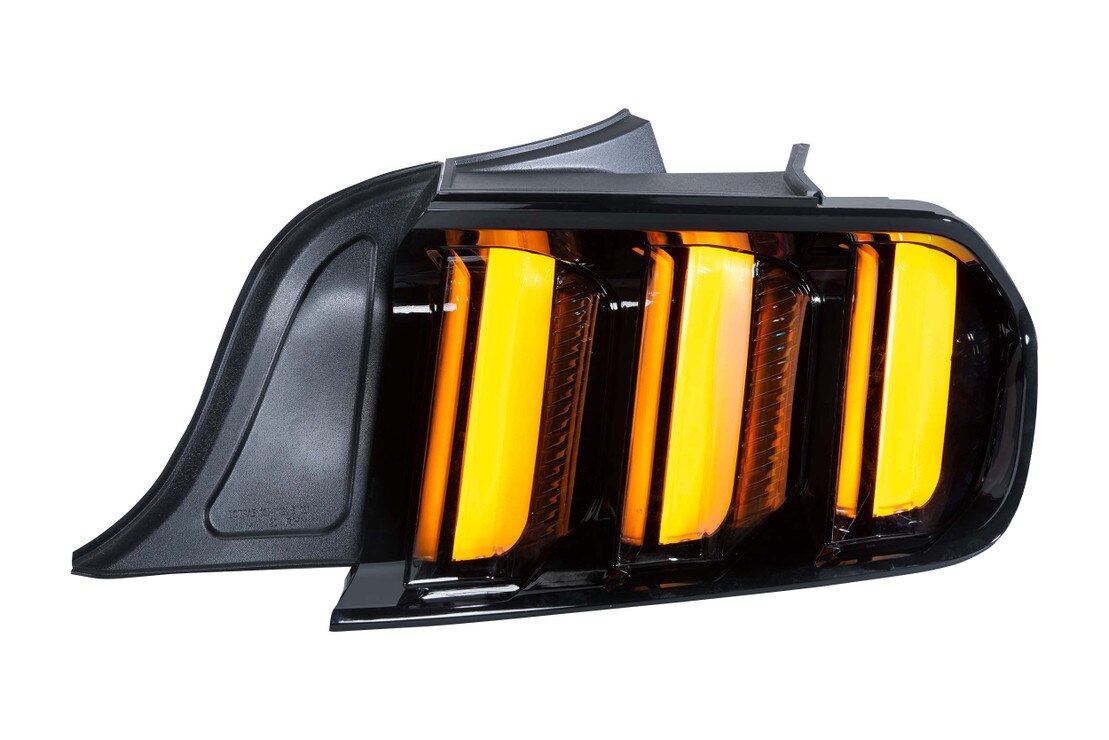

- Stylish Tail Lights: Euro lenses, smoked internals, and amber sequential turn signals create a sharp look.
WHAT’S INCLUDED

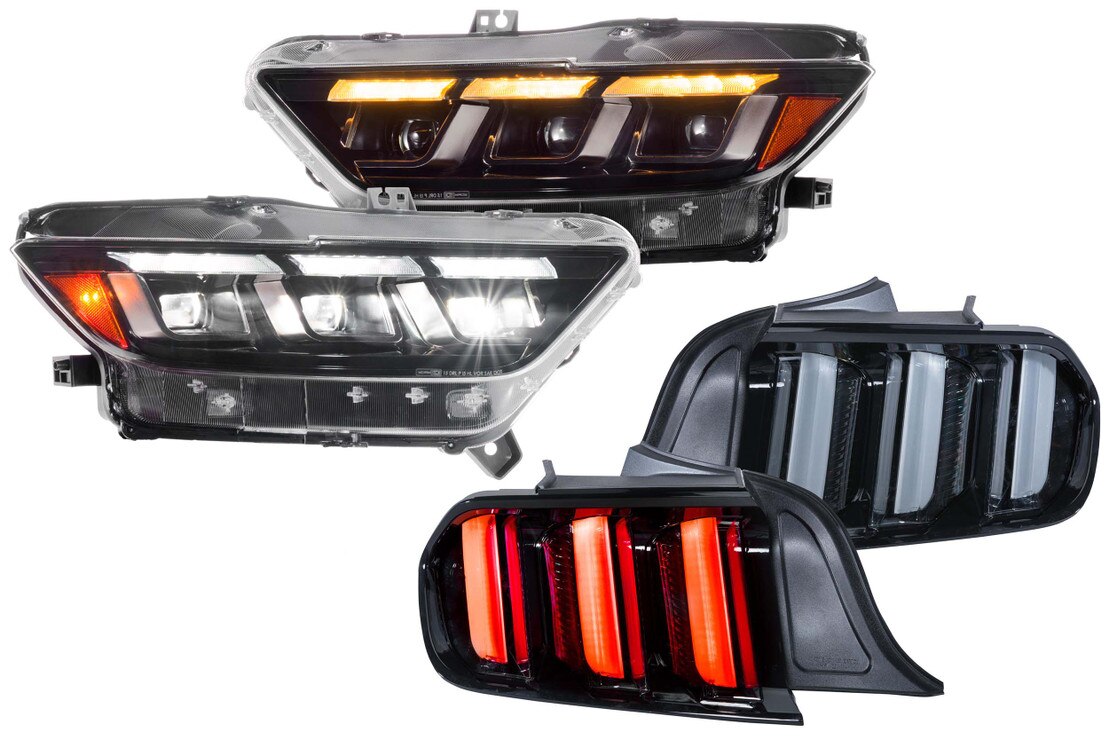

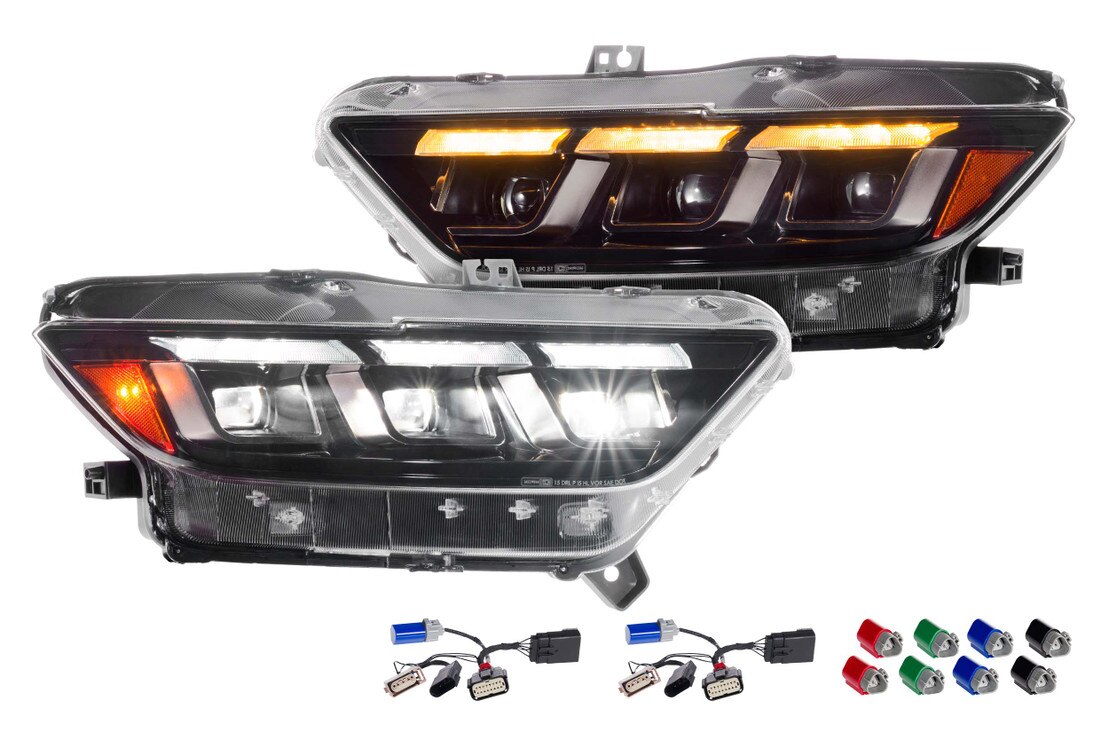

Headlights :
Morimoto XB LED Headlights: 15-17 Ford Mustang Click for DetailsTail Lights :
Morimoto XB LED Tail Lights: 15-17 Ford Mustang Click for Details
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS

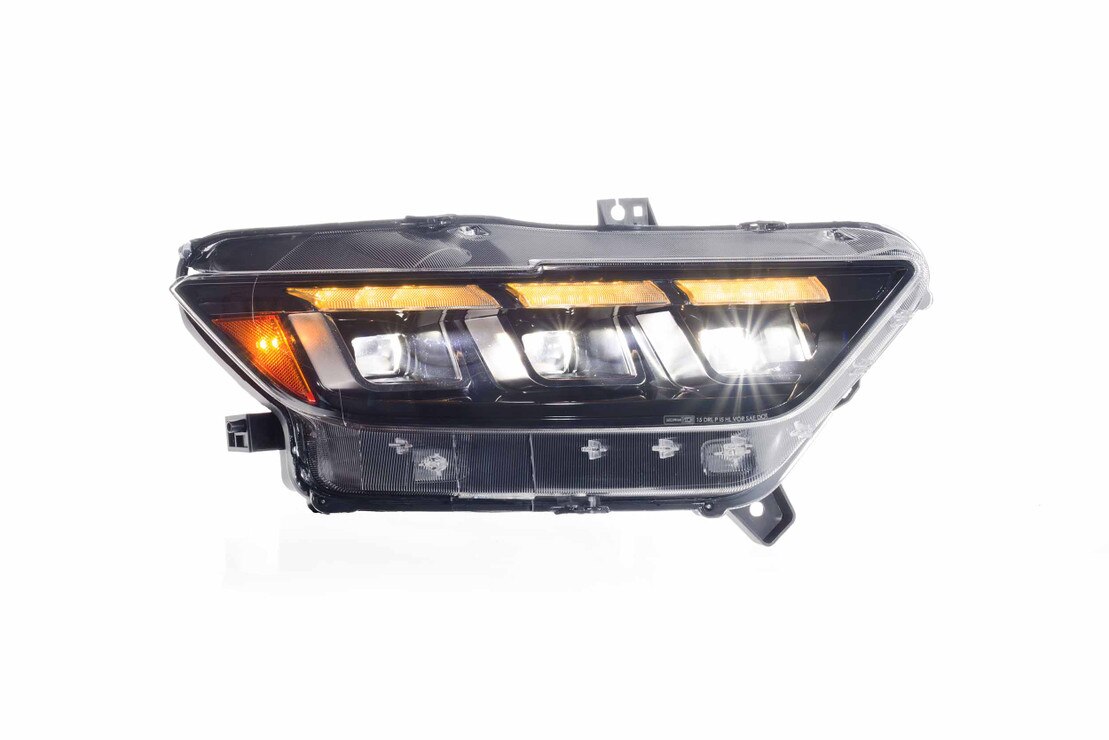

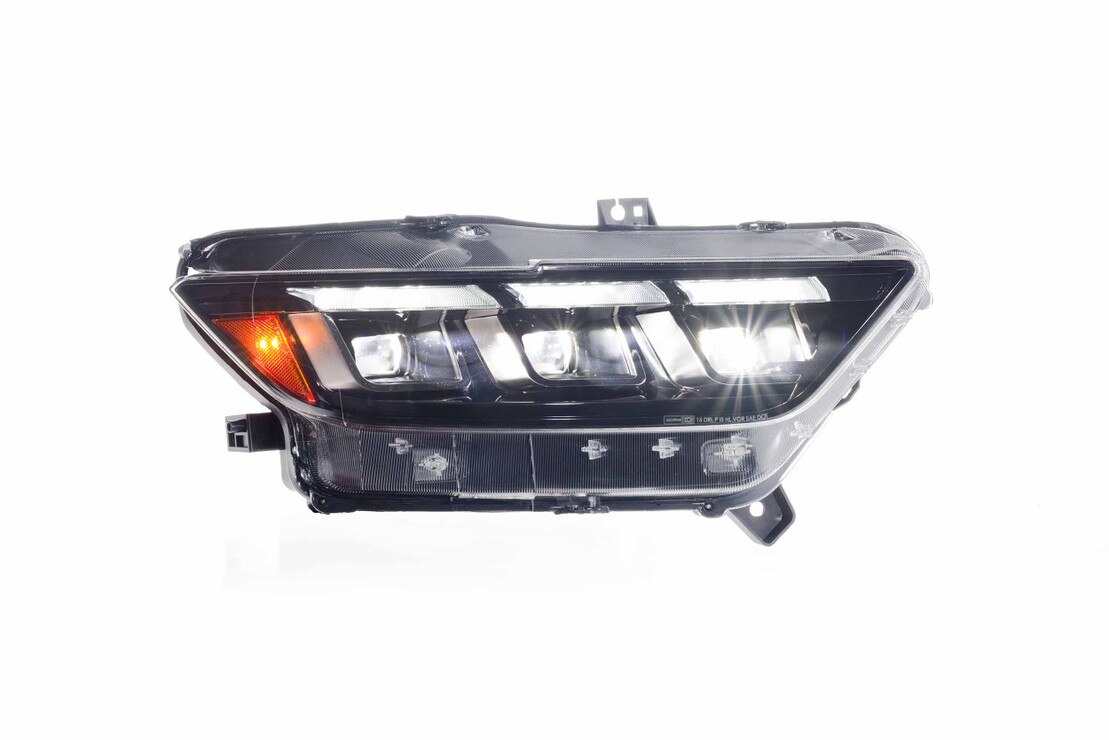

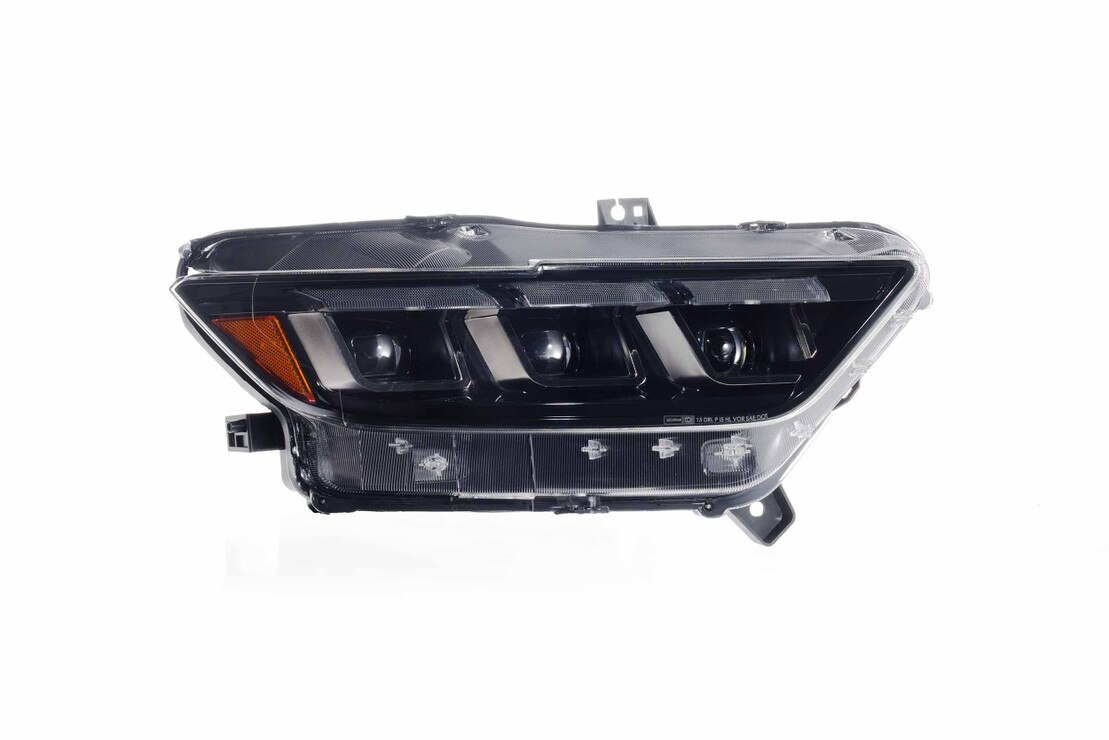

Headlights :
Low Beam Performance : +174% (530lux [OEM HID] to 1,450lux)
High Beam Performance : +143% (630lux [OEM HID] to 1,530lux)
Traffic Pattern : LHD
Input : Ford multi-pin

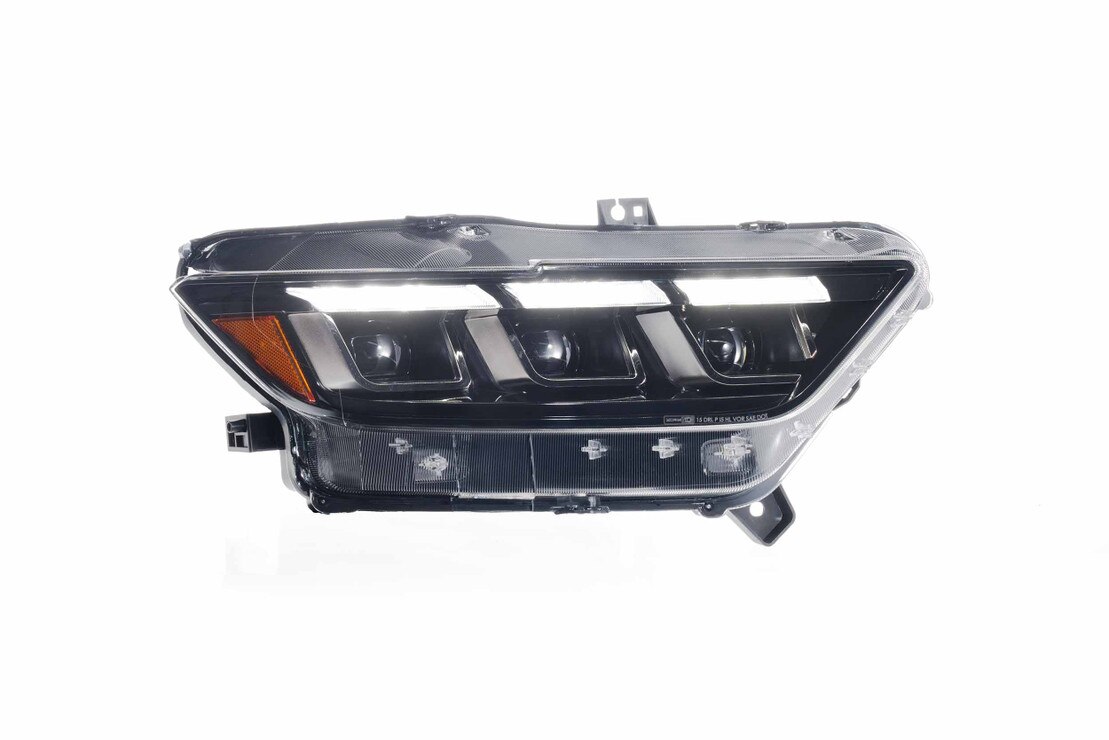

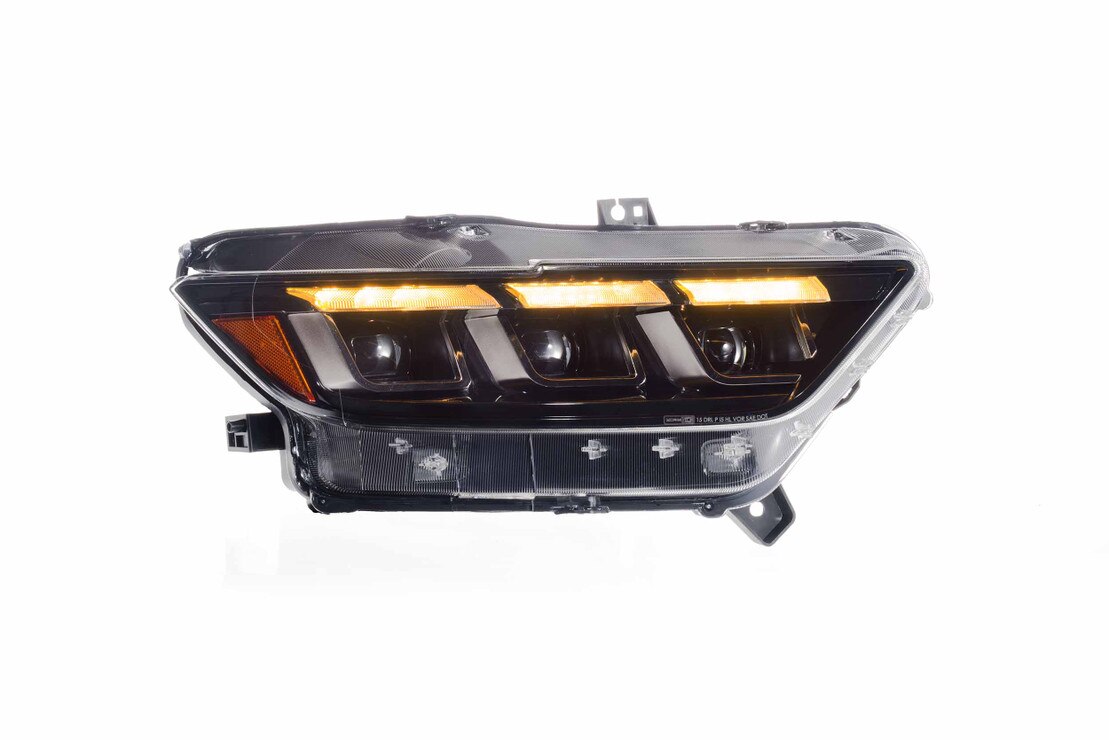

DRL : White or amber
Turn Signal : Sequential or standard
Functions : Low, high, park, DRL, turn
Interior Color : Gloss black and titanium
Material : ABS plastic (housing), UV-resistant polycarbonate (lens)
Optic : Triple Bi-LED projectors
Lens Coating : Hardened anti-UV protection

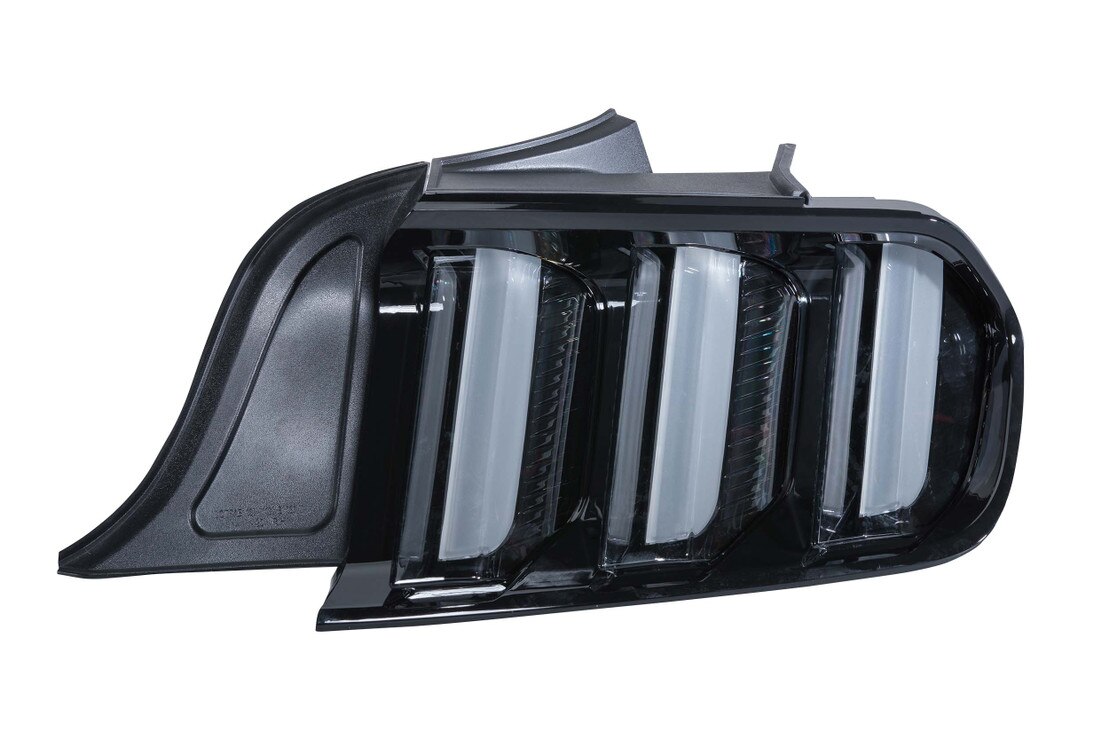

Tail Lights :
Input : Ford Multi-Pin OEM (single connection)
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source : SSC LED
Parking Light : Red (Dim)
Turn Signal : Amber (Sequential)
COMPATIBILITY
Ford Mustang : 2015-2017 (All*)
Replaces Ford Part # : FR3Z-13404-B, FR3Z-13405-B
*NOTE : These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
