DESCRIPTION
FEATURES & BENEFITS

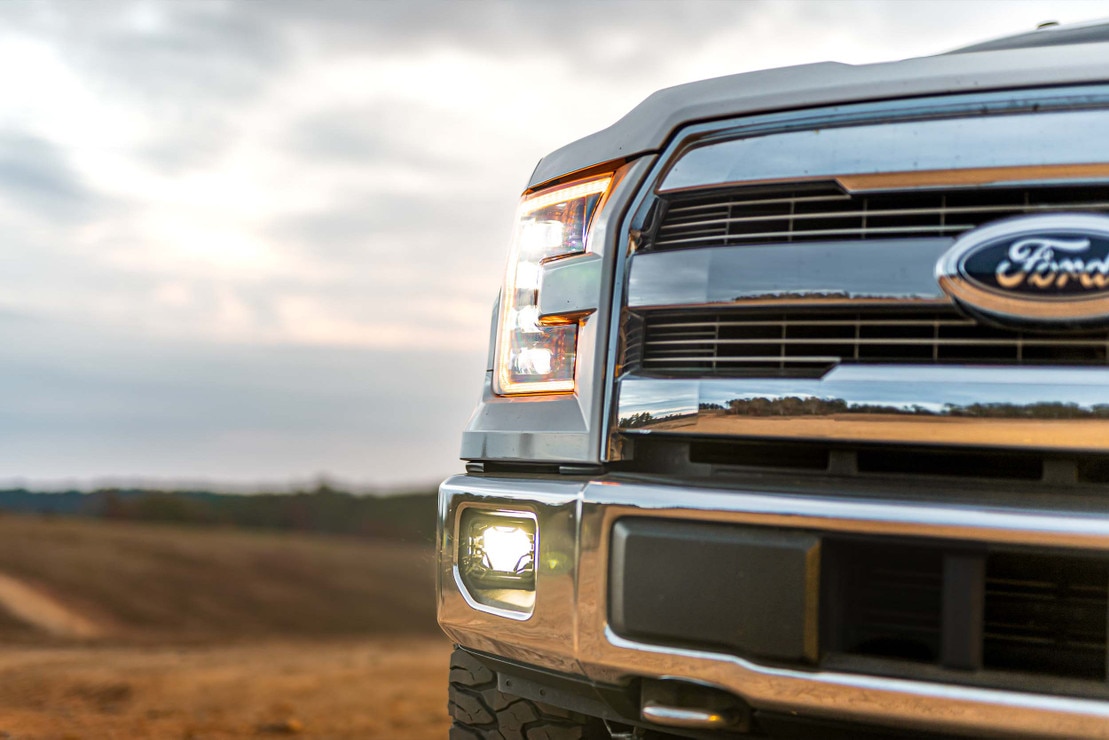

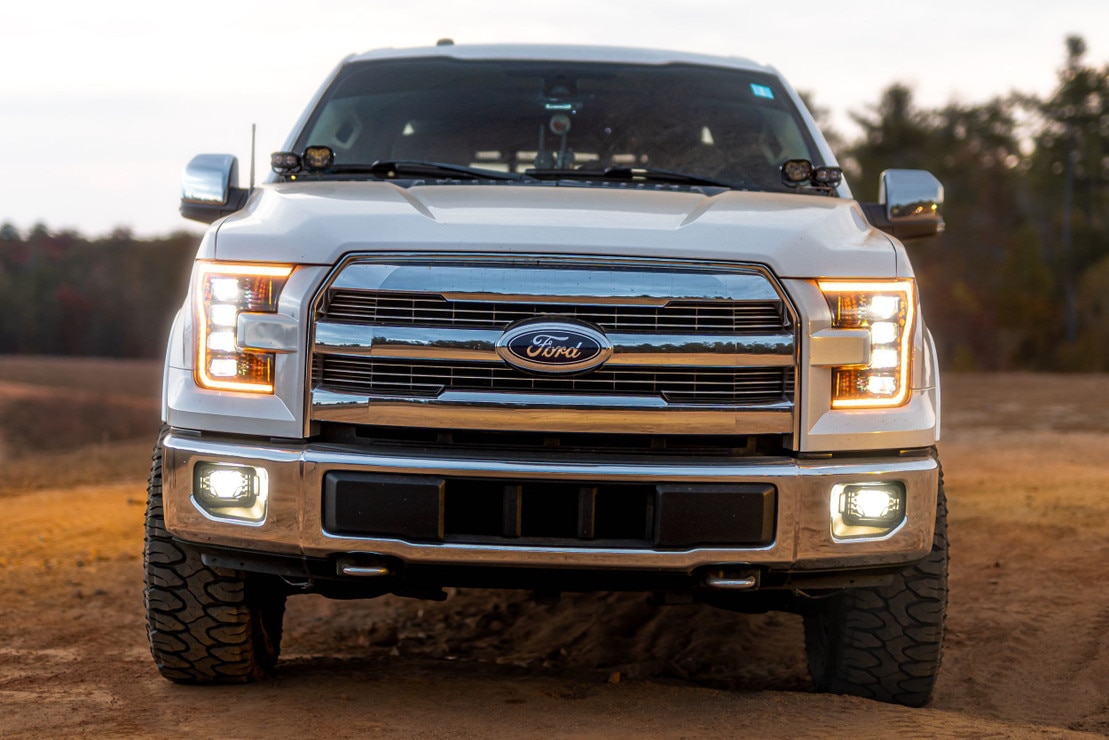

- Enhanced Visibility: Morimoto XB LED Headlights offer 200% more light output than standard halogen lights, improving road visibility.
- Easy Installation: Both headlights and tail lights are plug-and-play, ensuring hassle-free installation without voiding your factory warranty.
- Durability: Built with UV-coated polycarbonate lenses and durable PPS plastic housing with die-cast aluminum heat sinks for lasting performance.

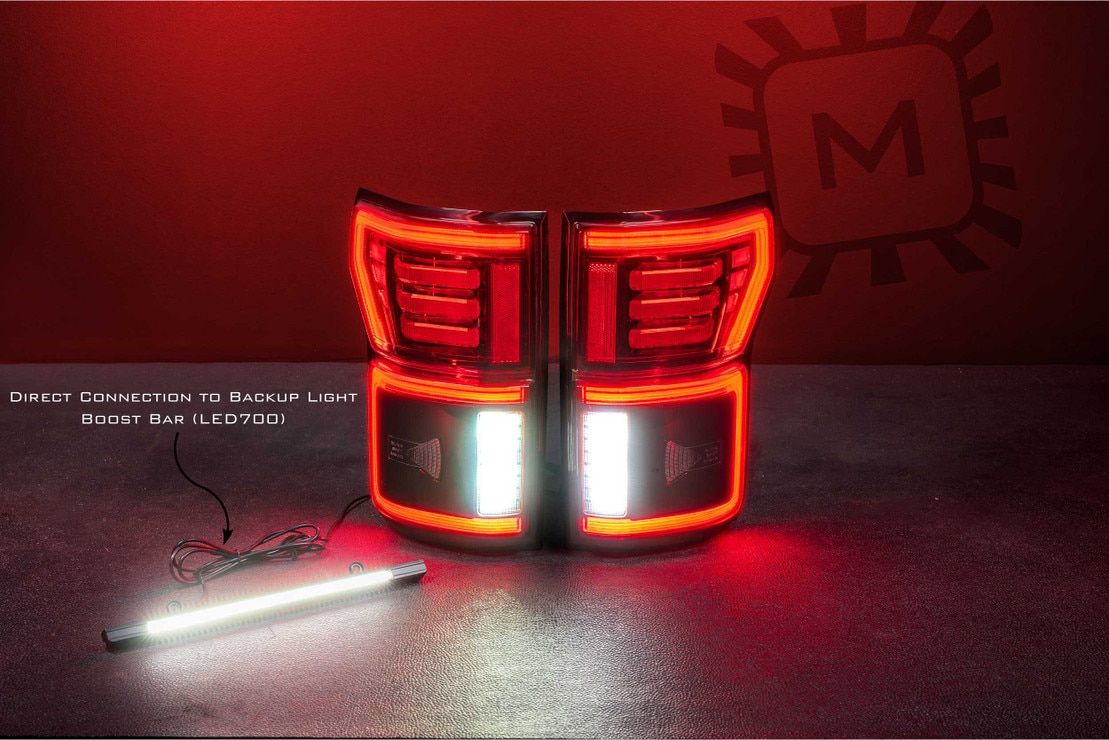

- Modern Design: Features sequential LED DRLs and optional LED Backup Boost Bar for a sleek look and enhanced reverse lighting.
- Regulation Compliance: Exceeds SAE, DOT, and FMVSS108 standards for safety and legal compliance.
WHAT’S INCLUDED

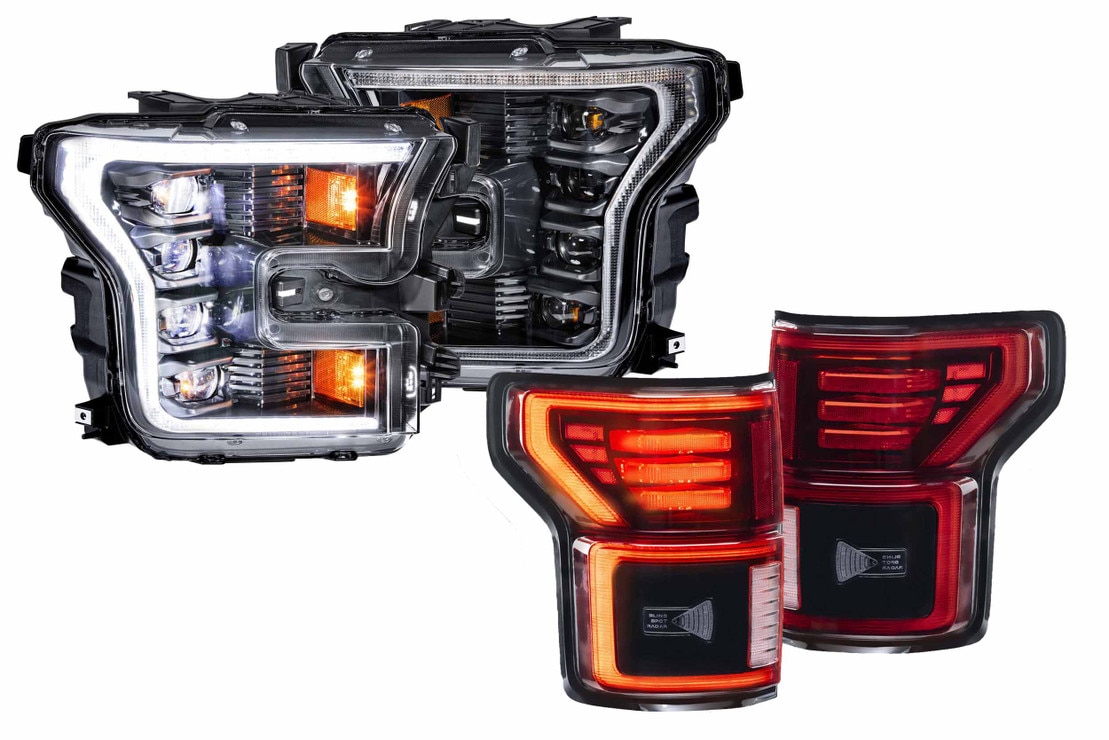

Headlight Choices :
Morimoto XB Evo LED Headlights: 15-17 Ford F-150 (Selectable White / Amber DRL) Click for Details
Morimoto XB Evo Hybrid LED Headlights: 15-17 Ford F-150 (White DRL) Click for Details
Morimoto XB LED Headlights: 15-17 Ford F-150 (White DRL) Click for Details

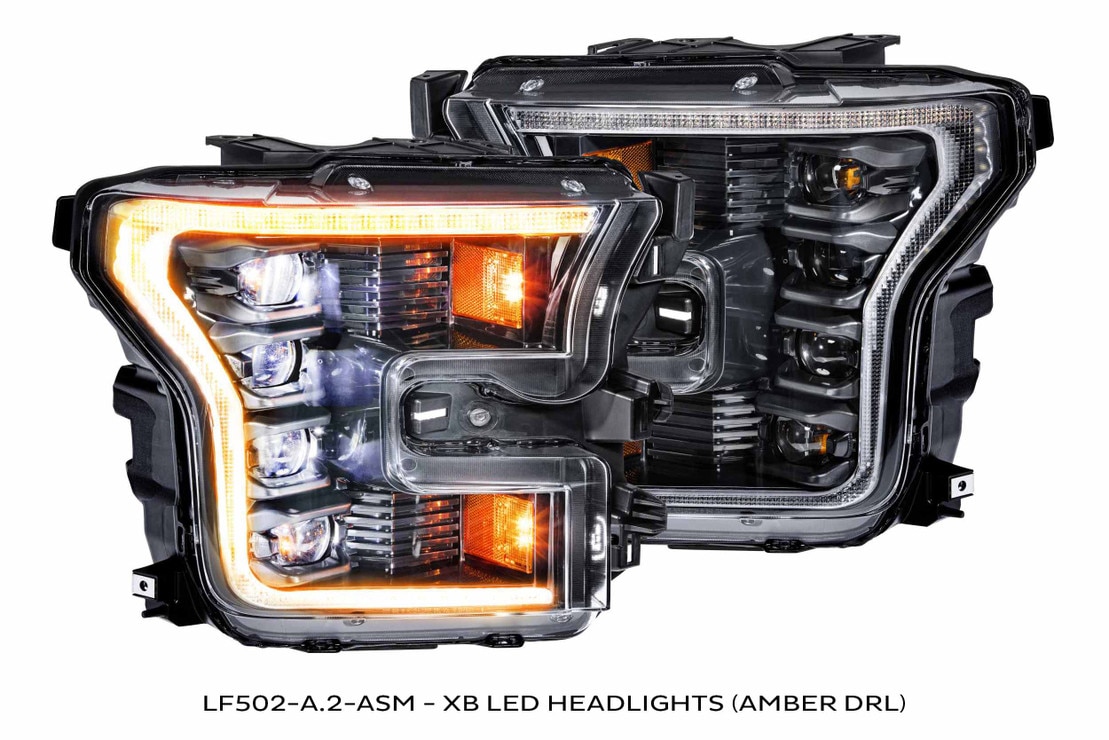

Morimoto XB LED Headlights: 15-17 Ford F-150 (Amber DRL) Click for Details

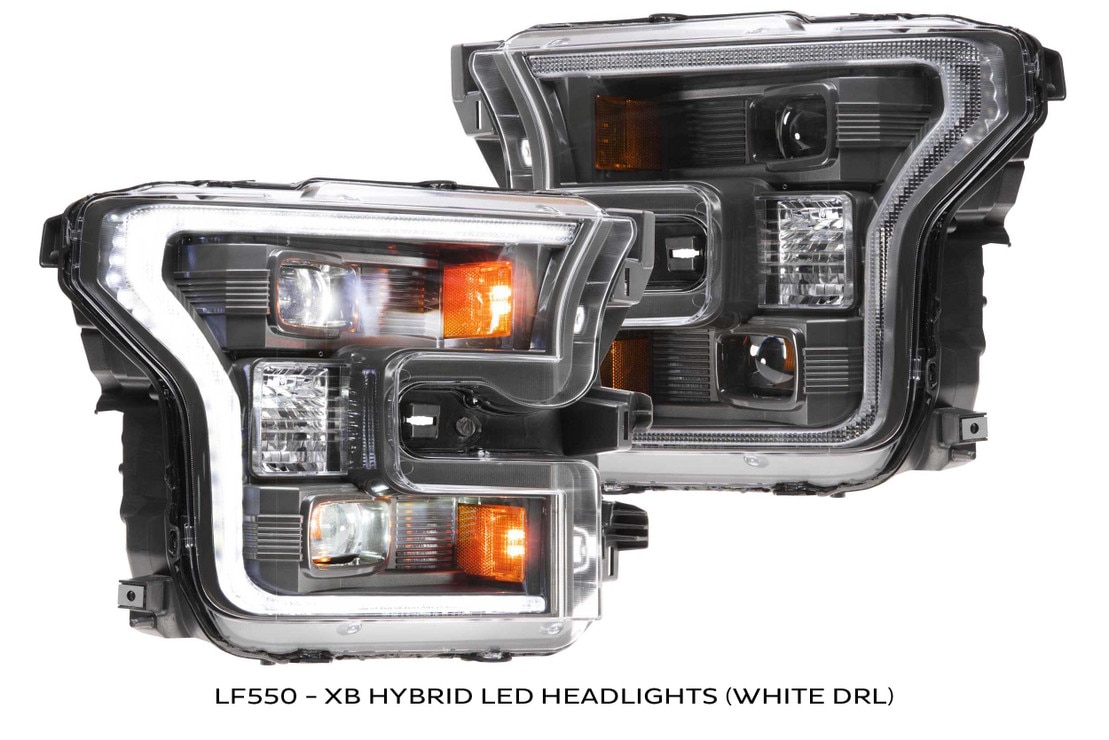

Morimoto XB Hybrid LED Headlights: 15-17 Ford F-150 (White DRL) Click for DetailsTail Light Choices :

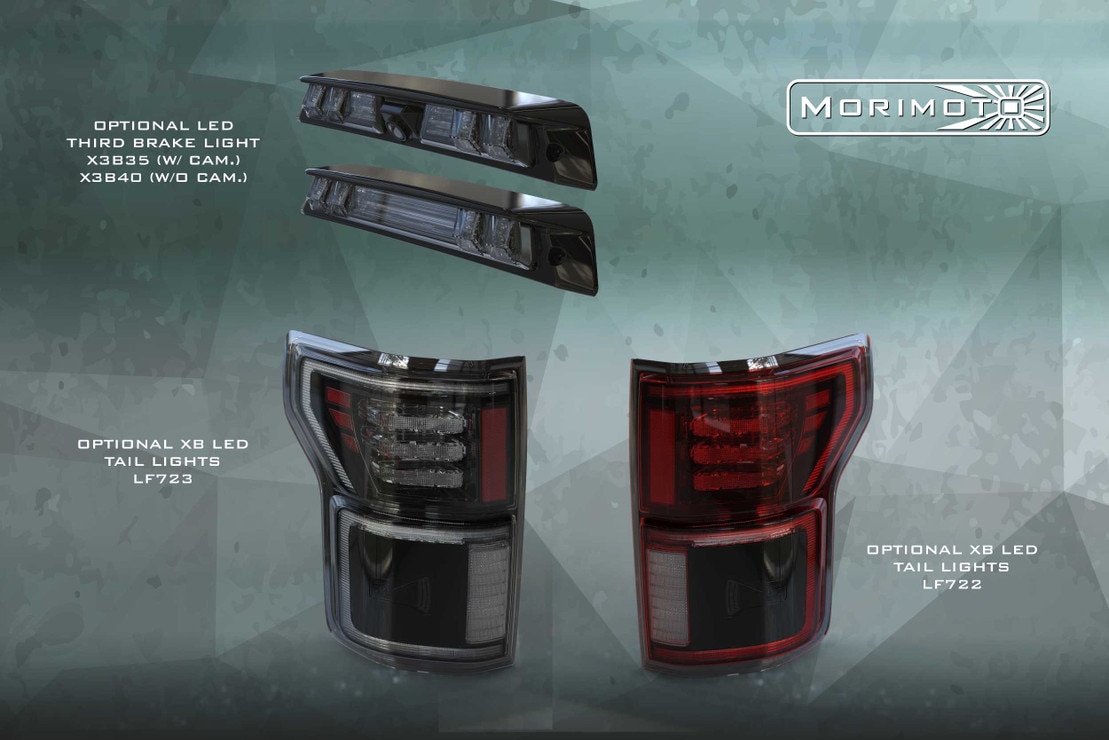

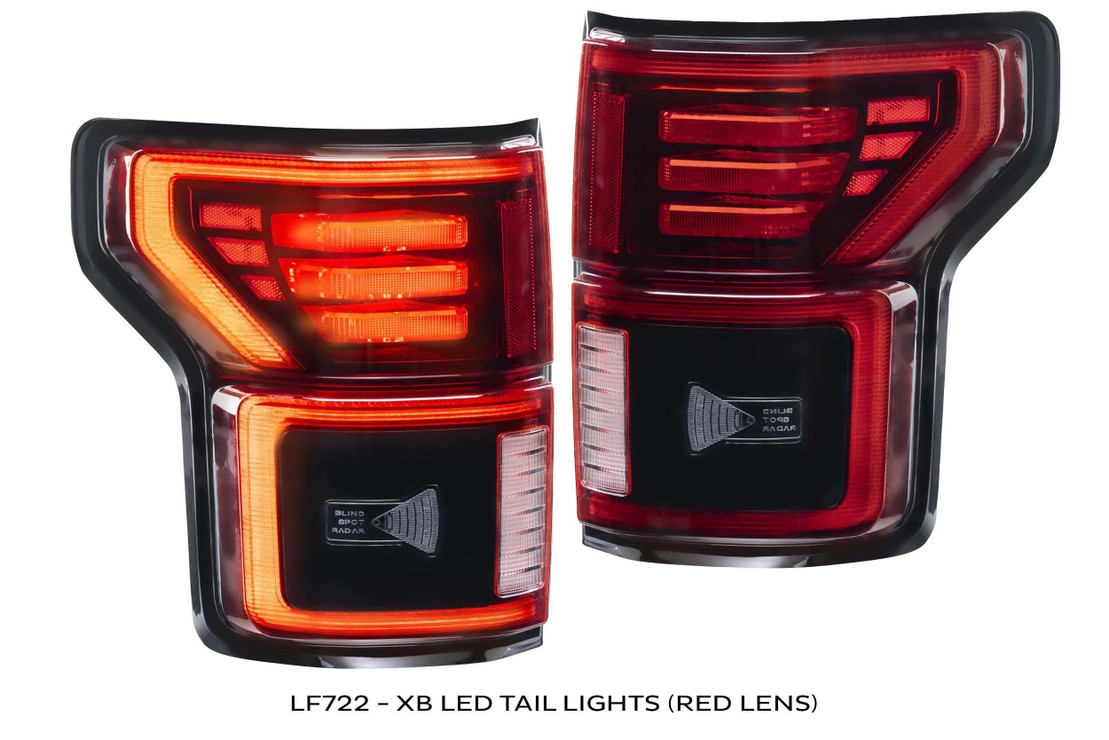

Morimoto XB LED Tail Lights: 15-20 Ford F-150 (Red Lens) Click for Details

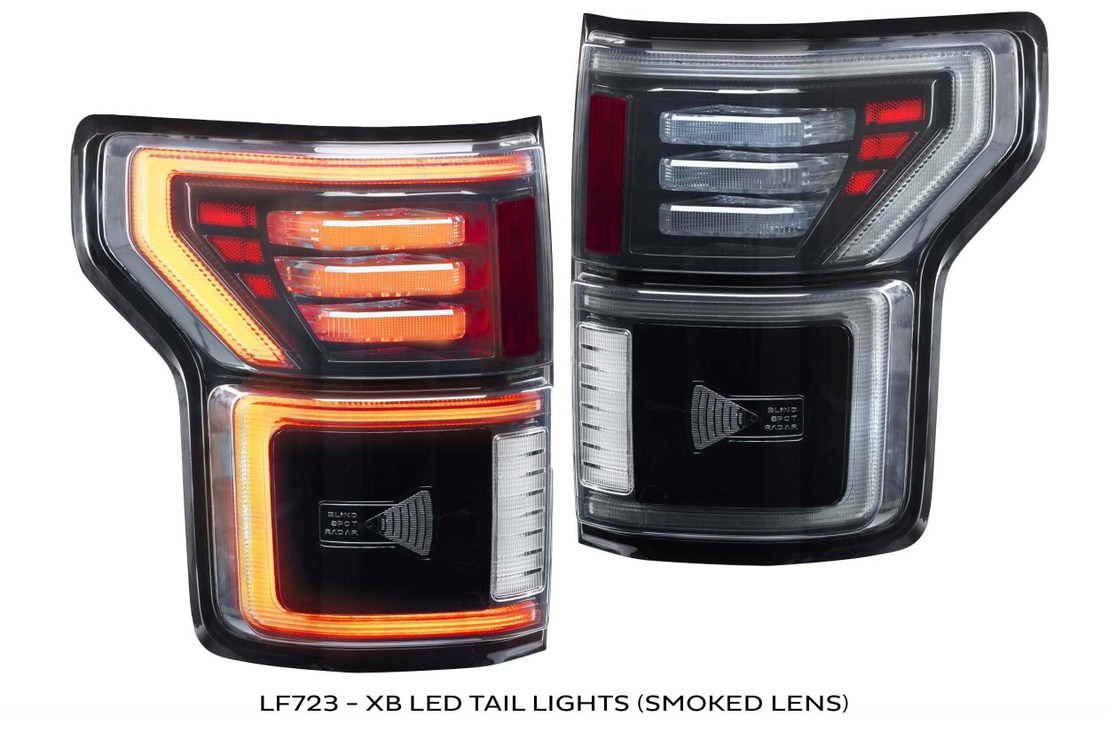

Morimoto XB LED Tail Lights: 15-20 Ford F-150 (Smoked Lens) Click for Details
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
XB Evo Headlights (LF2-502) :
Traffic Pattern : LHD / Right Hand Traffic Only (US/CA Standard)
Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 2x Type 1 Ishida Optic Bi-LED, 1x D-Optic High Beam Assist
Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating
Turn Signal Modes : Sequential or Fade Off (Configurable)
DRL Colors : White or Amber (Configurable)
Frost-Free System : Logic-controlled 50w ceramic w/ circulation fans
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
XB Evo Hybrid Headlights (LF2-502Y) :
Traffic Pattern : LHD / Right Hand Traffic Only (US/CA Standard)
Output (Standard Drivers) : DOT (FMVSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers) : Off-Road use only
Main Optics : 2x Type 1 Ishida Optic Bi-LED
Functions : Low, High, Park, Turn, and DRL
Turn Signal Mode : Fade Off (Fixed)
DRL Color : White (Fixed)
Internal Finish : Black
Side marker : Amber side reflex reflector (DOT compliant)
Lens Details : Polycarbonate with proprietary anti-UV hard coating
XB Hybrid Headlights (LF550.2) :
Traffic Pattern : LHD Only
Input : Ford Multi-Pin OEM
Functions : DRL (White), Turn, Parking, Low, High
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Optic : Kuria Optic LED
UV Coating : Momentive UVHC3000

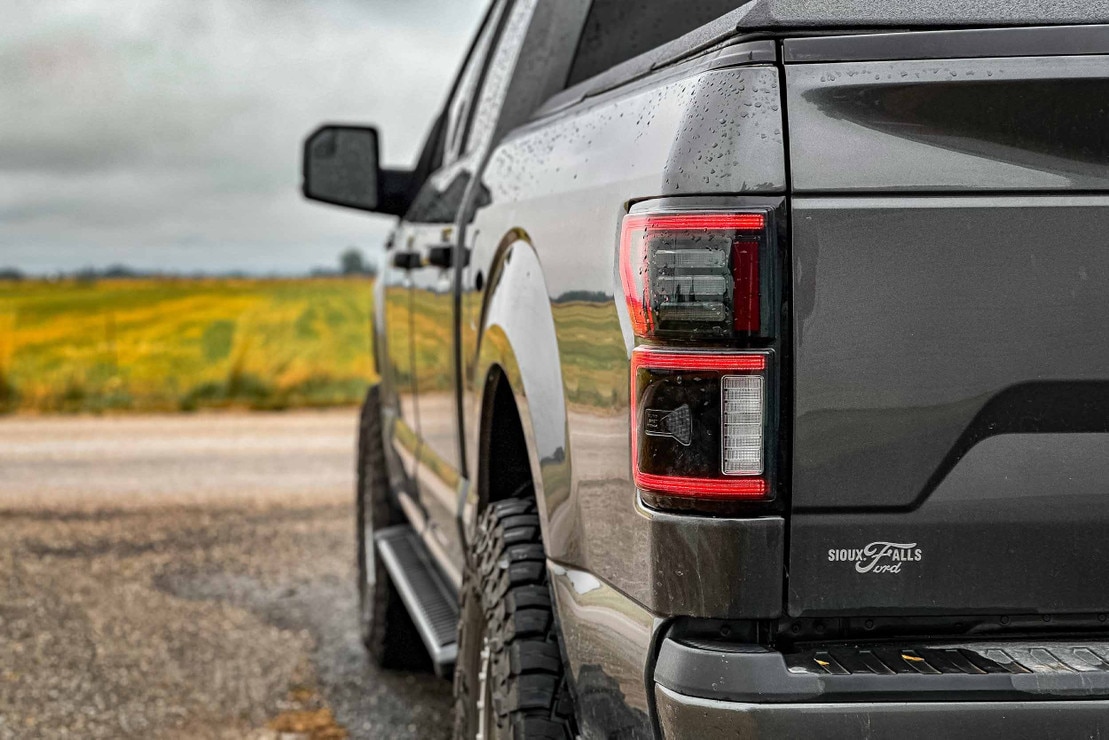

Tail Lights :
Input : Ford Multi-Pin OEM
Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source : SSC LED
Brake Light : Red
Parking Light : Red
Turn Signal : Red
COMPATIBILITY
Ford F-150 : 2015-2017
XB Evo / XB Evo Hybrid Headlights : Compatible with 2015-2017 North American Ford F-150
XB Evo Family Replaces OE Part # : FL3Z13008B, HL3Z13008M, GL3Z13008H, HL3Z13008K, FL3Z13008A, HL3Z13008L, GL3Z13008G, HL3Z13008J, KL3Z13008D, KL3Z13008B, KL3Z13008C, KL3Z13008A, JL3Z13008AH, JL3Z13008AG
Optional Supercharged Drivers : LF2-DRVSC14 fits LF2-502 and LF2-502Y (off-road use only)
XB Hybrid Headlights : Compatible with 2015-2017 F-150 equipped with OEM halogen or OEM LED headlights; verify the applicable OEM LED conversion harness requirements

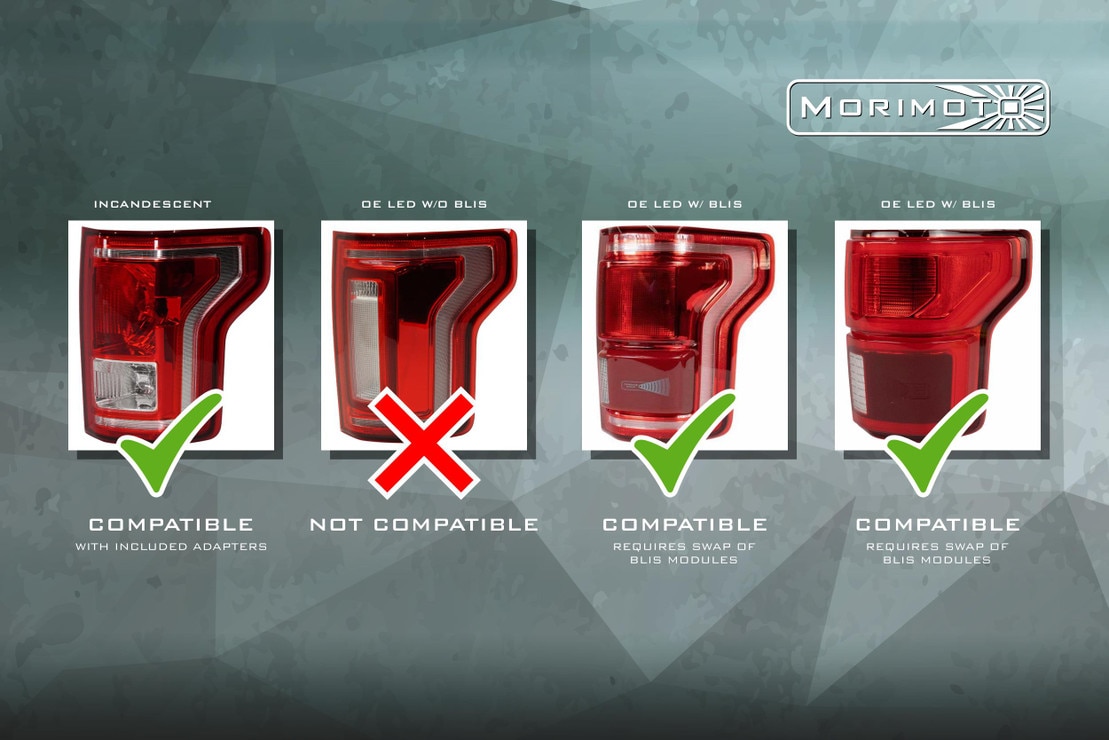

Tail Lights : Compatible with 2015-2020 Ford F-150; OE LED without BLIS is not compatible; OE LED with BLIS requires transfer of the OE modules; incandescent tails use the included adapter harness
NOTE : These products were developed for North American / US-spec vehicles. Compatibility outside North America may vary and is not guaranteed.
