Toyota 4Runner (14-24) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-4RNNR-MM

$2,100.00

PRODUCT OPTIONS

PART #: 1 x LF2-531, 1 x LF738



*Guaranteed Fitment
Easy Return

DESCRIPTION

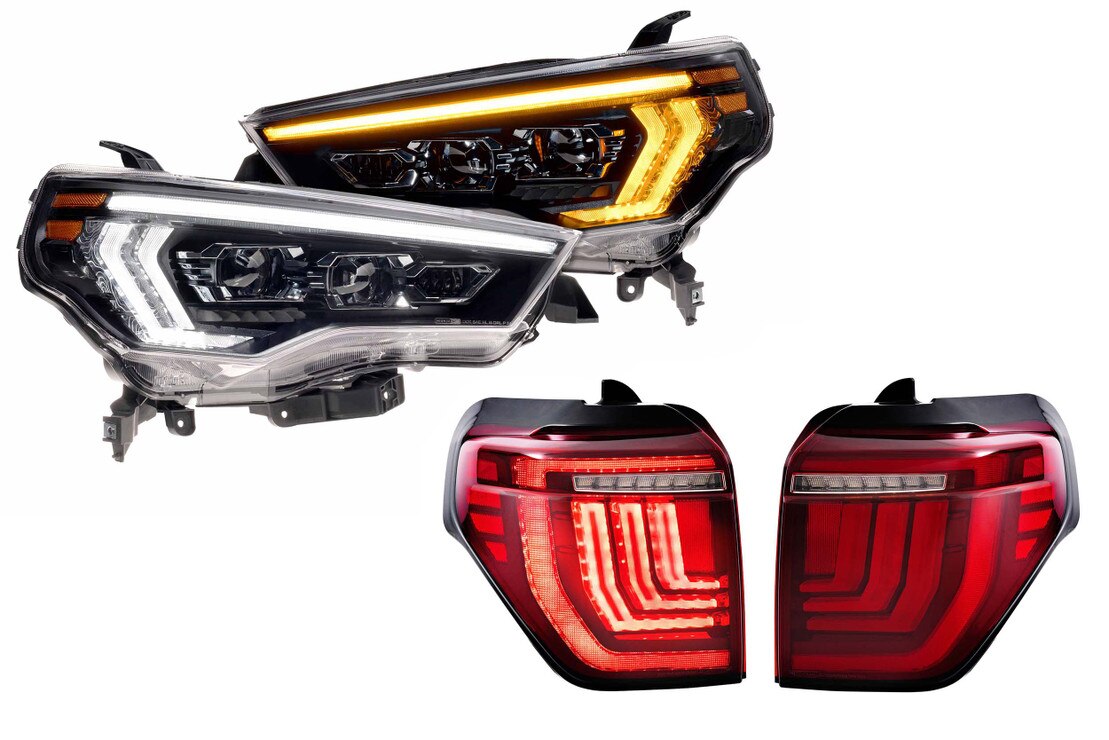

Upgrade your 5th Gen Toyota 4Runner with the Morimoto XB Evo Lighting Bundle, a complete package that includes XB Evo or XB Evo Hybrid Headlights, and XB LED Tail Lights for unmatched performance, style, and safety. The XB Evo Headlights represent Morimoto's top-tier offering, designed for those who want the best in lighting technology and durability. Featuring powerful Bi-LED projectors, a customizable signal swap system, and a unique startup sequence, they also include a patent-pending lens heating system to reduce frost buildup in winter. The DRL can be set to white or amber, full-time, with no loss in brightness. Built to last the life of your 4Runner, the XB Evo headlights are covered by Morimoto's five-year warranty. The XB Evo Hybrid Headlights offer many of the same premium features at a more accessible price point. They use the same high-performance Bi-LED projectors as the Evo, but do not feature the same lens heating system as the Evo. Built with OE-grade Nichia LEDs from Japan, the Hybrids deliver premium performance without breaking the bank; and like the Evo, they're backed by a five-year warranty. The XB LED Tail Lights complete the package with bold styling and enhanced safety. Designed to match the 4Runner's aggressive lines, they feature three rows of 3D light blades, bright brake and turn signals, and an amber reverse-sequential turn signal. The optional Backup-Boost LED Reverse Light Bar adds even more rear visibility. Fully DOT and SAE compliant, these tail lights are a sleek and functional upgrade. Backed by Morimoto's five-year warranty, this bundle is the ultimate lighting upgrade for your 4Runner. Built by enthusiasts, for enthusiasts.

FEATURES & BENEFITS

  • XB Evo Headlights: Bi-LED projectors, customizable DRL/turn signals, startup animation, and lens heating.
  • XB Evo Hybrid Headlights: Same projector performance as Evo at a lower price, with OE-grade Nichia LEDs.

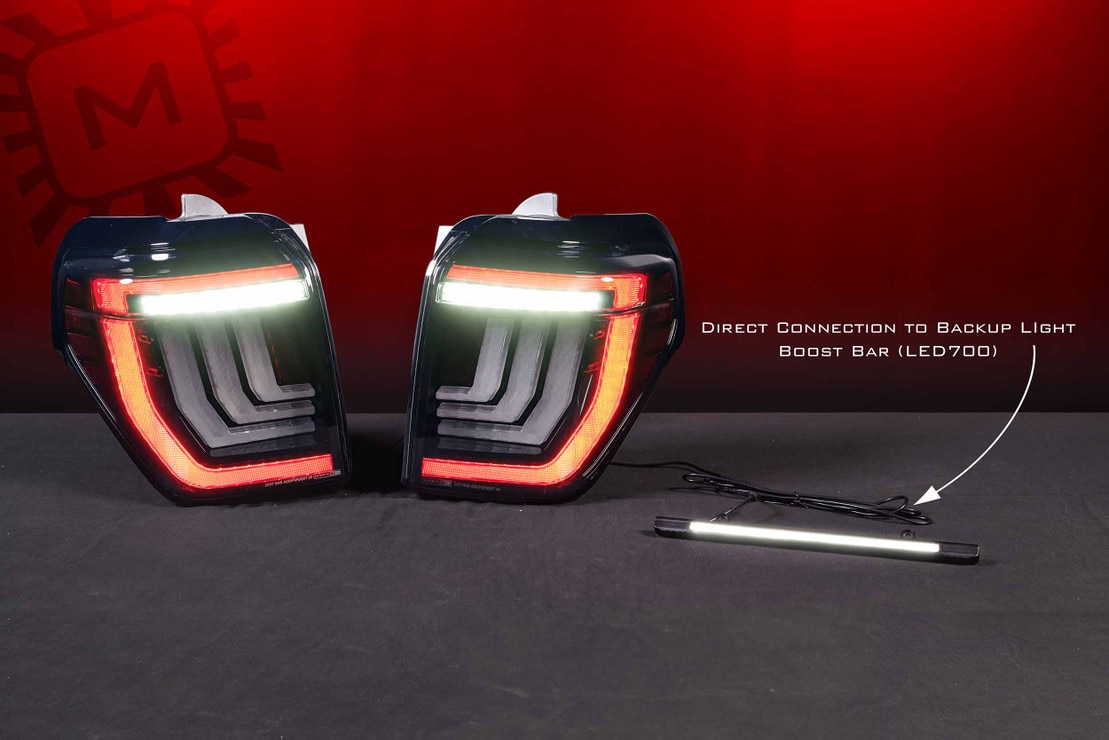

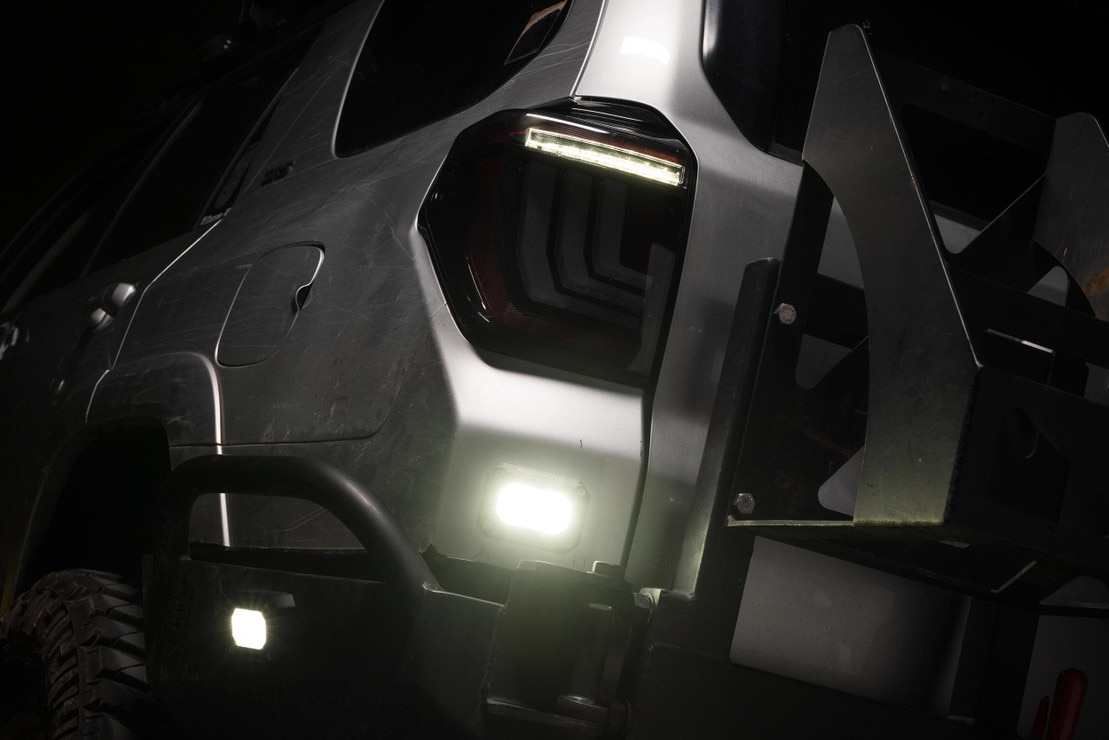

  • XB LED Tail Lights: 3D light blades, bright brake lights, amber sequential signals, and optional reverse boost.
  • DOT/SAE Compliant: Fully street legal and built to last.
  • 5-Year Warranty: Backed by Morimoto’s industry-leading support.

WHAT’S INCLUDED

  • Headlight Choices:

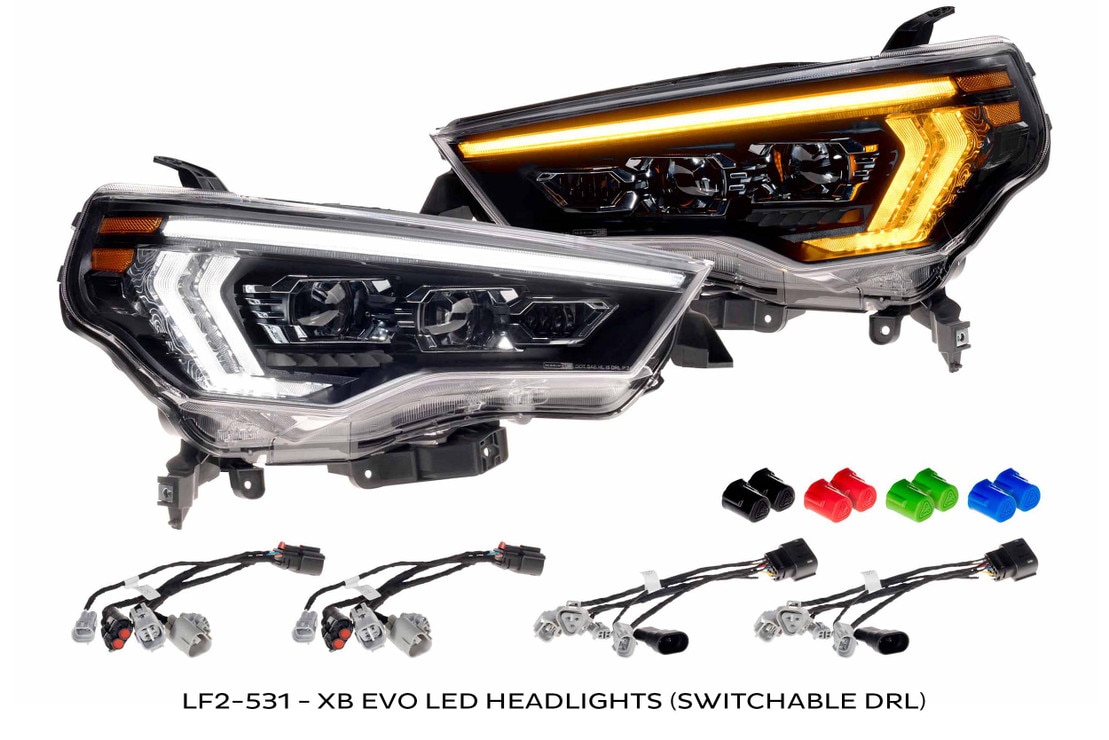

    Morimoto XB Evo LED Headlights: 14-24 Toyota 4Runner (Amber/White DRL) Click for Details

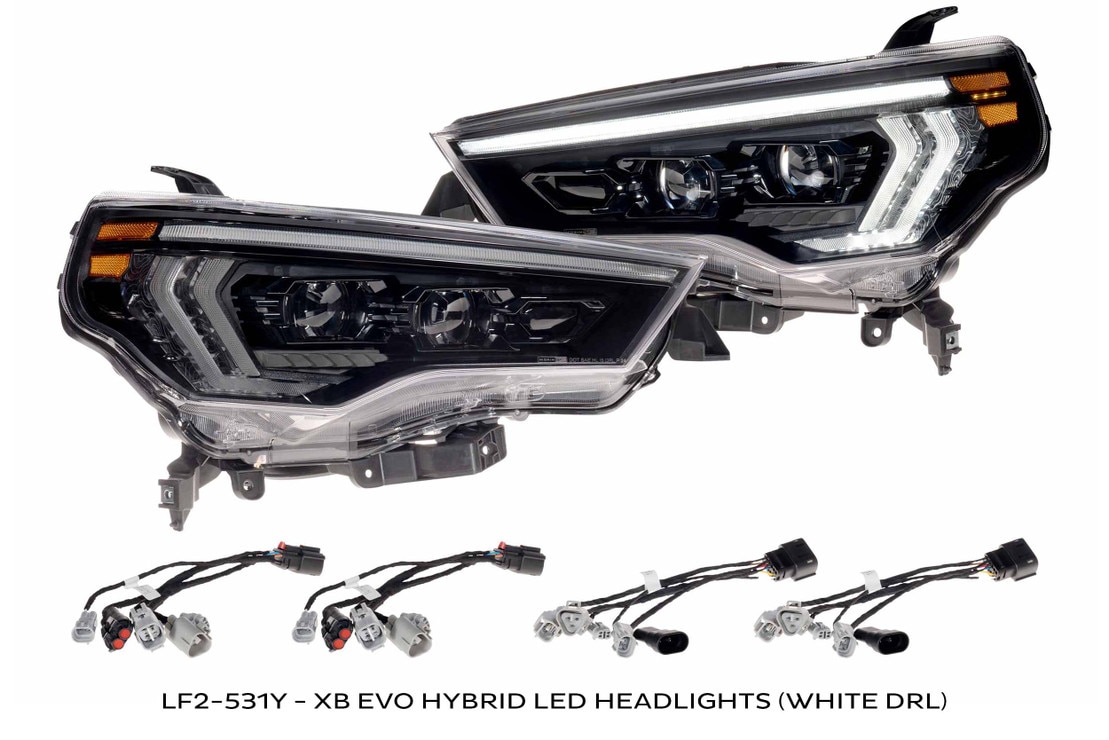

    Morimoto XB Evo Hybrid LED Headlights: 14-24 Toyota 4Runner (White DRL) Click for Details

  • Tail Light Choices:

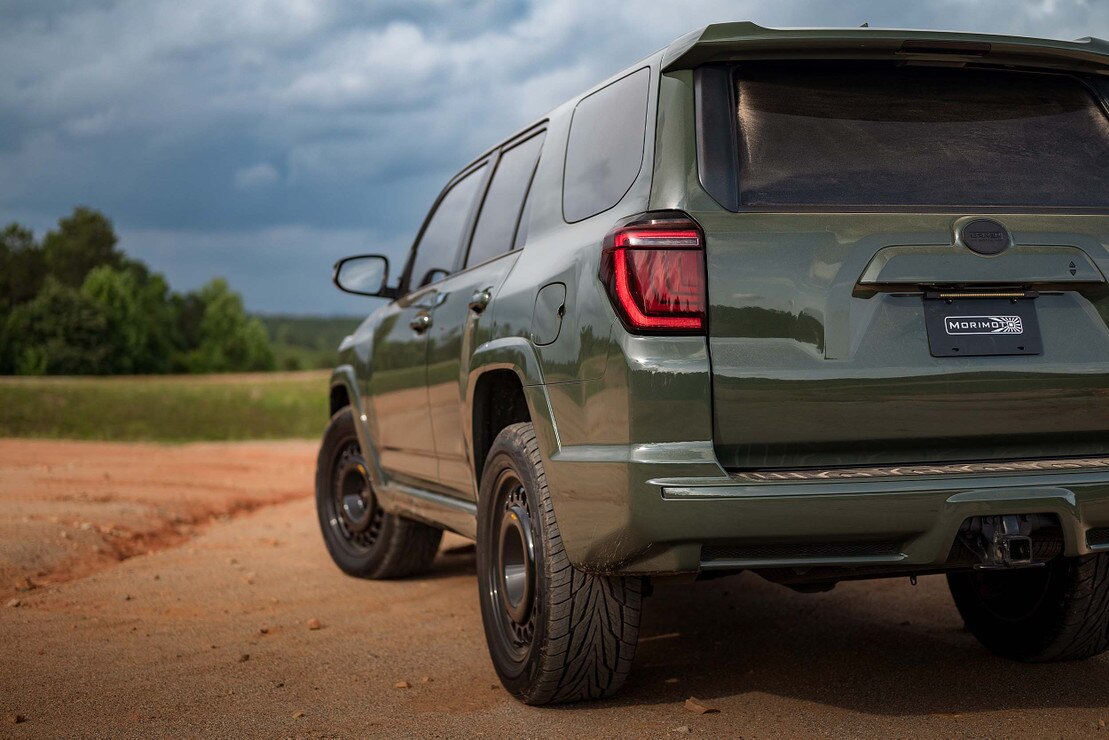

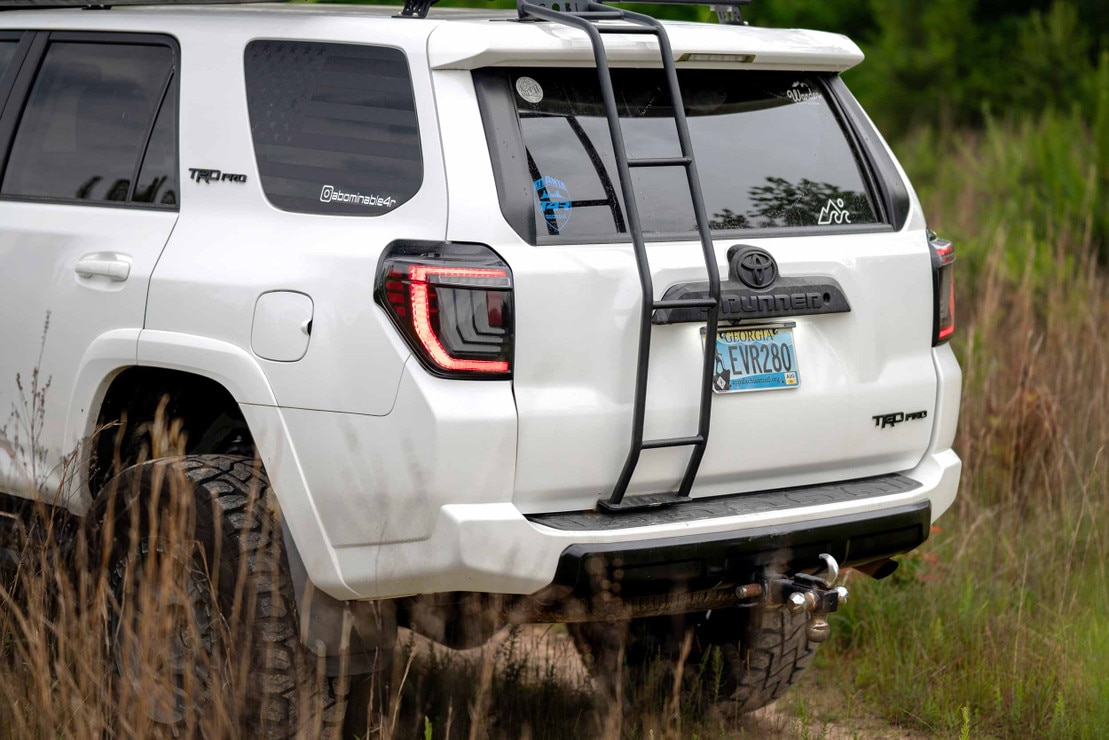

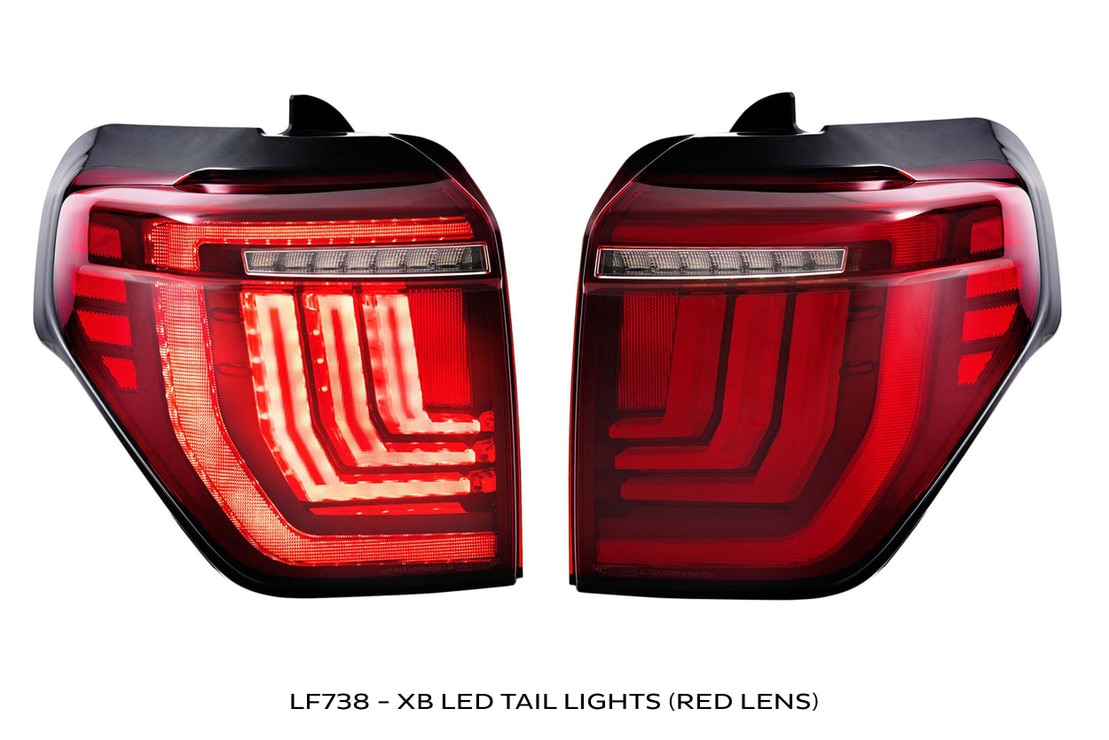

    Morimoto XB LED Tail Lights: 14-24 Toyota 4Runner (Red Lens) Click for Details

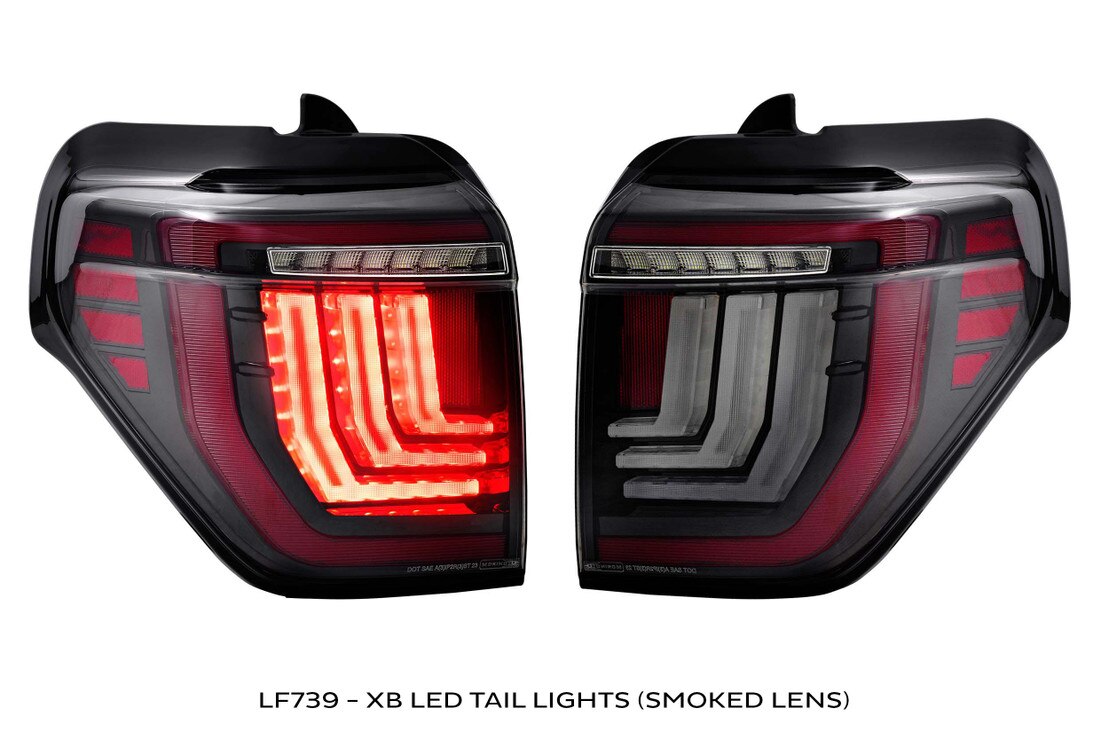

    Morimoto XB LED Tail Lights: 14-24 Toyota 4Runner (Smoked Lens) Click for Details

WARRANTY INFORMATION

This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Headlights:

  • Traffic Pattern: LHD / Right Hand Traffic Only

  • Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)

  • Output (Supercharged Drivers): Non-Compliant

  • Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

  • High Beam Assist: 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)

  • Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating

  • Turn Signal Modes: Sequential or Fade Off (Integrated)

  • DRL Colors: White or Amber (Integrated)

  • DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern

  • Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans

  • Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures

  • Side marker: Amber side reflex reflector (DOT compliant)

  • Wiring: Plug n Play for all sub-models within model year range

  • Lens Details: Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)

  • Tail Lights:

  • Input: Toyota Multi-Pin OEM

  • Material: ABS Plastic (Housing), Red-Tinted UV-Resistant Polycarbonate (Lens)

  • Light Source: SSC LED

  • Reverse Light: White

  • Brake Light: Red

  • Parking Light: Red

  • Turn Signal: Amber

COMPATIBILITY

  • Toyota 4Runner: 2014-2024 (All Trims)

  • Compliance: Meets all DOT, SAE and FMVSS108 Standards*

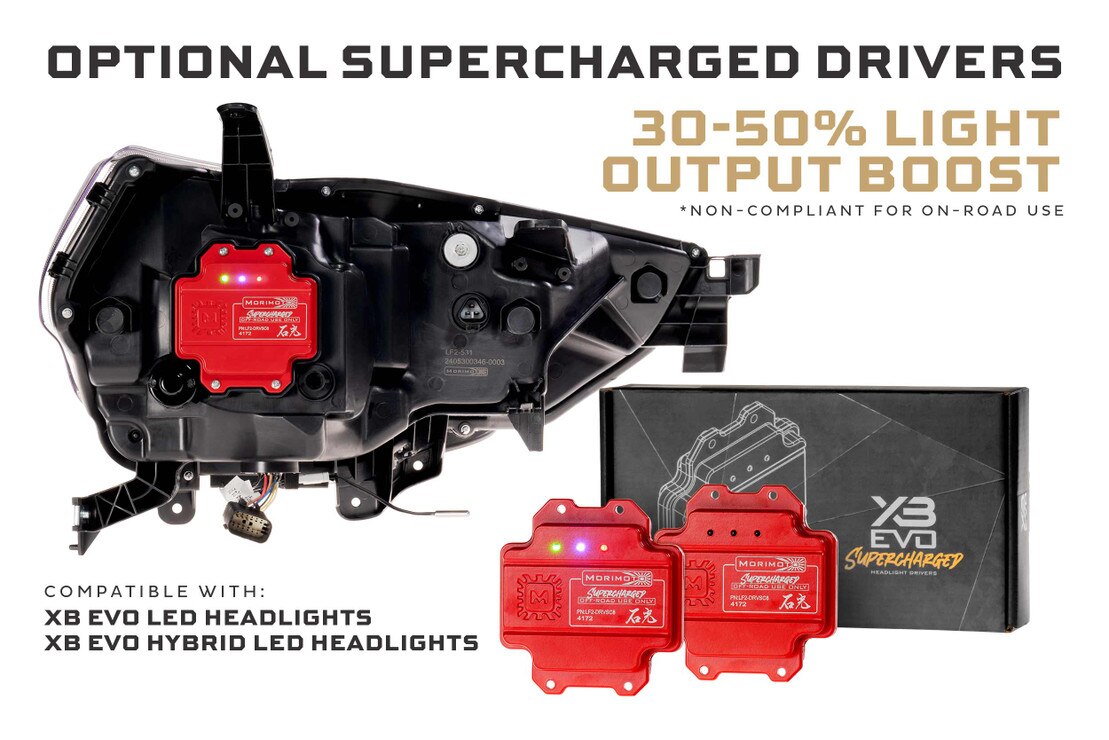

  • Supercharged Drivers: LF2-DRVSC8*

  • *NOTE: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.

  • Replaces Toyota Part #: 81170-35571, 81130-35541, 8117035571, 8113035541, 81561-35392, 81561-35390, 81561-35391, 81551-35402, 81551-35400, 81561-35360, 81561-35370

  • NOTE: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

COMPLIANCE

Meets all DOT, SAE, and FMVSS108 Standards. *NOTE: Installation of Optional Supercharged Drivers in headlights results in non-compliant intensity. Not for on-road use in USA or Canada.
