GMC Sierra 1500 (14-18) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-SIERRA-MM

$1,909.10 Original Price:$2,246.0015% OFF

PRODUCT OPTIONS

PART #: 1 x HEADTAILKIT184



*Guaranteed Fitment
Easy Return

DESCRIPTION

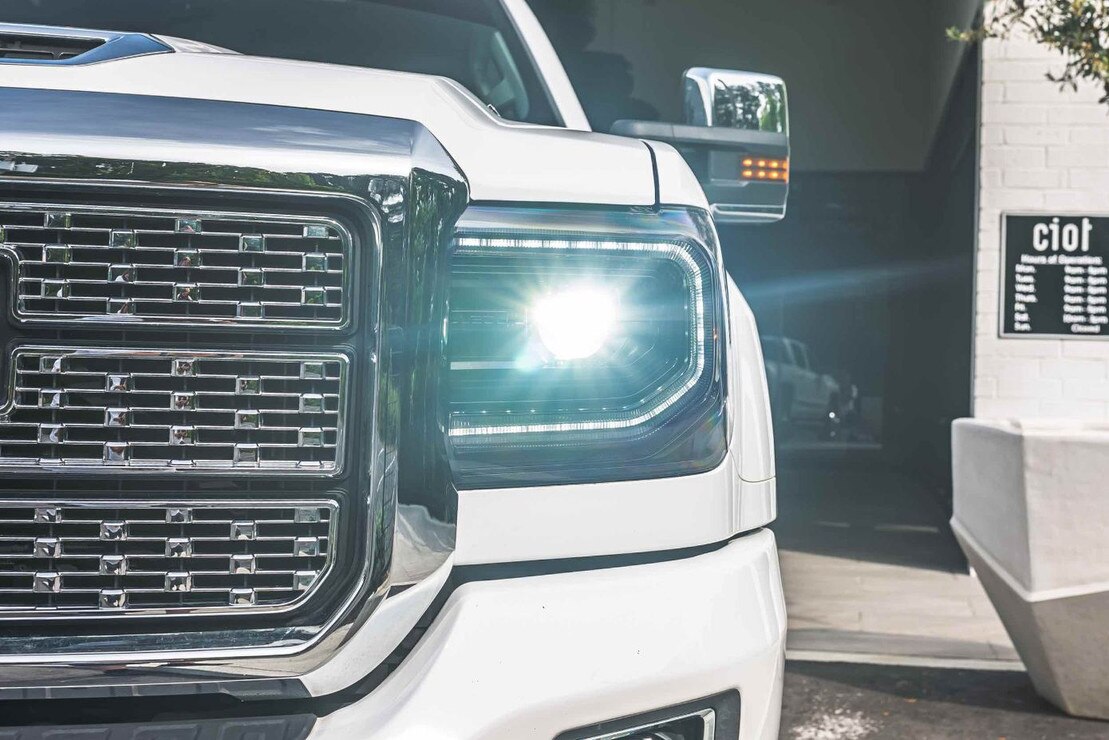

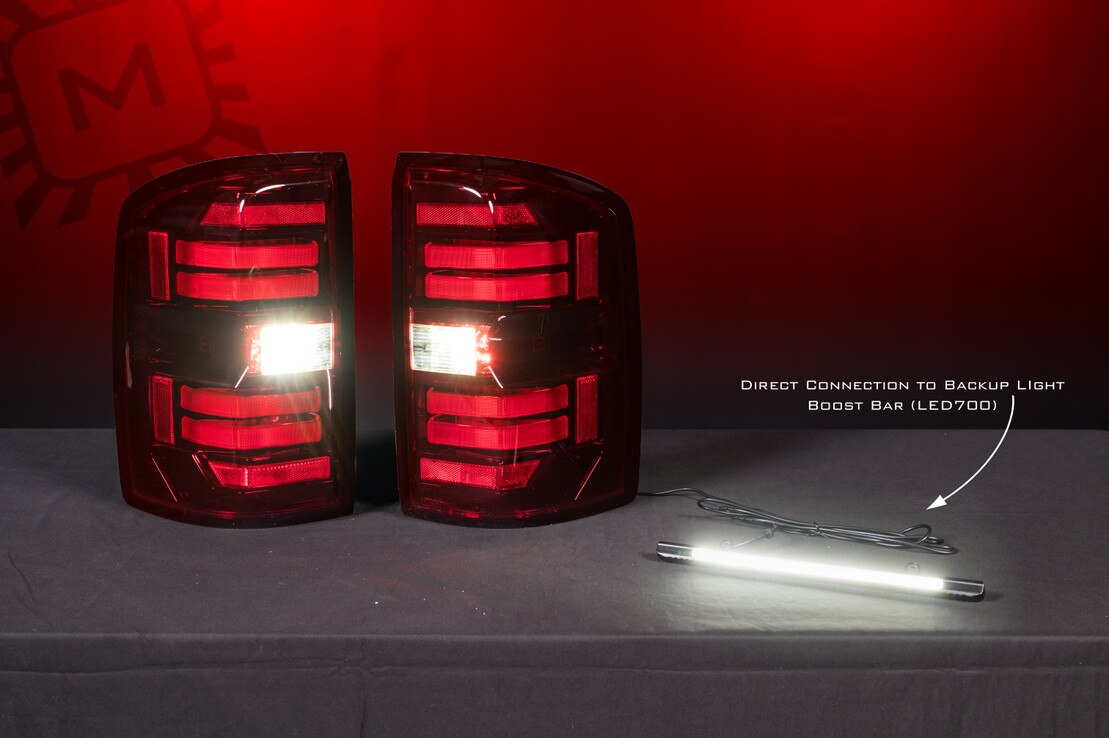

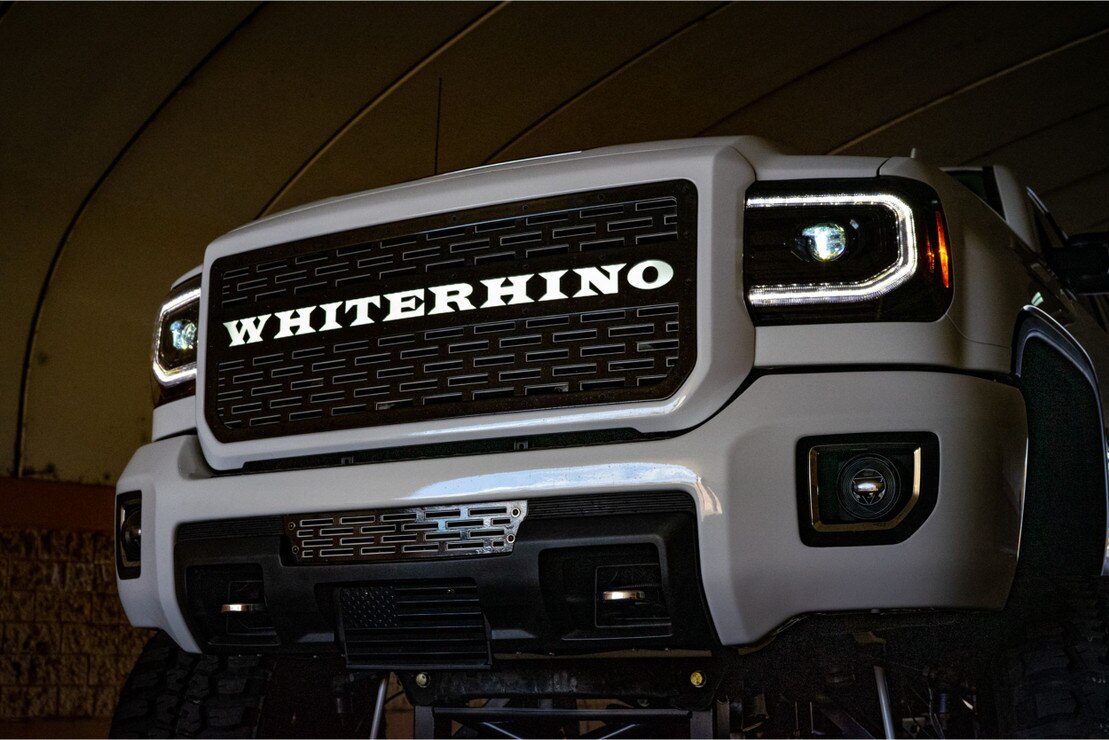

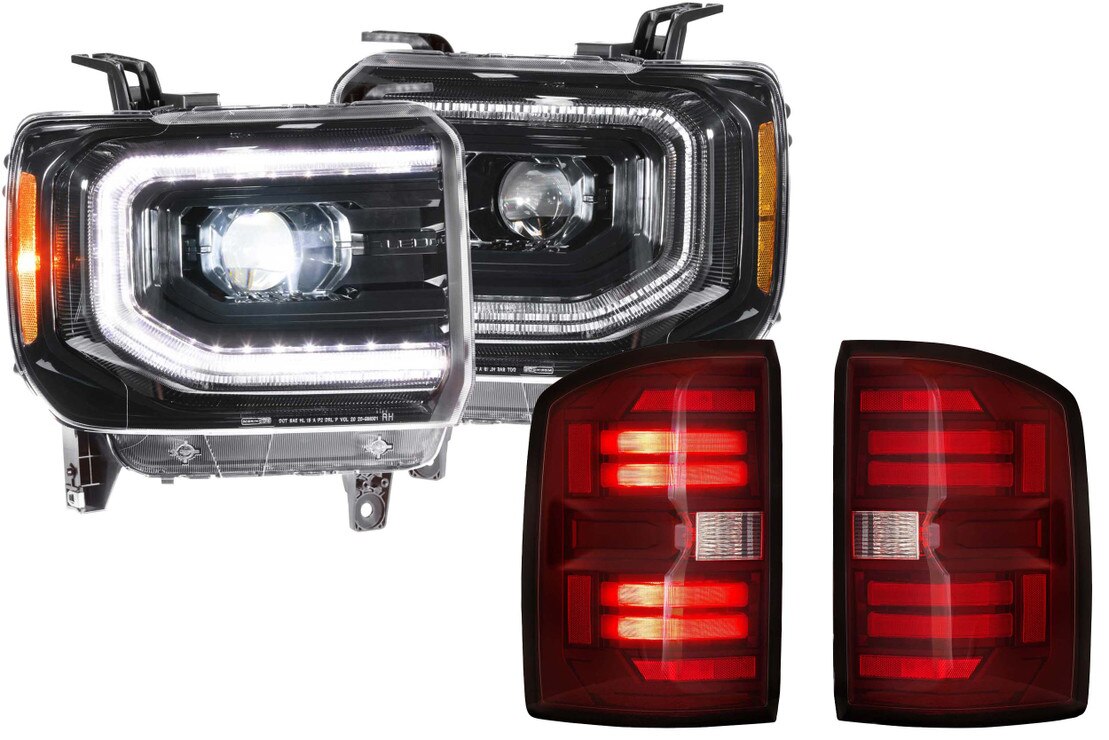

The Morimoto XB LED Headlights and Tail Lights are made for GMC Sierra 1500 trucks from 2014 to 2018. These headlights look modern and work better than the old ones that came with the truck. They use bright Osram LEDs that last a very long time and come with a strong warranty. The headlights have a special C-shaped daytime running light that is very bright and easy to see. They also have a cool sequential turn signal that lights up in a smooth pattern. These lights are easy to install because they plug right into the factory wiring without any changes. The lenses are made from tough polycarbonate to stay clear for years, and the housings have aluminum heat sinks to keep the lights cool. The matching tail lights feature bright LED brake lights and turn signals with a 3D look. They also come with strong reverse lights, and an optional light bar can add even more brightness when backing up. These tail lights meet all safety rules and come with a five-year warranty. They give your Sierra a fresh, modern look while improving safety and performance.

FEATURES & BENEFITS

  • Bright LEDs: Osram-powered running lights and sequential turn signals for clear visibility.
  • Plug-and-Play: Fits stock headlights with no errors or flicker.
  • Durable: UV-coated lenses and aluminum heat sinks for long life.
  • Stylish: Black trim, amber markers, and 3D light blades for a clean look.
  • Safe & Compliant: Meets DOT/SAE rules, backed by a 5-year warranty.

WHAT’S INCLUDED

WARRANTY INFORMATION

These Morimoto products include a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

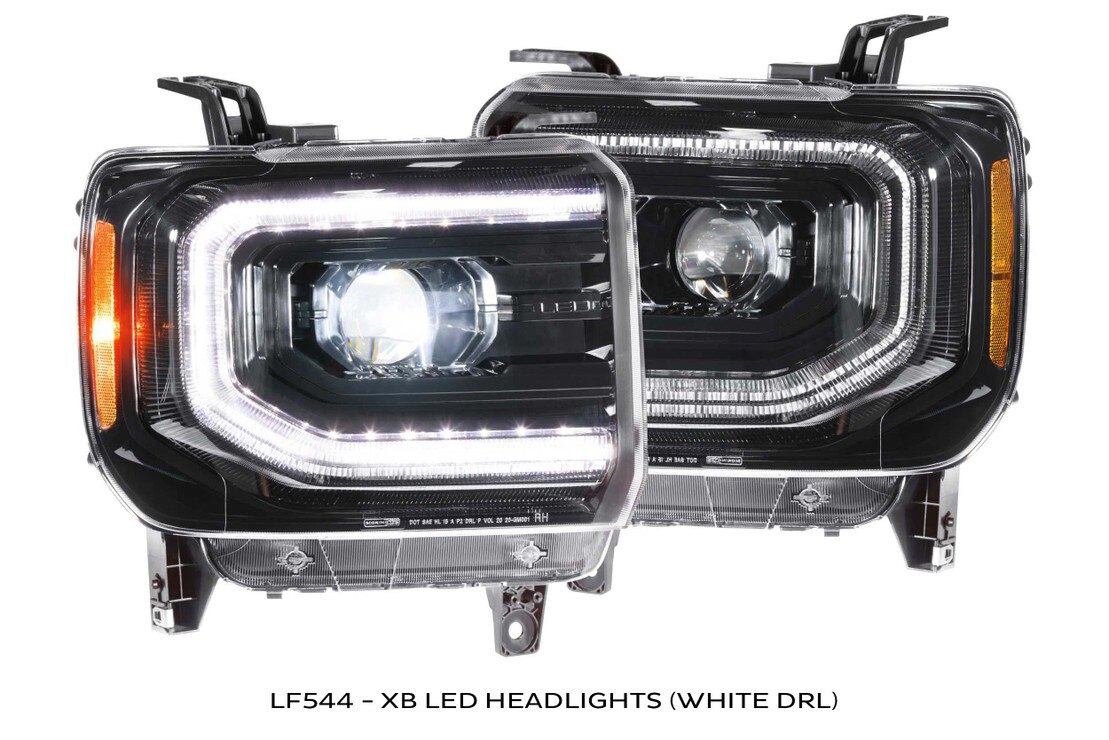

  • Headlights :

  • Traffic Pattern : LHD Only

  • Input : GM Multi-Pin OEM

  • Functions : DRL (White), Turn, Parking, Low, High

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Optic : Kuria Optic Bi-LED

  • UV Coating : Momentive UVHC3000

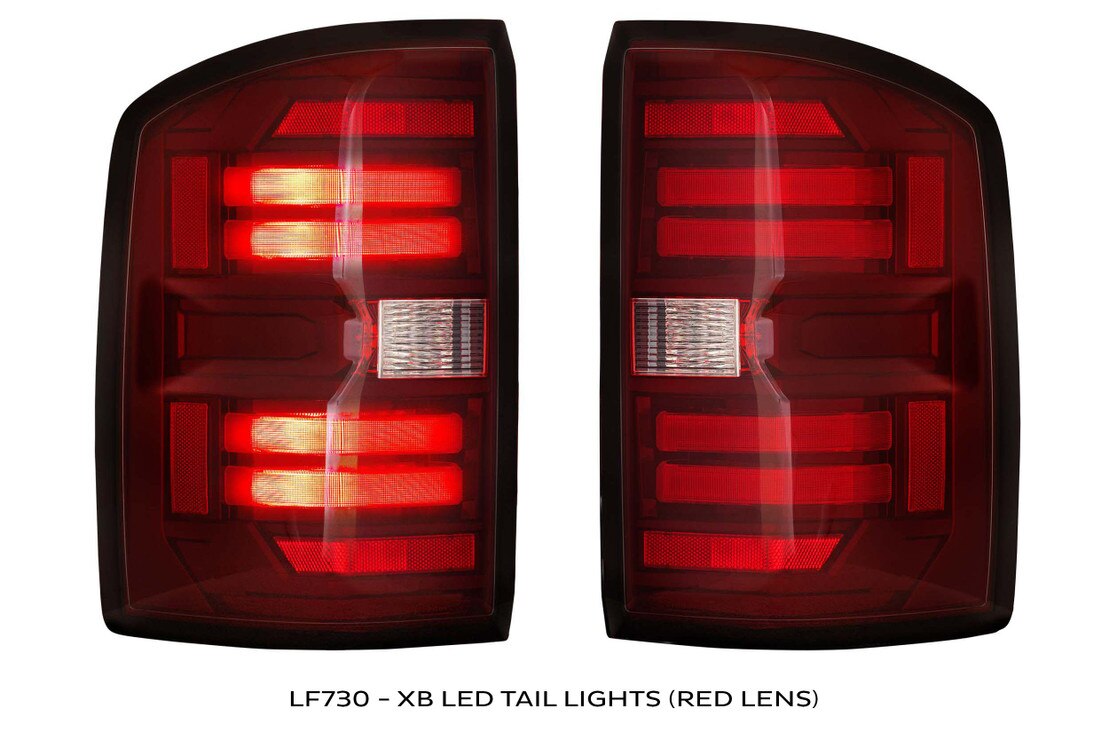

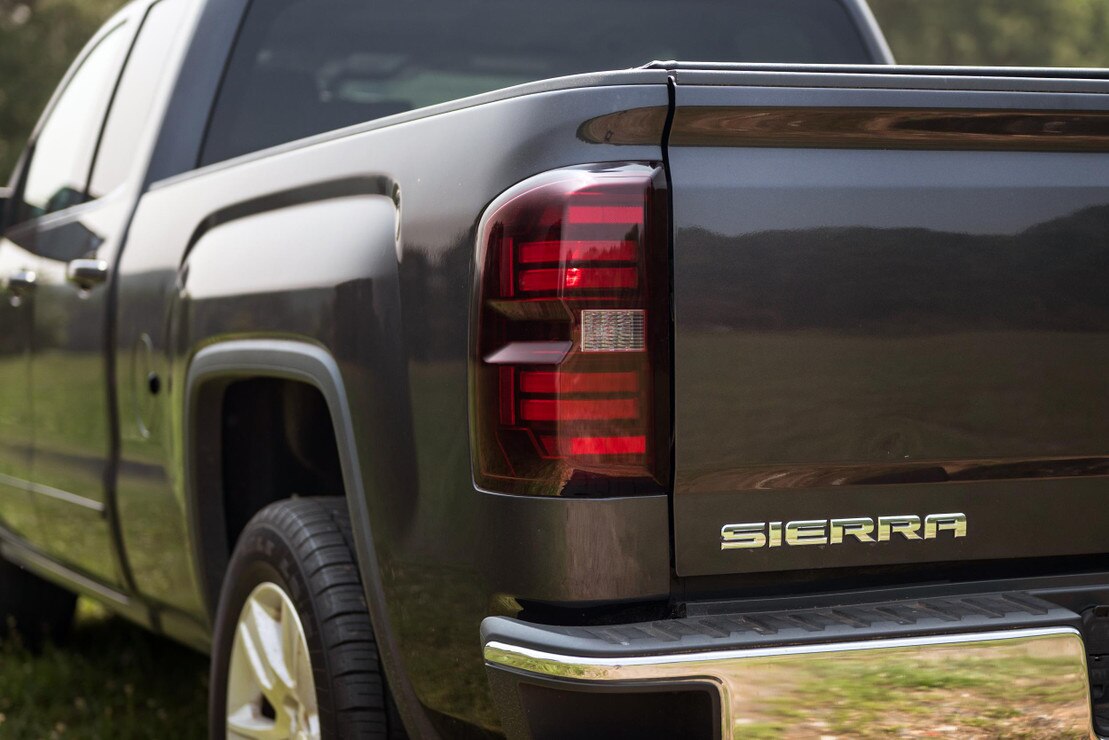

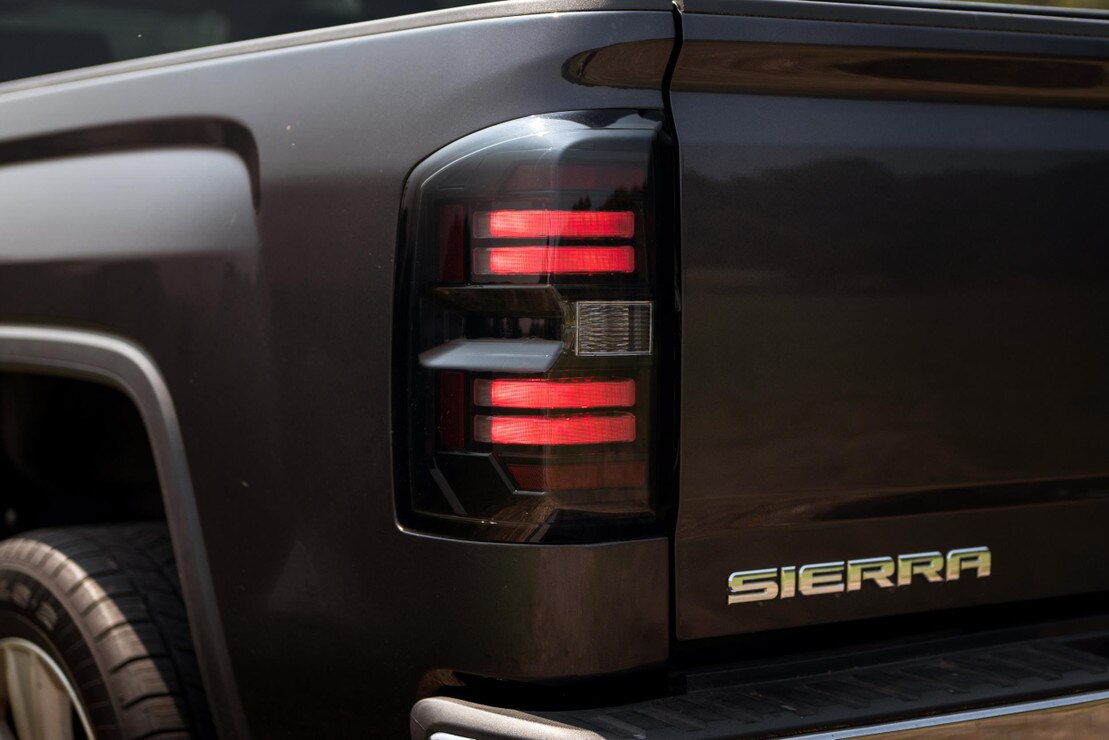

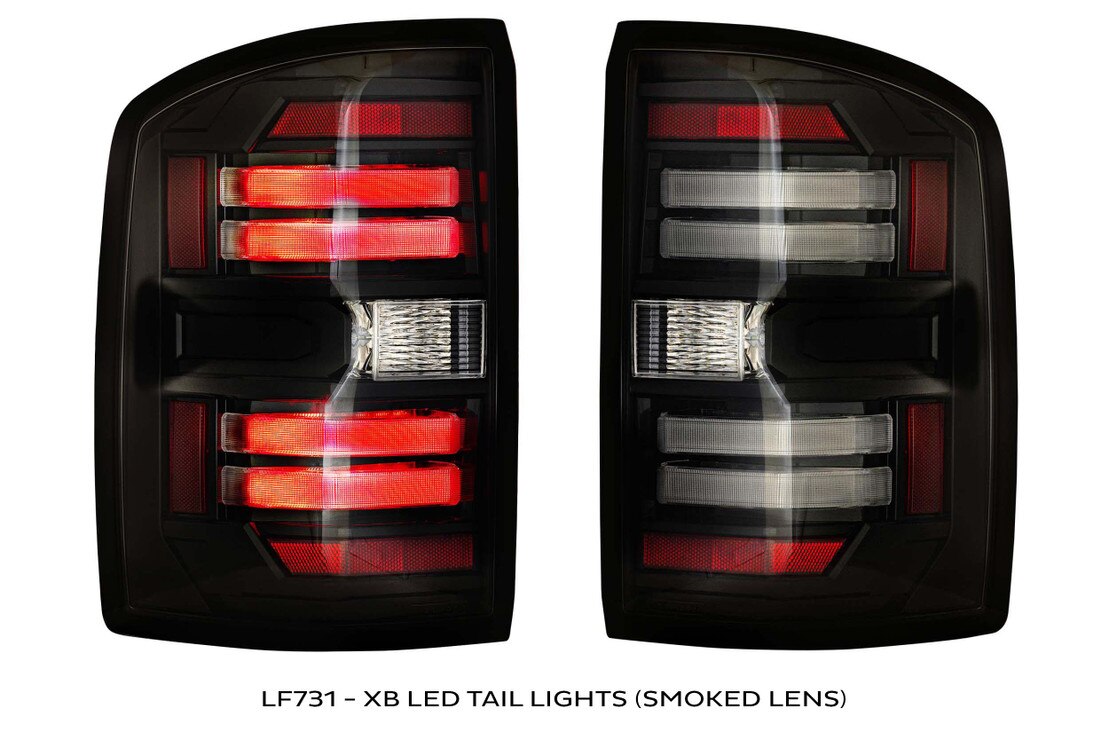

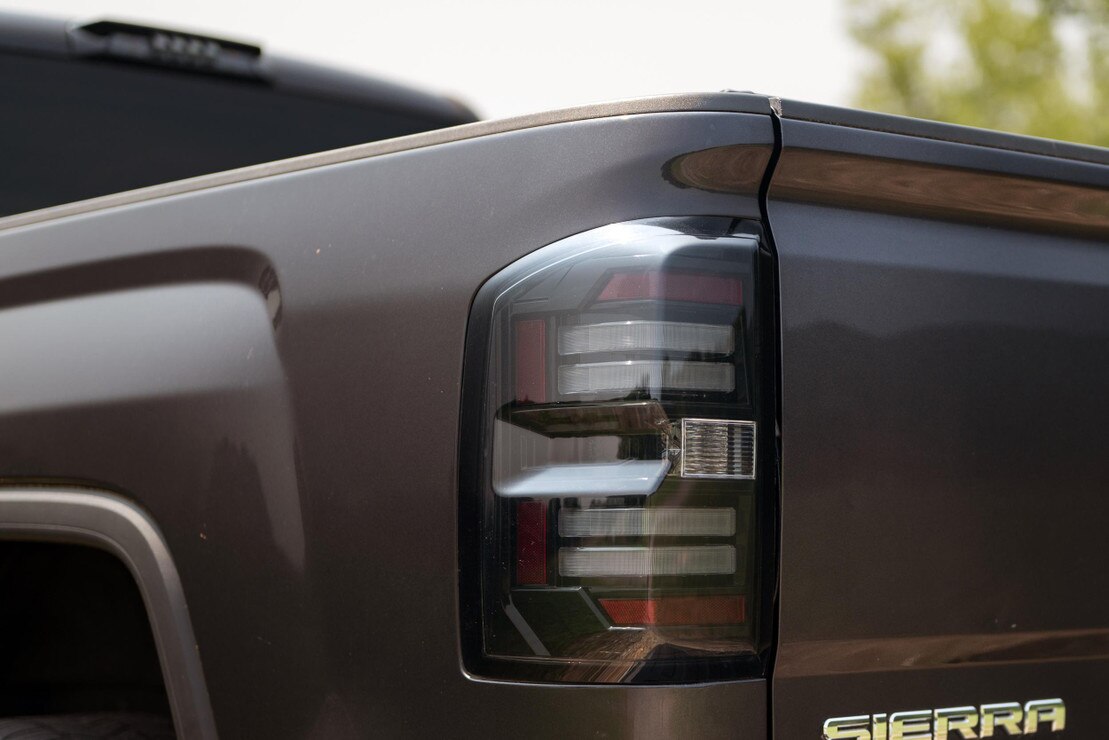

  • Tail Lights :

  • Input : GM Multi-Pin OEM

  • Material : ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Light Source : SSC LED

  • Reverse Light : White

  • Brake Light : Red

  • Parking Light : Red

  • Turn Signal : Red

COMPATIBILITY

  • GMC Sierra 1500 : 2014-2018

  • OEM LED Tail Light Trucks : Requires optional LF728HT adapters

  • Note : Not Compatible with Trucks w/ OEM LED Turn Signals

  • Replaces GM Part # : 23268190, 2502394, 23130717, 23130718, GM2800262, GM2801262

  • NOTE : These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.
