DESCRIPTION
FEATURES & BENEFITS
- Durable Construction: Polycarbonate lens and cast aluminum housing ensure long-lasting durability.
- Easy Compatibility: Directly replaces original halogen units in modern Toyota applications.
- Plug and Play Installation: Includes factory connectors for hassle-free wiring.
- Powerful Illumination: Nichia 5500K LEDs produce 1200 raw lumens per side.
- Regulatory Compliance: Meets SAE, DOT, and ECE regulations for safety and performance.
WHAT’S INCLUDED
Fog Lights: 2x (One Pair) Morimoto XB LED Type T Fog Lights
Wiring: Plug and Play Harness
Optional: Yellow Lamin-X Film Kit
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Intensity: 1,200lm (Raw; each)
Input: H11 Male
Material: Powdercoated Aluminum (Housing), UV-Resistant Polycarbonate (Lens)
Light Source: Philips Luxeon T 5500K (Pure White) or Osram 2800K (Amber)
LINE DRAWINGS
COMPATIBILITY
Lexus IS-F: 2008-2014
Replaces Toyota Part #: 81220-06071, 81210-08020
COMPLIANCE
No Substitutes: If you don't have LED powered fog lights, then you're just behind the times! Thankfully the new Morimoto XB LED projector fog lights: Look great. Are well-built. Perform like champs. Have a virtually infinite life span. An unbeatable warranty, And best of all you won't need to sell your soul to afford them! Many of the guys here at the shop use these XB LED fog light housings on their own vehicles, and they're easily one of our most popular product lines.
Compatible: With many modern applications from Lexus, these complete Lexus fog lights will swap directly in place of the original halogen units that they're designed to replace, using all of the stock mounting locations. The aim of these Lexus fog lights can be perfectly dialed in with the integrated height adjusters. Check the compatibility section below for a list of known applications.
Note about Fitment: For most Toyota / Lexus installs, these are a 100% direct fit in place of the stock fog lights. For certain fitments, such as the 2014-2018 Toyota 4Runner, the mounting points are very close but not 100% identical to stock, so some min Or trimming or adjustment of the plastic bracket on the Toyota / Lexus fog lights may be required.

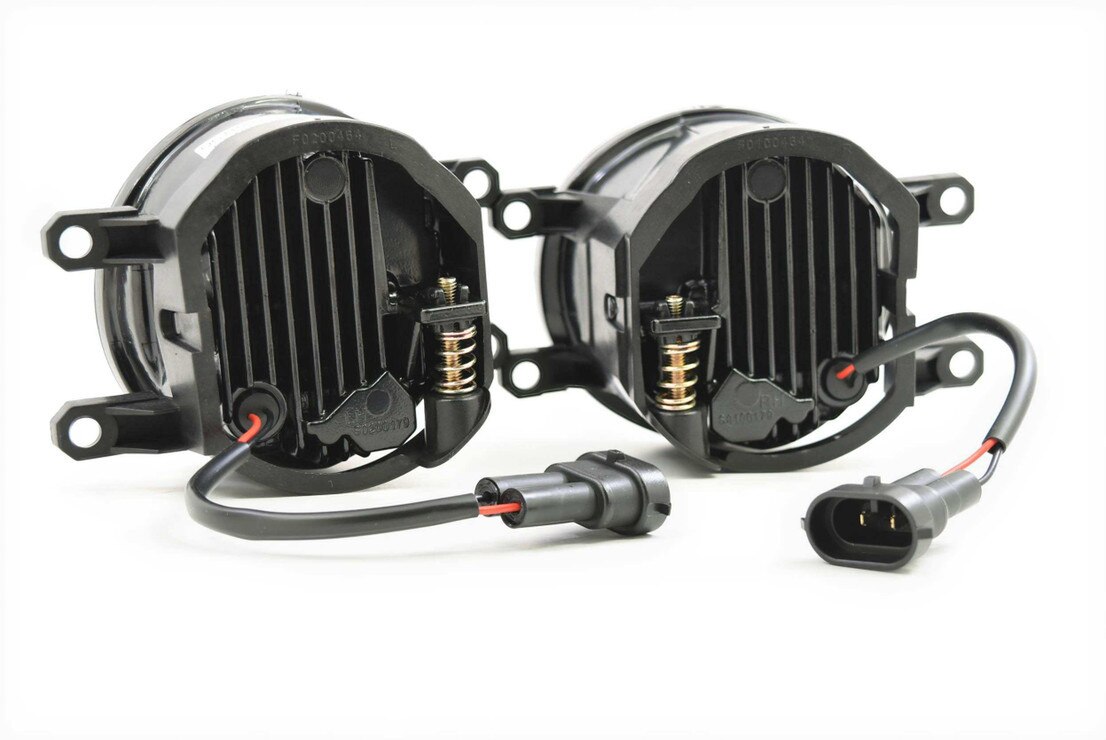

Plug n Play: Wiring is easy too! The XB LED fog light housings are designed to work without any special wiring. They will plug into the factory connectors for the stock Lexus fog lights and each assembly includes all necessary connectors, rubber seals, and pigtails for a plug n play install.

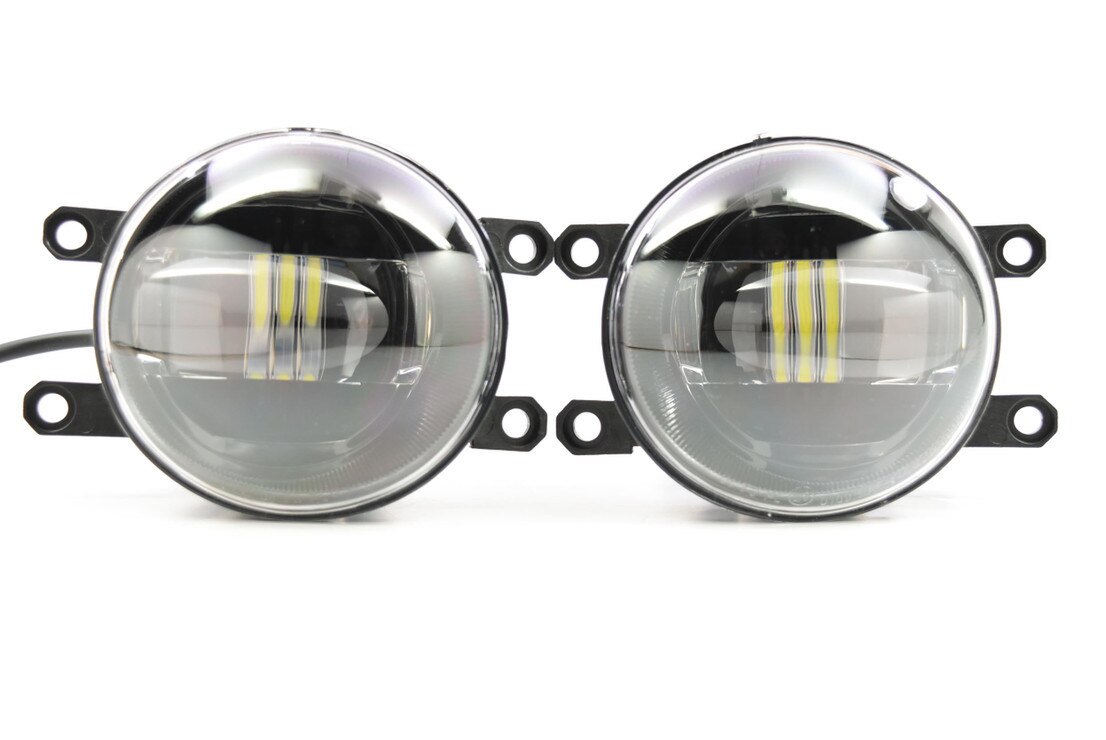

Powered: By three Philips Luxeon-T 5500K LED's that produce around 1200 raw lumens per side. The projector based optics concentrate a total of 2400 lumens of pure white light into a beam that's super wide and perfectly distributed for use as a fog light. Make no mistake, these Lexus fog lights will produce a much different [better] result than slapping some LED replacement bulbs into your stock housings. The XB LED fog light housings meet & exceed all SAE, DOT, and ECE regulations.
Well-Built: The Lexus fog lights' durable polycarbonate lens will resist the test of time, keeping the housings looking new for many years to come. The powder-coated cast aluminum housing is light-weight and much stronger than comparable plastic alternatives. Doubling as the heat-sink for the LED's, the XB LED fog light housings completely protect the internals from moisture and road debris. We've sold many thousands of these fog lights and to date, have only seen one or two develop a problem...no joke!
Word on the Street: Don't just take our word for it, check out these Install & Review videos that previous customers have put together! Everybody loves a good YouTube demo, so check it out HERE!, HERE!, HERE!, and HERE!
Overview Video: Prefer videos? Check out this helpful video the lineup of XB LED fog light housings!
