DESCRIPTION
FEATURES & BENEFITS
- Morimoto Benchmark: Renowned as the standard in automotive lighting, ensuring quality and performance.

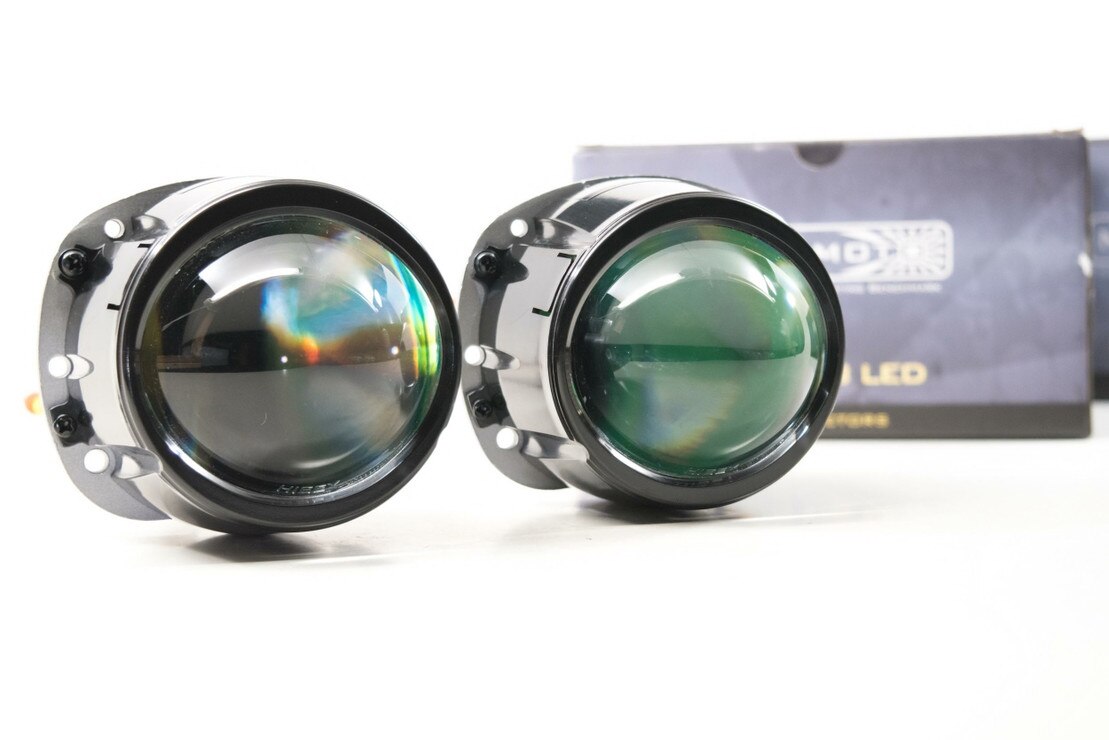

- Well Done: Designed exclusively as a high beam, the Morimoto Mini HB projector offers exceptional brightness, fulfilling its purpose with excellence.
- Easy Install: The projector features an extended threaded-shaft mount, making installation straightforward. It comes with adapter hardware suitable for most popular bulb sockets, ensuring a hassle-free setup.
- Shrouds: The Morimoto HB LED projectors are versatile and compatible with a wide range of existing shrouds, including the "Mini Series". They can be easily attached to the bezel on the Hi-Lens front face.

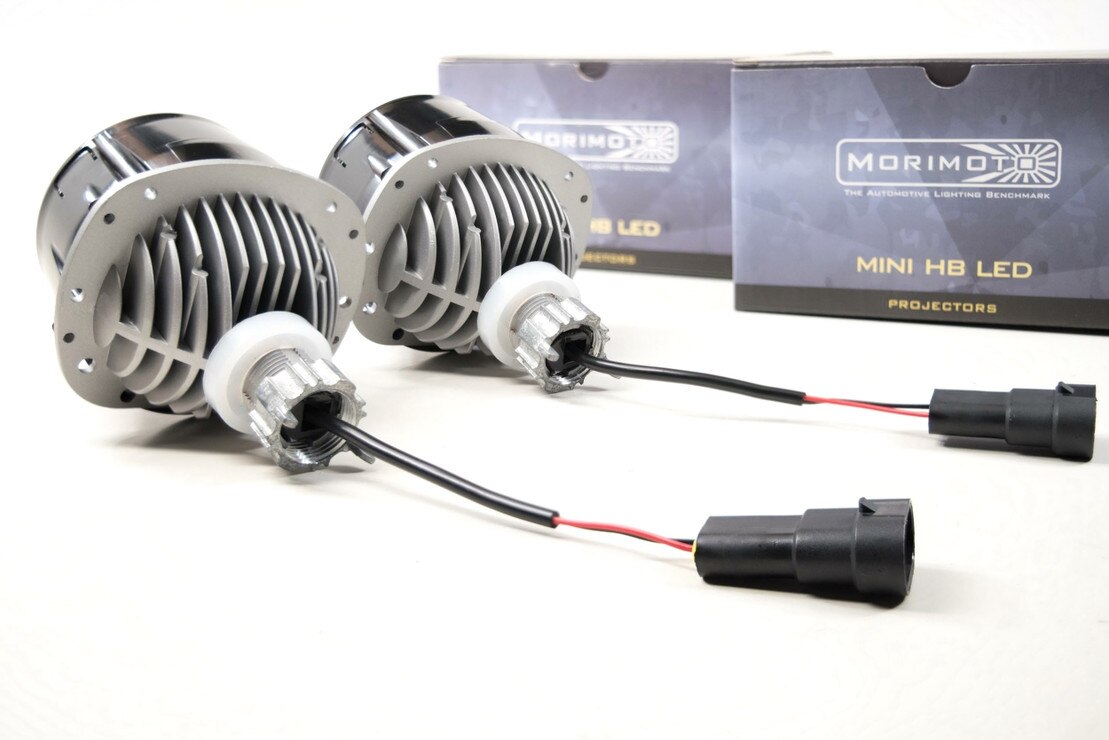

- Wiring: Designed for user convenience, the projectors come with a universal 9005/9006 male input. This connects directly to the high beam trigger, making wiring simple. Adapters are also available for different OEM high beam bulb sizes.
WHAT’S INCLUDED
Projectors: 2x (One Pair) Mini HB LED Projectors
Hardware: Mounting Hardware
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Intensity: 3,000lm (Combined)
Power: 25w
Current: 1.47A @ 12V DC
Dimensions: 78mm H, 82mm W, 125mm D (incl. shaft)
Mounting Shaft: 20mm Diameter
Housing Depth: 100mm Minimum

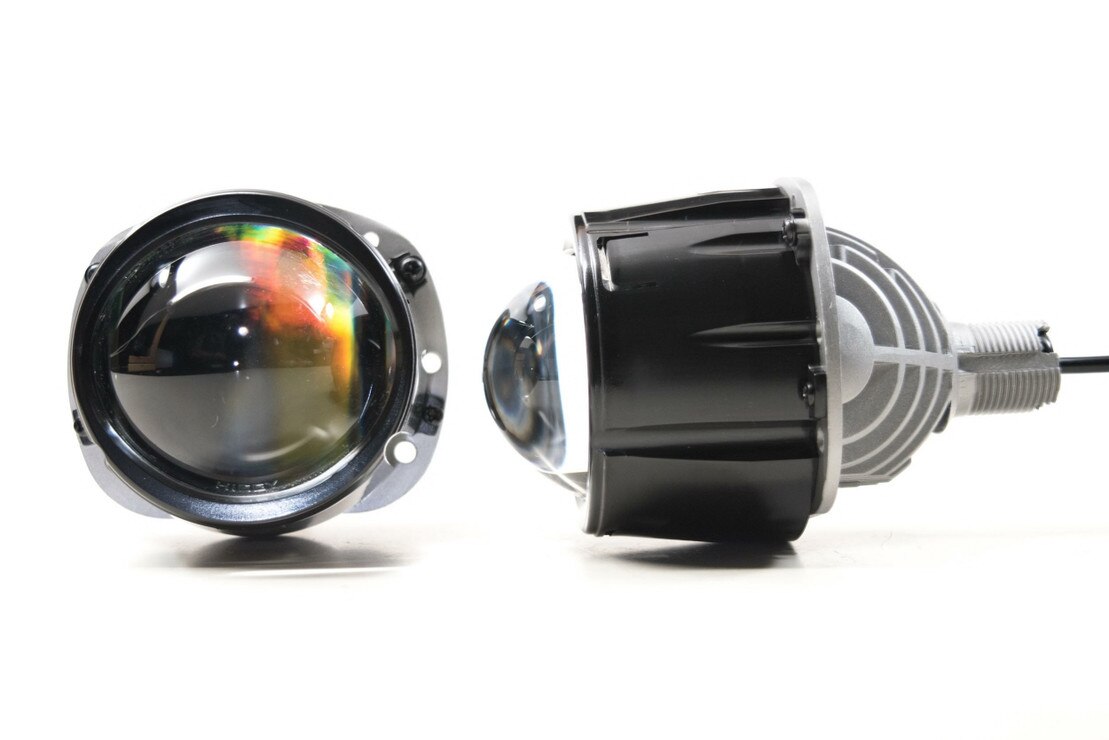

Lens Type: 100% Clarity Performance Optic
LINE DRAWINGS
COMPATIBILITY
APPLICATIONS: Universal (Cars, trucks etc)
DIRECT FITMENT: 9005, 9006, H7, H11 housings (little/no mods)
MODS REQUIRED: H1, H3 housings
OUTPUTS: High Beam
SHROUDS: All Styles
CENTRIC RINGS: OEM 2.5in model required for full-size shrouds
COMPLIANCE
APPLICATION: HID and LED projectors are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE
Note: This usage regulation is not unique to this item. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.
HOMOLOGATION ECE: NO
DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)
Morimoto: The Automotive Lighting Benchmark. While there's probably nothing wrong with your halogen high beam bulbs, or certainly a retrofitted set of bi-xenon/Bi-LED projectors, overkill is under-rated, and that's why we're giving two thumbs up to the new Morimoto high beam projector.
Well Done: The Morimoto Mini HB projector is a projector designed as a dedicated high beam, and it is stupid bright! It has one job, and it is good at it!

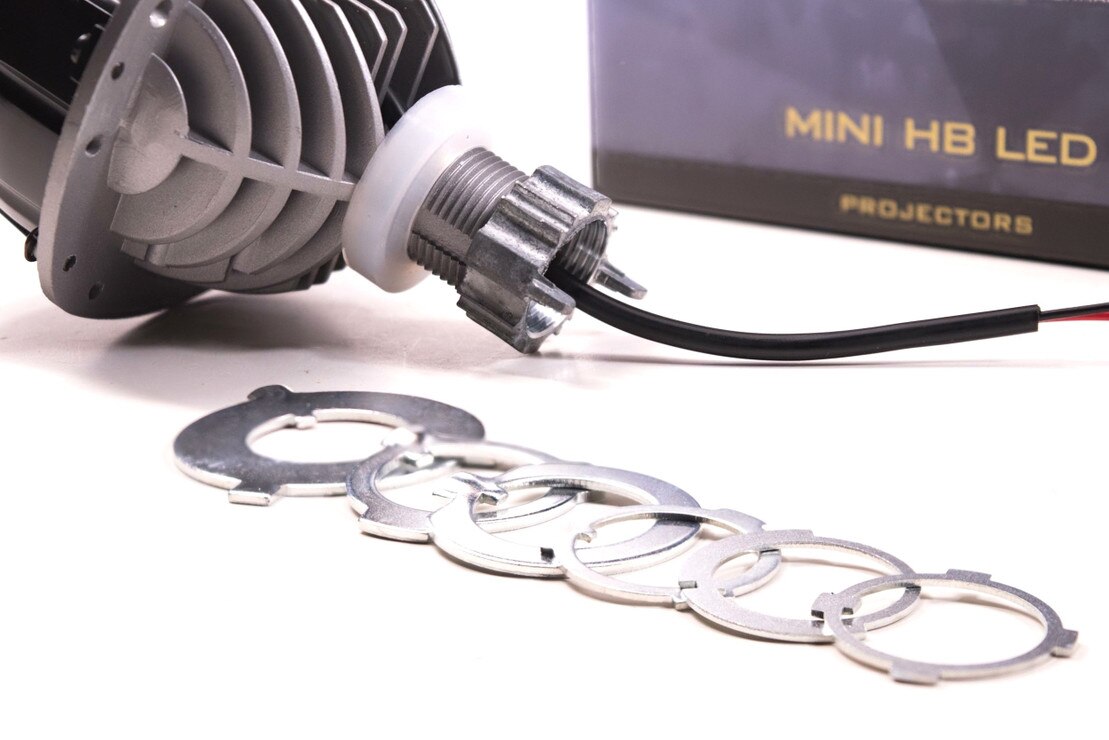

Easy Install: The Mini HB features a threaded-shaft style mount on the back that allows the projectors to be locked on with their included hardware, and minimal modifications to your headlight. Best part is that the threaded shaft is about twice as long as what you would normally find on something like a Mini H1 projector, making it even easier to install across the board. Not only that, it includes adapter hardware for most popular bulb sockets (h11, 9005, H7, etc)...Now that's awesome.

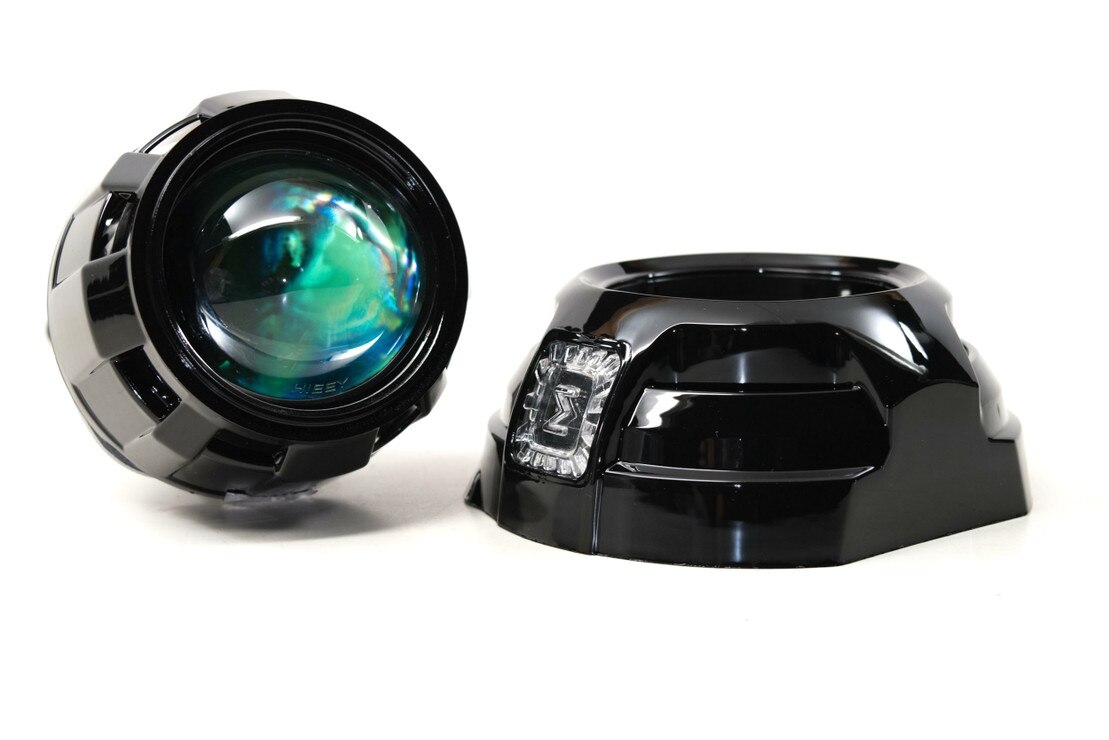

Shrouds: Conveniently, the Morimoto HB LED LED projectors are compatible with most every existing shroud on the market, even including the "Mini Series" - which will screw onto the pre-existing mounting points. They also take all shrouds that work with centric rings too- so you should be able to snap them right onto the bezel on the front face of the Hi-Lens.
Wiring Really doesn't get any more simple. These come out of the box with a universal 9005/9006 male input that will connect directly to the high beam trigger (or splitters) coming from your car. If you have a differently sized OEM high beam bulb, no worries, just pick up an inexpensive adapter (which we also carry)
