DESCRIPTION
FEATURES & BENEFITS
- Enhanced Customization: Heightened E46-R shroud with full-circle dimple design.
- Premium Quality: Top-grade plastic with durable chrome finishes.
- Convenient Mounting: Optional Centric Rings and JB Quik Weld for stability.
- Expanded Customization: Compatible with LED Halos for striking enhancements.
- Easy Trimming: Plastic construction allows effortless modification.
WHAT’S INCLUDED

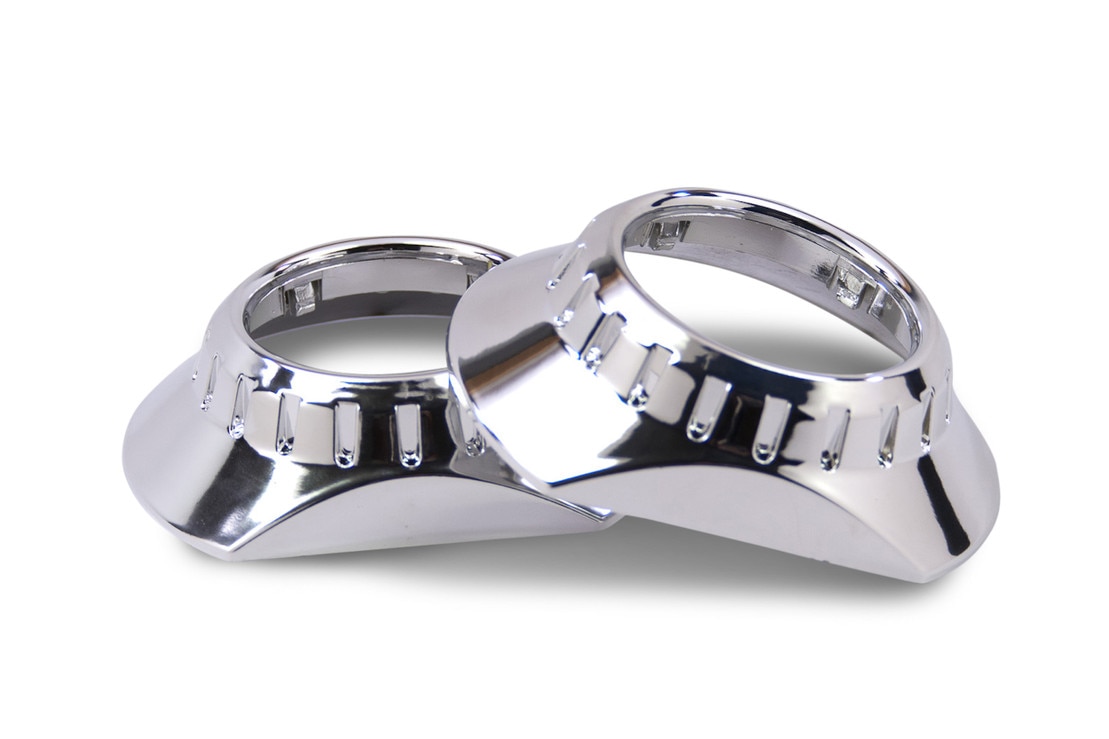

Shrouds: 2x (One Pair) E46-R Extended Projector Shrouds
Optional Accessories: Centric Rings and Halos
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Dimensions: 135mm W, 120mm H, 36mm D

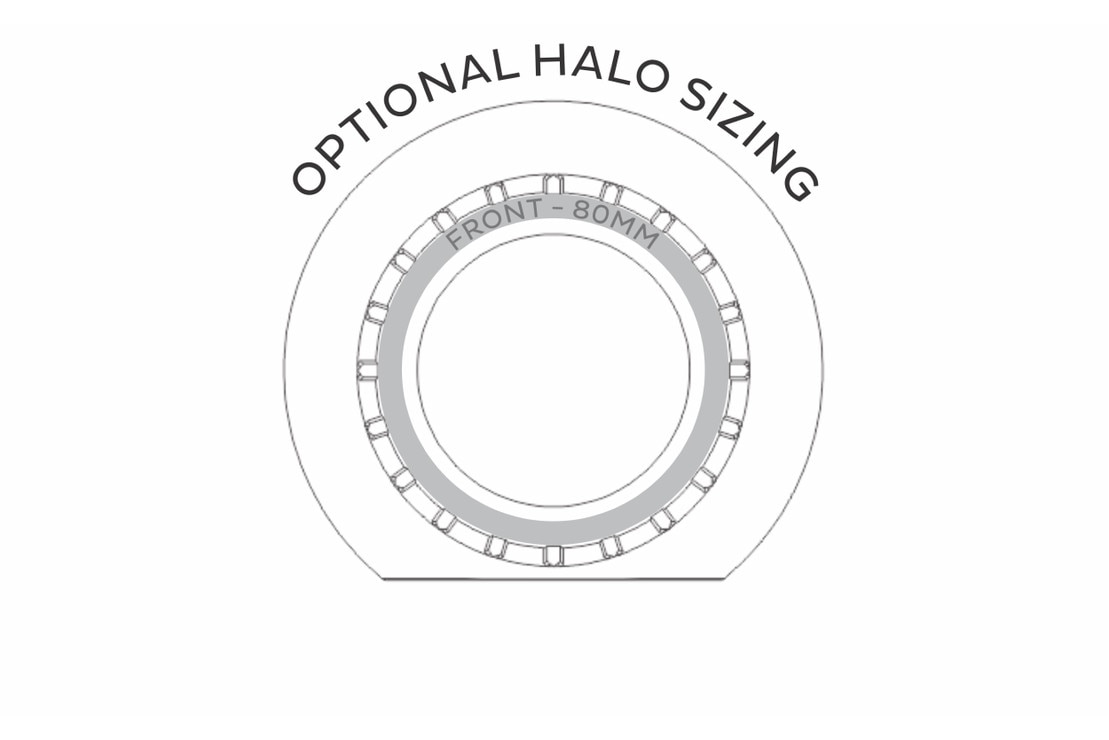

Halo Sizing: 80mm (Front)
Finish: Forever Finish Chrome

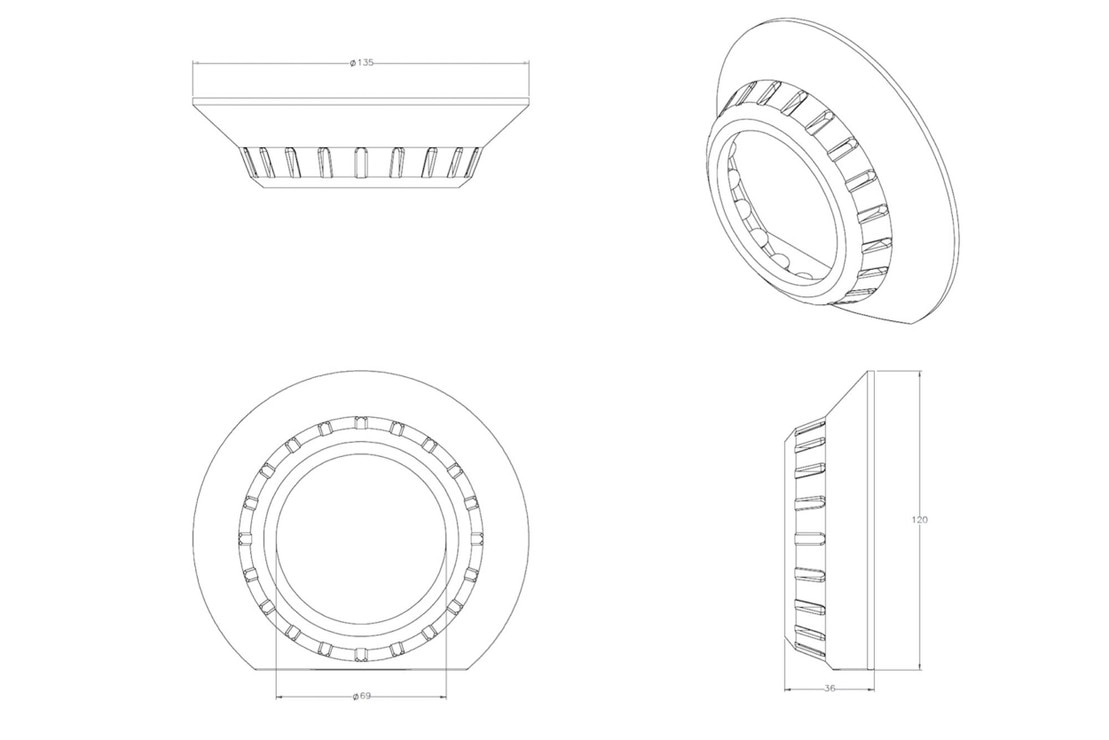

LINE DRAWINGS
COMPATIBILITY
MORIMOTO PROJECTORS: All except Matchbox
OEM PROJECTORS: Most except TL, LS430, LS460, Q45
LENS DIAMETERS: 2.5in and 3in Compatible
MOUNTS WITH: Centric Rings and/or JB Quik Weld
INSTALLATION DOCUMENTS

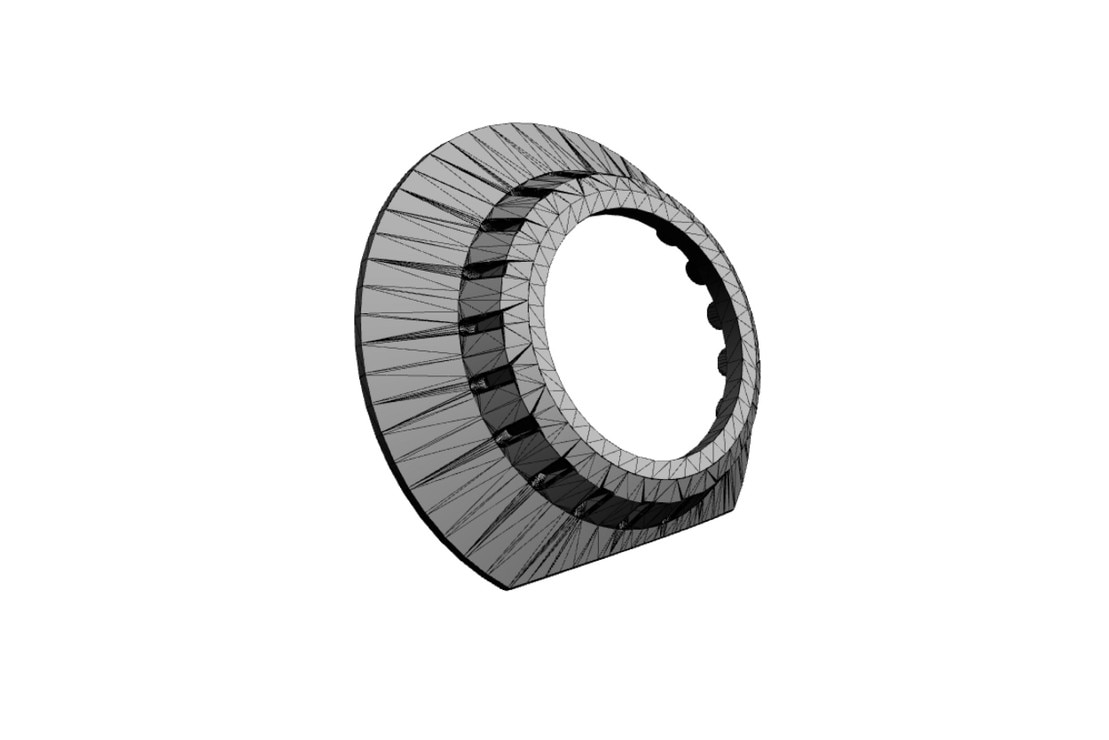

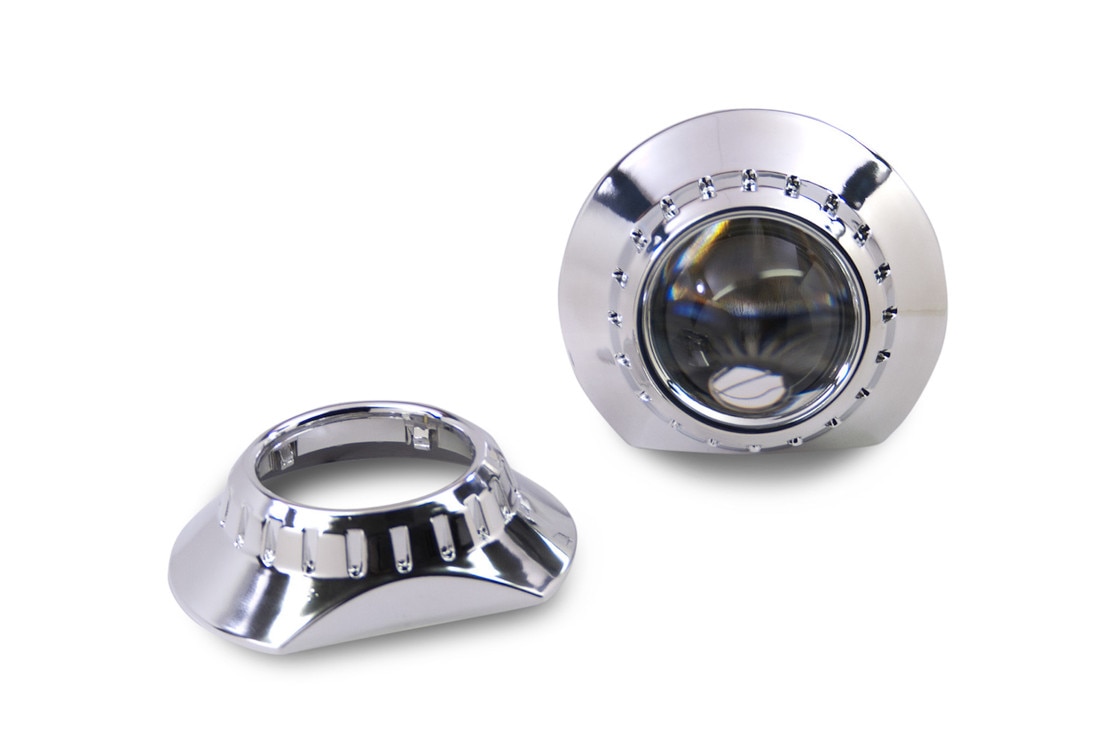

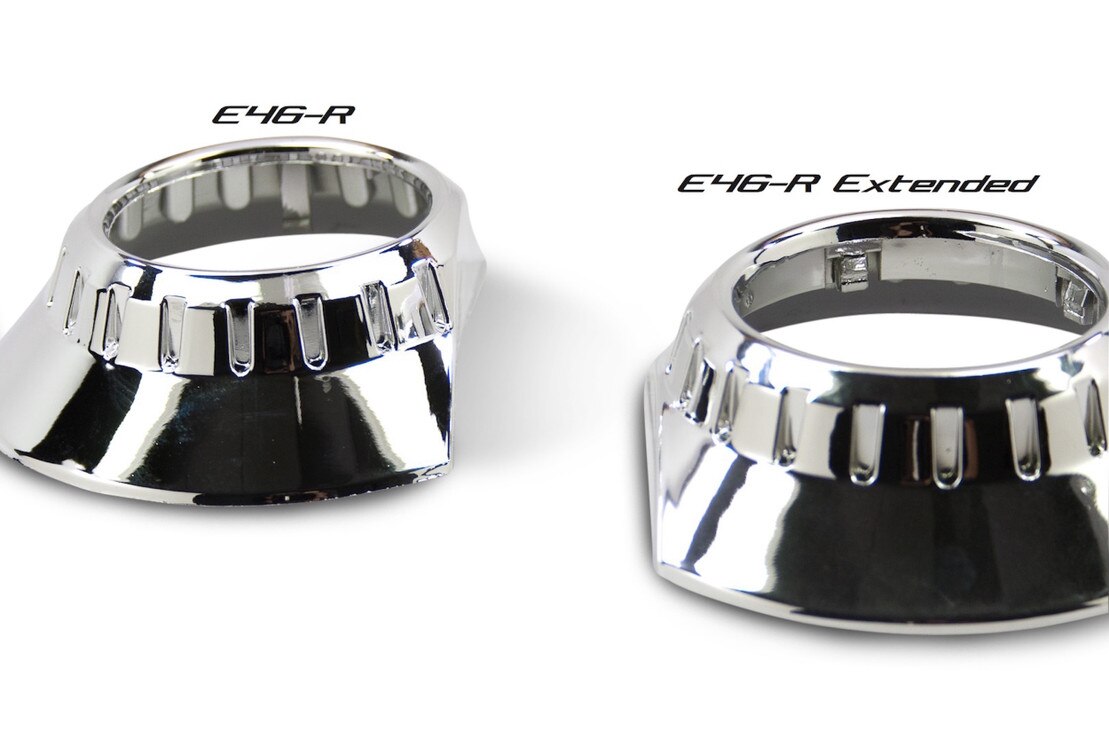

E46-R Extended: An extended version of the original E46-R shroud, for those who believe that size does matter. Inspired by the BMW E46, enhanced for retrofitters. Compared to the standard E46-R, The "Extended" version is 10mm taller in overall height and has the dimples arrayed around it's face in a full circle.
In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.
A or B: At The Retrofit Source, we're also meticulous with quality control. If a shroud has a min Or factory defect; we sell it at a discount as a "B stock" unit - which is perfect for budget retrofits or when painting them is part of the plans. If you won't settle for anything less than perfect and plan to leave them chrome; go for the "A Stock" Shrouds.
Mounting: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. JB Quik Weld is also recommended in order to prevent the shrouds from vibrating loose over time.

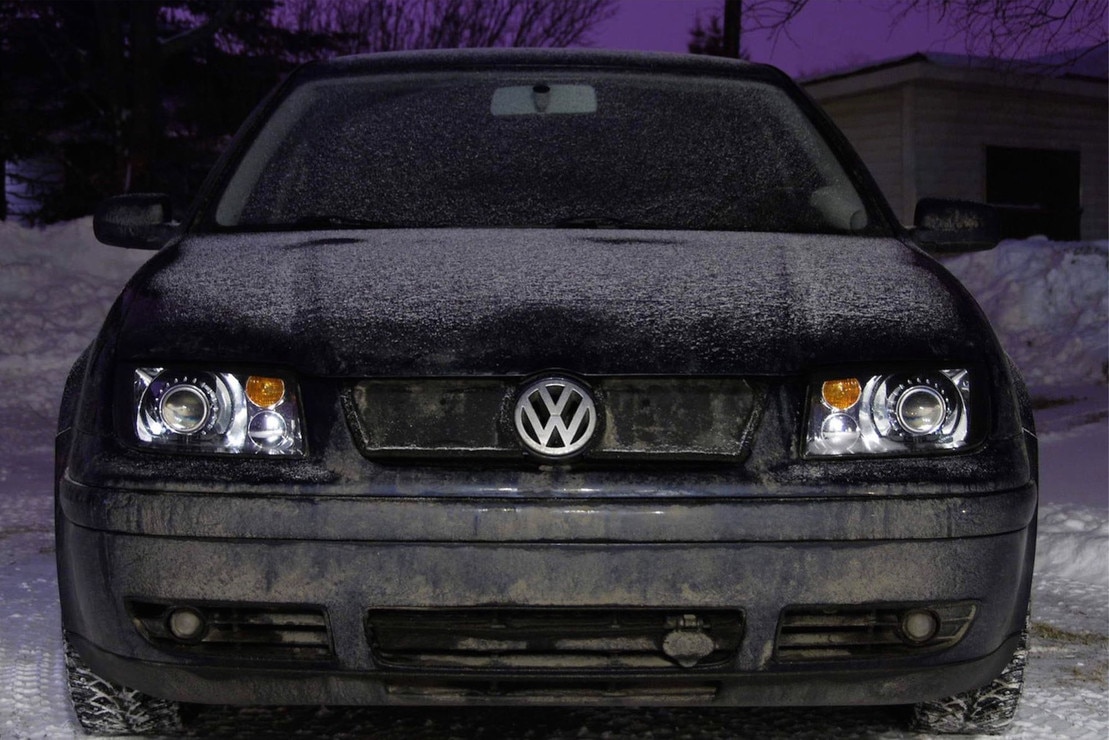

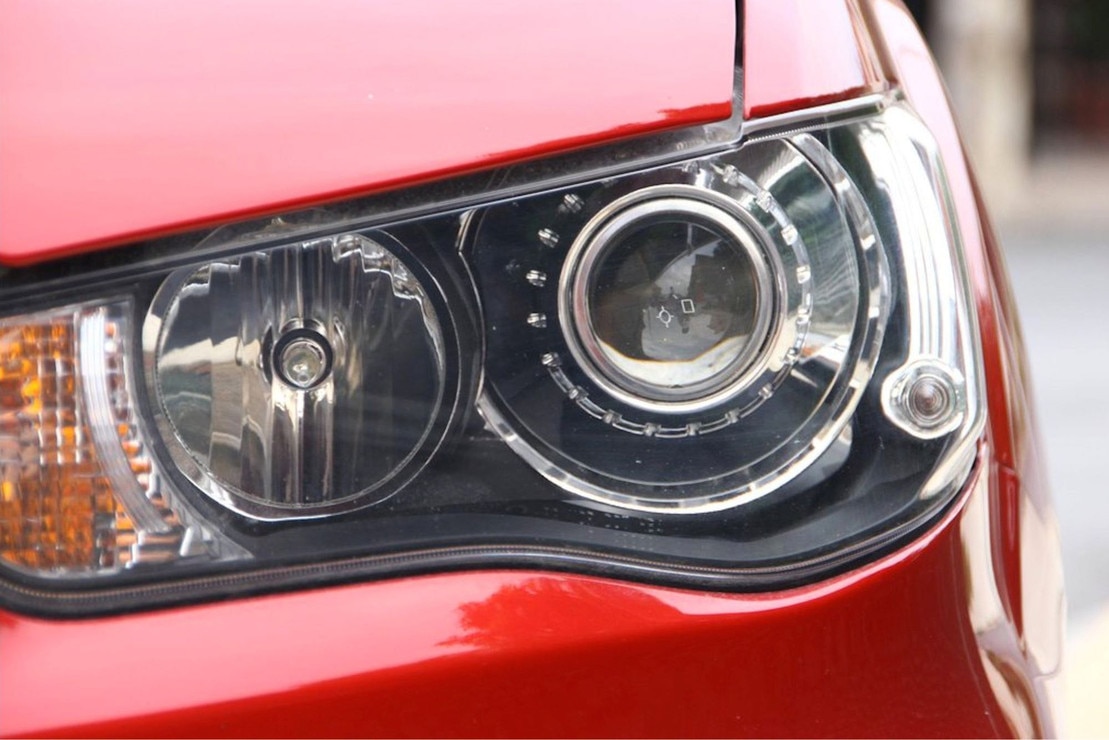

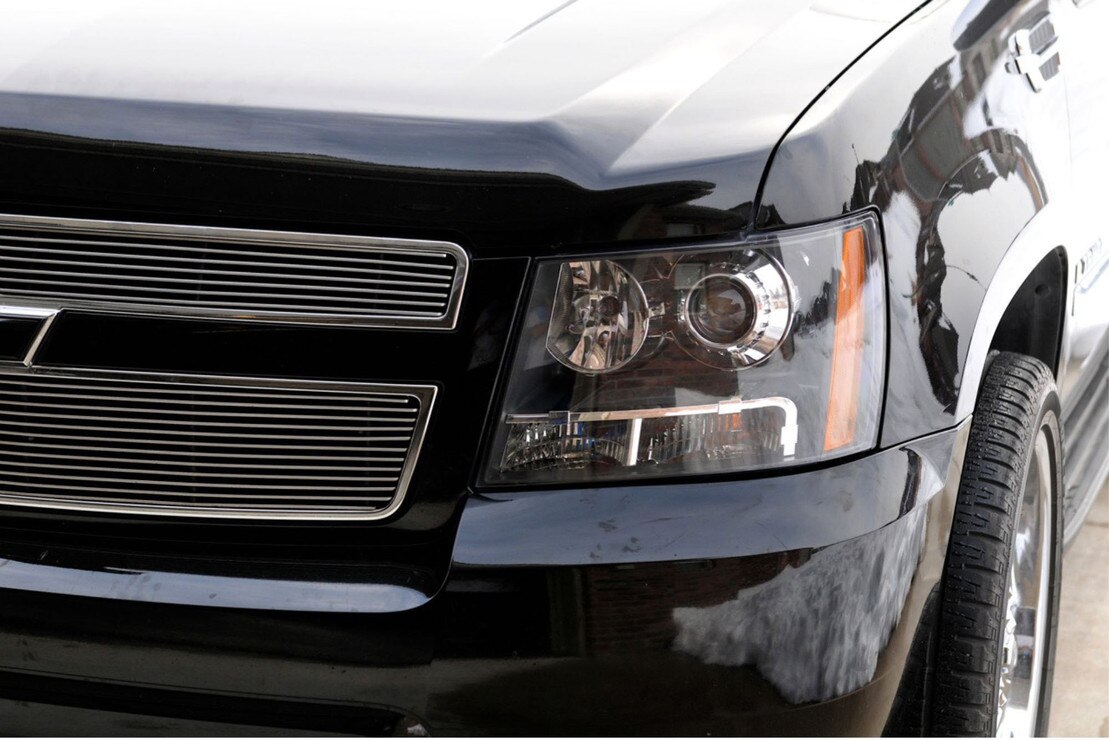

LED Halos: Are a unique and effective way to further customize the look of your projector retrofit. The Profile Pivot (switchback) and Profile Pixel (RGB) systems are easy to mount on the front of your shrouds, are reliable, and of course awesome looking. To determine which size is best for you - check out the size-guide in the "In Action" images section below.

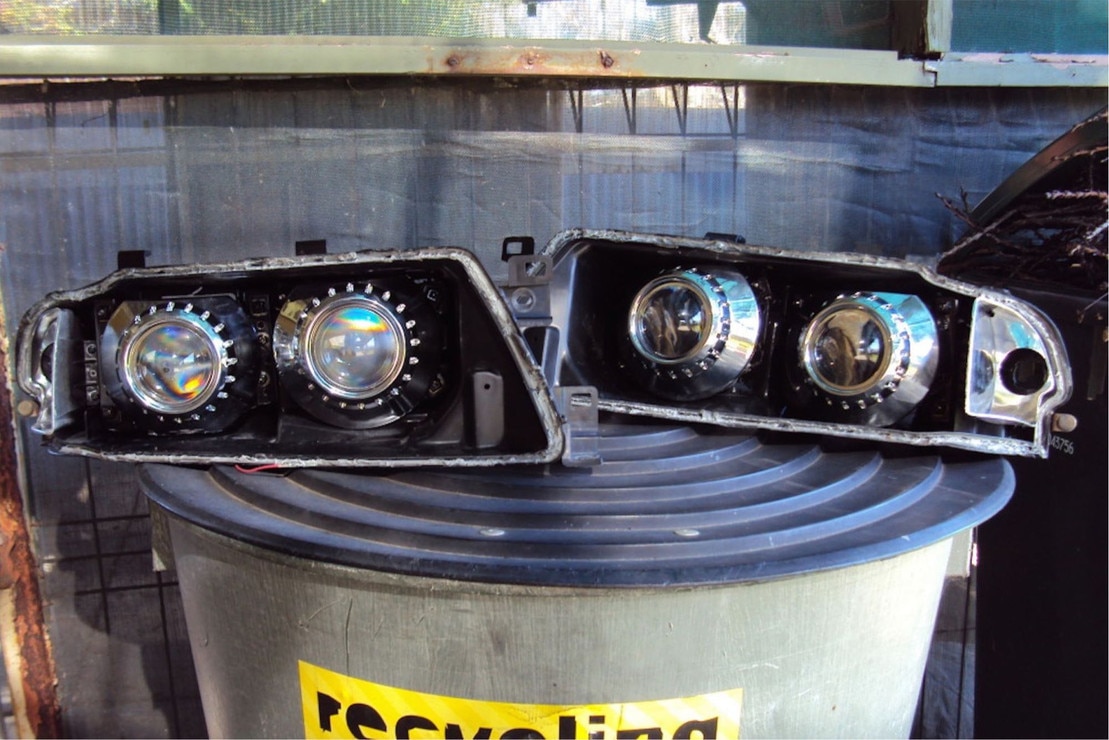

Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.
