DESCRIPTION
FEATURES & BENEFITS
- High-Quality Construction: Premium plastic with durable metalized chrome finish.
- Excellent Coverage: Superior projector coverage for enhanced lighting.
- Integrated LED Compatibility: Seamlessly integrates with 110mm LED halos.
- Options for Every Budget: "A Stock" for pristine chrome or "B Stock" for discounted units.
- Easy Installation and Stability: Recommends Centric Rings for effortless installation and JB Quik Weld for stability.
WHAT’S INCLUDED
Shrouds: 2x (One Pair) Apollo 3.0 Projector Shrouds
Optional Accessories: Centric Rings and Halos
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Dimensions: 126mm DIA, 56mm D

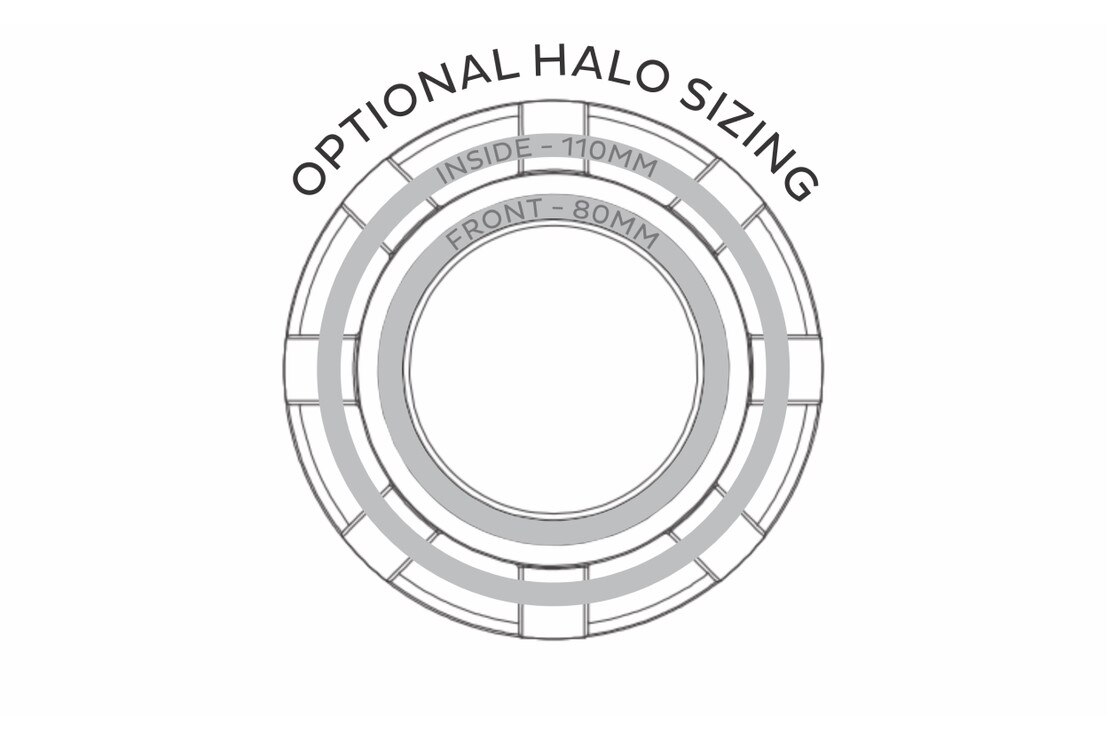

Halo Sizing: 80mm (Front), 110mm (Vent)
Finish: Forever Finish Chrome

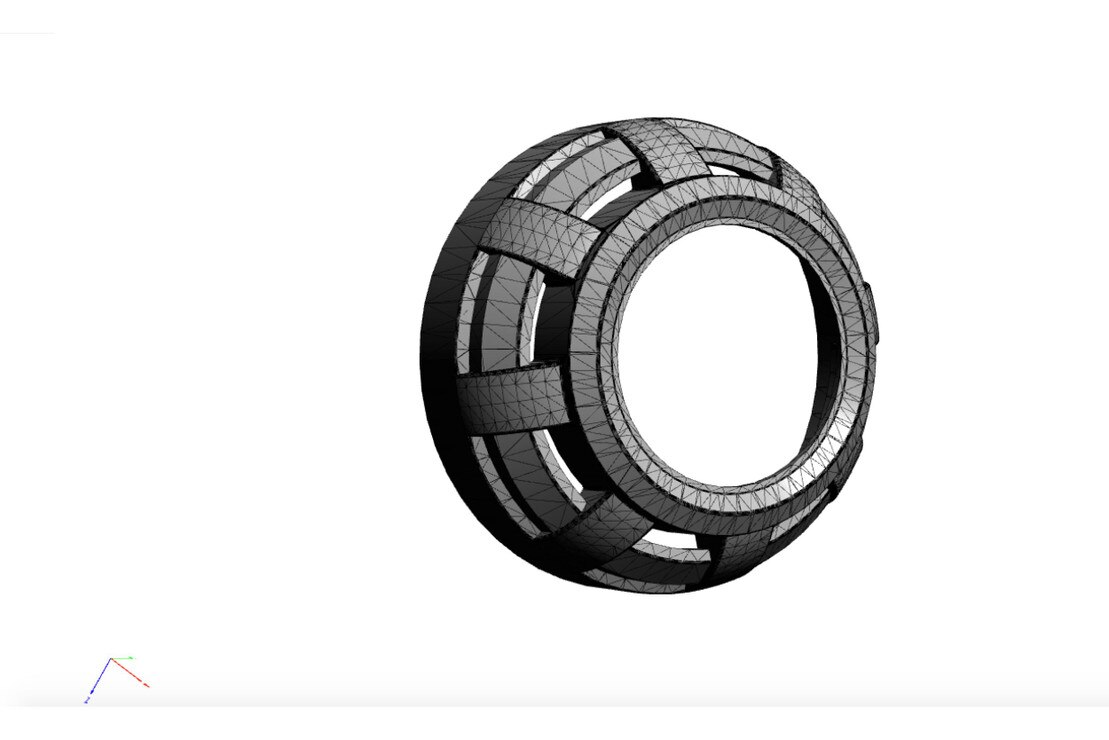

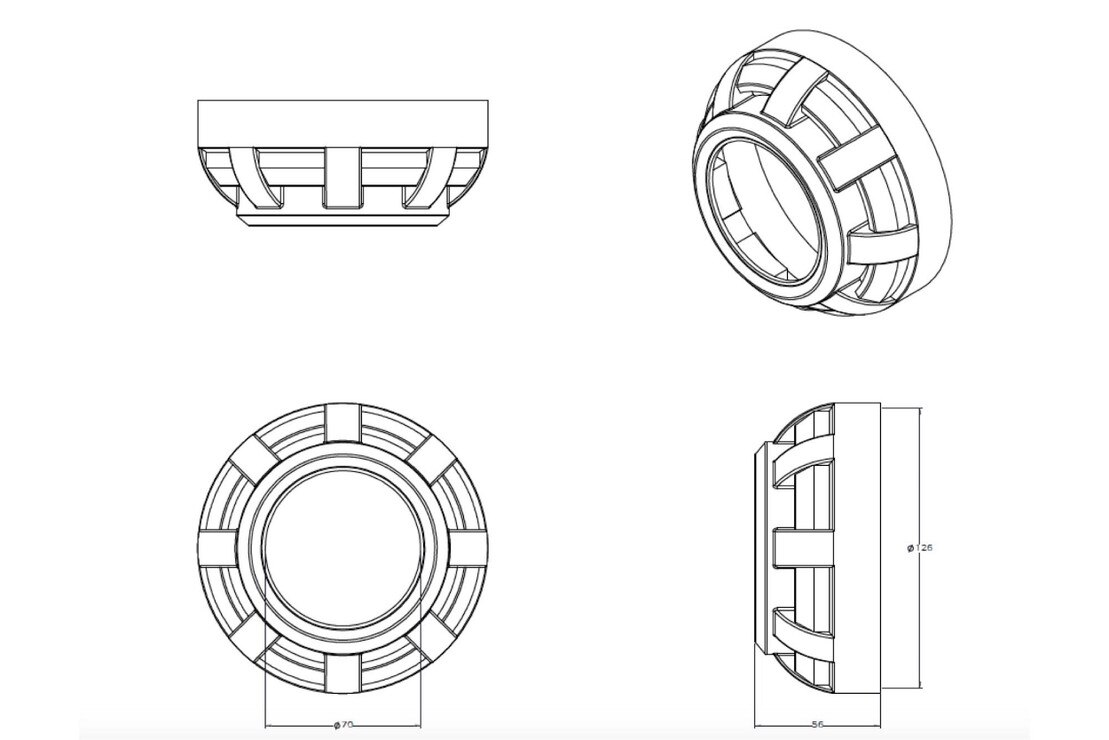

LINE DRAWINGS
COMPATIBILITY
MORIMOTO PROJECTORS: All except Matchbox
OEM PROJECTORS: Most except TL, LS430, LS460, Q45
LENS DIAMETERS: 2.5in and 3in Compatible
MOUNTS WITH: Centric Rings and/or JB Quik Weld
INSTALLATION DOCUMENTS

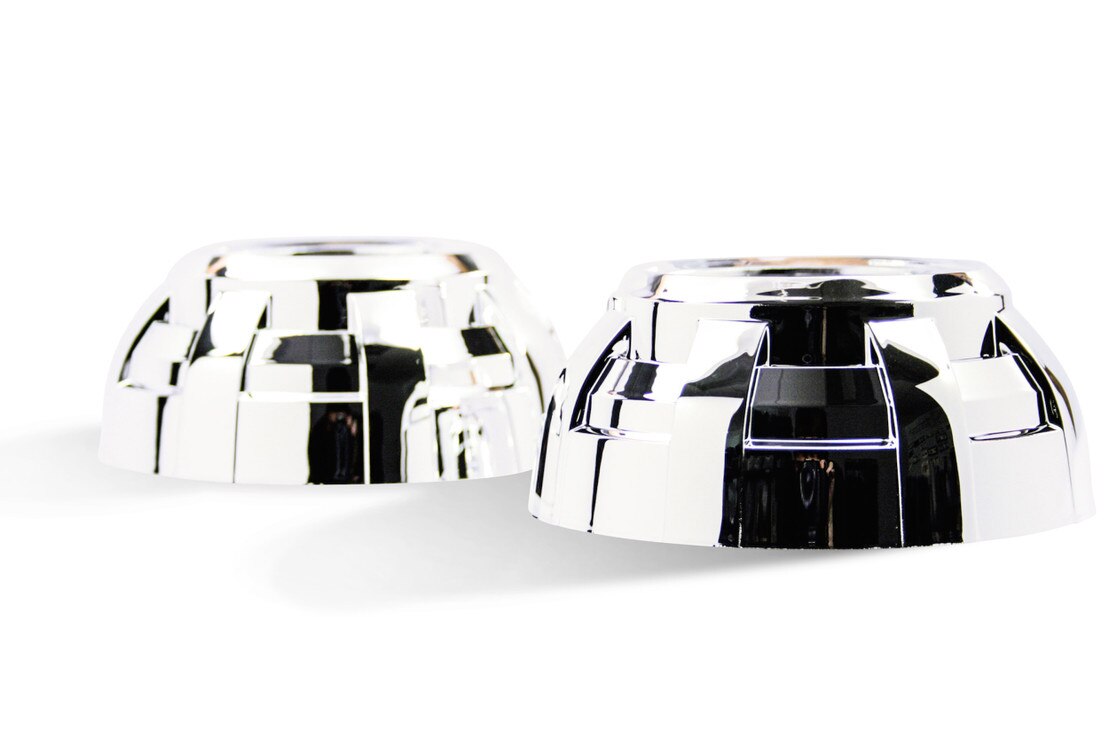

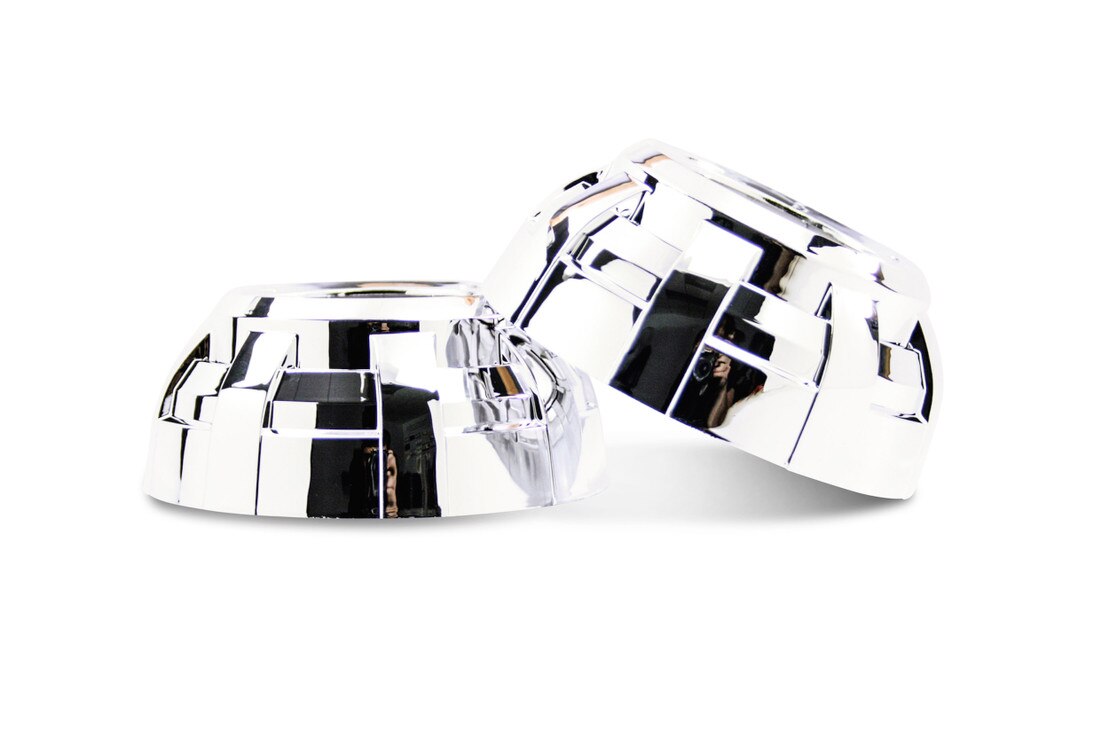

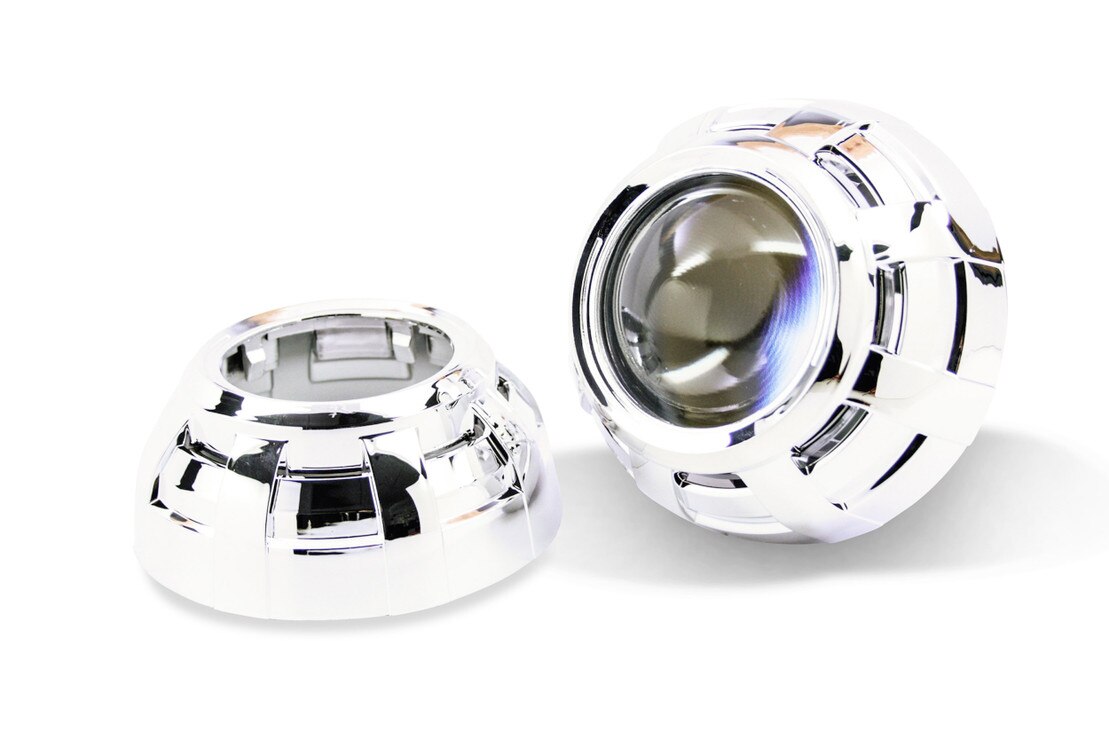

Apollo 3.0: Fresh off the injection press! The Apollo 3.0 is the third Porsche inspired Morimoto projector shroud to join the Apollo family. With excellent projector coverage, great looks, and perfect integration with our 110mm LED halos, they're already a hit! With a smooth chrome finish that accents its multi-facet design well, the Apollo 3.0 fits well in a wide variety of retrofits on vehicles with round reflectors. Whether you're working on a car or a truck with big headlights, consider the Apollo 3.0 as a solid choice.
In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto projector shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.
A or B: At The Retrofit Source, we're also meticulous with quality control. If a shroud has a min Or factory defect; we sell it at a discount as a "B stock" unit - which is perfect for budget retrofits or when painting them is part of the plan. If you won't settle for anything less than perfect and plan to leave them chrome; go for the "A Stock" Shrouds.
Mounting: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. JB Quik Weld is also recommended in order to prevent the shrouds from vibrating loose over time.

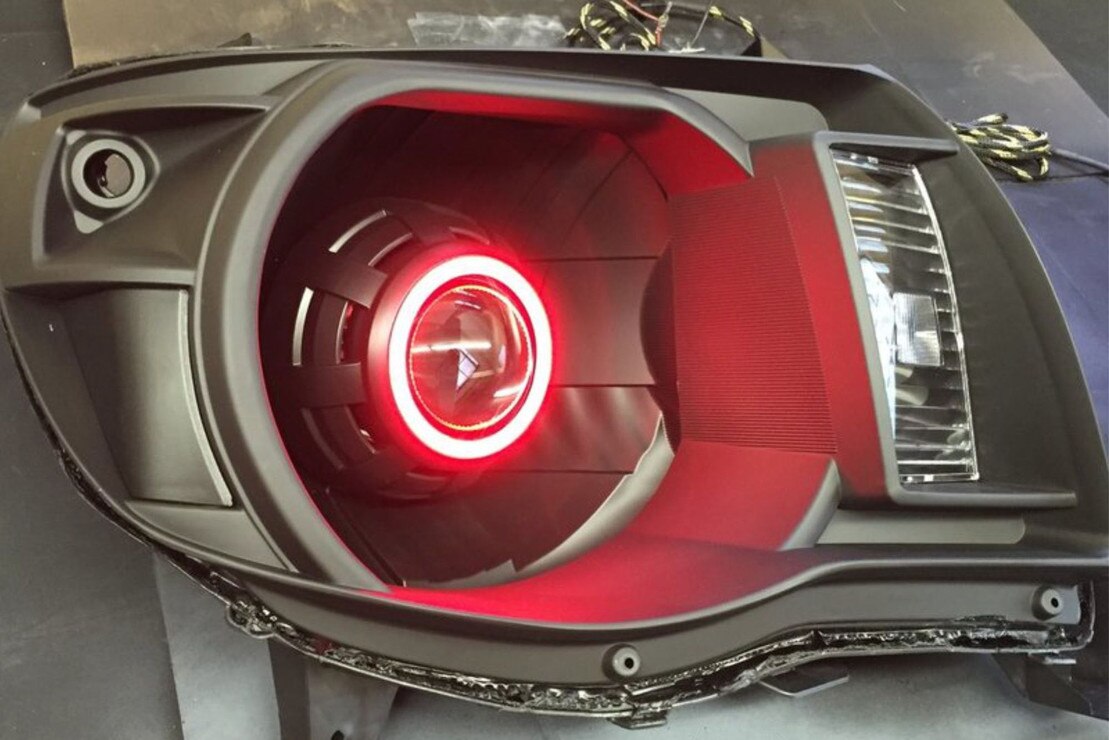

LED Halos: Are a unique and effective way to further customize the look of your projector retrofit. The Profile Pivot (switchback) and Profile Pixel (RGB) systems are easy to mount on the front of your Morimoto projector shrouds, are reliable, and of course awesome looking. To determine which size is best for you - check out the size-guide in the "In Action" images section below. These Morimoto projector shrouds feature DRL-Vents that will glow with light if you wanted to do something a bit different and mount the halos inside.
Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector or fit within the geometry of your headlight housing, it's normal. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.
