DESCRIPTION
FEATURES & BENEFITS
- Superior Performance: Combines the power of a mini LED light bar with advanced optics for a spotlight effect, ensuring maximum brightness and coverage.
- Durable Construction: Transitioning from the original plastic, the Gen II boasts a robust cast aluminum housing, ensuring longevity and resilience.
- Color Options: Choose between the standard model with a white LED demon eye or the RGBW version for a dynamic color display, including a pristine white DRL and an amber switchback turn signal.
- Effortless Installation: Features an extended threaded-shaft mount, ensuring a secure fit with minimal modifications, making the installation process a breeze.
- Shroud Compatibility: Designed to fit seamlessly with most existing shrouds, except the "Mini" series, allowing for a customized look tailored to your preferences.
WHAT’S INCLUDED

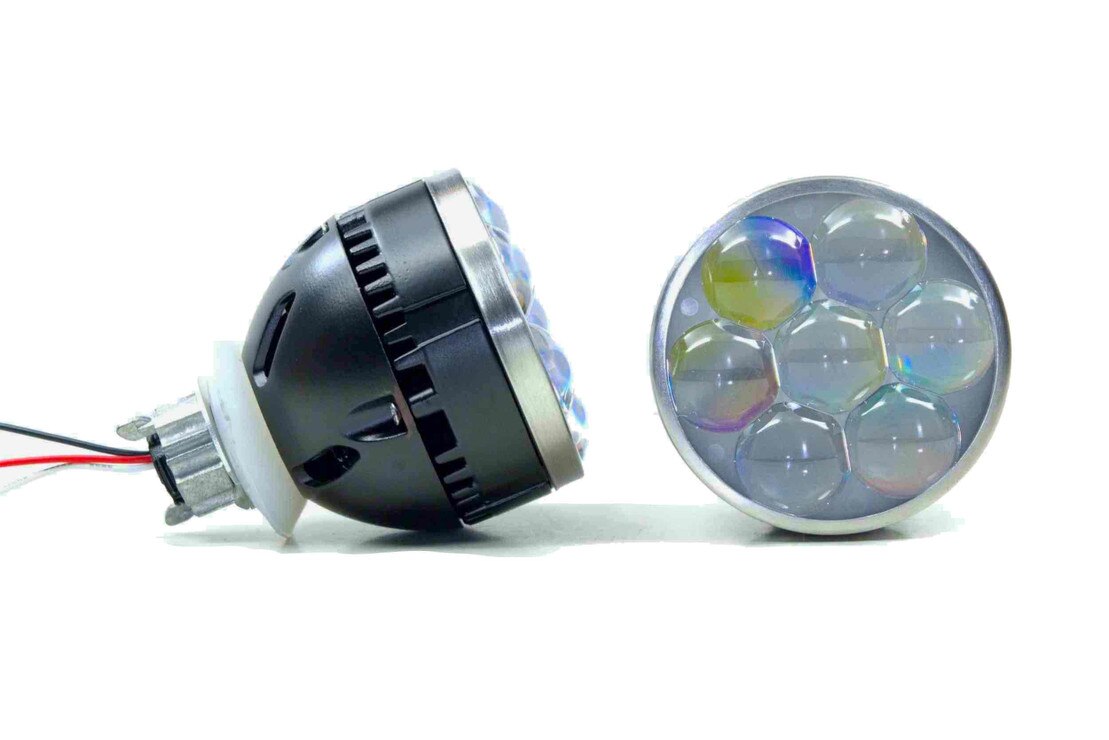

Projectors: 2x (One Pair) Hi-Lens 2.0 LED Projectors
Hardware: Mounting Hardware
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Intensity: 3,500lm (Combined)
Power: 25w (High Beam), 2.5w (DRL)
Current: 0.2A (DRL), 1.47A (High Beam) @ 12V DC

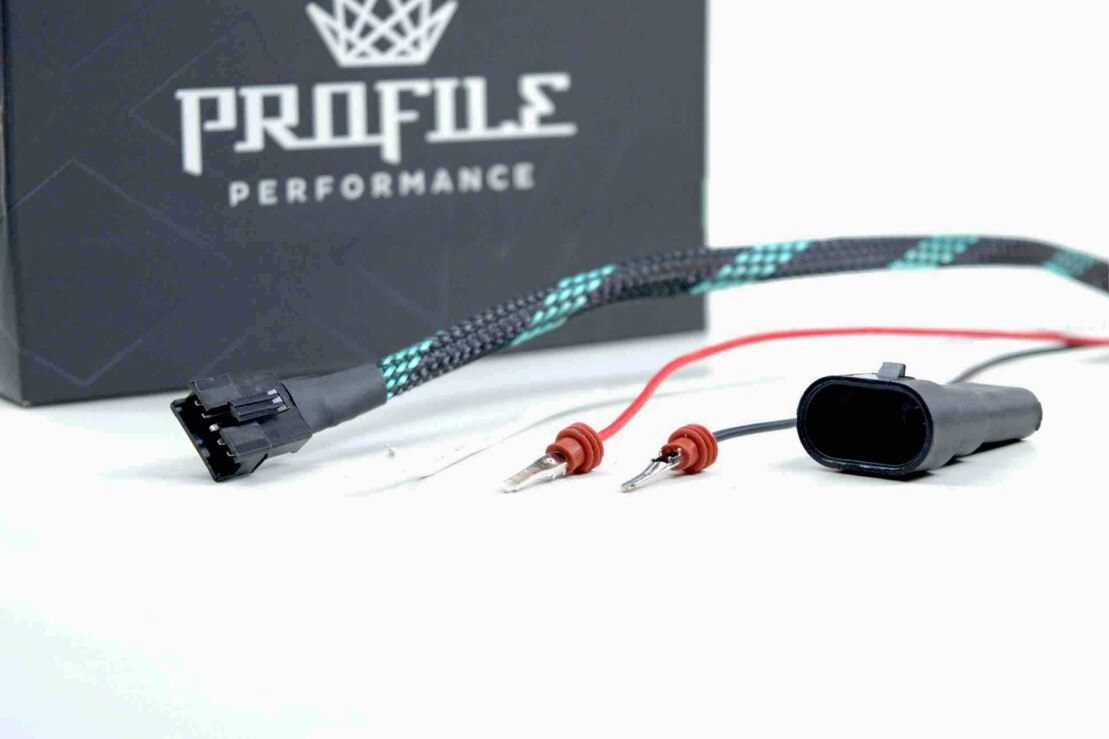

Connector Type: JST 5-Pin
Dimensions: 78mm H, 78mm W, 98mm D (incl. shaft)
Mounting Shaft: 19mm Diameter
Housing Depth: 66mm Minimum
Light Source: SSC LED
LINE DRAWINGS
COMPATIBILITY
CONTROLLERS: Morimoto XBT RGBW or 5 pin RGBW Standard (RGBW only)
APPLICATIONS: Universal (Cars, trucks etc)
DIRECT FITMENT: H7 housings (little/no mods)
MODS REQUIRED: H1, H11, H13, 9005, 9006, 9007 housings
OUTPUTS: High Beam
SHROUDS: All Styles Except 'Mini' or 'Square'
CENTRIC RINGS: Not Required
COMPLIANCE
APPLICATION: HID and LED bulbs are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE
Note: This usage regulation is not unique to this item. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.
HOMOLOGATION ECE: NO
DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)
INSTALLATION DOCUMENTS
Profile Performance: The automotive aftermarket's best name in LED Lighting; and there's nothing better than some badass high beam LED headlights. While there's nothing wrong with your halogen high beam bulbs, or a set of bi-xenon/Bi-LED projectors, overkill is under-rated, and that's why we're giving two thumbs up to the new second generation high beam projector from Profile Performance.

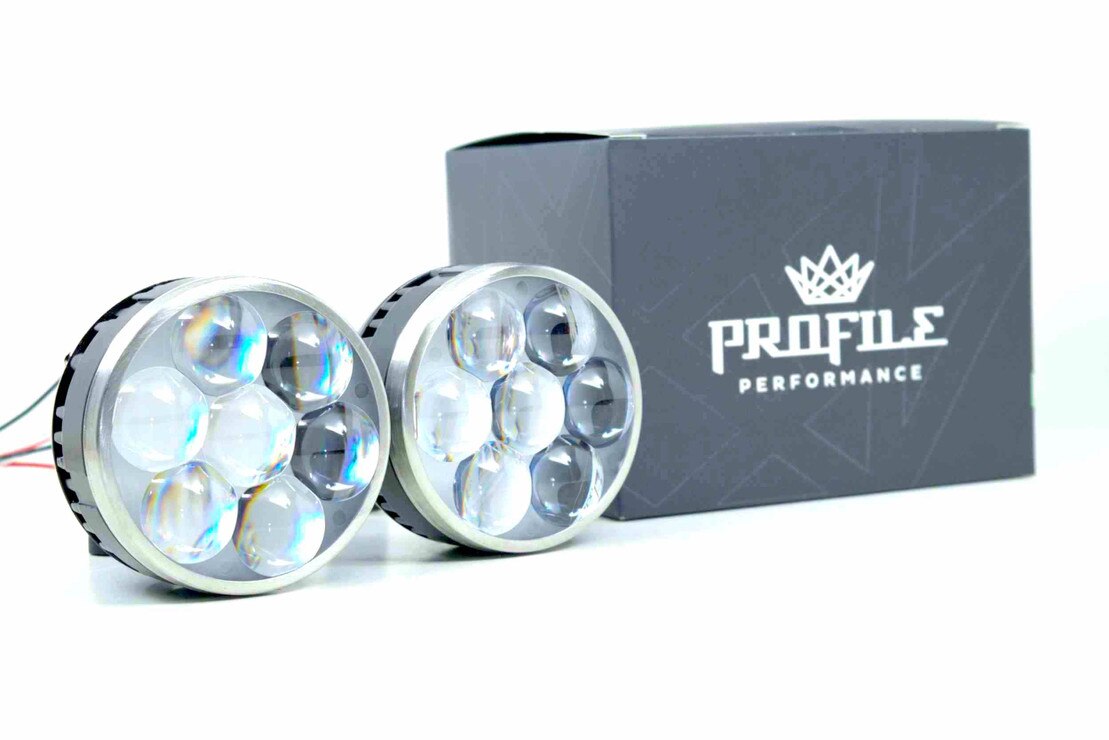

Well-Done: The Profile Hi-Lens projector is plenty bright.it's basically a miniature LED light bar / spot light that's designed to fit in your high beam reflector with ease. With their advanced optics, powerful LEDs, and multi-lens projector, they look as good as they work too!
Gen II: While nobody complained about the looks or performance out of the original version, the plastic construction left a little something to be desired. Profile has upped the ante with a housing that's now made entirely out of cast aluminum for more strength, optimized the light output, and added an RGBW version to the family!

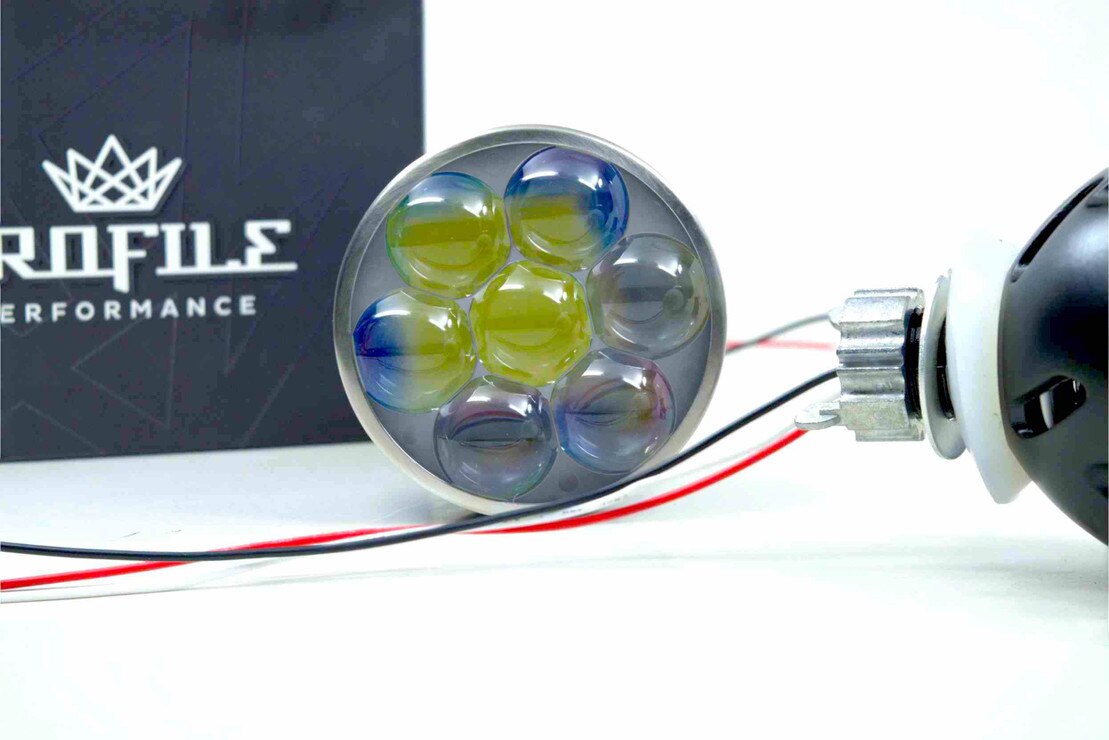

White or RGBW: The standard model has an integrated white LED demon eye that works perfectly as a daytime running light. If you are looking for more, then go for the RGBW version, which works seamlessly with all other Profile Performance RGB accessories. The RGBW version is capable of producing a perfectly white DRL, and also has the integrated amber switchback turn signal feature too. Drool!

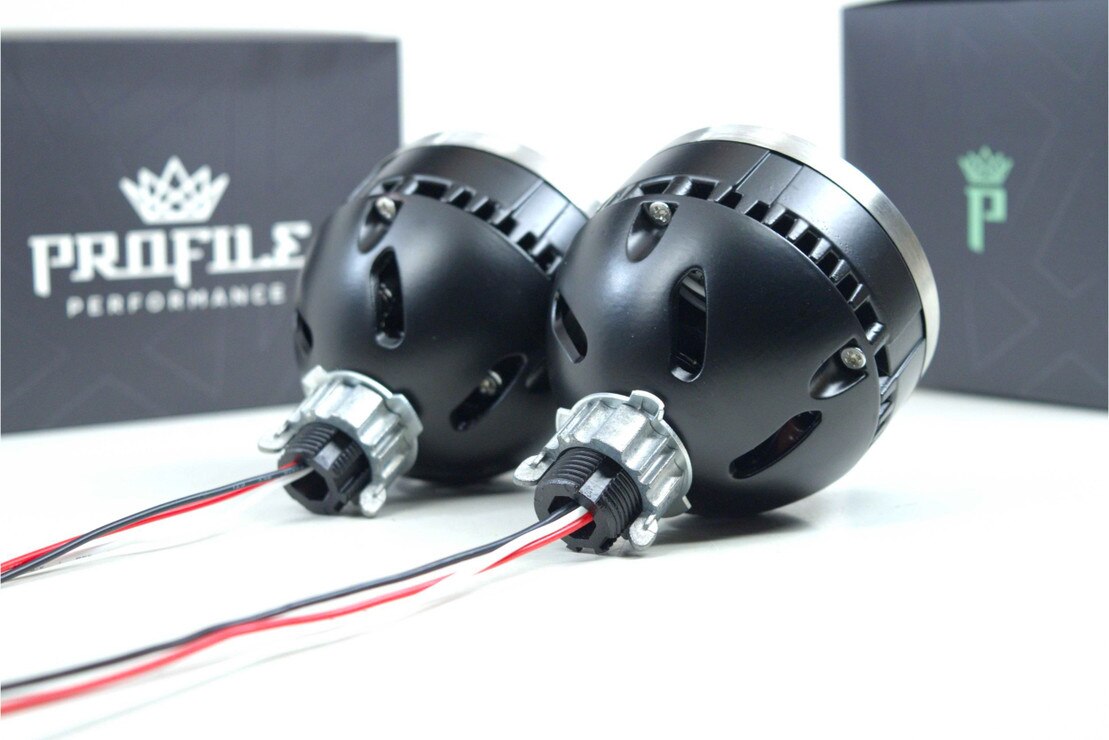

Easy Install: The Hi-Lens features a threaded-shaft style mount on the back that allows the projectors to be locked on with their included hardware, and minimal modifications to your headlight. Best part is that the threaded shaft is about twice as long as what you would normally find on something like a Mini H1 projector, making it even easier to install across the board. That's winning!

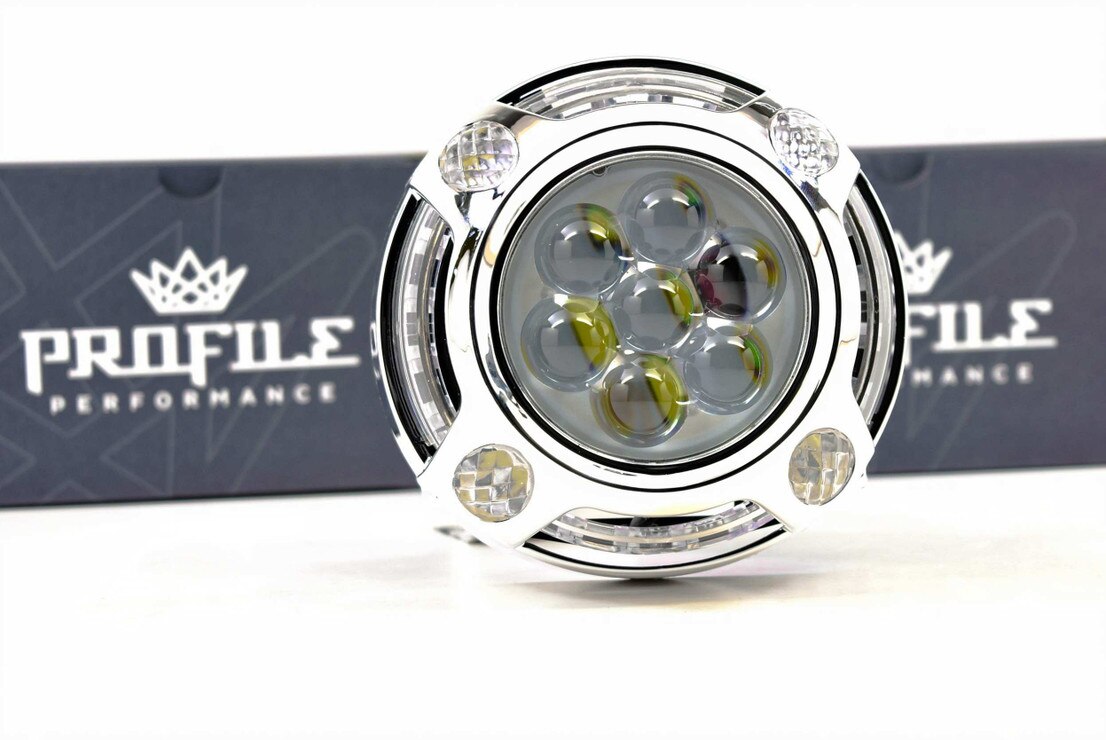

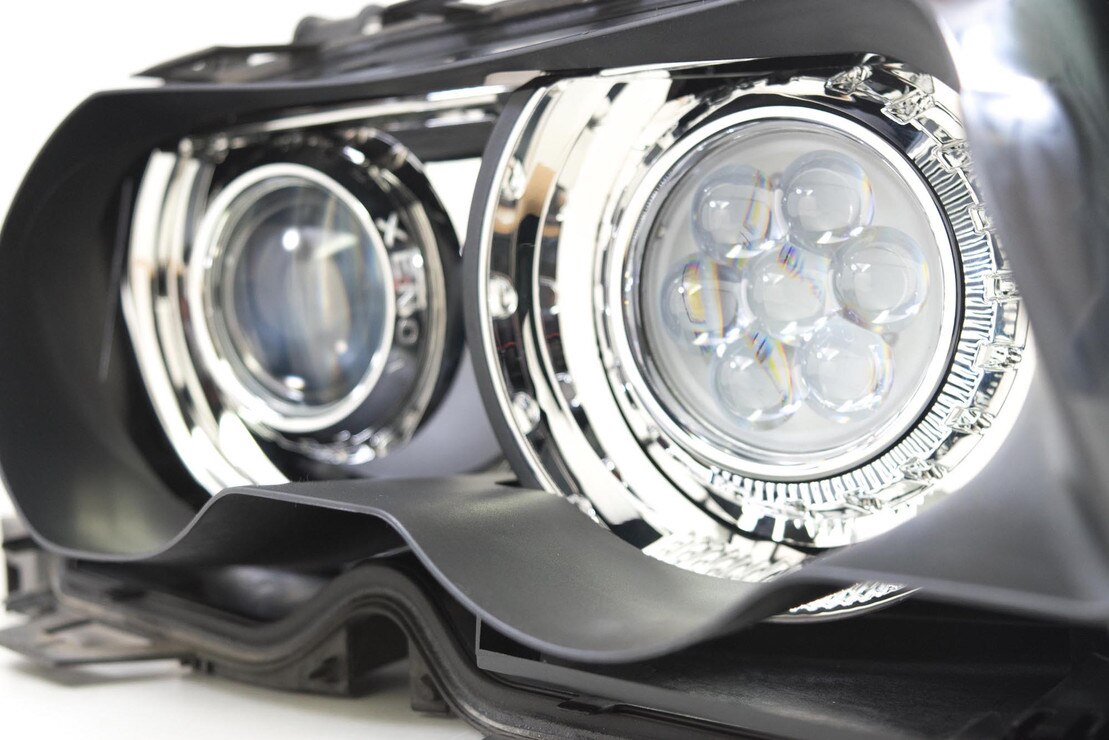

Shrouds: Conveniently, the Profile Hi-Lens LED projector is compatible with most every existing shroud on the market except for the "Mini" series. If they've got a flange inside to accept a centric ring, you should be able to snap them right onto the bezel on the front face of the Hi-Lens. Love it!
