2Banger Bar: 4 Pod / 16"

(0) No Reviews yet
Questions?

Brand: Morimoto

B-1RBAR-16IN-MM

$0.00

PRODUCT OPTIONS

PART #: 1 x BAF106, 1 x BAF108, 1 x BAF090SF, 3 x BAF090, 2 x BAF000H



Easy Return

DESCRIPTION

Introducing the Morimoto 2Banger NCS and HXB: the ultimate lighting solution for your vehicle! These sleek and low-profile BangerBars are engineered for maximum performance, outshining all others in their class. With cutting-edge Osram LED chips, they pack a serious punch, providing exceptional visibility on the road. What sets them apart? Versatility! You can configure them straight or curved, adapting to your unique needs. Whether you crave a combo, spot, or wide beam, our Single Row BangerBars deliver top-notch illumination, thanks to LucidShape and SolidWorks optimization. Choose from white, yellow, or a dynamic white/yellow combo to suit your driving style. Conquer the elements with ease – our weather-resistant design ensures peak performance even in rain, snow, or fog. And rest assured, our Morimoto BangerBars are built to last, with copper DTP PCBs, rugged aluminum shells, and IP69K-rated components. Upgrade your vehicle with confidence – power up with the Morimoto 2Banger NCS and HXB today!

FEATURES & BENEFITS

  • Peak Performance: NCS for class-leading performance, HXB for maximum output.
  • Flexible Setup: Straight or curved, ideal for bumpers, grilles, or racks.
  • Intense Lighting: Combo, spot, and wide beam pods for superior visibility.
  • All-Weather Durability: IP69K-rated for rain, snow, or fog resilience.
  • Easy Installation: Morimoto BangerBar includes a feature-rich harness.

WHAT’S INCLUDED

  • LED Pods: 2x Morimoto 2Banger Combo (White or Yellow)

  • LED Pods: 2x Morimoto 2Banger Wide (White or Yellow)

  • Pod Links: 3x 2Banger Adjustable CNC Links w/ Hardware

  • Universal Mounting Feet: 2x Adjustable Surface Mounts w/ Hardware

  • Relay Harnesses: 2x Morimoto Switched Power Harnesses

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw): 3,600lm (NCS), 8,000lm (HXB)

  • Intensity (HXB White): 157,400 Cd (1,574 lux @ 10m)

  • Intensity (HXB Dual Color): 152,100 Cd (1,521 lux @ 10m)

  • Intensity (HXB Yellow): 105,500 Cd (1,055 lux @ 10m)

  • Intensity (NCS White): 102,500 Cd (1,025 lux @ 10m)

  • Intensity (NCS Dual Color): 98,400 Cd (984 lux @ 10m)

  • Intensity (NCS Yellow): 48,400 Cd (484 lux @ 10m)

  • Power (stabilized): 54.0w (NCS), 96.0w (HXB)

  • Current (amps @ 13.5V DC): 6.00A (NCS), 7.11A (HXB)

COMPATIBILITY

  • Universal: Mounts anywhere w/ included mounting Feet

  • Ideal for: Steel Roof Racks and Bumpers

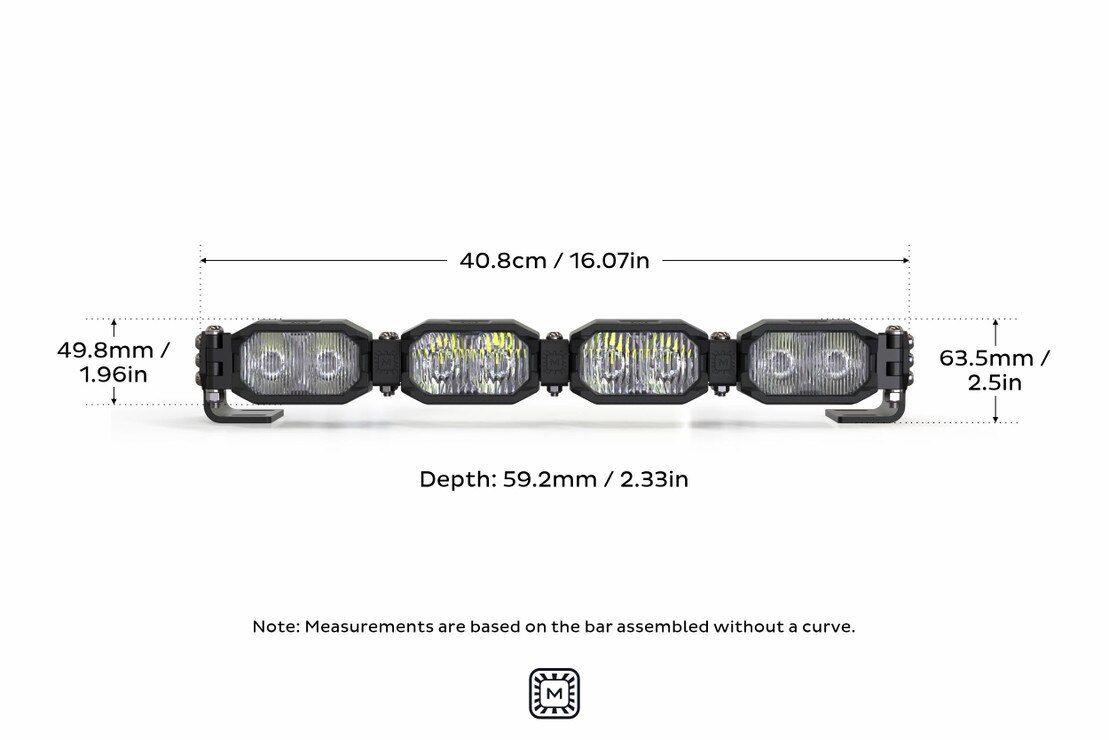

  • Width: 40.8cm / 16.07in

  • Height: 49.8mm / 1.96in

  • Depth: 59.2mm / 2.33in

  • Weight: 2.76kg / 6.09lb

  • Mounting Width Range: 13.45-18.95" / 34.16-48.13cm

INSTALLATION DOCUMENTS

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The Single row BangerBar continues that tradition as a bespoke light bar, where you spec the power. You spec the color. You spec the length. You set the radius. And then you destroy the darkness. Every bar is pre-spec'd with the 2Banger Pods, the inner links, a set of universal end-mounts, and all the hardware necessary to assemble.


2Banger NCS and HXB: The 2Banger is extremely low profile, making them the perfect platform for the single row BangerBars. The NCS version provides maximum bang for the buck and out-performs most everything else in their class. The HXB version sits at the top of the performance totem-poll, produces maximum output. With the latest LED chips from Osram inside, each pod is a serious powerhouse of its own.


Straight or Curved: Here, you have a full range of adjustability. The entire bar can be setup either straight or curved from the end to end. It can also be setup straight in the center, and angled only on the outer edges. The beefy, CNC machined aluminum links are all independently adjustable, allowing you to dial it in for every application. They are a perfect addition to any front bumper, grille, or roof rack.


Performance: The Single Row BangerBars are configured to pack some serious punch by pairing our combo, spot, and wide beam pods into a high output light bar. LucidShape and SolidWorks were used to optimize both optical and thermal performance around the most modern, lumen-dense LEDs from Nichia and Osram. With two performance tiers, white, yellow or a white/yellow combo setup, there is a single row BangerBar to suit every performance need and driving style.


Intensity and Coverage: The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The wide optics produce a very wide beam that drastically improves visibility off to the sides of the road. The spot beam Illuminates well into the distance and features a highly focused 5-degree hot spot, making it the perfect weapon for long range visibility. While each of these easily does the job on its own--nothing will compare to their coverage when combined.

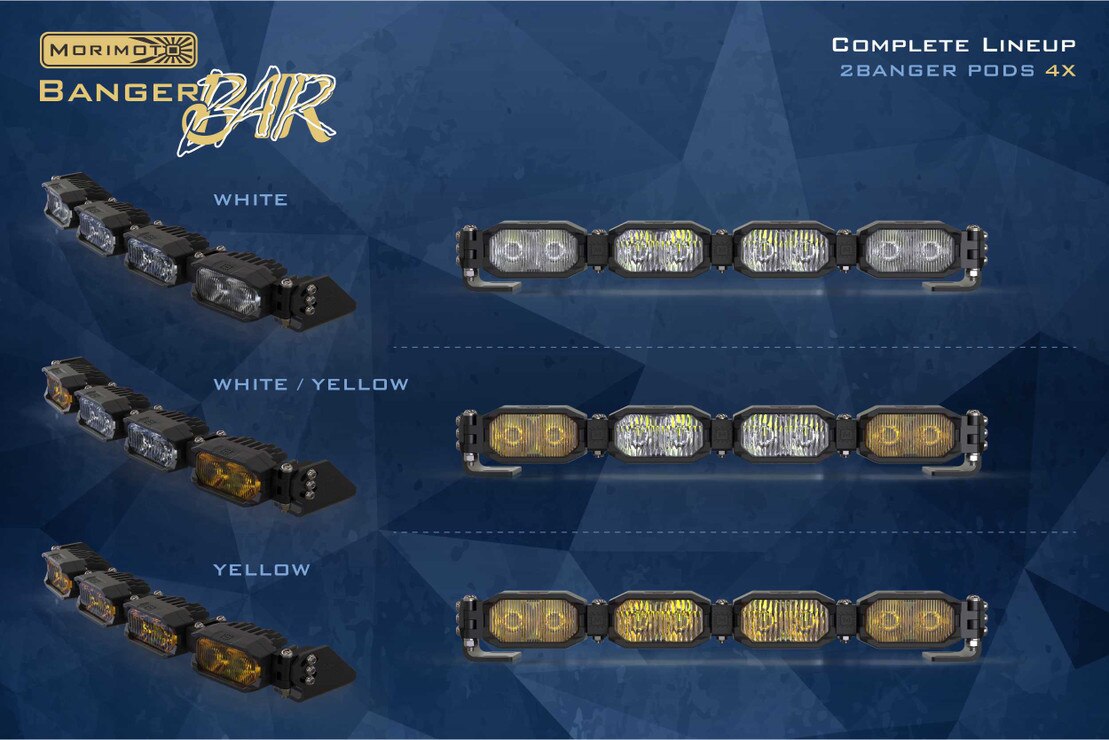

All Weather: The white-output version is ideal for maximum-visibility in the middle of the night. For those who desire optimal output in rain, snow, or fog; the Yellow-output version will slay in shady weather--and if you are ready to roll rain or shine, go with the white/yellow combo; where we spec yellow optics that are ideal for nearfield visibility and white output for central illumination.


Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 2Banger pods features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance. All BangerBar hardware is CNC machined from solid aluminum and then protected with a dual-layer anodized finish. Your roof rack will rip off your truck before the BangerBar fails.


Power Up: The Morimoto BangerBar has been developed from the ground up to set a new standard in their segment, and the same goes for the wire harness that comes included. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder. DT06-2S female outputs with dual seals. Proprietary M-Spec push button switch with Amber-LED backlight is wired with a quick-disconnect for an easy installation into the cabin. The harness can be setup to control all pods together, or the inner and outer pods independently.
