  • 4Banger Bar: 10 Pod / 40.5"

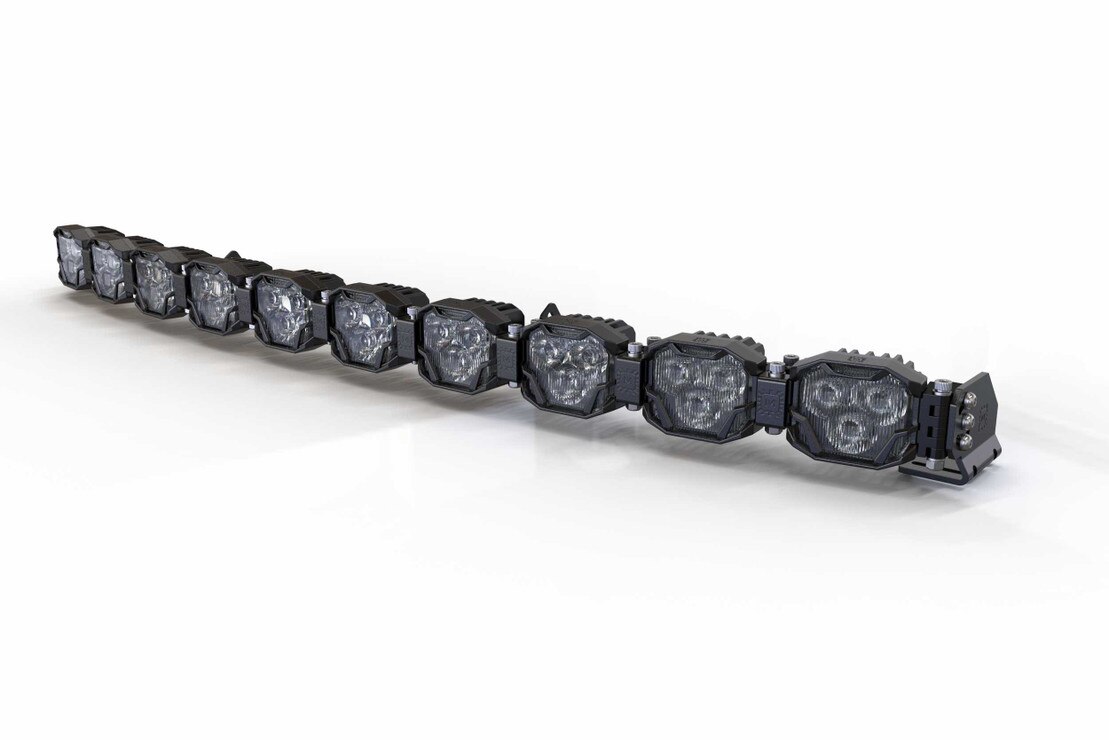

4Banger Bar: 10 Pod / 40.5"

(0) No Reviews yet

Brand: Morimoto




PART #: 1 x BAF001.2, 2 x BAF003.2, 2 x BAF005.2, 1 x BAF088SF, 9 x BAF088, 2 x BAF088SB, 1 x BAF131H


Introducing the Morimoto BangerBar – Off-Road Reinvented! Since 2008, we've been setting the standard for automotive aftermarket lighting upgrades, and the Double Row BangerBar continues our tradition of excellence. With customizable power, color, length, and radius options, you're in control. Choose between the 4Banger NCS for exceptional value or the high-performance HXB for maximum output. Whether you prefer a straight or curved setup, our CNC machined aluminum links provide unmatched adjustability, making it a perfect fit for any application. The BangerBar boasts superior performance, combining combo, spot, and wide beam pods for high output illumination. Plus, it's optimized with top-of-the-line LED chips from Nichia and Osram, ensuring the best in class performance. With its versatility and weather-resistance, the BangerBar is designed to shine in all conditions. The harness included is meticulously crafted for reliability, featuring a proprietary 4-pin relay, over-molded inline fuse holder, and more. Morimoto's BangerBar sets a new standard in the segment, and it's ready to transform your off-road adventures. Don't miss out on this game-changing lighting solution!


  • Customizable Design: Tailor the power, color, length, and radius to your preferences.
  • NCS & HXB Versions: Choose between the budget-friendly NCS or high-performance HXB options.
  • Advanced LED Technology: Utilizes cutting-edge Osram LEDs for powerful illumination.
  • Versatile Installation: Adjustable straight or curved configurations with CNC machined aluminum links.
  • All-Weather Performance: Available in white, yellow, or white/yellow combo setups to tackle various weather conditions.


  • LED Pods: 2x Morimoto 4Banger Spot (White or Yellow)

  • LED Pods: 4x Morimoto 4Banger Combo (White or Yellow)

  • LED Pods: 4x Morimoto 4Banger Wide (White or Yellow)

  • Pod Links: 9x 4Banger Adjustable CNC Links w/ Hardware

  • Center Support Legs: 2x Adjustable Central Support Legs w/ Hardware

  • Universal Mounting Feet: 2x Adjustable Surface Mounts w/ Hardware

  • Relay Harness: 1x Morimoto Switched Power Harness


This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.


  • Peak Luminosity (raw): 13,500lm (NCS), 30,000lm (HXB)

  • Intensity (HXB White): 741,600 Cd (7,416 lux @ 10m)

  • Intensity (HXB Dual Color): 710,800 Cd (7,108 lux @ 10m)

  • Intensity (HXB Yellow): 515,200 Cd (5,152 lux @ 10m)

  • Intensity (NCS White): 489,600 Cd (4,896 lux @ 10m)

  • Intensity (NCS Dual Color): 466,720 Cd (4,667 lux @ 10m)

  • Intensity (NCS Yellow): 337,120 Cd (3,371 lux @ 10m)

  • Power (stabilized): 156.0w (NCS), 420.0w (HXB)

  • Current (amps @ 13.5V DC): 15.00A (NCS), 32.00A (HXB)


  • Universal: Mounts anywhere w/ included mounting Feet

  • Ideal for: Steel Roof Racks and Bumpers

  • Width: 103.02cm / 40.56in

  • Height: 49.8mm / 1.96in

  • Depth: 59.2mm / 2.33in

  • Weight: 11.33kg / 24.79lb

  • Mounting Width Range: 38.31-43.06" / 97.31-109.37cm
