DESCRIPTION
FEATURES & BENEFITS
- XB Evo Hybrid: Much more than a design refresh, these headlights showcase Morimoto's commitment to delivering technology, style, and performance at an unbeatable price point.

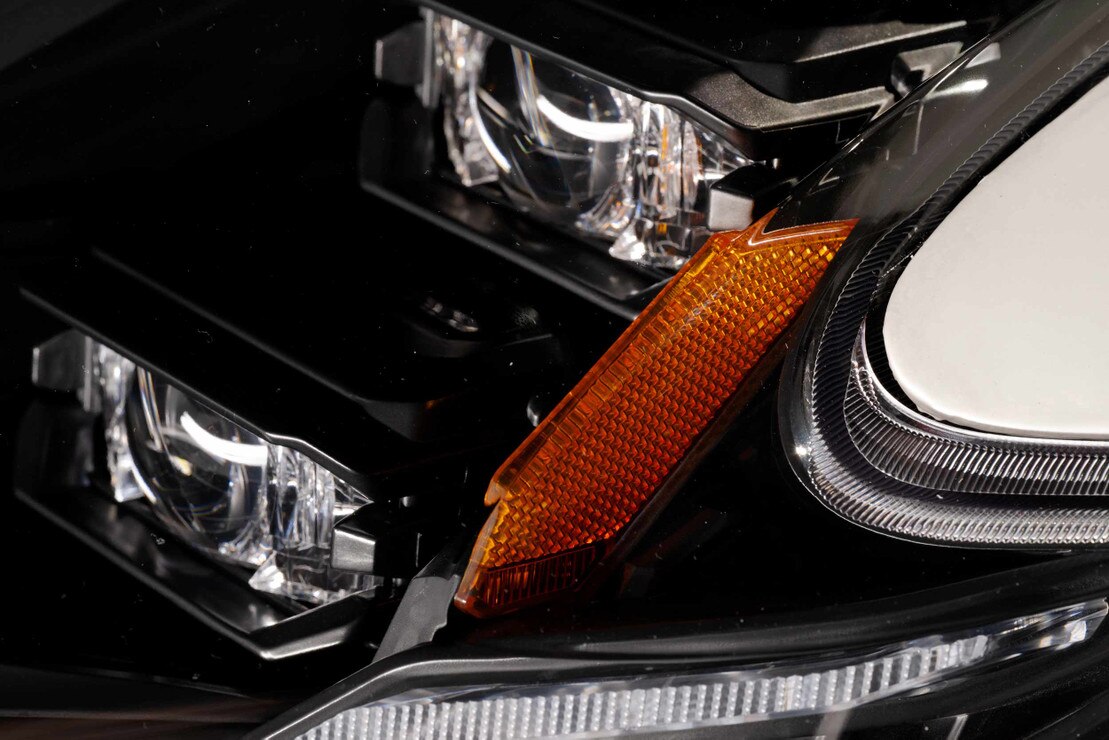

- All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizes the same dual Bi-LED projectors found in the high-end XRGB Evo headlights, but without the added D-optic high beam assist.
- DOT Compliant: Whereas the premium XRGB headlight's color-changing DRL negates compliance, the XB Evo Hybrid offer nearly all the performance but is designed for on road use at a lower price point. Their aim can be fine-tuned with integrated vertical adjusters.
- DRL and Signals: Incredibly bright white LED Daytime Running light and equally impressive amber LED turn signals with fade-off effect operate through the same set of uniquely shaped optics along the bottom.
- Designed, engineered, and tested: In the USA by Morimoto, the XB Evo Hybrid headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.
WHAT’S INCLUDED

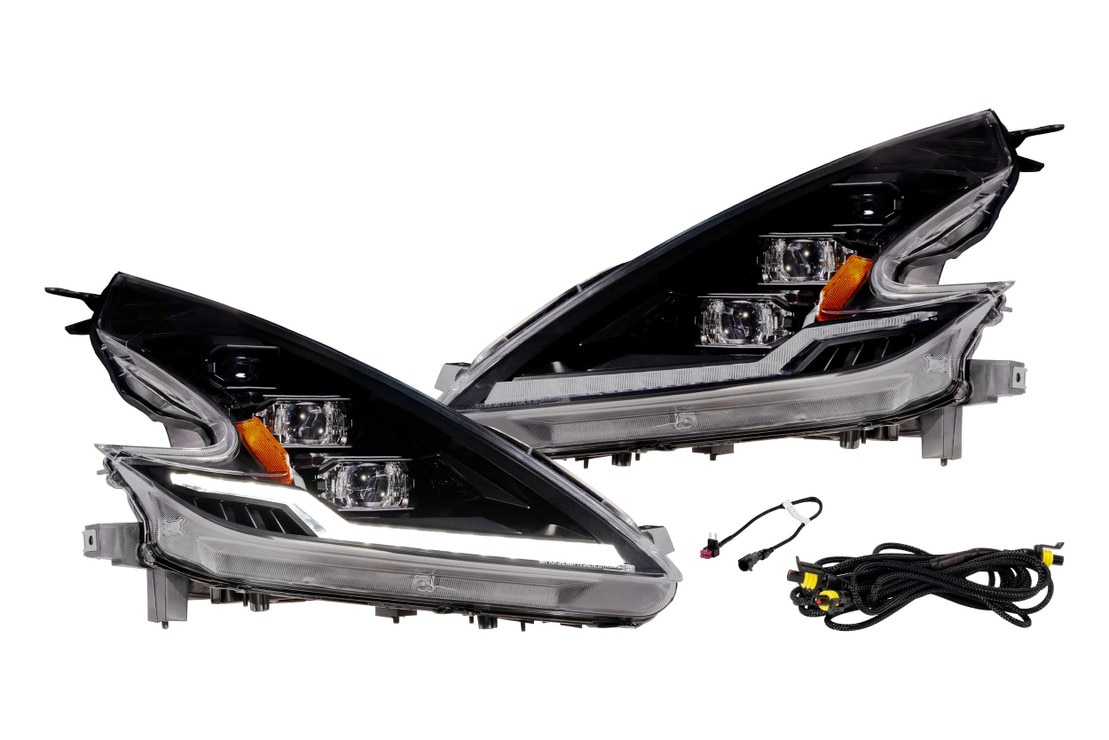

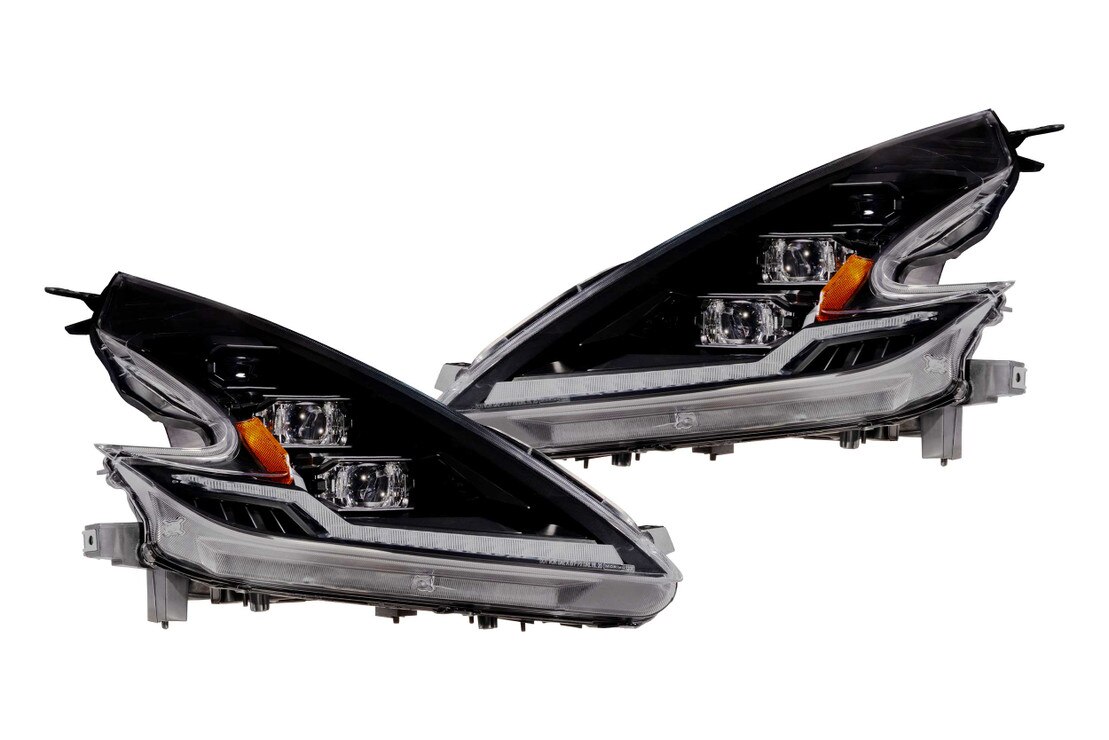

Headlights : One Pair 09-21 Nissan 370Z XB Evo Hybrid (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)

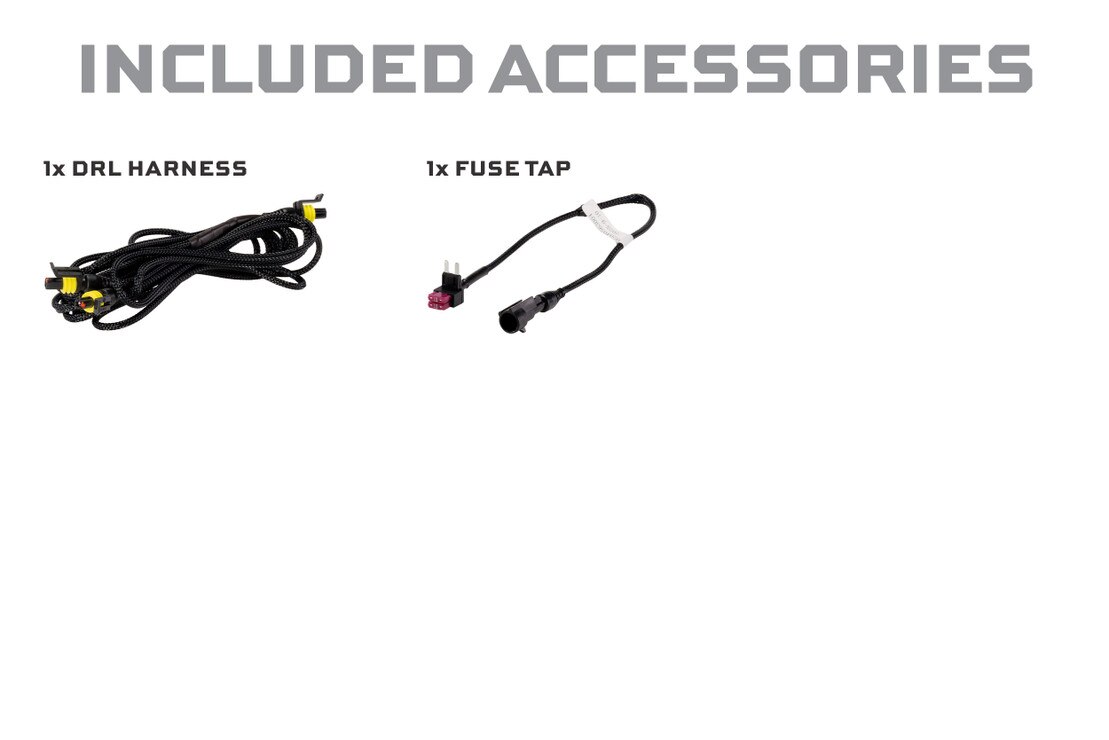

Wiring : 2x Headlight Adapters, 1x DRL Fuse Tap Harness
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

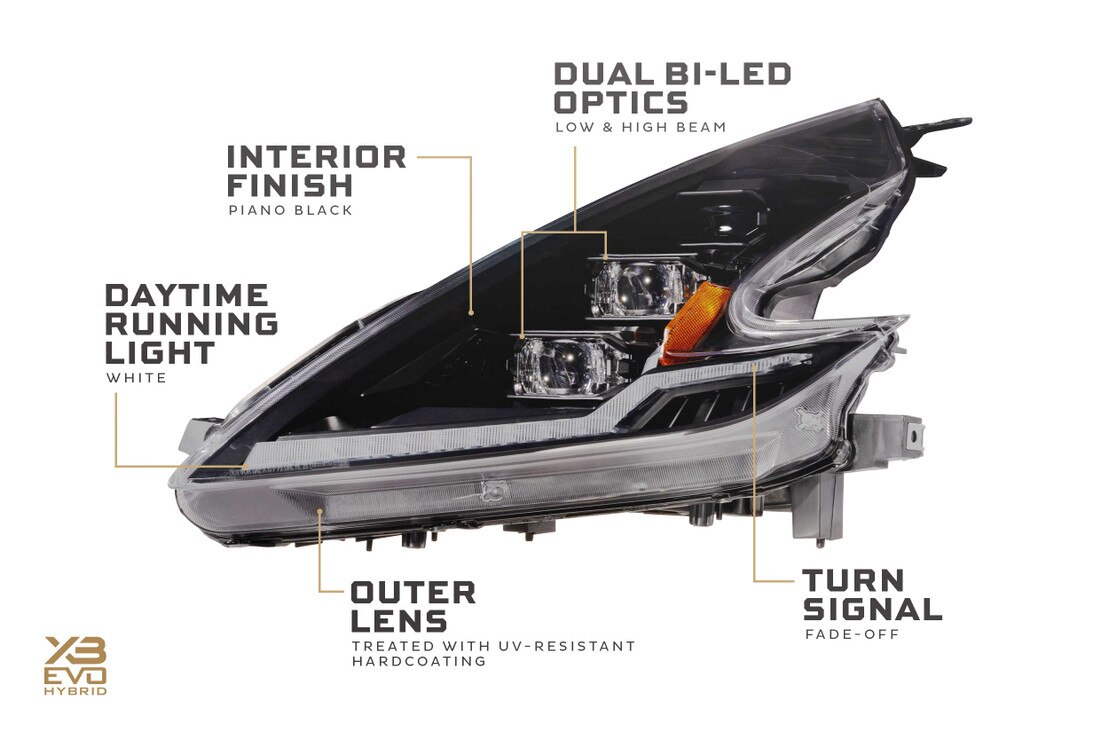

TECHNICAL SPECIFICATIONS
Traffic Pattern : LHD / Right Hand Traffic Only
Main Optics : 2x Type 2 Ishida Optic Bi-LED

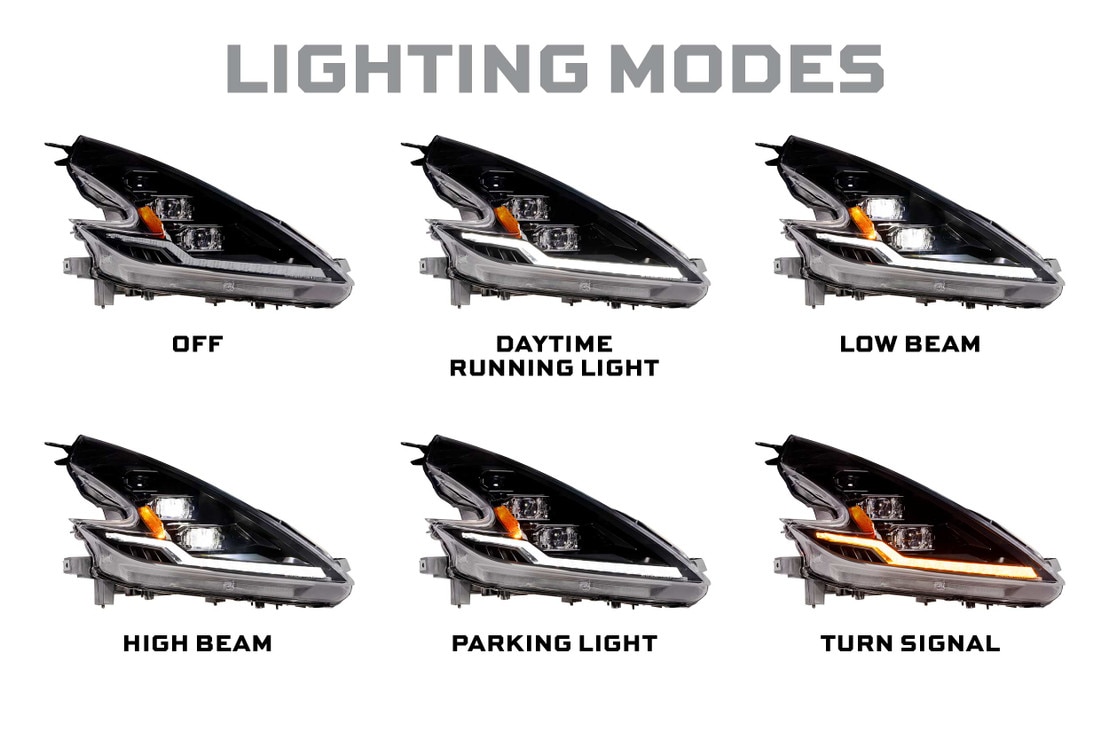

Functions : Low Beam, High Beam, Parking Light, Turn Signal, Daytime Running Light (DRL)
Turn Signal : Instant-On / Fade-Off
DRL Color : White
Internal Bezel Finish : Piano Black
Side Marker : Amber side reflex reflector (DOT compliant)
Lens : Polycarbonate with UV-Shield Hard coating
For more information :CLICK HERE.
LINE DRAWINGS
COMPATIBILITY
Nissan 370Z : 2009-2021 (All Trim Levels: Base, Sport, Sport Touring, 50th Anniversary Edition, Nismo)
Replaces Nissan Part Numbers : 26010-1EA0C, 26076-1EA0C, 26076-1EA0A, 26076-1EA0B, 26010-6GA2A, 26060-6GA2A
Compliance : Meets all DOT, SAE and FMVSS108 Standards
NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility with cars outside of North America.
COMPLIANCE
INSTALLATION DOCUMENTS
XB Evo Hybrid: A simple design refresh would have been easy, but that's not what this is all about. The all-new XB Evo headlights are a showcase of everything Morimoto is made of. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Offered as a slightly watered-down recipe, the XB Evo Hybrid model offers the same Bi-LED projectors, housing, and DRL optics at a lower price point.

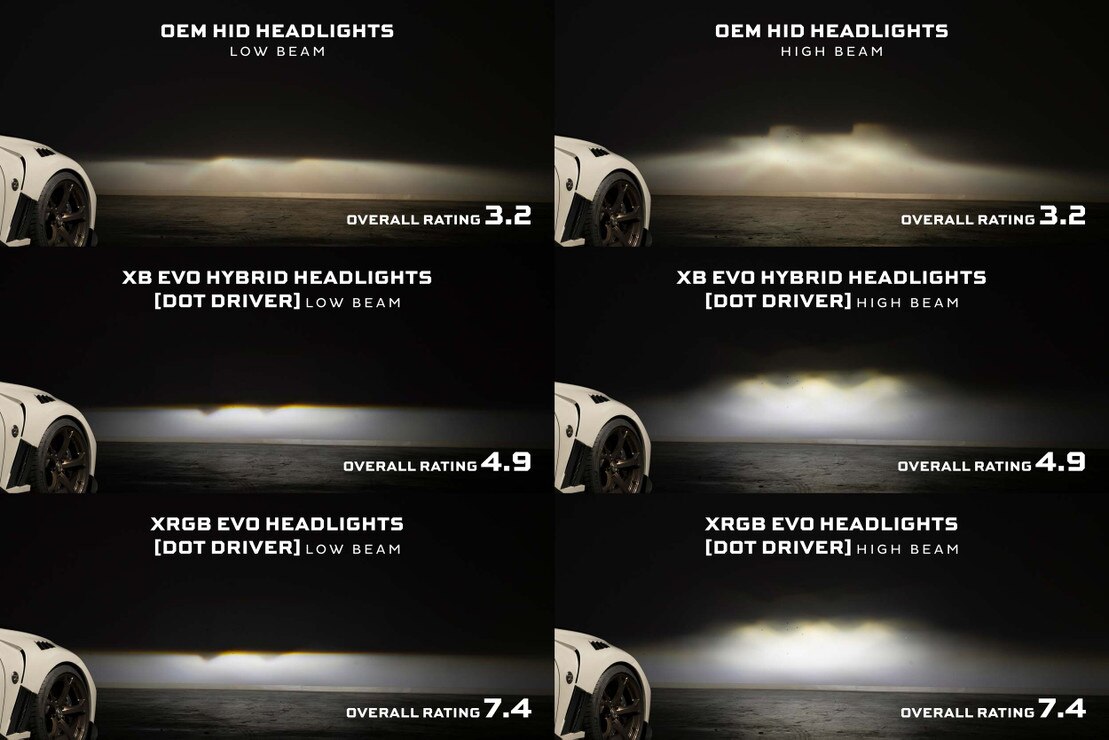

All New Optics: Thanks to an all-new generation of Morimoto Bi-LED projectors, the XB Evo Hybrid headlights will meet & exceed the highest standards for headlight performance that are set by the Insurance Institute for Highway Safety-- which is a tough mark even for most modern luxury automakers. Here, the 370Z Evo Hybrid headlight utilizes dual Bi-LED projectors to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. All optics are powered by the latest OE-grade automotive LEDs from Nichia in Japan.
DOT Compliant: The Morimoto XB Evo Hybrid headlights are DOT compliant with all FVMSS108 regulations for on-road use in the USA, while still far surpassing the stock lights for performance. The vertical aim is fully adjustable within +/- 6 degrees for a perfect alignment on any 370Z, even when slammed or lifted to rally spec. The system was designed in California by Morimoto's lead optical engineer, Yoshi Ishida, to deliver maximum visibility, comfort, and safety, and that it does.

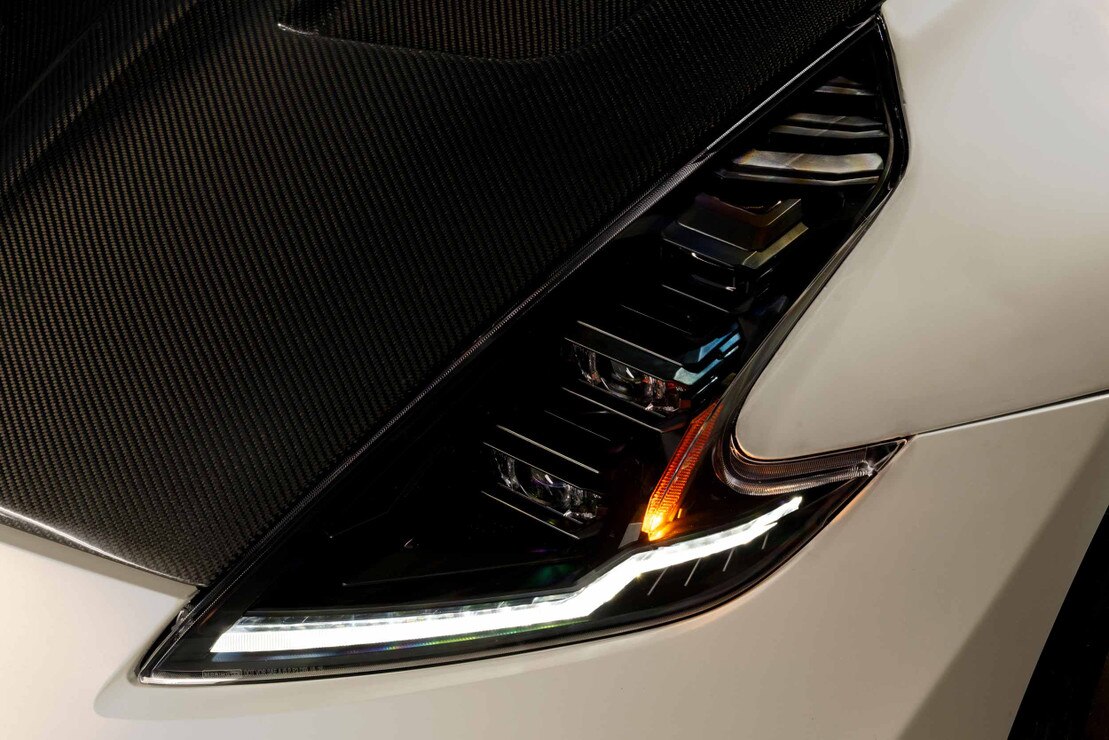

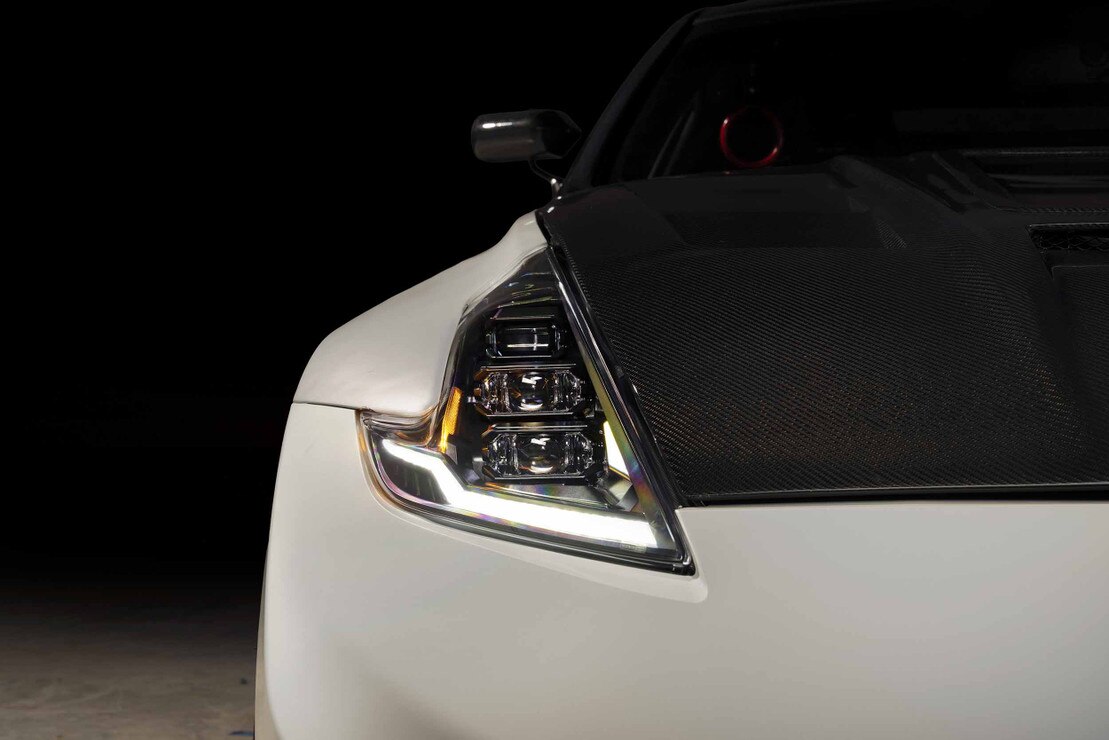

DRL & Signals: The turn signals and daytime running lights illuminate glass-like optics with special surface textures, which enable maximum intensity from all viewing angles. Easily out-shining low-tech optics found in most every other aftermarket headlight, they also provide a one-off look with a unique design hugging the bottom of the housing. With the turn signal activated, the same optics flash bright amber then fades off for a unique and elegant look.

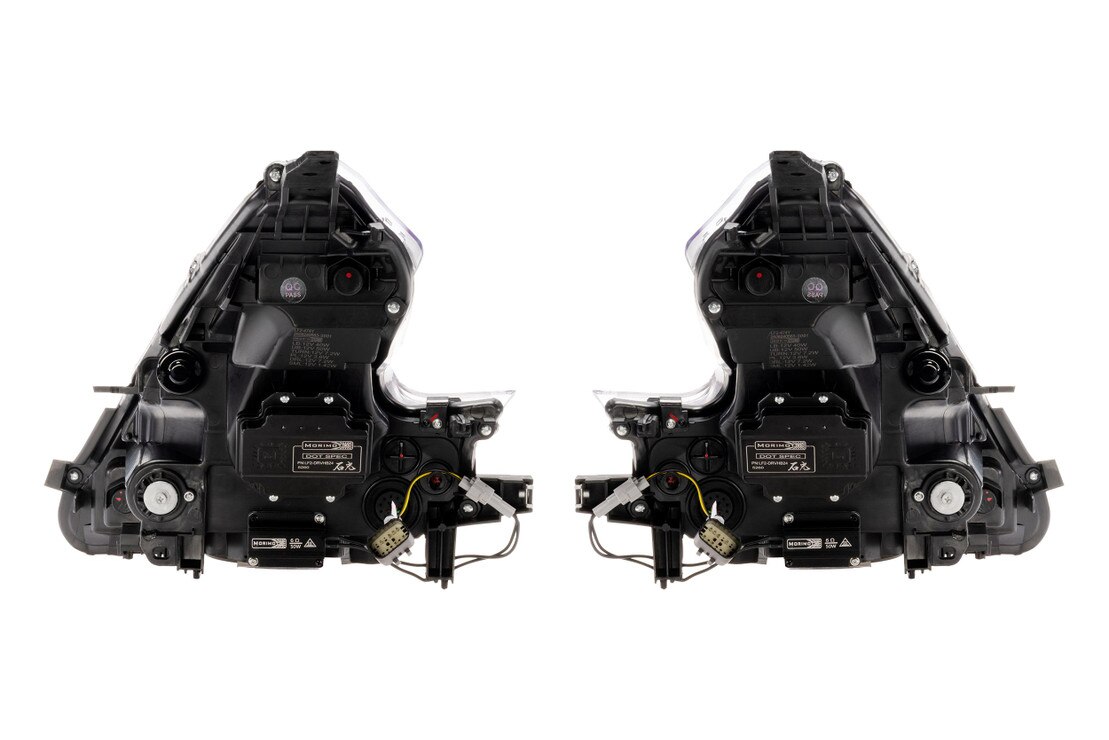

OE Fit & Installation: The XRGB Evo and XB Evo Hybrid headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free installation. They will bolt onto the original mounting points and line up to the surrounding sheet-metal without any massaging, and then plug into the factory wire harness and then work without errors on the dash, flickering, flashing, or radio interference. Thoughtfully engineered for a modification-free install. No factory warranties void. No headaches.
Well-Built: This product is completely designed, engineered & tested in the USA by the Morimoto team to meet the high expectations of our customers. Nichia LEDs from Japan are used throughout. All wiring and connections are OE-grade. When it comes to UV protection, OE Toyota headlights are industry-best, which is why we've formulated a new hard coating that exceeds their testing standard for resistance against cracking, fading, and yellowing lenses from UV exposure. The list goes on but as the saying goes: you get what you pay for. XB Evo headlights aren't cheap, but they are built to a high standard and should easily last the life of your Z! We're proud to stand behind the product with an industry-leading five-year warranty, serviced and supported by our Atlanta, GA headquarters.
