Morimoto Rock Light Kit: Color Changing RGB (4 pc)

(0) No Reviews yet

Brand: Morimoto




PART #: 1 x XRL20

Easy Return


Introducing the Morimoto RGB Rock Light Kit - your ultimate solution for superior lighting performance and style! Designed for trucks and SUVs in the USA, this kit delivers unparalleled intensity and reliability. Our second-gen rock lights feature 6x 3W RGB LEDs for brilliant illumination, whether on trails or city streets. With the Morimoto XBT Color Control app, you can easily manage zones, colors, and effects using your Android or iOS phone. Plus, our kit offers hassle-free installation options, including rubberized magnetic mounts for a no-drill setup. The included wire harness ensures a plug-and-play experience, and our lifetime limited warranty guarantees lasting durability. Don't miss out on this opportunity to enhance your vehicle's appearance and functionality. Upgrade to the Morimoto RGB Rock Light Kit today!


  • Rock Lights: 4x Morimoto V2 Color Changing

  • RGB Controller: 1x Morimoto XBT-V2 Bluetooth

  • Main Harness: Plug n Play w/ In-Cabin push button

  • Fuse Box Harness: Mini and Micro Fuse Adapters

  • Extensions: 4x Over-molded Extension Cables (6ft / 185cm)

  • Magnetic Mounts: 4x Screw-on 8kg/17.6lb Magnet mounts

  • Accessories: Screws, Zip Ties, User-Guide

  • Warranty: Limited Lifetime


  • Housings: Black Powdercoated Cast AL

  • Lenses: Makrolon Polycarbonate

  • LEDS: Six 3W RGB Color Changing 5050

  • Lifespan: 50,000 hours

  • 12V Inputs: Mini or Micro fuse taps

  • Switch: Illuminated Push Button / Black CNC Face

  • 3-Zone Controller: Bluetooth for iOS 16+ and Android Devices

  • Zone 1 and 2: Rock Lights (Barrel Connectors)

  • Zone 3: Free for Additional RGB/RGBW Accessories (JST Connector)

  • Switch Wiring Length: 150in / 381cm

  • Splitter Wiring Length: 40in / 101cm (total)

  • Extension Length: 6ft / 183cm (each)



  • Perfect For: Trucks, Jeeps, SUVs and Powersports

  • Cars too?: Yes, but only because neon Underglow is so 2002

  • Wheel Wells: Yes

  • Frame Rails: Yes

  • Engine Compartment: Yes

  • Interior Lighting: Yes

  • Electrical Systems: 09-18V

  • Bluetooth System: Works with latest iOS and Android smart phones


Rock On: This is the setup that delivers the performance, intensity, and reliability that Morimoto customers have come to expect. Designed and engineered for the most popular trucks and SUVs here in the USA, our rock light system includes everything needed to complete the install, but without the guess work that plagues too many big brand rock light kits on the market today.

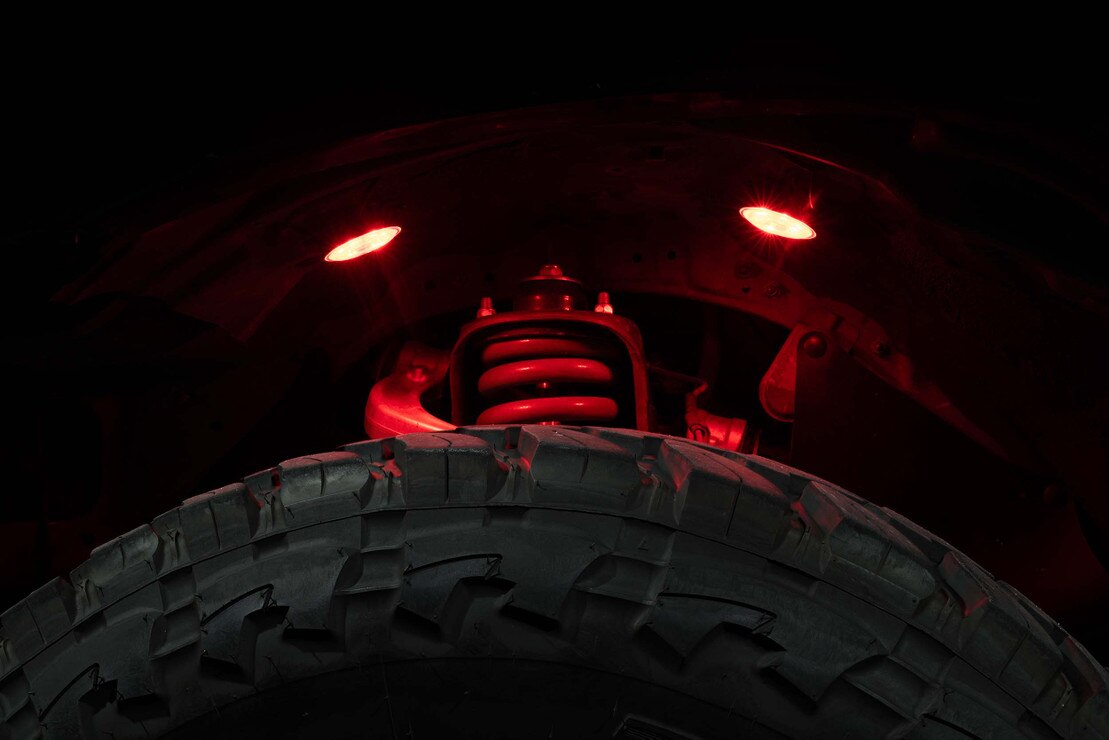

Brighter: Our proprietary second gen rock lights are designed to maximize intensity for well-lit trails and city streets alike. Each puck uses 6x 3W RGB LEDs projecting through a high clarity polycarbonate lens, so no matter how you are using them, you can easily see and be seen. While theres nothing wrong with two, one puck will easily illuminate the entire wheel well with a virtually infinite variety of colors.

RGB Bluetooth Controller: You can easily manage the zones, colors, effects, pre-sets, and save favorites from the Morimoto XBT Color Control app, which is compatible the latest Android and iOS phones. The RGBW-capable controller has an extra output channel (un-used by the rock light kits) which will allow you to add and control an additional set of RGB or RGBW lights from the same app. Its mounting bracket is also made out of carbon fiber. Why? Why not?

Easy Install: We've integrated two different mounting options to make for an easy-install. The shell has integrated mounting points on each side if you have a hard surface to screw into. Each kit includes also rubberized magnetic mounts that are easily strong enough to make for a reliable no-drill installation. Each magnet is rated for an 8kg (17.6lbs) load, which is approximately 40 times more than the weight of each rock light.

Plug n Play: The kit comes complete with a wire harness to control the system. Controlled by an in-cabin push button switch, the harness will pull 12V from any position inside the fuse box, and includes all splitters and extensions to neatly route the wiring to each corner of your vehicle. Each kit also includes a set of convenient extension cables to help ensure your wiring lengths are just right, regardless of an install on a two-door Jeep or modern HD truck. With over-molded splitters and fully sealed barrel connections from end to end, long-term reliability won't be a concern either.

Bash Proof: Backed with a lifetime limited warranty, the Morimoto Rock Light system is built to last. The beefy diecast housings have been powder-coated with the same finish as our Banger off road LED pods, and the 2mm thick lens is molded from Makrolon Polycarbonate, known for its strength in tough automotive applications.
