BigBanger LED Pods: HXB Combo Beam

1 Review
Questions?

Brand: Morimoto

B-BB-HXBCOMBO-MM

$495.00

PRODUCT OPTIONS

PART #: 1 x BAF124



Easy Return

DESCRIPTION

Introducing the Morimoto BigBanger LED Pods with the groundbreaking HXB Combo Beam pattern! These pods are a game-changer for off-road enthusiasts, offering unparalleled versatility, performance, and reliability since 2008. The HXB Combo Beam casts a wide net of illumination, combining impressive width and distance, making night driving safer and more comfortable. Designed, engineered, and rigorously tested in the USA, these pods leave no room for compromise. With two performance tiers, spot or combo beam patterns, and a choice between white or yellow output, there's a BigBanger to meet even the most demanding needs. But it doesn't stop there – the BigBanger Pods come standard with an Amber Back Light that ensures visibility without glare during nighttime driving. Plus, their all-weather design, copper DTP PCB, and IP69K-rated construction guarantee ultimate reliability, even in the harshest conditions. Elevate your off-road adventures with Morimoto's BigBanger LED Pods today!

FEATURES & BENEFITS

  • Powerful Illumination: HXB Combo Beam for exceptional off-road lighting.
  • Maximized Brightness: Osram LEDs for high-performance light output.
  • Rugged and Weatherproof: Built to endure with copper DTP PCB and IP69K protection.
  • Customizable Setup: Choose beam patterns, colors, and link pods for a tailored light bar.
  • Safety First: HXB Combo Beam ensures a safe and comfortable off-road experience.

WHAT’S INCLUDED

  • LED Pod: 1x Morimoto BigBanger HXB Combo (Sold Individually)

  • Bracket: 1x Universal U-Shape Mount

  • Hardware: Complete pack (Stainless Steel)

  • Optional Wiring: 1x Morimoto Switched Relay Harness or Deutsch DT Pigtail

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity (White): 210,000 Cd (2,100 lux @ 10m)

  • Intensity (Yellow): 158,000 Cd (1,580 lux @ 10m)

  • Input Voltage: 9-18V DC

  • Current (@ 13.5V DC): 5.55A (Stabilized), 8.15A (Startup), 2.2A (Backlight), 600mA (Dim Backlight)

  • Peak Luminosity (raw): 7,000lm

  • Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D

  • Color: 2700K (Yellow) or 5700K (White)

  • Light Source: 7x Osram HX Boost (Output), 12x CREE XP-E2 PC Amber (Backlight)

  • Input: Integrated Deutsch DT 4-Pin

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

LINE DRAWINGS

COMPATIBILITY

  • Universal: With Included U Brackets

INSTALLATION DOCUMENTS

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The BigBanger continues that tradition. In fact, the introduction of our entire offroad lineup has been a real wake-up-call for the old players in the category to get back on their game. The brand new, patent-pending line of BigBanger off-road LED Pods were completely designed, engineered, and torture tested in the USA, and everything about them is truly next level.


Versatility: The BigBanger can be mounted alone or linked together into a serious light bar. Each pod includes a universal mounting bracket for easy-install on any flat surface, like your steel bumper or the wide-variety of application-specific A-Pillar brackets we offer. The BangerBar links offer a turn-key way to bolt your Bangers together into a bespoke light bar, where you spec the color of the light. You spec the beam optics. You set the radius. And then you destroy the darkness. For more details on this, look for product listings dedicated to the BangerBars.


Performance: Its big. Its heavy. Its expensive, but nothing else out there can compete. Out on the trail at night, the BigBanger will run with the best brands in the business. Every element has been designed to maximize light output without compromise. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia and Osram. Thermal dynamics have been optimized using SolidWorks. With two performance tiers, two beam patterns (spot or combo) and two colors (white or yellow output); there is a BigBanger to suit the most demanding performance needs.


HXB Combo Beam: Illuminates a clear path in every direction. The HXB Combo beam provides an unmatched blend of width and distance illumination making driving in the middle of nowhere far more comfortable. The powerful hot spot is complimented by a meaningful amount of both width and height, all perfectly tuned to produce a beam perfect for all-around visibility.

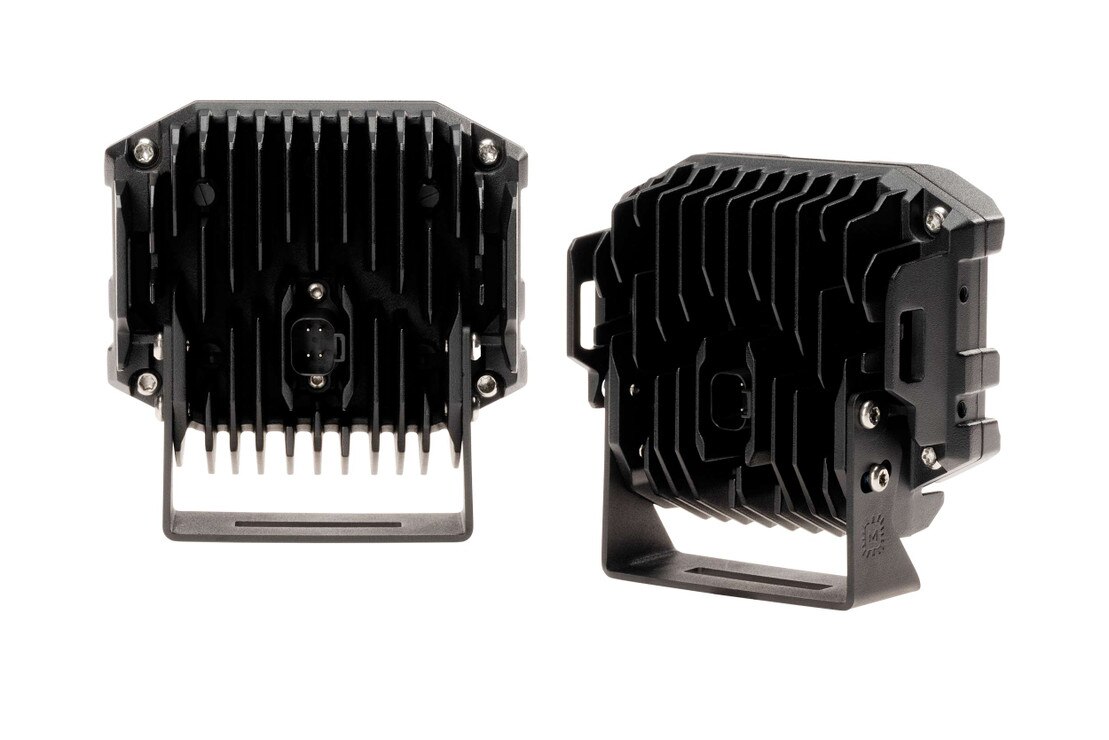

Amber Back Light: Comes standard on all BigBanger Pods. While amber backlight does not produce any forward illumination, the daytime-setting is so bright that they will dim by 90% at night to avoid creating glare for oncoming traffic. The dual-intensity control for the backlight is integrated into our optional BigBanger-specific wire harness, which has been designed to control all modes on two pods.


Power Up: The Morimoto BigBanger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harnesses. This harness is designed to control the pods and their dual intensity backlight with ease. Not one component was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-4S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Amber-LED backlight.

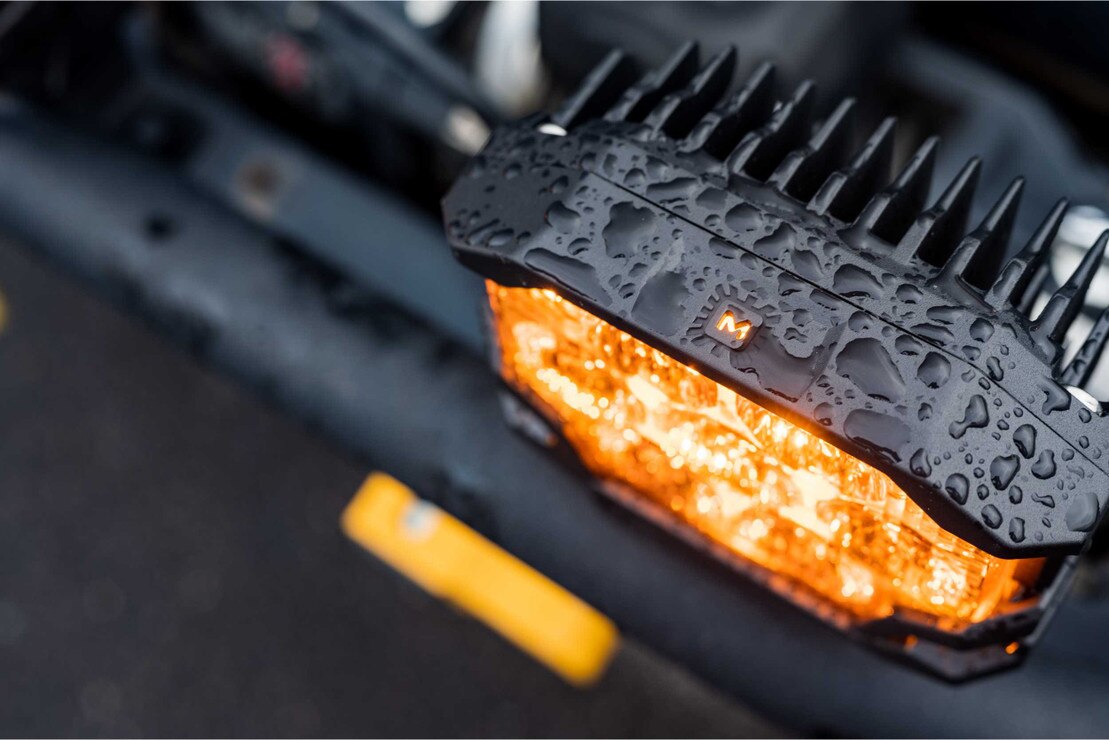

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather)


Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the BigBangers. High power means high heat, which is why the platform is built around a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance.
