DESCRIPTION
FEATURES & BENEFITS
- NCS Spot Beam: A focused 5-degree hot spot for long-range visibility.
- Compact Design: Fits tight spots where full-size pods won't.
- Ultimate Versatility: Mount solo or link for custom light bars.
- All-Weather Reliability: IP69K rated for durability in any conditions.
- Designed for Performance: Sets new standards with cutting-edge technology.
WHAT’S INCLUDED
LED Pods: 2x (One Pair) Morimoto 2Banger NCS Spot (White or Yellow)
Brackets: 2x (One Pair) Universal U-Shape Mounts
Hardware: Complete pack (Stainless Steel)
Optional Wiring: 1x Morimoto Switched Relay Harness or 2x Deutsch DT Pigtails
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Note: These specifications are per pod / each!
Intensity (White): 97,500 Cd (975 lux @ 10m)
Intensity (Yellow): 55,000 Cd (550 lux @ 10m)
Power (stabilized): 13.5W
Current: 1.0A @ 13.5V DC
Peak Luminosity (raw): 900 lm
Dimensions: 81.0mm W, 49.8mm H (63.5mm w/ Bracket), 59.2mm D
Color: 2400K (Yellow) or 5600K (White)
Light Source: 2x Nichia NCSY131F or Nichia NCSW131F
Input: Integrated Deutsch DT 2-Pin
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
LINE DRAWINGS
COMPATIBILITY
Universal: With Included U Brackets
COMPLIANCE
INSTALLATION DOCUMENTS
Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The 2Banger continues that tradition. In fact, the introduction of our entire offroad lineup has been a real wake-up-call for the old players in the category to get back on their game. The brand new, patent-pending line of 2Banger Off-Road LED Pods were completely designed, engineered, and torture tested in the USA, and everything about them is truly next level.

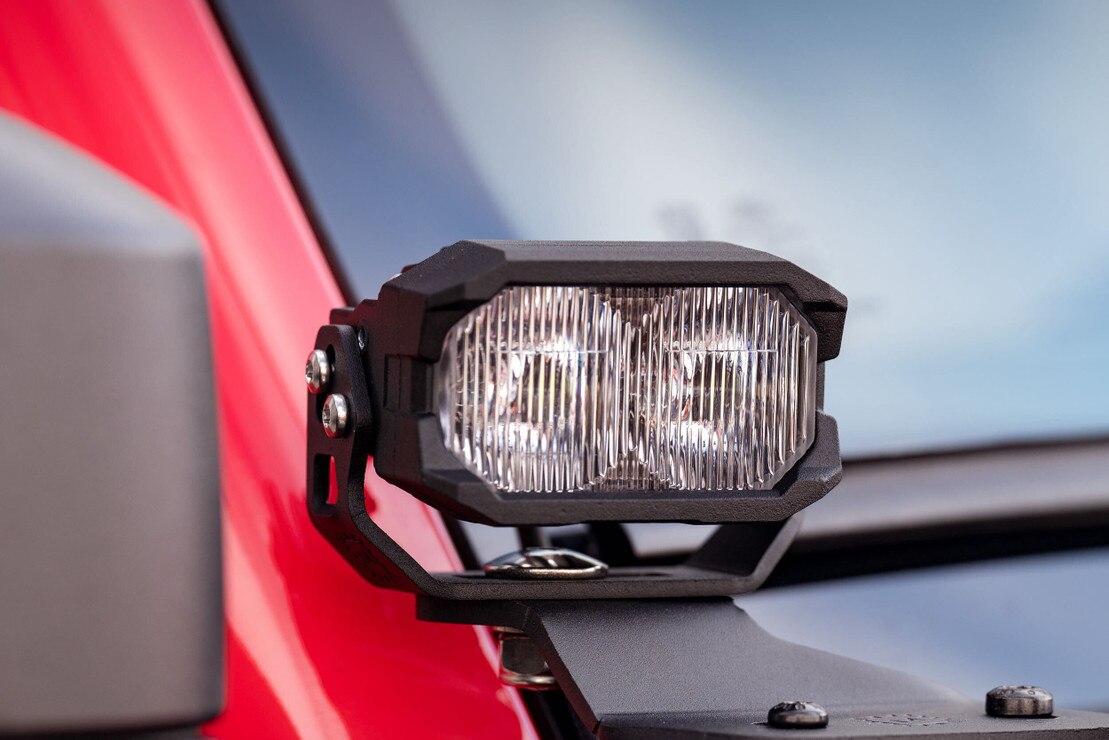

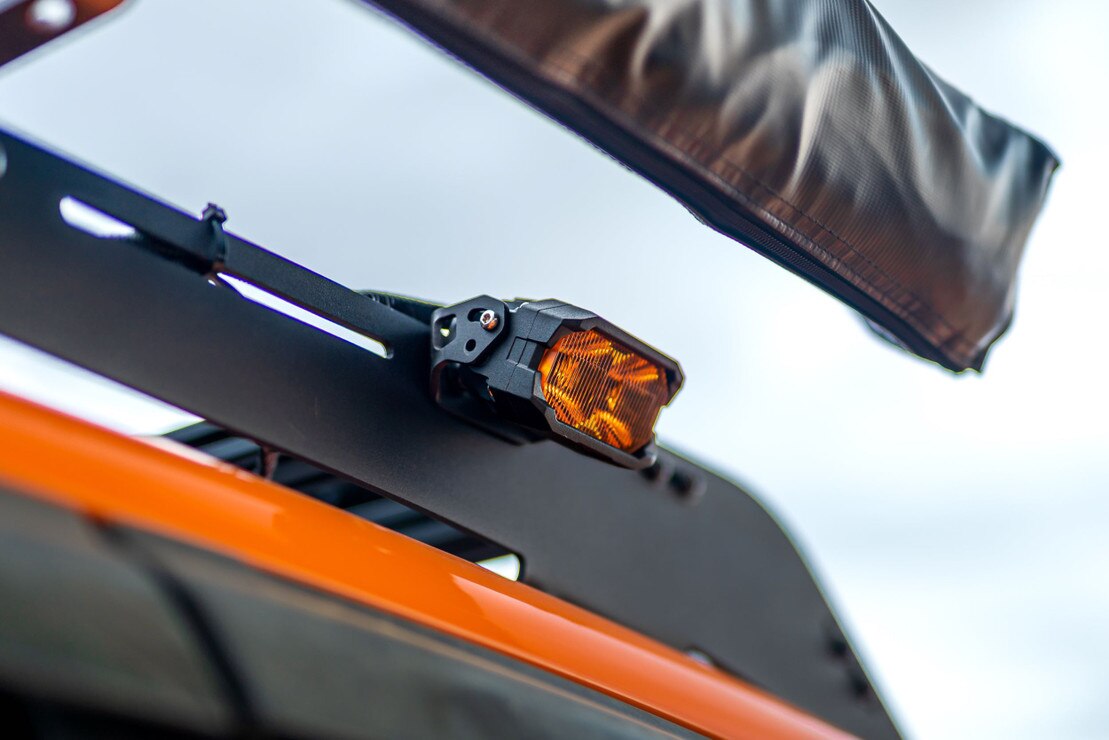

Form Meets Function: The overall footprint of the 2Banger is extremely compact, making them the perfect solution for adding extra light where full-size pods wont work. Each set of Morimoto 2Banger LED pods include a set of adjustable pedestal mounts for a universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for Racks and A-Pillars that make them bolt-on for many of today's most popular trucks. Check out the full lineup for details on what's available for your application.
Performance: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 2Banger is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. With two performance tiers, white or yellow output, and four distinct beam patterns (Wide/Fog, Spot, Combo, and Flood)--there is a 2Banger to suit every performance need and driving style.

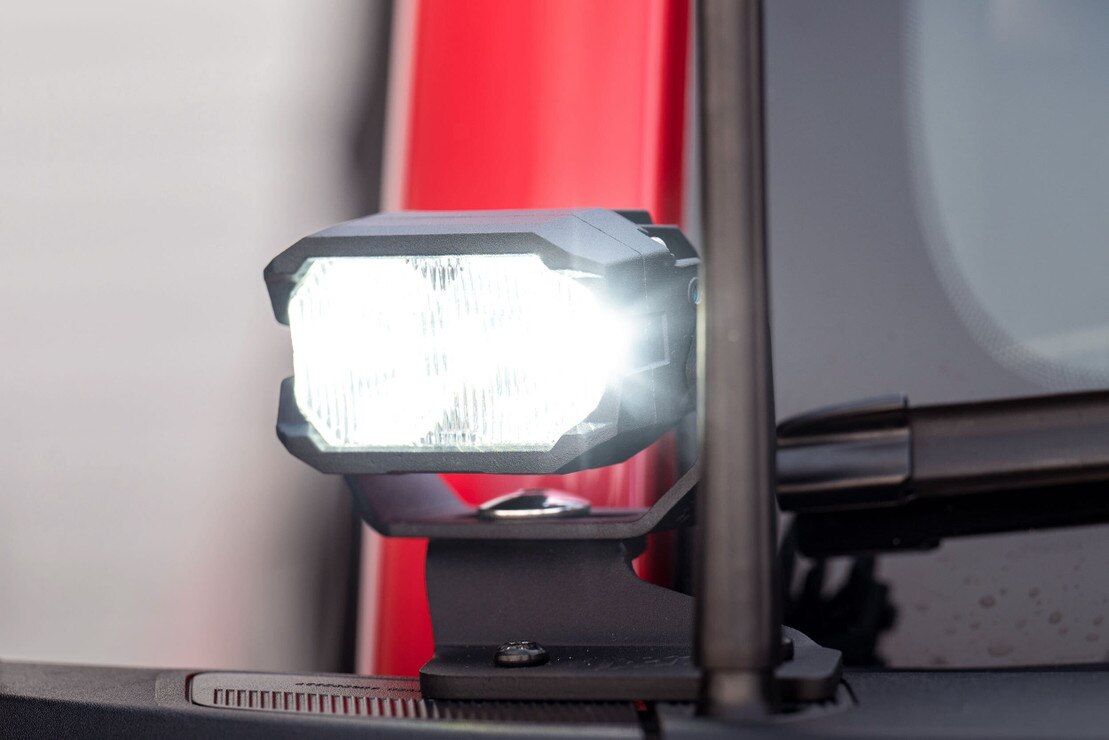

Versatility: The 2Banger can be mounted alone, or linked together into a serious light bar. Each set of pods includes universal pedestal mounts for an easy install on any flat surface, like your steel bumper or the the wide-variety of application-specific A-Pillar brackets we offer. The BangerBar links offer a turn-key way to bolt your Bangers together into a bespoke light bar, where you spec the color of the light. You spec the beam optics. You set the radius. And then you destroy the darkness. For more details, look for product listings dedicated to the BangerBars.
NCS Spot Beam: Illuminates well into the distance. The NCS Spot features a highly focused 5-degree hot spot that's surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long range visibility. While not quite as powerful as the HXB Spot (which uses Osram LEDs), when paired up with a set of NCS Combos, you will have no problems avoiding deer in the distance.

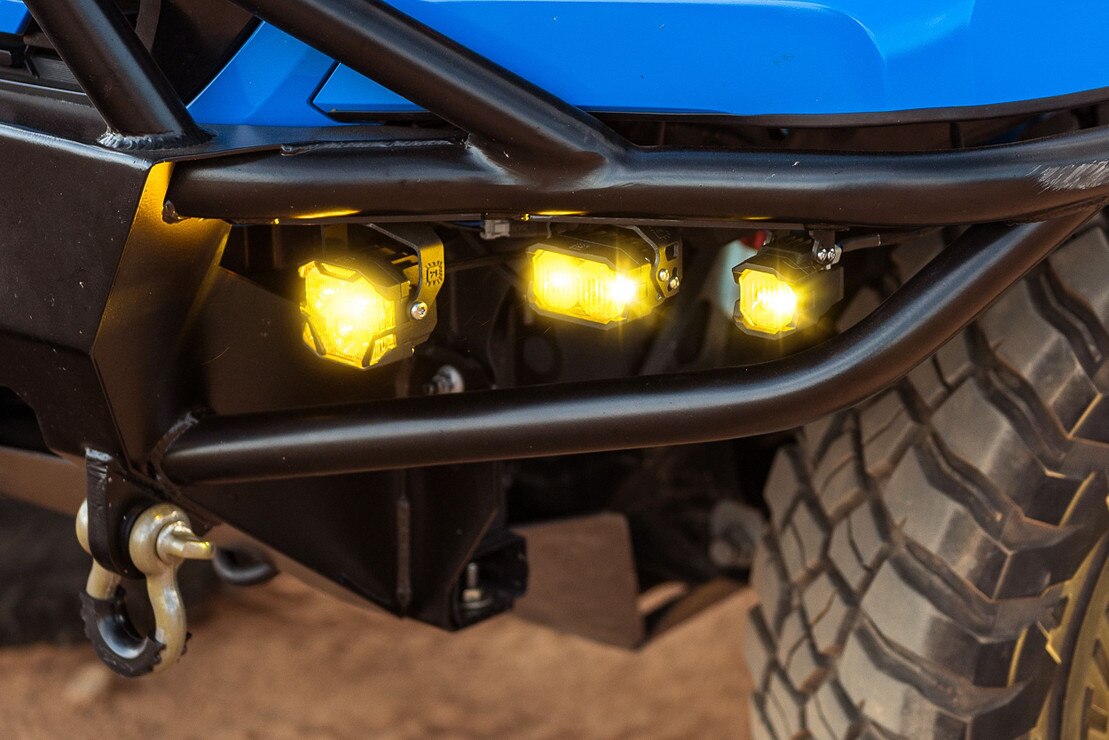

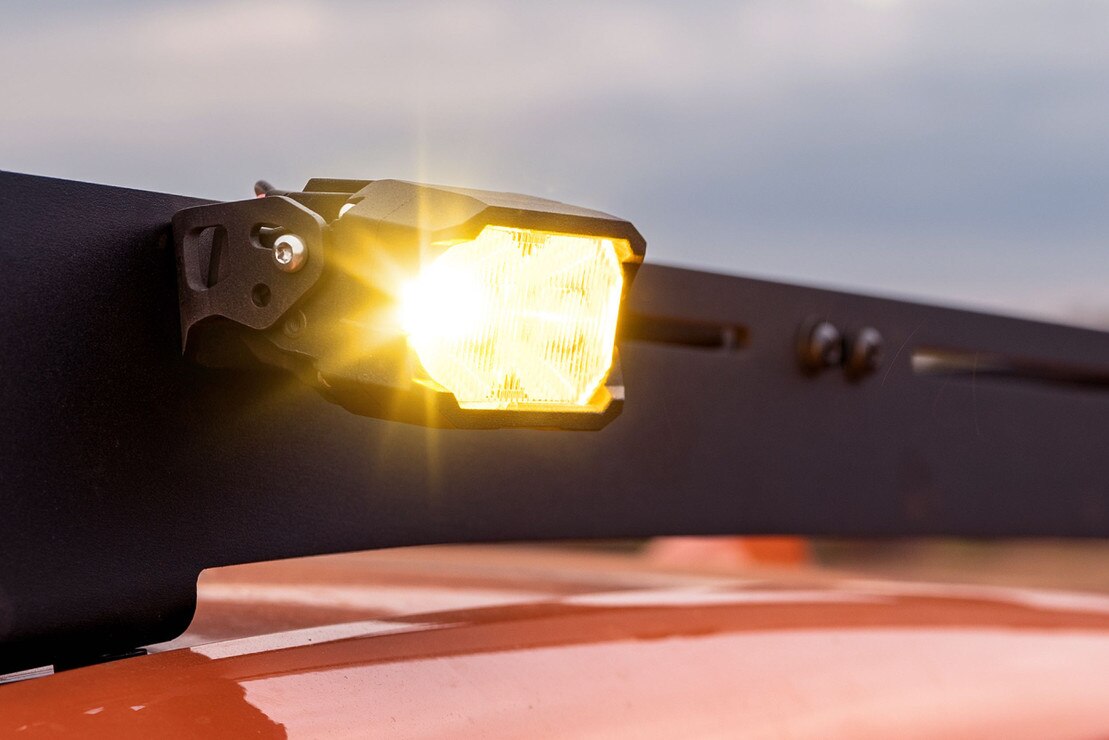

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather)

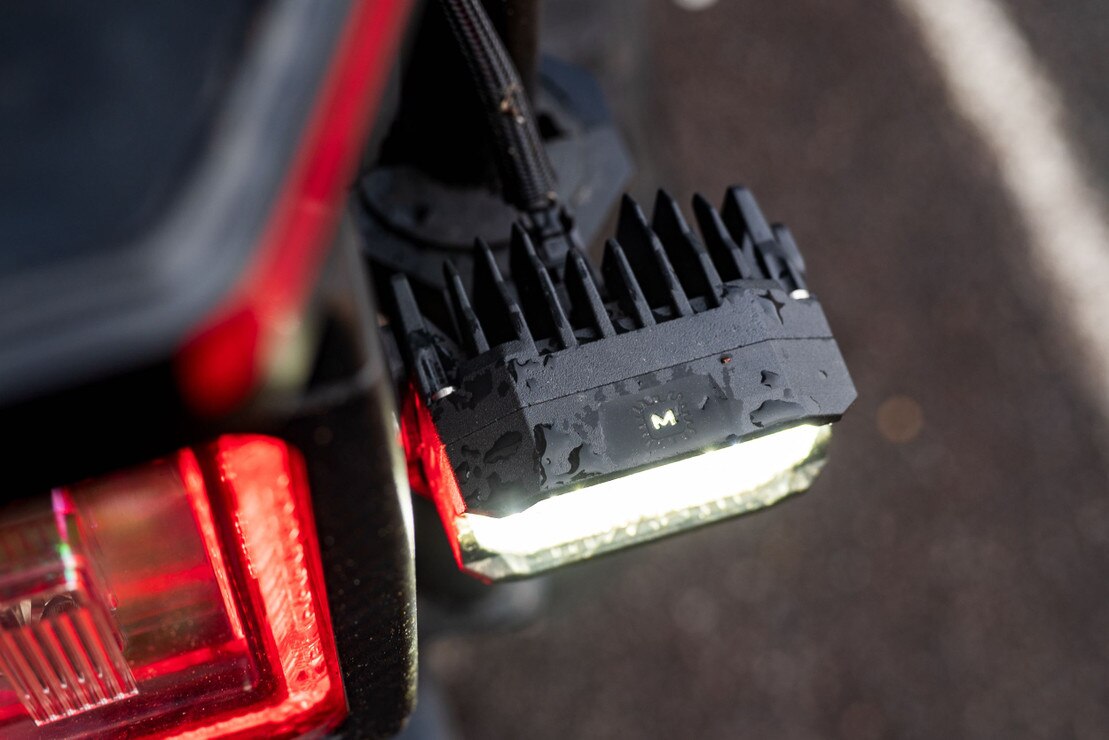

Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 2Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance.
Street Legality: When aimed properly, the Combo beam pattern complies with SAE J581 standards for an auxiliary high beam. If you're looking for a high-performance street-legal LED pod to use as a fog light, the 2Banger wide beam model has been verified compliant with the latest SAE-F3 regulation for on road use by Calcoast Labs in California.
Power Up: The Morimoto 2Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
