2Banger LED Pods: HXB Flood Beam

(0) No Reviews yet
Questions?

Brand: Morimoto

B-2B-HXBFLOOD-MM

$285.00

PRODUCT OPTIONS

PART #: 1 x BAF110



Easy Return

DESCRIPTION

Introducing the Morimoto 2Banger Off-Road LED Pods! Designed, engineered, and torture-tested in the USA, these pods are a game-changer. Their compact footprint makes them perfect for those hard-to-light spots, and they come with adjustable pedestal mounts for universal fitment. These pods boast proprietary technology optimized for maximum performance, with options for white or yellow output. Whether you're into rock crawling, camping, or need reliable fog lights, the 2Banger delivers. The HXB Flood Beam pattern providies ample ambient light with 360-degree coverage, it's perfect for low-speed driving, rock crawling, back-up lights, or illuminating your campgrounds. Flood optics may not project far into the distance, but they're undoubtedly the weapon of choice for comfortably illuminating everything in your immediate vicinity. Don't compromise on quality – trust in Morimoto's reliability standards with features like a copper DTP PCB, IP69K weather resistance, and compliance with street-legal standards. Plus, enhance your setup with our top-notch wire harness.

FEATURES & BENEFITS

  • Compact Design: Fits tight spaces.
  • Proprietary Tech: Max performance, various beam patterns, and output choices.
  • HXB Flood Beam: Ideal for low-speed driving, rock crawling, and campgrounds.
  • Reliability: Copper DTP PCB, IP69K weather resistance, and street-legal compliance.
  • Enhanced Wire Harness: Premium components for an upgraded lighting setup.

WHAT’S INCLUDED

  • LED Pods: 2x (One Pair) Morimoto 2Banger HXB Flood (White or Yellow)

  • Brackets: 2x (One Pair) Universal U-Shape Mounts

  • Hardware: Complete pack (Stainless Steel)

  • Optional Wiring: 1x Morimoto Switched Relay Harness or 2x Deutsch DT Pigtails

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity (White): 900 Cd (9 lux @ 10m)

  • Intensity (Yellow): 625 Cd (6.25 lux @ 10m)

  • Power (stabilized): 24.0W

  • Current: 1.78A @ 13.5V DC

  • Peak Luminosity (raw): 2,000 lm

  • Dimensions: 81.0mm W, 49.8mm H (63.5mm w/ Bracket), 59.2mm D

  • Color: 2700K (Yellow) or 5700K (White)

  • Light Source: 2x Osram HX Boost

  • Input: Integrated Deutsch DT 2-Pin

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

LINE DRAWINGS

COMPATIBILITY

  • Universal: With Included U Brackets

INSTALLATION DOCUMENTS

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The 2Banger continues that tradition. In fact, the introduction of our entire offroad lineup has been a real wake-up-call for the old players in the category to get back on their game. The brand new, patent-pending line of 2Banger Off-Road LED Pods were completely designed, engineered, and torture tested in the USA, and everything about them is truly next level.

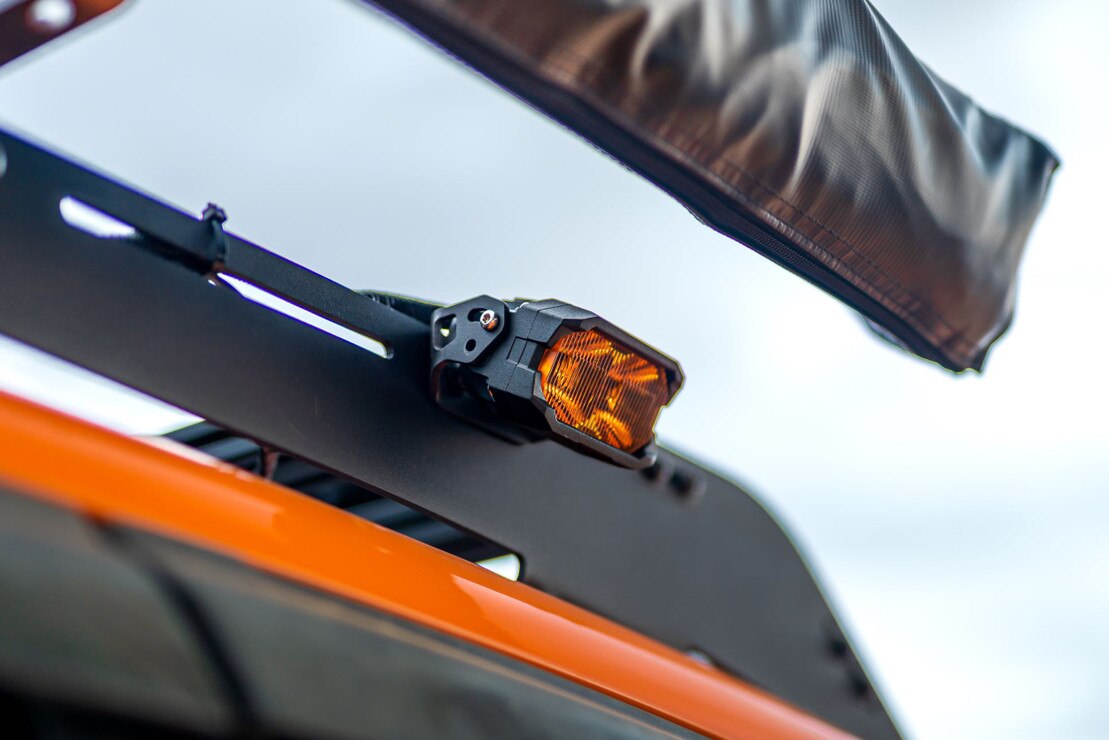

Form Meets Function: The overall footprint of the 2Banger is extremely compact, making them the perfect solution for adding extra light where full-size pods wont work. Each set of Morimoto 2Banger LED pods include a set of adjustable pedestal mounts for a universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for Racks and A-Pillars that make them bolt-on for many of today's most popular trucks. Check out the full lineup for details on what's available for your application.


Performance: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 2Banger is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. With two performance tiers, white or yellow output, and four distinct beam patterns (Wide/Fog, Spot, Combo, and Flood)--there is a 2Banger to suit every performance need and driving style.


Versatility: The 2Banger can be mounted alone, or linked together into a serious light bar. Each set of pods includes universal pedestal mounts for an easy install on any flat surface, like your steel bumper or the the wide-variety of application-specific A-Pillar brackets we offer. The BangerBar links offer a turn-key way to bolt your Bangers together into a bespoke light bar, where you spec the color of the light. You spec the beam optics. You set the radius. And then you destroy the darkness. For more details, look for product listings dedicated to the BangerBars.

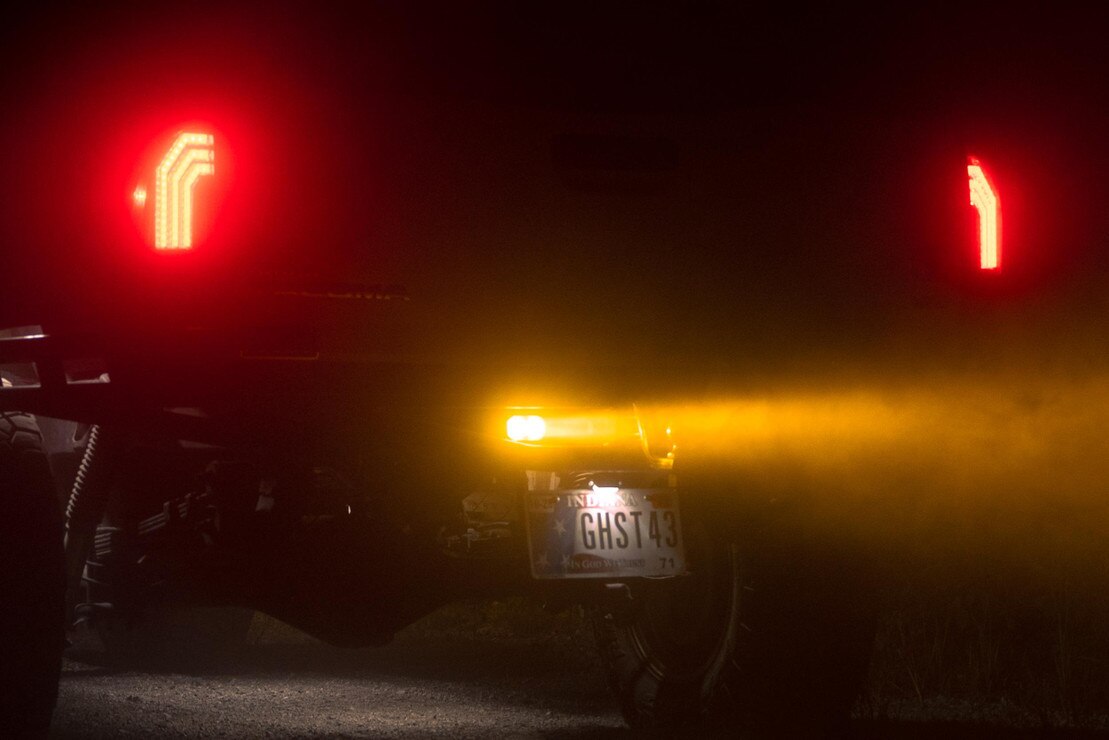

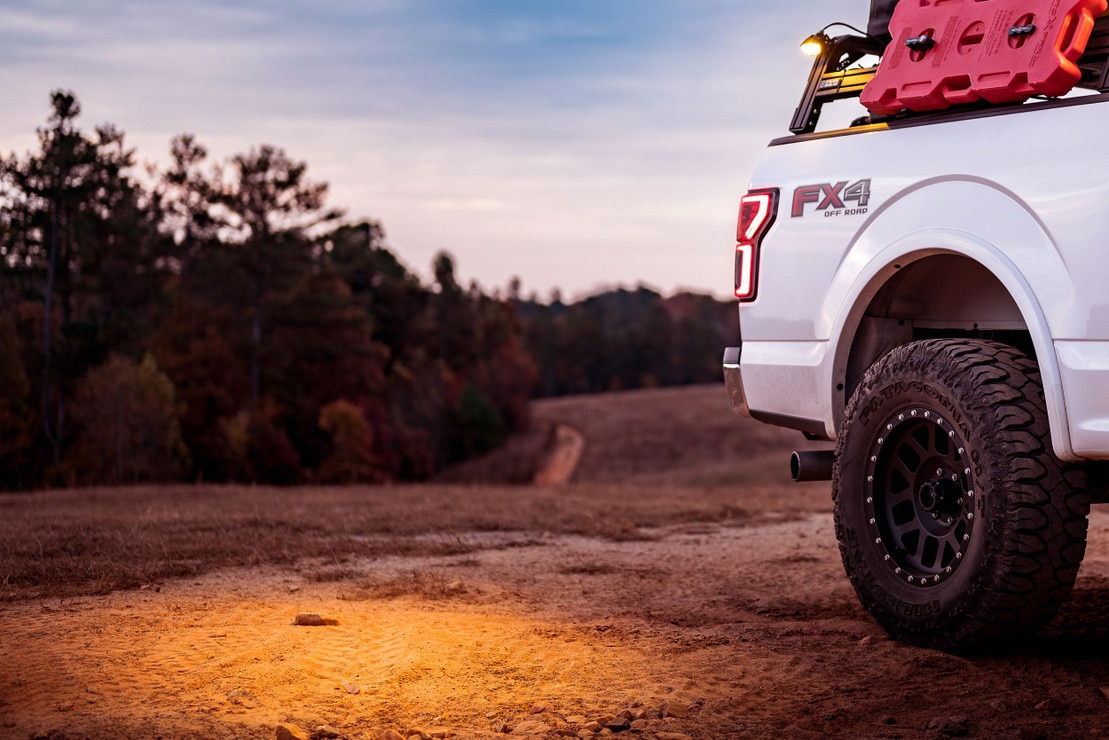

HXB Flood Beam: Provides plenty of ambient light with coverage in every direction, making them the perfect solution for low-speed driving, rock crawling, back-up lights, or even illuminating your campgrounds. Flood optics do not project far into the distance, but are the undoubtedly the weapon of choice for comfortably illuminating everything in your local space.

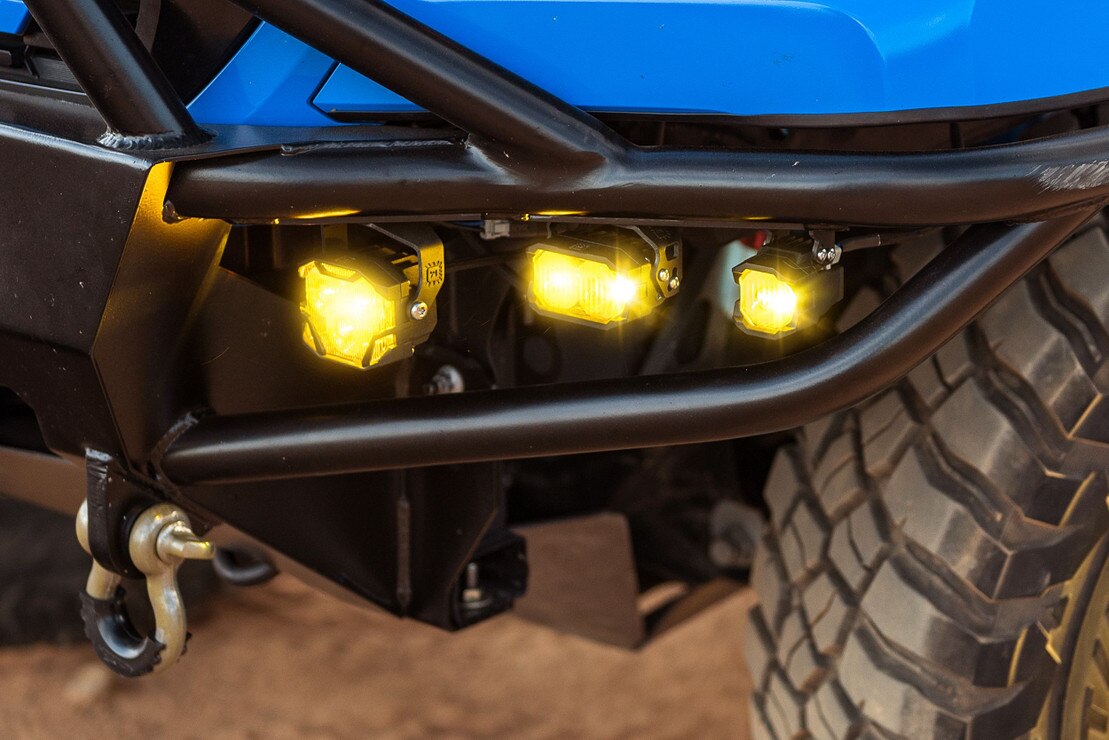

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather)


Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 2Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance.


Street Legality: When aimed properly, the Combo beam pattern complies with SAE J581 standards for an auxiliary high beam. If you're looking for a high-performance street-legal LED pod to use as a fog light, the 2Banger wide beam model has been verified compliant with the latest SAE-F regulation for on road use by Calcoast Labs in California.


Power Up: The Morimoto 2Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
