DESCRIPTION
FEATURES & BENEFITS
- Bolt-On: Powdercoated steel brackets designed especially for the Bronco pair with CNC machined hardware on the Banger Bar make for an easy yet bulletproof installation.
- Maximum Output: The 2Banger Bar is the brightest light bar in its class on the market for the Ford Bronco, and available in two performance tiers.
- Optimized: Incredible output from our spot, combo, and wide beam optics and are available in either white or yellow.
- No Compromise: Produced from the best materials, lab-tasted for compliance with all performance and safety standards, they are backed with a lifetime warranty.
- USA: Completely designed, engineered, tested and distributed by Morimoto, here in the USA.
WHAT’S INCLUDED

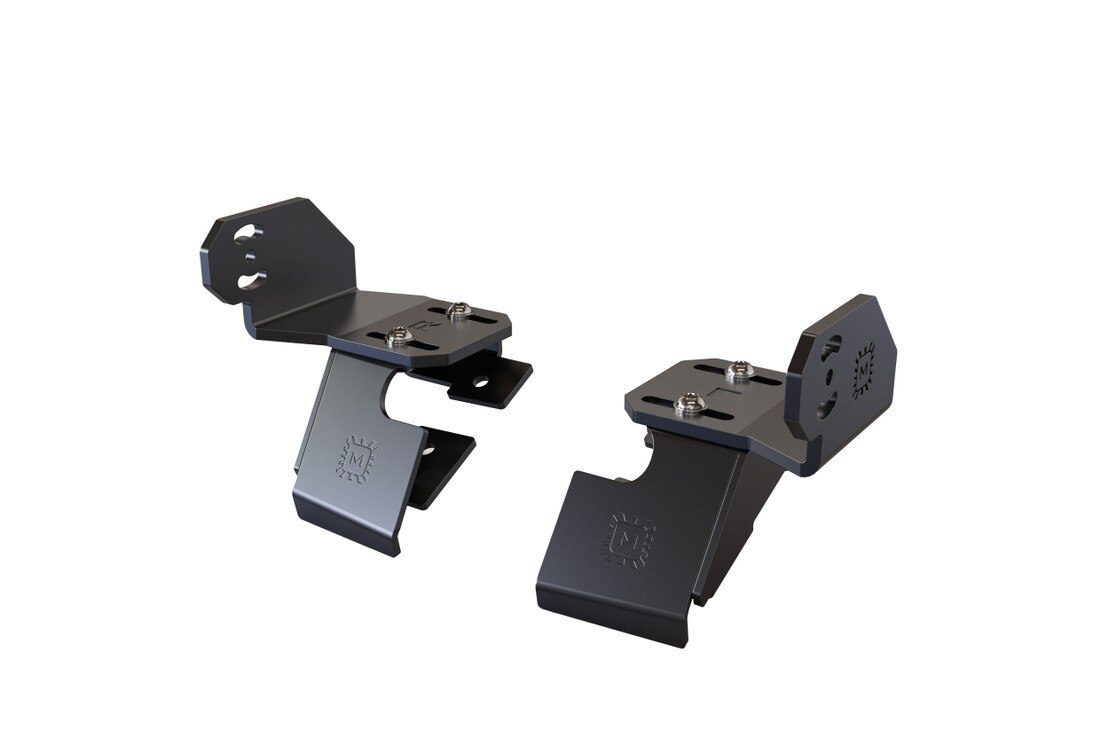

Mounts: 2x Bronco-specific Roof Mounts (BAF080)
LED Pods: 12x Morimoto 2Banger (Color / Tier)
Pod Links: 11x 2Banger Adjustable CNC Links

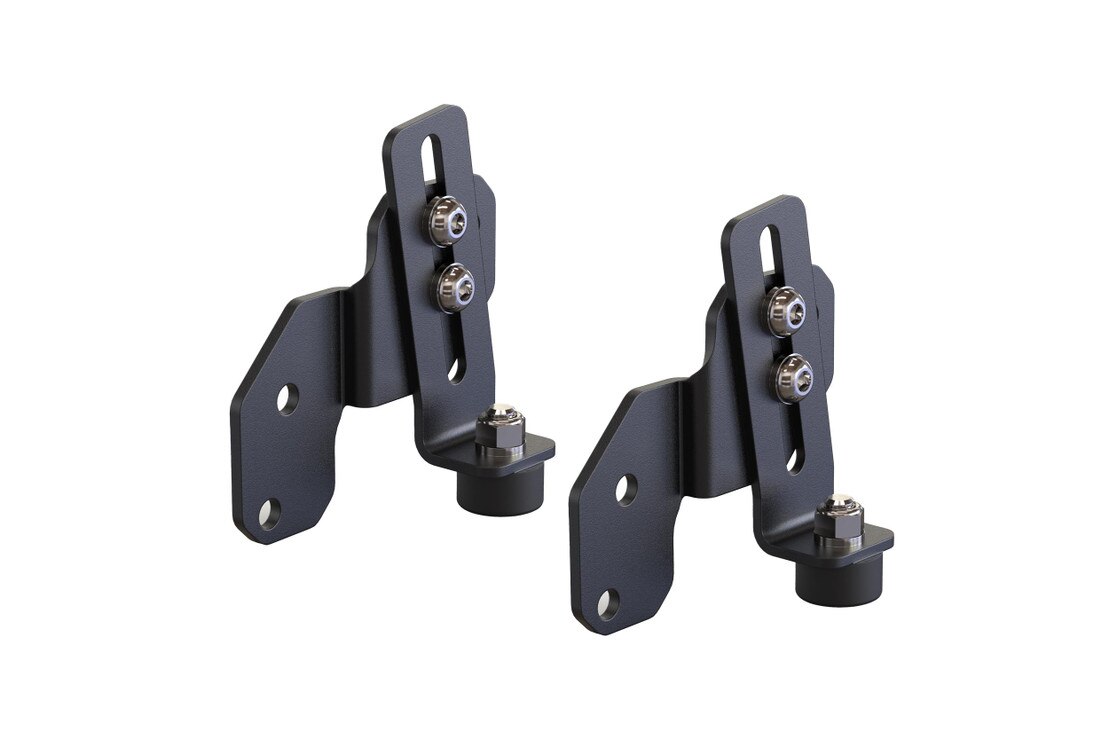

Center Support Legs: 2x Central Support Legs

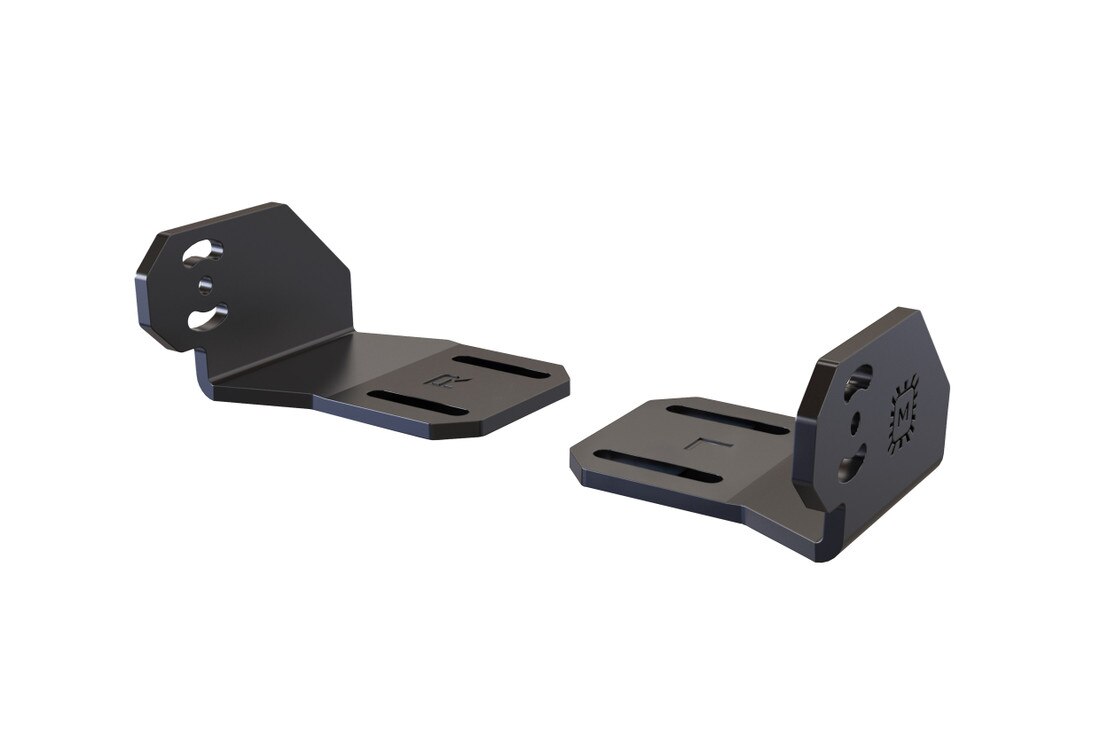

Mounting Feet: 2x Bronco Specific L-Brackets (BAF080-2B)
Hardware: Complete kit of stainless steel mounting hardware
Relay Harness: 1x Morimoto Switched Relay Harness
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Peak Luminosity (raw): 10,800lm (NCS), 24,000lm (HXB)
Intensity (HXB White): 555,800 Cd (5,558 lux @ 10m)
Intensity (HXB Dual Color): 547,200 Cd (5,472 lux @ 10m)
Intensity (HXB Yellow): 367,700 Cd (3,677 lux @ 10m)
Intensity (NCS White): 356,100 Cd (3,561 lux @ 10m)
Intensity (NCS Dual Color): 348,600 Cd (3,486 lux @ 10m)
Intensity (NCS Yellow): 184,200 Cd (1,842 lux @ 10m)
Power (stabilized): 162.0w (NCS), 288.0w (HXB)
Current (amps @ 13.5V DC): 18.00A (NCS), 21.33A (HXB)
COMPATIBILITY
Ford Bronco: 2021+ (base, Big Bend, Black Diamond, Outer Banks, Badlands, Wildtrak, or Everglades)
Bronco Raptor: 2023+
INSTALLATION DOCUMENTS

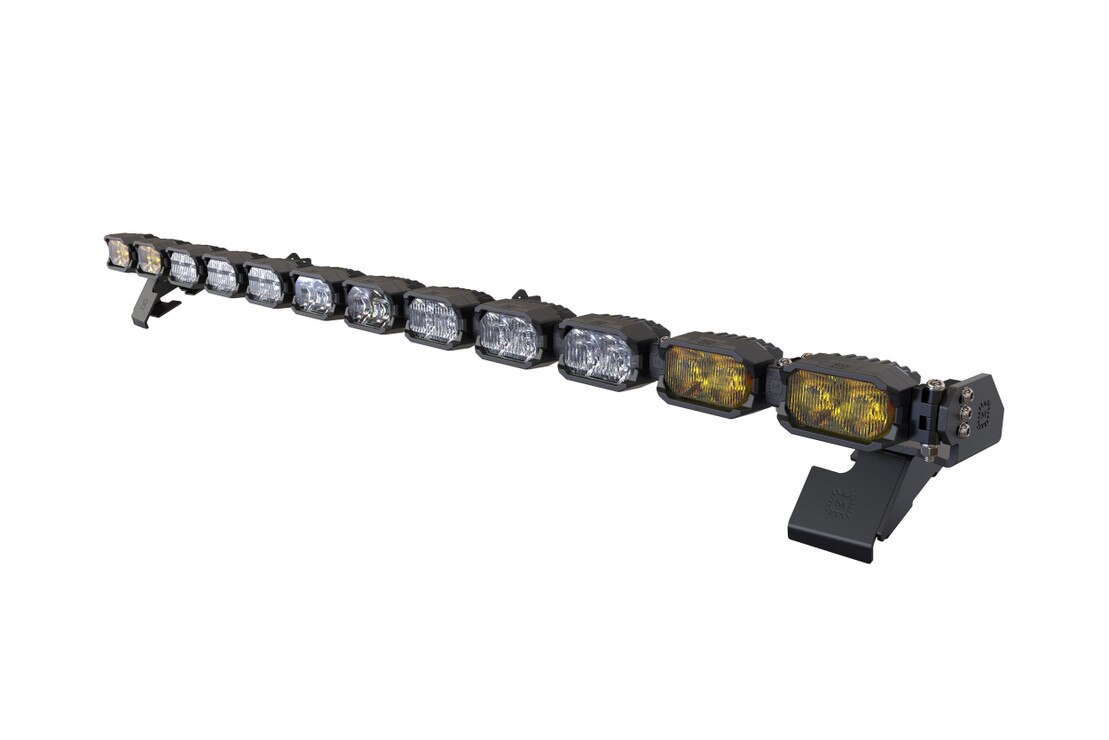

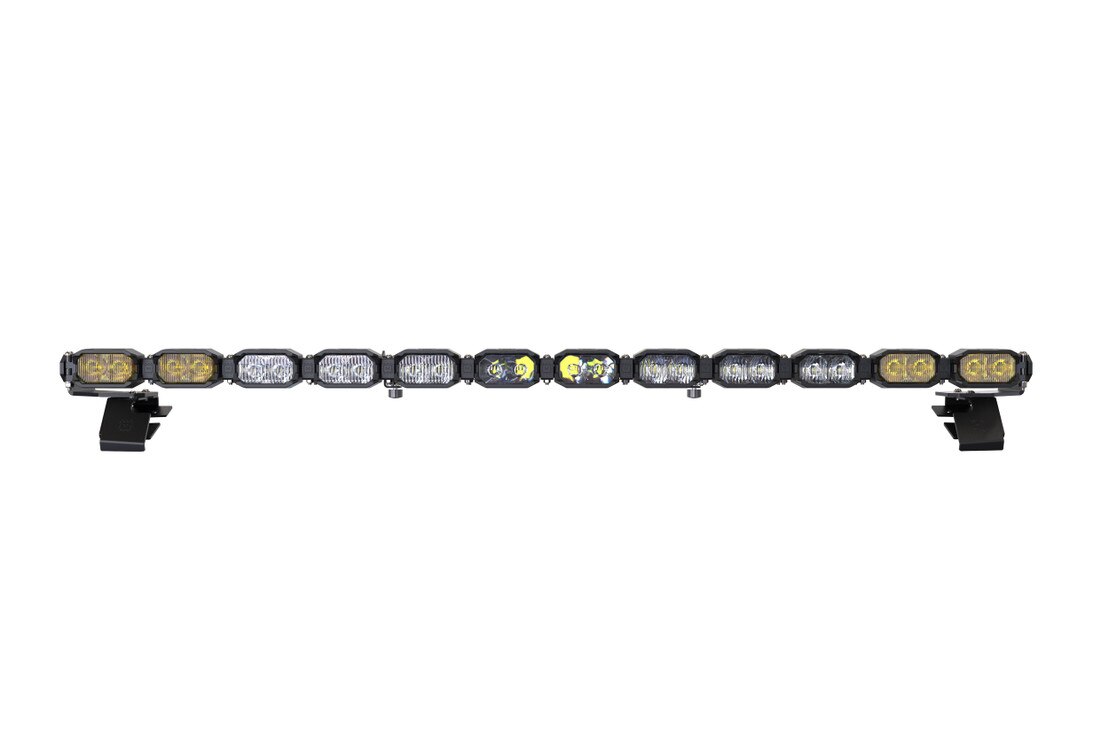

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. Our Ford Bronco roof-mount LED 2Banger Bar system continues that tradition as a turn-key LED light bar, where you specify the power, the color, and then you destroy the darkness.
2Banger NCS and HXB: The 2Banger packs industry-leading performance into their compact footprint, making them the perfect platform for the Banger Bars. The NCS version provides maximum bang for the buck and out-performs most everything else in their class. The HXB version sits at the top of the performance totem-poll, produces maximum output. With the latest LED chips from Osram inside, each pod is a serious powerhouse of its own.
Performance: The 2Banger Bars are configured to pack some serious punch by pairing our combo, spot, and wide beam pods into a high output light bar. LucidShape and SolidWorks were used to optimize both optical and thermal performance around the most modern, lumen-dense LEDs from Nichia and Osram. With two performance tiers, white, yellow or a white/yellow combo setup, there is a 2Banger Bar to suit every p(more...)
